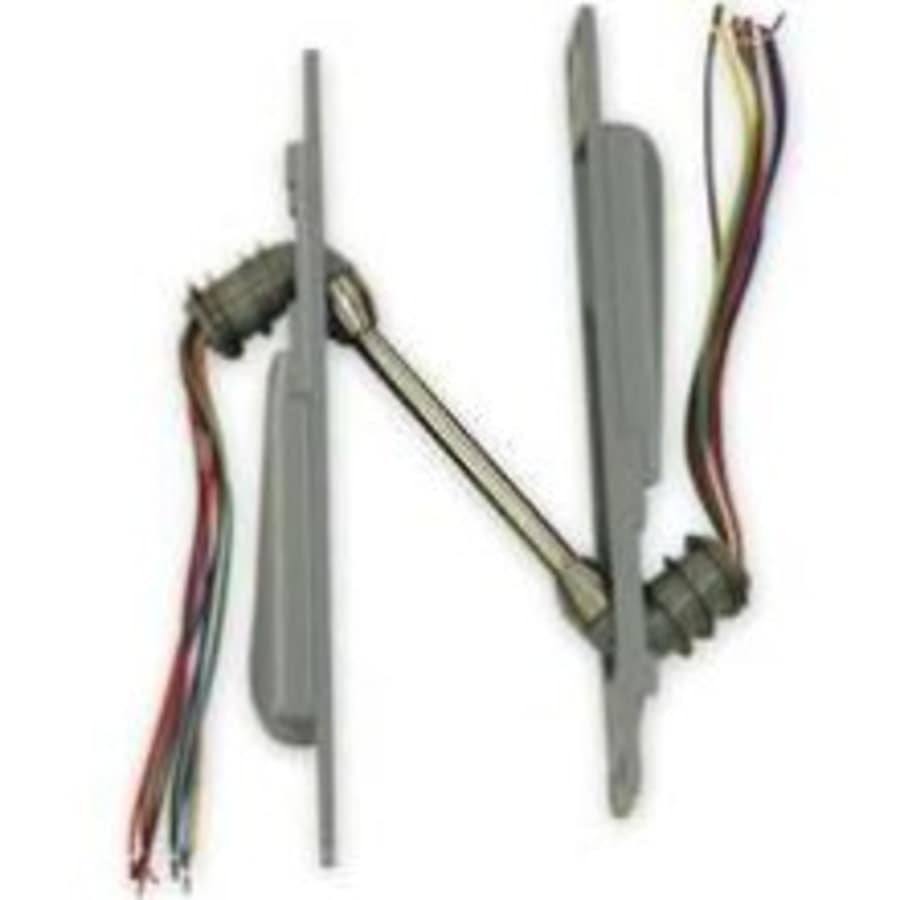

Electric Power Transfer with 24 Gauge Wires
An electric power transfer provides a wiring path from the door to the frame. This product can be used on doors at least 1-3/4″” thick. The EPT10 is NOT compatible with 1-1/2″” offset pivots, larger than 6” butt hinges, pocket pivots,• swing clear hinges,• center hung door, (center pivot), balanced door.
Over the years, Von Duprin has been an innovator in many new concepts to the industry. Currently, Von Duprin manufactures the widest range of exit devices and outside trim operations, all designed to meet the needs of architects and building owners.
Includes Ten 24 Gauge Wires
Max Rating: 24VDC, 1A
When installing on a 1-3/4″ thick door, the EPT10 is compatible with the following specifications:
0 – 180° opening with up to 5 butt hinges
0 – 180° opening with up to 3/4″ offset pivots
0 – 130° opening with 5-1/2″ butt hinges
0 – 110° opening with 6 butt hinges
Additional Von Duprin Links
Browse all Von Duprin Products
Specifications
| Door Thickness | 1-3/4" |
| Approved for Commercial Use | Yes |
| Voltage | 24 |
| Color | Lacquer Sprayed Aluminum |
| Color Tone | Neutrals |
