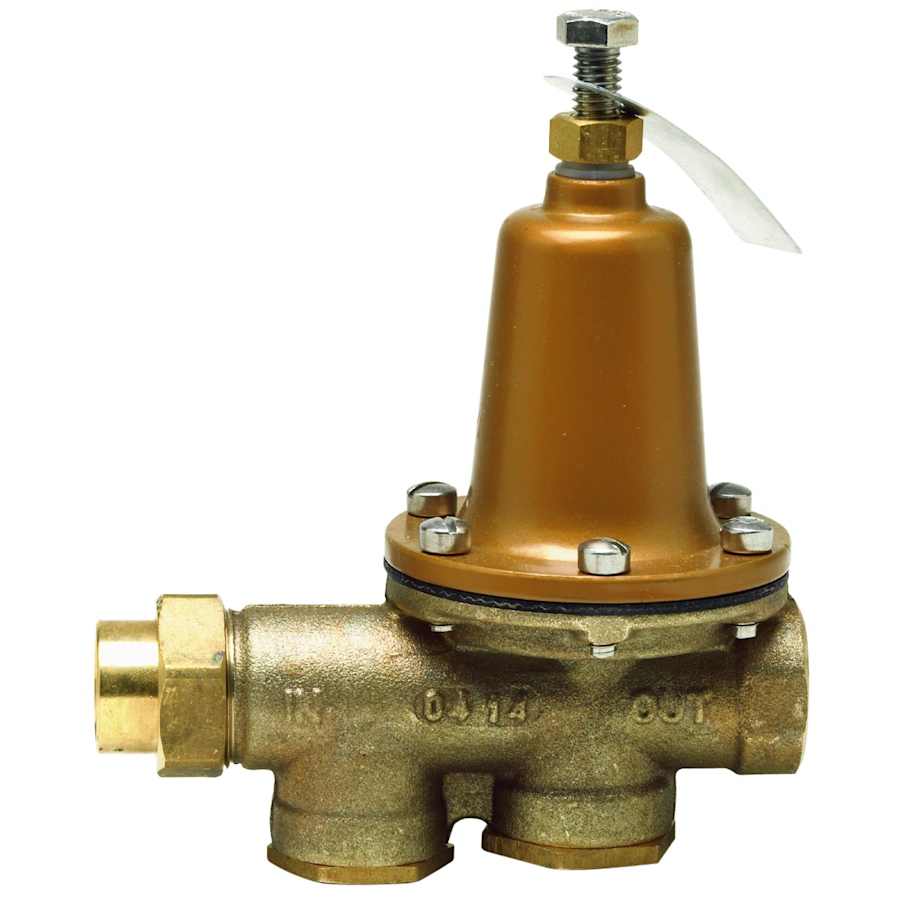

This 1″ lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75 to 125 PSI (518 to 863 kPa) with the standard setting at 90 PSI (621 kPa).
Watts 0009329 Features:
NPT female union X NPT female
High range 75-125 PSI
Bypass feature controls thermal expansion pressure
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Replaceable seat module
Additional Watts Links
Browse all Watts Products
Specifications
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Material | Brass |
| Water Connection | 1" |
