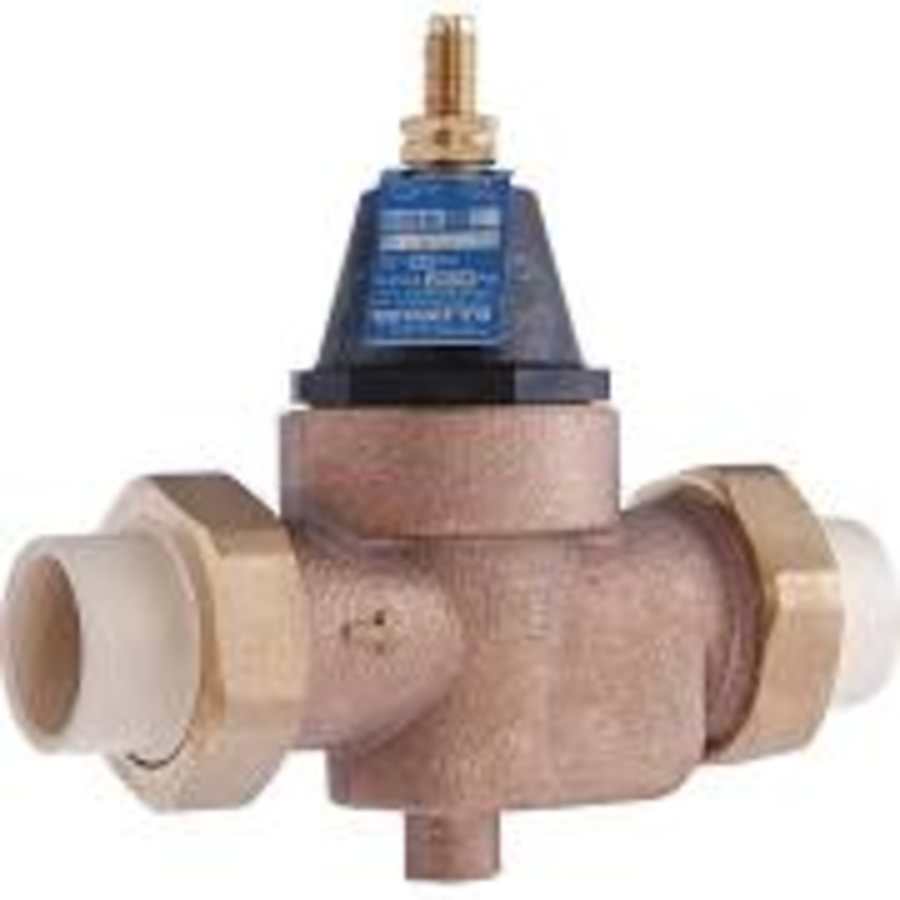

Watts LFN45B 3/4″ Water Pressure Reducing Valve with CPVC Connections

LFN45B 3/4″ Water Pressure Reducing Valve with CPVC Connections

Series N45B water pressure reducing valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is suitable for water supply pressures up to 300psi (20.7 bar) and may be adjusted from 25 – 75psi (172 – 517 kPa). The standard setting is 50psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.

Watts 0009486 Features:
Double union inlet and outlet connections
Integral stainless steel strainer
Thermoplastic seat and cage
Bronze body construction
Serviceable in line
Bypass feature controls thermal expansion pressure
Sealed spring cage on all models for accessible outdoor or pit installations
Watts 0009486 Specifications:
Height: 6-1/4″
Length: 5-1/16″
Width: 2-1/4″
Material: Bronze
Connection Size: 3/4″
Connection Type: CPVC / CPVC
Weight: 2.1 lbs.
