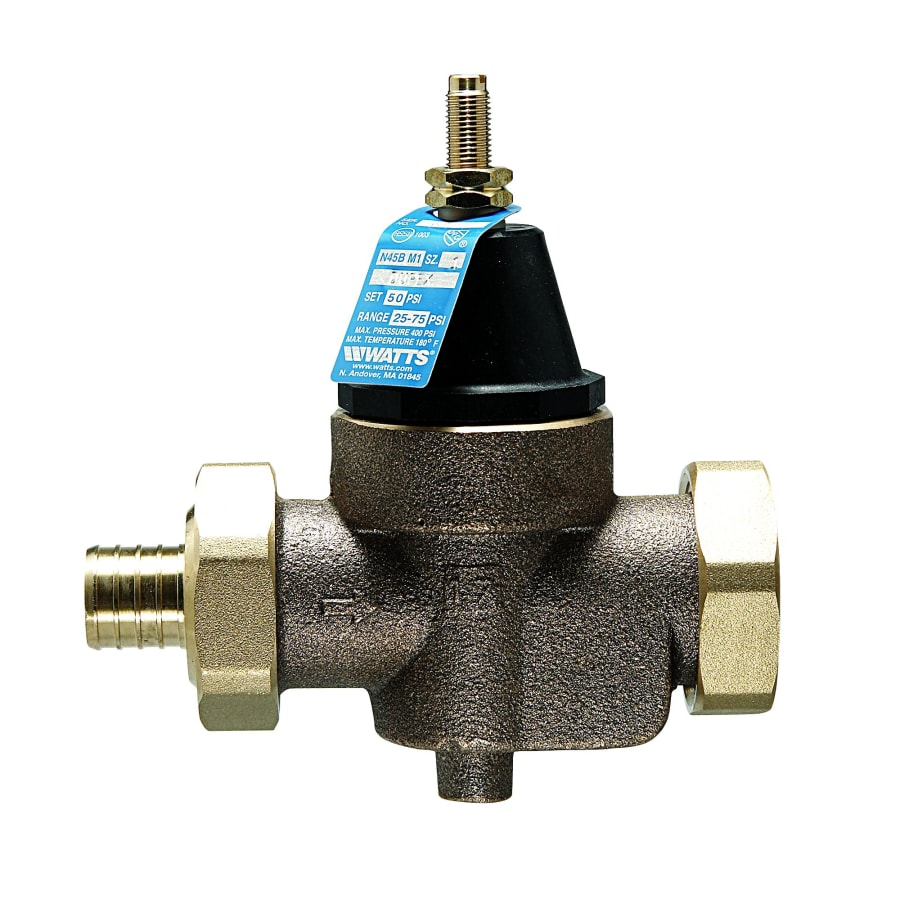

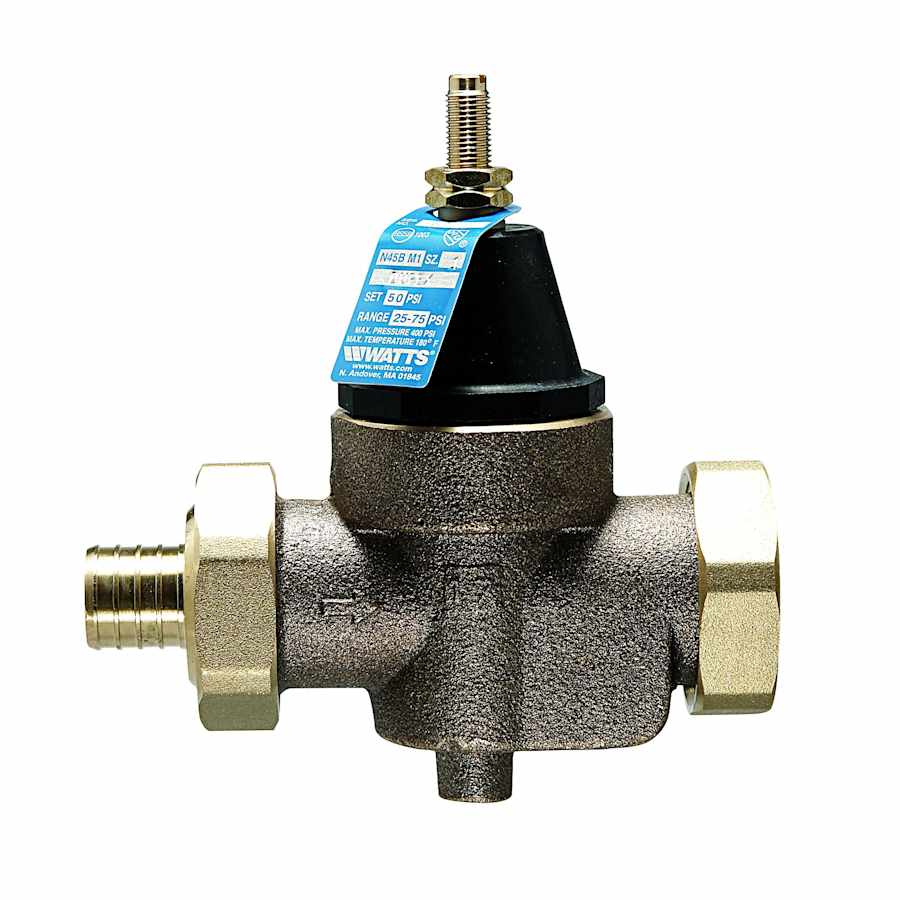

This 1″ lead free brass cartridge style water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing components and reduce the water consumption for commercial, industrial and residential applications. It features a lead free brass body, thermoplastic seat cartridge, crimp union end connections, reinforced diaphragm, and a bypass valve to control thermal expansion pressure. The reduced pressure rating is set at 50 PSI (345 kPa). The maximum working pressure is 400 PSI (27.6 BAR) and temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).
Watts 0125319 Features:
Adjustable 25-75 PSI and Max Work 400 PSI
Lead free brass body
Crimp double union end connections for PEX tubing
Bypass valve controls thermal expansion pressure
Sealed spring cage for accessible outdoor or pit installations
Additional Watts Links
Browse all Watts Products
Specifications
| Material | Brass |
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Water Connection | 1" |
Reviews
There are no reviews yet.
