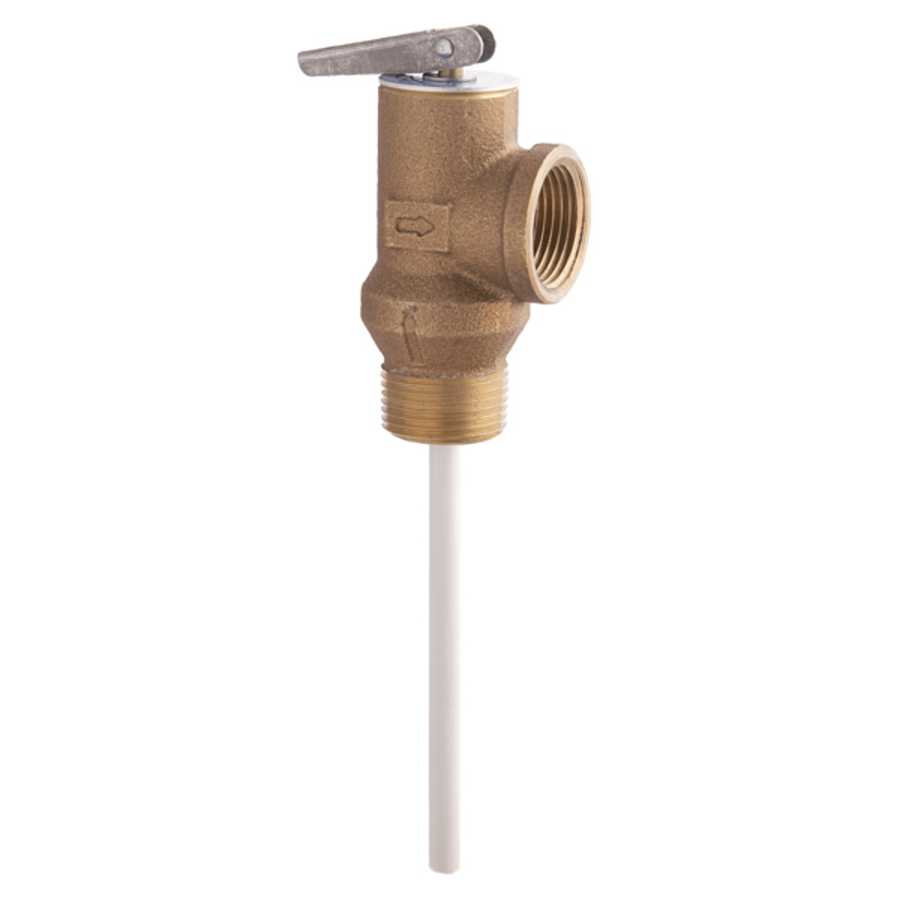

LF100XL 3/4″ Lead Free Temperature and Pressure Relief Valve
The combined 2 in 1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.
Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR. Series LF100XL furnished with test lever and extension thermostat for installation in the hot water outlet line or directly in the tank tapping. Temperature sensing element must be immersed in the water within the top 6″ (152mm) of the tank. Male inlet and female outlet. Temperature relief 210 degrees F (99 degrees C).
Watts 0556000 Features:
Features a unique thermostat with special thermo-bonded coating
lead free copper alloy body
Stainless steel spring
Exclusively designed and manufactured thermostat is accurate and proven
Watts 0556000 Specifications:
Height: 7-1/2″
Length: 1-3/4″
Material: Copper
Connection Size: 3/4″
Connection Type: NPT
Weight: 0.57 lbs.
Additional Watts Links
Browse all Watts Products
Watts LF100XL Collection
Specifications
| Height | 7.5 in. |
| Product Weight | .57 lbs. |
| Length | 1.75 in. |
| Water Connection | 3/4" |
| Material | Copper |
| Water Connection Type | NPT |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
