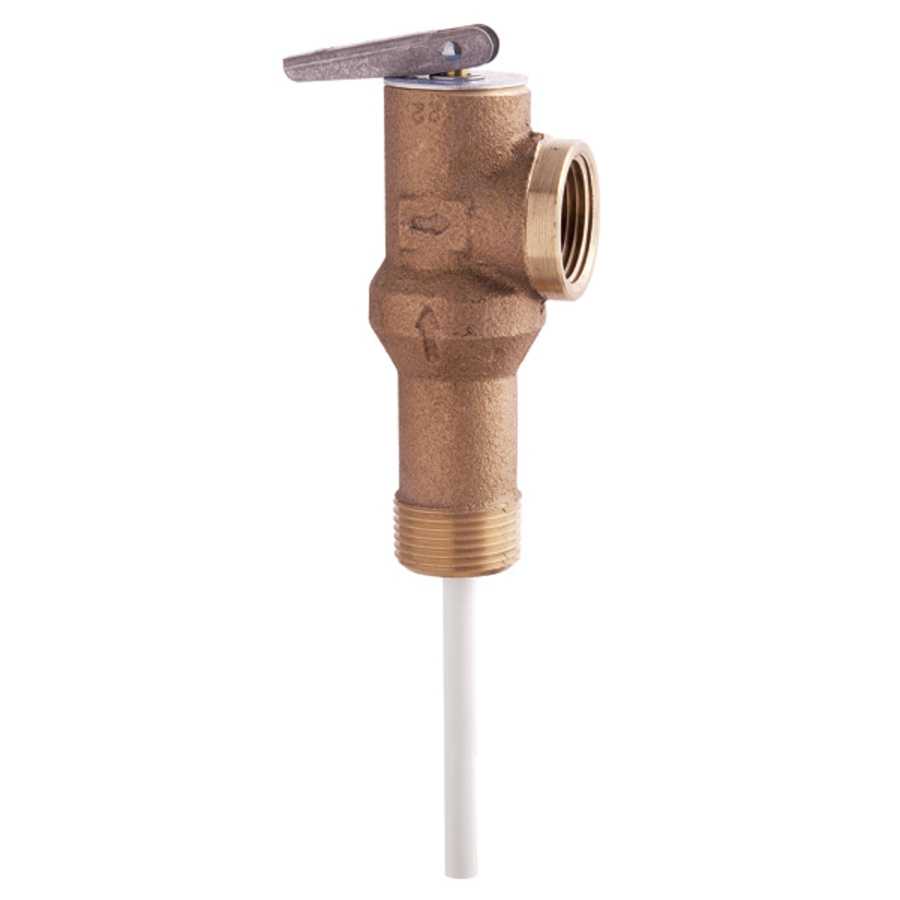

LFL100XL 3/4″ Lead Free Extended Shank Temperature and Pressure Relief Valve
Watts Series LFL100XL has extended inlet shanks for use with the new generation of water heaters containing extra thick insulation. These valves eliminate the use of an extension nipple required with standard shank length models. They feature lead free construction to comply with lead free installation requirements.
The combined 2-in-1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.
Watts Self-closing combination temperature and pressure relief valves are design certified, rated and listed by CSA to the requirements of ANSI Z21.22; and by the National Board to the requirements of ASME Section IV.
They provide fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/Hr. The temperature sensing element must be immersed in the water within the top 6″ (152mm) of the tank. Male inlet and female outlet. Temperature relief 210 degrees F (99 degrees C).
Watts 0556003 Features:
Extended inlet model for installations with thick insulation
Suitable for water heaters with up to 2″ (50.8mm) of insulation
Thermostats with special protective coating
All Lead free brass body
Stainless steel spring
Exclusively designed and manufactured thermostat is accurate and proven
Watts 0556003 Specifications:
Height: 4-1/4″
Length: 1-7/8″
Material: Brass
Connection Size: 3/4″
Weight: 0.67 lbs.
Additional Watts Links
Browse all Watts Products
Watts LFL100XL Collection
Specifications
| Height | 4.25 in. |
| Product Weight | .67 lbs. |
| Length | 1.875 in. |
| Water Connection | 3/4" |
| Material | Brass |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
