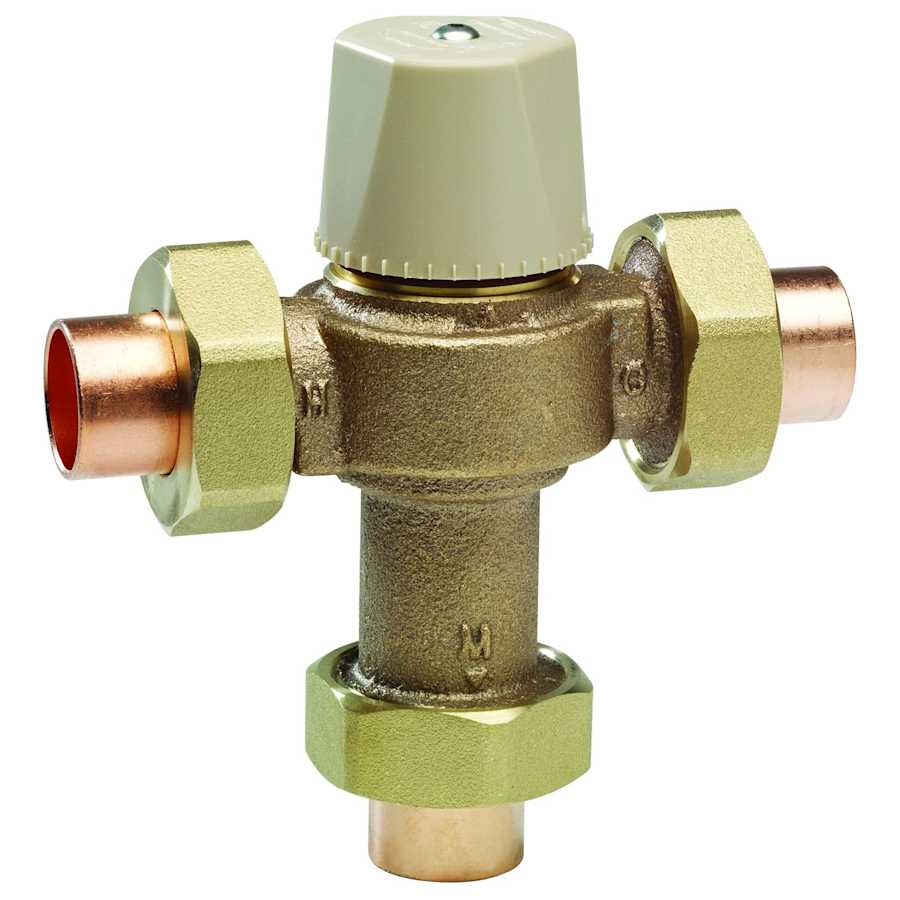

This 3/4″ lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 PSI (10.3 BAR).
Watts 0559118 Features:
Lead free brass construction
Thermal actuation technology for precise temperature control
Locking mechanism secures temperature setting
ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
Additional Watts Links
Browse all Watts Products
Specifications
| Material | Brass |
| Valve Type | Thermostatic |
| Approved for Commercial Use | Yes |
| Certifications | ASSE |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| ASSE Code | 1017, 1069, 1070 |
| Water Connection | 3/4" |
| Temperature (Max) | 120 °F |
| Temperature (Min) | 80 °F |
