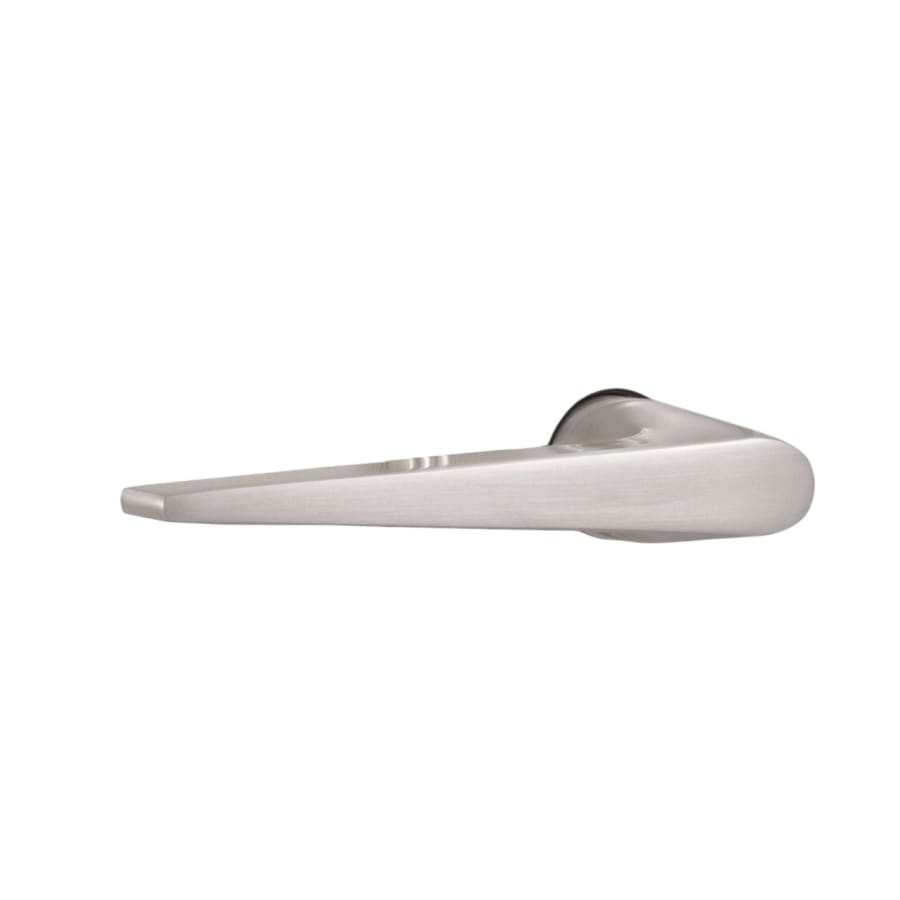

Weslock 66022 Double Cylinder Interior Pack Featuring an Urbana Lever from the Elegance, Urbana Collections
The entry function has a button on the inside which can lock the outside lever until a key is used outside or the lever is rotated inside. The double cylinder is like a normal cylinder except a key is required to unlock the deadbolt outside or inside. Double Cylinder Handlesets are recommended for doors with or near glass. This interior pack can be used with the Philbrook or Mansion exterior handles.
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are they strong and long lasting, but Weslock hardware is well built for years of use in the home. The family minded mechanism is also easy to activate and simple for small children to operate. Weslock is high style as well as security and safety. The designs enhance the image of your home and the details such as concealed installation screws have a finished look unlike all others.
Features:
This is the Interior Pack Only, Front Side of the Entry Handleset is Required for Installation
Double Cylinder Interior Pack Will Have Key Hole for the Deadbolt – No Thumb Turn for Double Cylinder Interior Pack
5 Pin Cylinder
Weslock Keyway
Exceeds ANSI A 156.2 Grade II Lock Standards
Solid Brass
Heavy Duty Security Strikes with 3″ Screws
5-1/2″ Center to Center Cross Hole Spacing
Adjustable Latches 2-3/8″ or 2-3/4″ with Removable Faceplates
Adjusts to Door Thickness from 1-3/4″ – 2″
Limited Lifetime Mechanical Warranty
Limited 10 Year Finish Warranty
This Interior Pack Can Be Used with the Wiltshire or Stonebriar Style Exterior Handle and the Backplate / Deadbolt will Match the Exterior Handle (Not in Displayed Image)
Oil Rubbed Bronze Details:
The Weslock Oil Rubbed Bronze in this collection is a rustic, rich, almost black Oil Rubbed Bronze. This version of the finish is much darker than the standard and will not be an exact match to other ORB finishes in other collections or brands.
Additional Weslock Links
View the Manufacturer Warranty
Browse all Weslock Products
Weslock Urbana Collection
Specifications
| Thermostat | Traditional, Modern |
| Material | Brass |
| Handle Material | Metal |
| Handle Style | Lever |
| Handshower | Left, Reversible, Right |
| Cylinder | 5 Pin |
| Cylinder Type | Double Cylinder |
| Function | Keyed Entry |
| Keyway | WK2 |
| Panic Proof | No |
| Shape | Straight |
| Mounting | One Piece |
| Interconnected | No |
| ADA | No |
| Country Of Origin | China |
| Approved for Commercial Use | No |
| Collection | Elegance |
| Series | Urbana |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Center to Center | 5.5 in. |
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1-5/8", 2-1/8" |
| Door Thickness | 1-3/4", 1-7/8", 2", 2-1/4", 2-1/8" |
| Handle Projection | 2.375 in. |
| Trim Height | 5 in. |
| Trim Width | 2.5 in. |
| Color | Oil Rubbed Bronze, Satin Nickel |
| Color Tone | Bronze Tones, Nickel Tones |
Reviews
There are no reviews yet.
