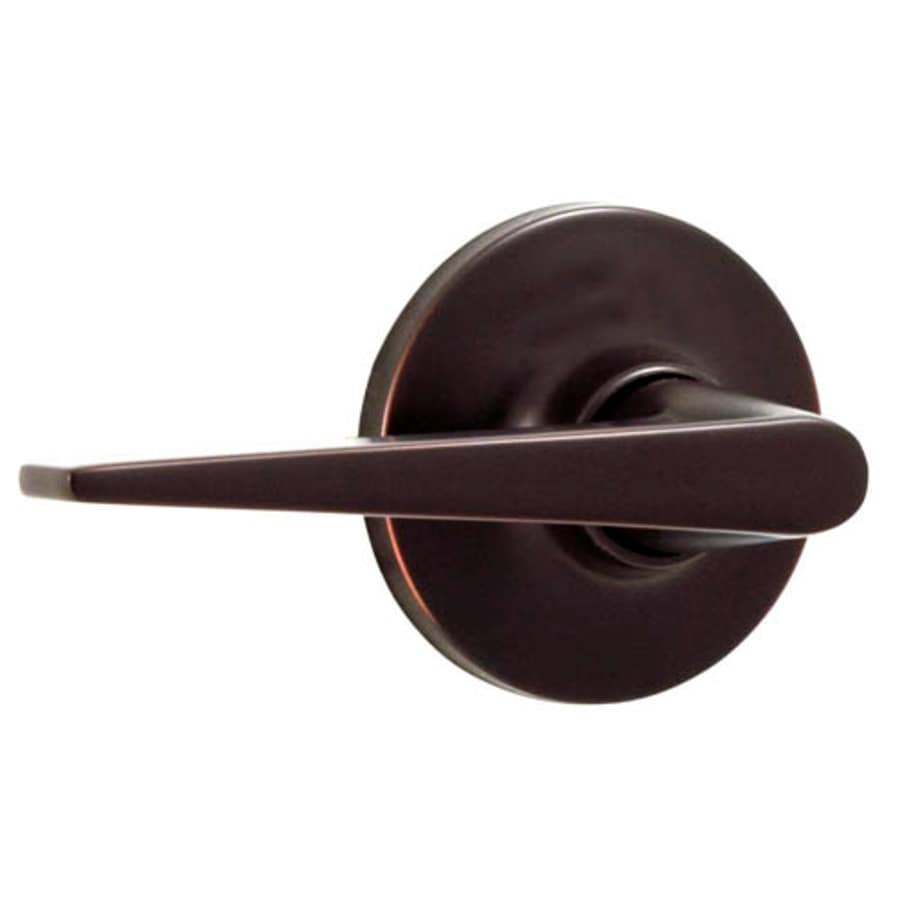

Weslock 66042 Interconnected Interior Pack Featuring an Urbana Lever from the Elegance, Urbana Collections
The Interconnected Interior Pack is the interior portion that is compatible with Weslock Molten Bronze Handlesets. Interconnected means the entry set will disengage the deadbolt and lower latch simply by turning the interior lower door lever, rather than requiring a separate action to unlock each. This interior pack can be used with the Philbrook or Mansion exterior handles.
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are they strong and long lasting, but Weslock hardware is well built for years of use in the home. Weslock features a mechanism allowing you to easily exit the home in the event of an emergency. The safety minded locking mechanism are also easy to activate and simple for even small children to operate. Weslock is high style as well as security and safety. The designs enhance the image of your home and the details such as concealed installation screws have a finished look unlike all others.
Features:
Exceeds ANSI A 156.2 Grade II Lock Standards
Solid Brass
1″ Throw Bolt with Two Hardened Steel Rollers Prevent Sawing
Removable Door Knob/Lever Prevents Scratching During Installation
This Interior Pack Can Be Used with the Wiltshire or Stonebriar Style Exterior Handle and the Backplate / Deadbolt will Match the Exterior Handle (Not in Displayed Image)
Oil Rubbed Bronze Details:
The Weslock Oil Rubbed Bronze in this collection is a rustic, rich, almost black Oil Rubbed Bronze. This version of the finish is much darker than the standard and will not be an exact match to other ORB finishes in other collections or brands.
Additional Weslock Links
View the Manufacturer Warranty
Browse all Weslock Products
Weslock Urbana Collection
Specifications
| Material | Brass |
| Thermostat | Transitional |
| Handle Style | Lever |
| Shape | Straight |
| Handshower | Left, Reversible, Right |
| Mounting | One Piece |
| Function | Keyed Entry |
| Cylinder | 5 Pin |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Keyway | WK2 |
| Interconnected | Yes |
| Panic Proof | Yes |
| Approved for Commercial Use | No |
| Collection | Elegance |
| Country Of Origin | China |
| ADA | Yes |
| Series | Urbana |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/4", 2-1/8" |
| Center to Center | 5.5 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Trim Height | 5 in. |
| Trim Width | 2.5 in. |
| Edge Bore | 1" |
| Handle Projection | 2.375 in. |
| Cross Bore | 2-1/8" |
| Color | Oil Rubbed Bronze, Satin Nickel |
| Color Tone | Bronze Tones, Nickel Tones |
