Features:
This quiet range hood only produces 4.5 sones at the highest fan speed with a recirculating option
The seamless appearance of this hidden vent matches almost every modern or traditional kitchen
Incandescent lighting illuminates the cooktop making it easy to see what you are cooking
This two speed hood pairs well with many cooktops
Product Technologies:
FIT System: Eliminate measuring, cutting, and filler strips for a perfect fit in three easy steps; first attach FIT brackets and prep the hood for electrical connection, second position the hood and attach to the cabinet, third complete the electrical connection.
Recirculating Range Hood (Optional): Recirculating range hoods require no external venting of air. Instead, air is pushed through a charcoal filtration system that removes pollutants before circulating it back into the home. The benefit of such a system is that household temperatures and humidity are easier to maintain, as the internal air never leaves the kitchen. A recirculating range hood is also generally far easier to install, as complex ventilation systems and vent pipe are not required.
Specifications:
CFM: 190

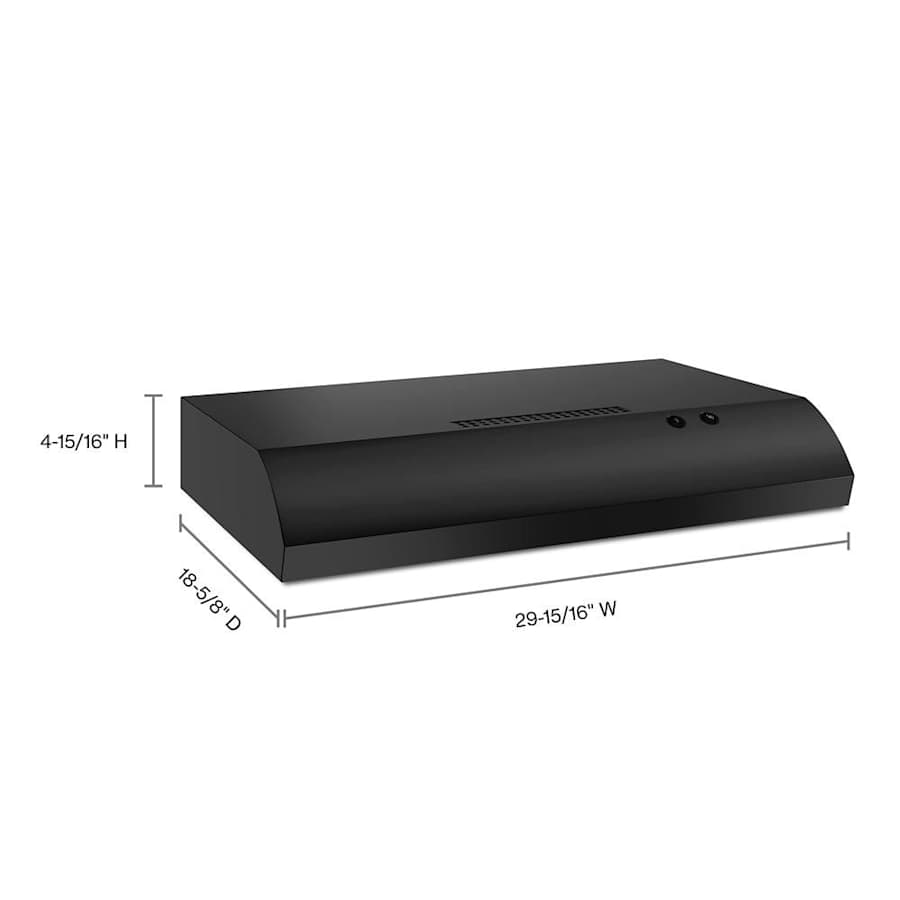

Width: 29-15/16″
Height: 4-15/16″
Depth: 18-5/8″
Height Above Cooktop: 24″ to 30″
Ducting: 7″ Round or 3-1/4″ x 10″
Fan Speeds: 2
Maximum Sones: 4.5
Amperage: 15 Amps
Voltage: 120 Volts
Additional Whirlpool Links
Specifications
| Height | 4.3125 in. |
| Depth | 18.625 in. |
| Width | 29.9375 in. |
| Nominal Width | 30 in. |
| CFM (High) | 190 |
| Duct Size | 3-1/4" x 10", 7" Round |
| CFM | 190 |
| Height Above Cooktop | 24" to 30" |
| Thermostat | Industrial, Contemporary, Modern |
| Insulation Type | Full Installation |
| Bubbler Type | Incandescent |
| Control Type | Rocker |
| Blower Type | Built-In |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Carbon Filters, Mesh Filters |
| Approved for Commercial Use | No |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Outdoor Approved | No |
| Frequency | 60 Hertz |
| Voltage | 120 |
| Amperage | 15 |
| Fan Speeds | 2 |
| Maximum Sones | 4.5 |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Color | Biscuit, Black, Stainless Steel, White |
| Color Tone | Blacks, Stainless Steel, Whites |
