White-Rodgers 2 Switch Electric Heat Sequencer with 30-90 Seconds On Timing

2 Switch Electric Heat Sequencer with 30-90 Seconds On Timing

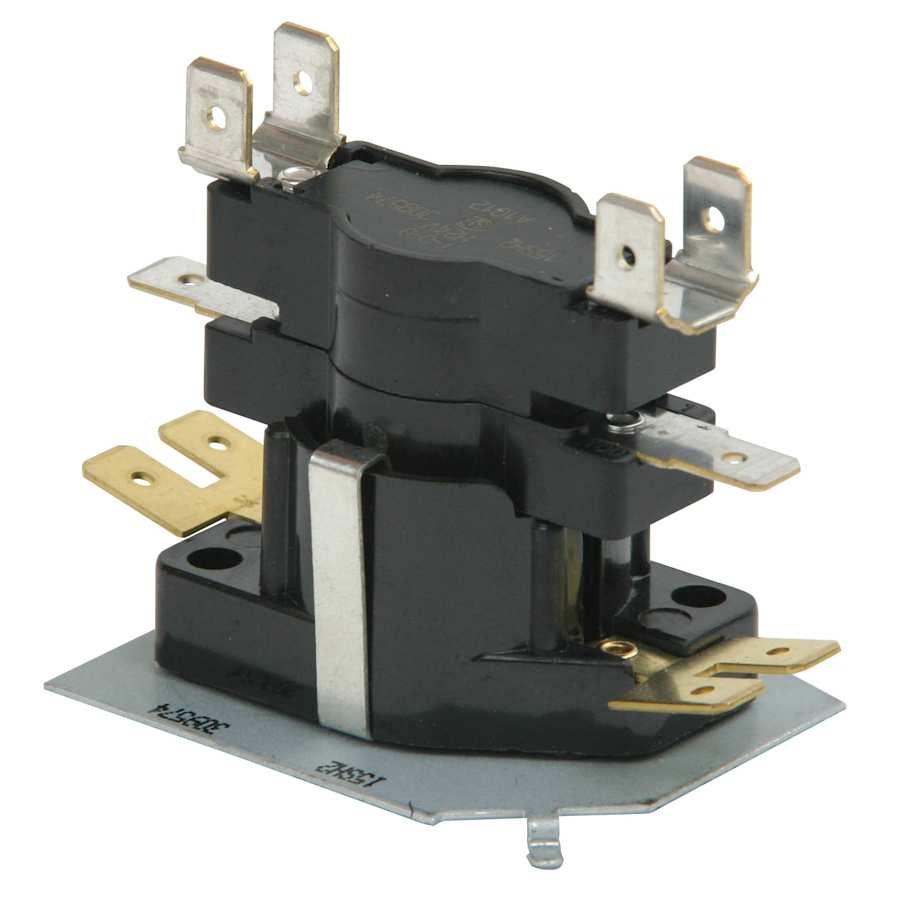

The 24A34-4 electric heat sequencer, one of the White-Rodgers 24A34 series of direct replacement sequencers for most fan/ heat sequencing functions with terminal markings equivalent to competitive types, replaces many popular brands.

Features:

2 Switches
On Timings, 30-90 Seconds
Off Timings, 1-30 Seconds
Replaces Honeywell, Mars, TOD, Gemline and Klixon (Texas Instruments)
24V input control
Multi-poise mounting
Double quick-connect terminals for combination loads
Any contacts (except M1 & M2) can be used as auxiliary contacts
Ambient Temperature Rating: -50 to +165°F
UL Listed

Electrical Ratings (AFL):

14 A @ 120 VAC
7 A @ 240 VAC

Electrical Ratings (ALR):

72 A @120 VAC
42 A @ 240 VAC

Pilot Duty Rating:

125 VA @ 120 VAC
125 VA @ 240 VAC
480 VA @ 480 VAC
Resistive (Non-Inductive): 25.0 A @ 120 VAC, 25.0 A @ 240 VAC, 12.5 A @ 480 VAC
