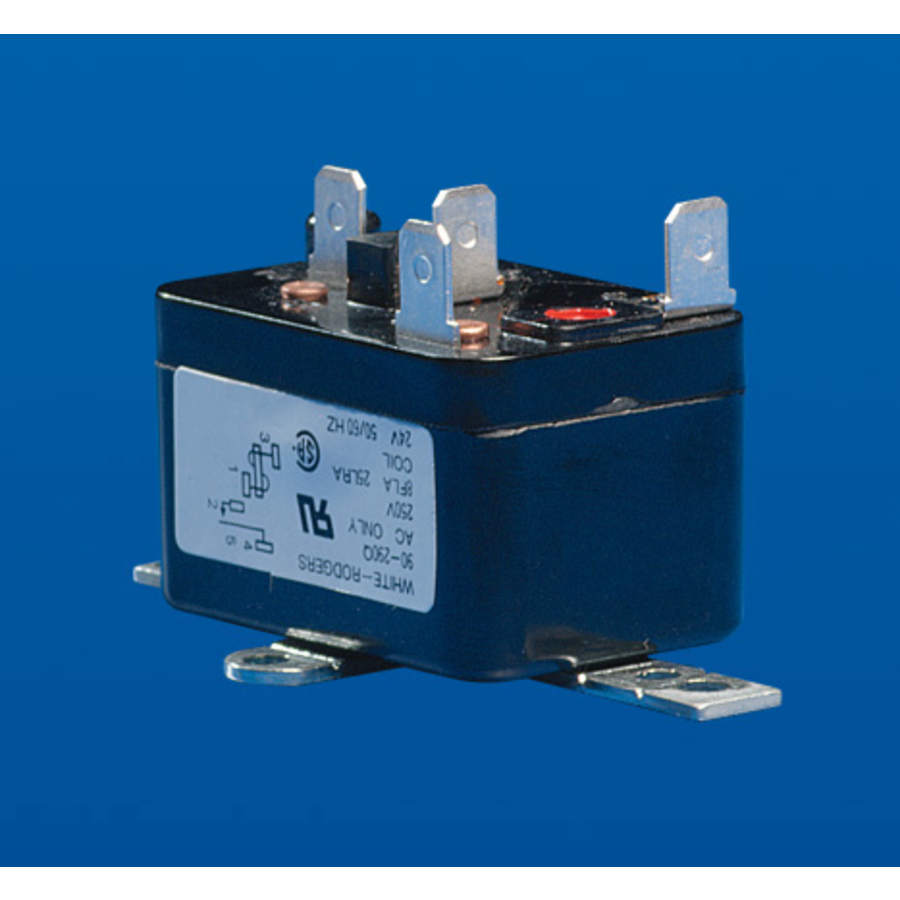

Single Pole Normally Open Enclosed Fan Relay
The White-Rodgers 90-290Q enclosed fan relay is used for switching single or two speed fan motors, solenoids, relays, resistive loads and general purpose switching.
Features:
Compact, totally enclosed design
For heating and cooling applications and general switching
Quiet, reliable and economical
Specifications:
Temperature Range: -40°F to 150°F
Mechanical Life (no load): 1,000,000 operations, 60 operations/min.
Electrical Life (rated load): 100,000 operations, 6 operations/min. Load test making inrush rating (0.4 to 0.5 P.F.); breaking 100% continuous rating (0.64 to 0.8 P.F.)
Weight (approximate): 2.5 oz.
UL Listed, CSA Certified
Coils
Frequency: 50/60 Hz
Insulation: Class B
Termination: 1/4” Quick Connect
Operate: 85% of nominal coil voltage; 110% maximum safe operate
Duty Cycle: Continuous
White-Rodgers, a recognized leader in climate control solutions, celebrates 75 years of business in 2012. Experience, integrity and customer service are still the tenets that mark this great company. From the humble beginnings of two engineers collaborating to solve the control problem of the day, to being the answer for your climate control needs, White-Rodgers is the respected name among industry professionals and home owners alike.
Additional White-Rodgers Links
View the Manufacturer Warranty
Browse all White-Rodgers Products
White-Rodgers Relays Collection
Specifications
| Width | 2.375 in. |
| Height | 1.625 in. |
| Depth | 1.5 in. |
| Certifications | UL, CSA |
| Application | Heating |
| Voltage | 24 |
| Frequency | 50, 60 Hertz |
| Amperage | 0.125 |
| Temperature (Max) | 150 °F |
| Temperature (Min) | -40 °F |
| Switch Type | Single Pole Normally Open |
| Operation | Continuous Duty |
