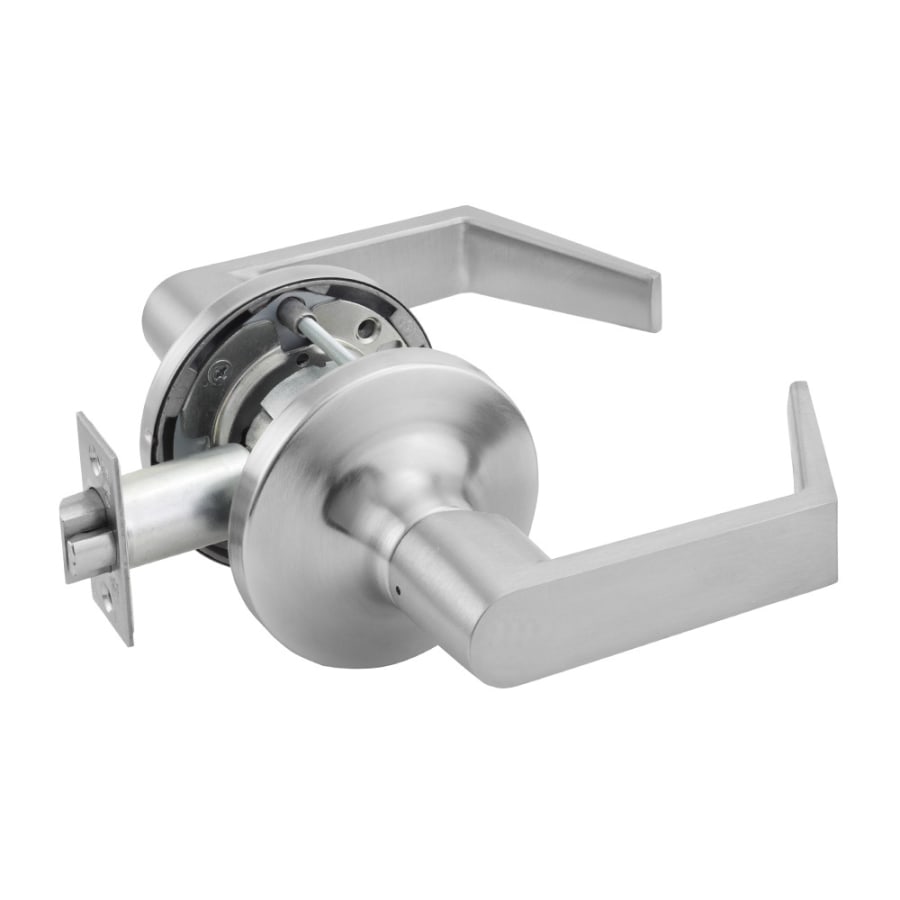

Passage Function:
Latch operated by either lever at all times
Features:
Exceeds criteria for BHMA Grade 1
All metal construction for enhanced durability and security
Reversible handing for easy installation
Includes a 7 year limited warranty
UL listed 3 hour fire rating
Compliant with Americans with Disabilities Act (ADA)
Specifications:
Backset: 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/4″ to 2″
Handing: Left, Right, Reversible
Trim Height: 3-1/2″
Trim Width: 3-1/2″
Handle Length: 5-7/16″
Handle Projection: 3-1/16″
Latch Faceplate: Square Corner
Material: Brass, Bronze, Stainless Steel, Steel, Zinc
Additional Yale Links
View the Manufacturer Warranty
Browse all Yale Products
Yale YH Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Series | 5400LN |
| BHMA Certification | Grade 1 |
| Collection | Augusta |
| Certifications | ANSI, UL |
| ADA | Yes |
| Manufacturer Warranty | 7 Year |
| ANSI Certification | A156.2 |
| Made in America | Yes |
| Fire Rated | Yes |
Dimensions and Measurements
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-7/8", 2" |
| Edge Bore | 7/8" |
| Product Weight | 6 lbs. |
| Handle Projection | 3.046 in. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Handle Length | 5.4375 in. |
Characteristics and Features
| Function | Passage |
| Latch Faceplate | Square Corner |
| Material | Brass, Bronze, Stainless Steel, Steel, Zinc |
| Thermostat | Modern |
| Concealed Screws | Yes |
| Rosette Shape | Round |
| Handshower | Left, Reversible, Right |
| Lever Shape | Straight |
Included Components
| 28 Degree Latch | No |
| Color | Satin Bronze |
| Color Tone | Bronze Tones |
