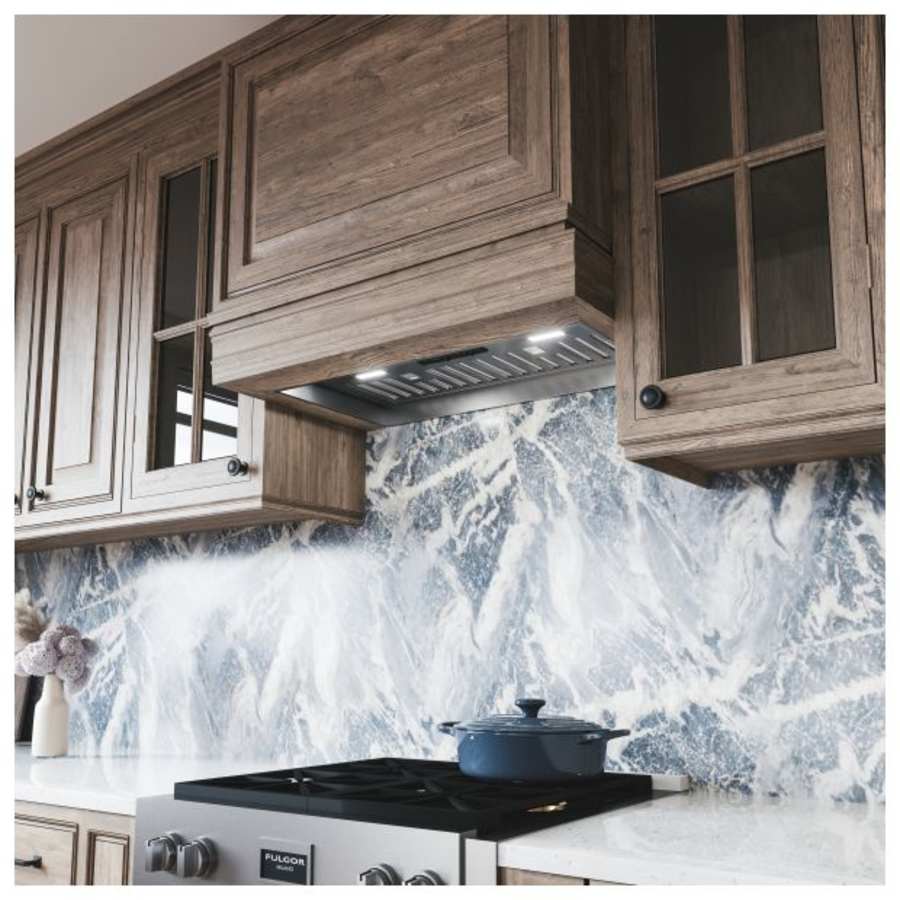

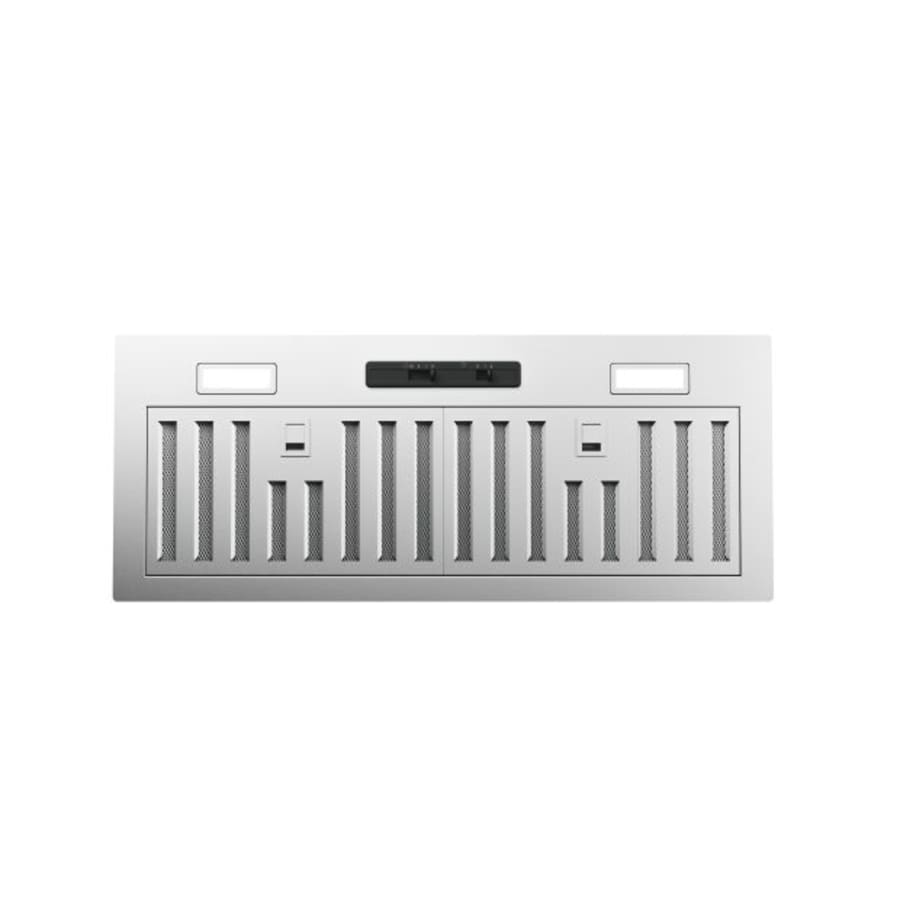

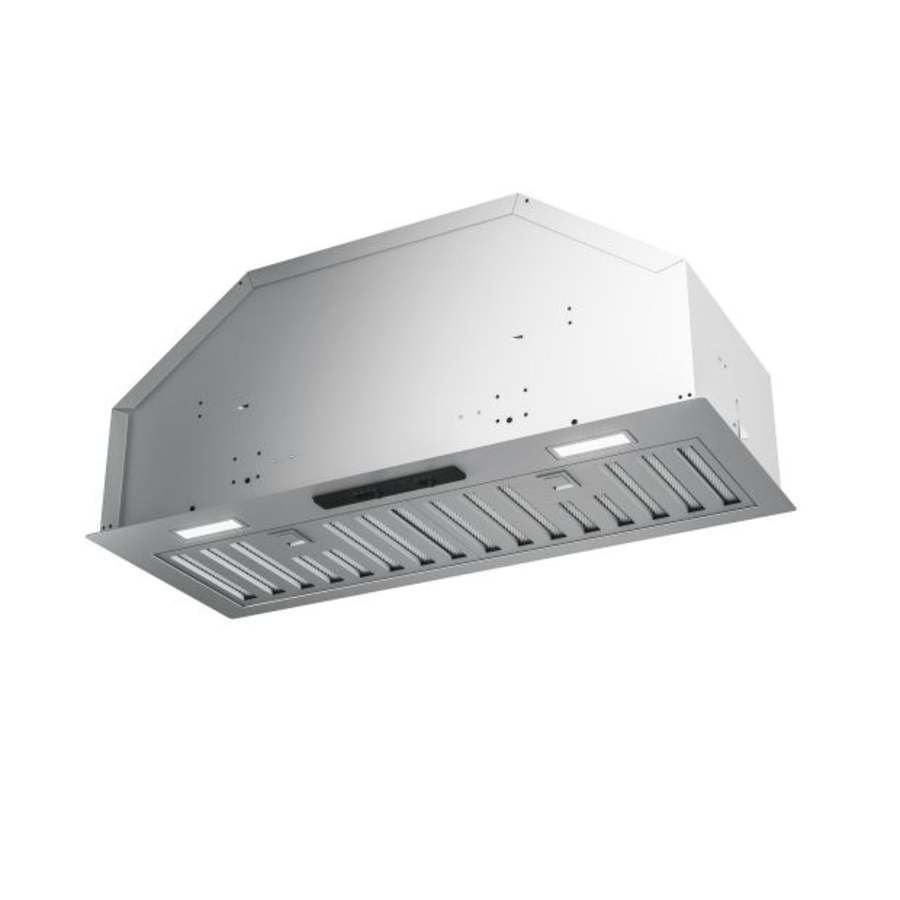

The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Features:
Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors
Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration
3 speed mechanical slide controls allow you to easily set the power level of your range hood
Dual-Level LumiLight LED lighting illuminates cooking area
Optional liner accessories available
Covered under a 1 year labor and 10 year parts warranty
Product Technologies:
LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The multi-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen
Specifications:
CFM: 200, 600
Sones: 1.4, 6
Nominal Width: 28″
Width: 27-9/16″
Height: 10-1/2″
Depth: 11-3/16″
Duct Size: 6″ Round
Ceiling Height: 96″ – 144″
Amperage: 3A
Voltage: 120V
Wattage: 360W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Tornado I Collection
Specifications
| Depth | 11.19 in. |
| Width | 27.5625 in. |
| Product Weight | 21.6 lbs. |
| Height | 10.5 in. |
| Nominal Width | 28 in. |
| Duct Size | 6" Round |
| Ceiling Height (Max) | 144 in. |
| Ceiling Height (Min) | 96 in. |
| CFM | 200, 600 |
| Height Above Cooktop | 20" to 34" |
| Material | Stainless Steel |
| Control Type | Slide |
| Insulation Type | Full Installation |
| Smart Home | No |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Blower Type | Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Baffle Filters |
| Panel Ready | No |
| ADA | No |
| Approved for Commercial Use | No |
| Country Of Origin | Taiwan |
| Collection | Core Collection |
| Manufacturer Warranty | 1 Year Labor, 10 Year Parts |
| Energy Star | No |
| Outdoor Approved | No |
| Title 24 | Yes |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Amperage | 3 |
| Voltage | 120 |
| Wattage | 360 |
| Watts Per Bulb | 6 |
| Sones | 1.4, 6 |
| Speeds | 3 |
| Color | Stainless Steel |
