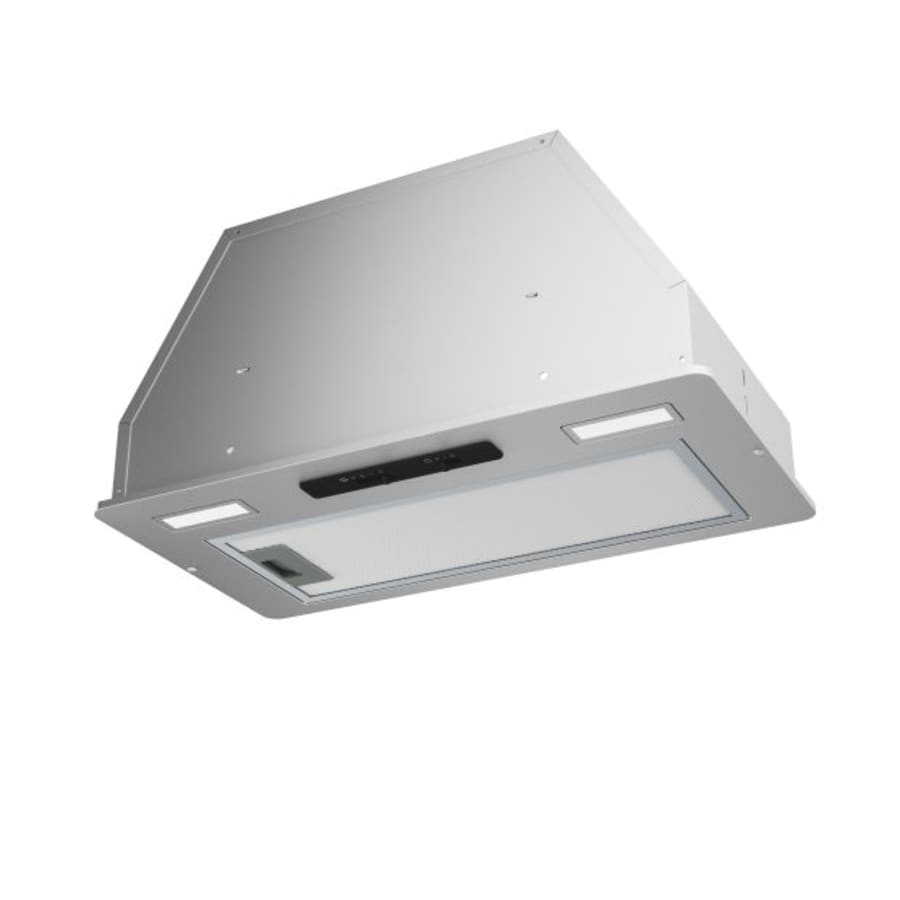

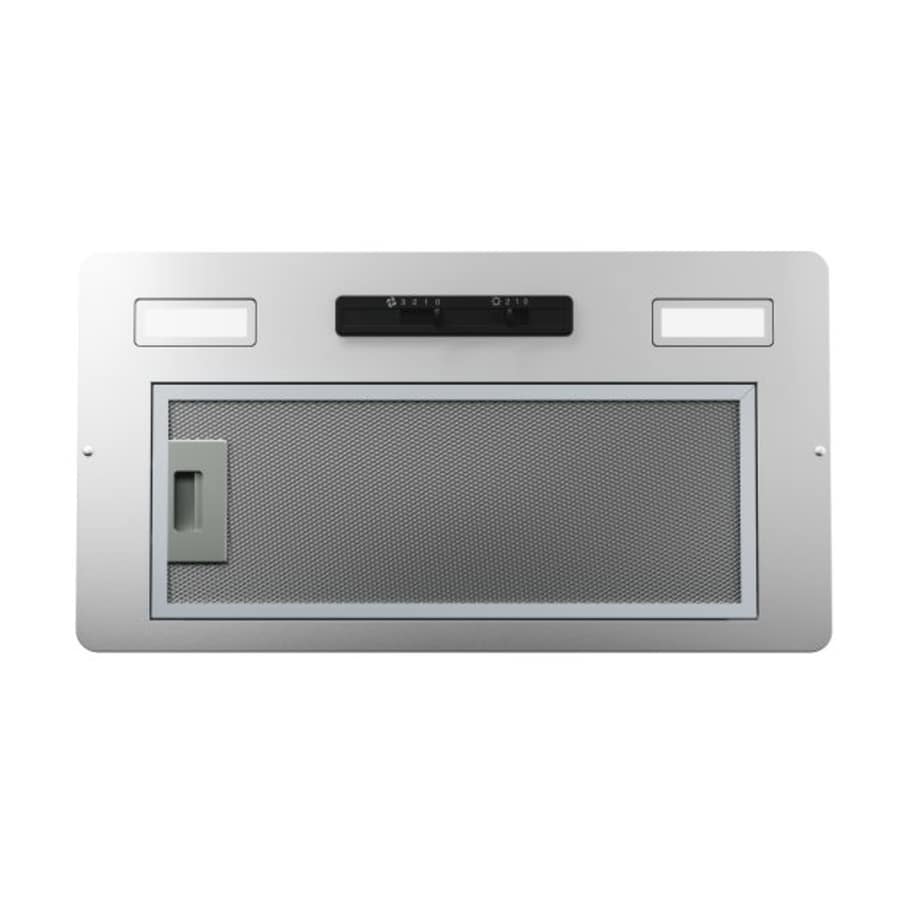

The Tornado Mini power pack was designed with cost efficiency and versatility in mind. Tornado Mini’s small footprint fits under the standard 12” cabinet depth — or choose one of our optional, adjustable-depth, stainless steel liners to accommodate custom hood enclosures from 17-1/2” to 20-1/2” deep. Features include dual-level LumiLight LED lights, an ultra-quiet blower, and a recirculating option for ductless installations.
Features:
Blower outputs up to 290 CFM to keep your kitchen free of cooking fumes and odors
Mechanical slide controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Dual-Level LumiLight LED lights illuminate cooking surface
Dishwasher safe aluminum mesh filter
Optional adjustable depth liner
Covered under a 1 year labor and 3 year parts warranty
Product Technologies:
LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The multi-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen
Specifications:
CFM: 180, 290
Sones: 1.3, 5
Nominal Width: 21″
Width: 20-9/16″
Height: 9-11/16″
Depth: 11″
Duct Size: 6″ Round
Ceiling Height: 96″ – 144″
Amperage: 2A
Voltage: 120V
Wattage: 240W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Tornado Mini Collection
Specifications
| Height | 9.687 in. |
| Width | 20.562 in. |
| Depth | 11 in. |
| Nominal Width | 21 in. |
| Product Weight | 14 lbs. |
| Ceiling Height (Max) | 144 in. |
| Ceiling Height (Min) | 96 in. |
| CFM | 180, 290 |
| Duct Size | 6" Round |
| Height Above Cooktop | 20" to 36" |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Smart Home | No |
| Blower Type | Internal |
| Control Type | Slide |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Panel Ready | No |
| Voltage | 120 |
| Wattage | 240 |
| Watts Per Bulb | 6 |
| Amperage | 2 |
| Sones | 1.3, 5 |
| Speeds | 3 |
| ADA | No |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
| Outdoor Approved | No |
| Title 24 | Yes |
| Collection | Core Collection |
| Approved for Commercial Use | No |
| Energy Star | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
