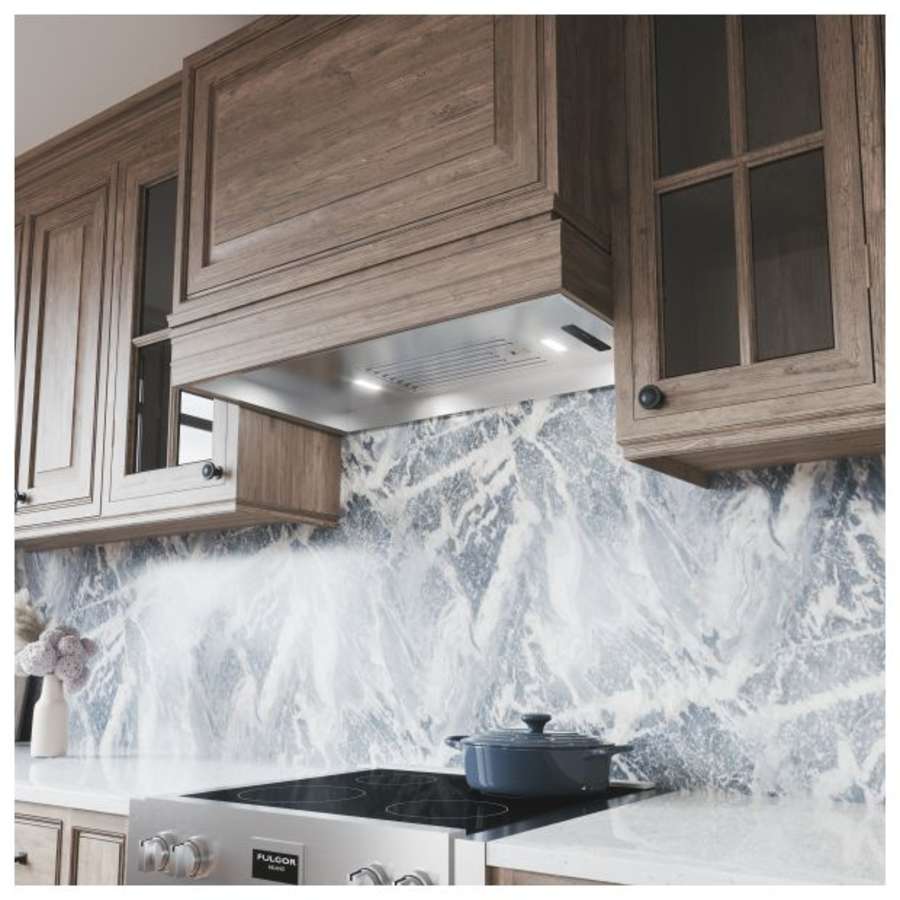

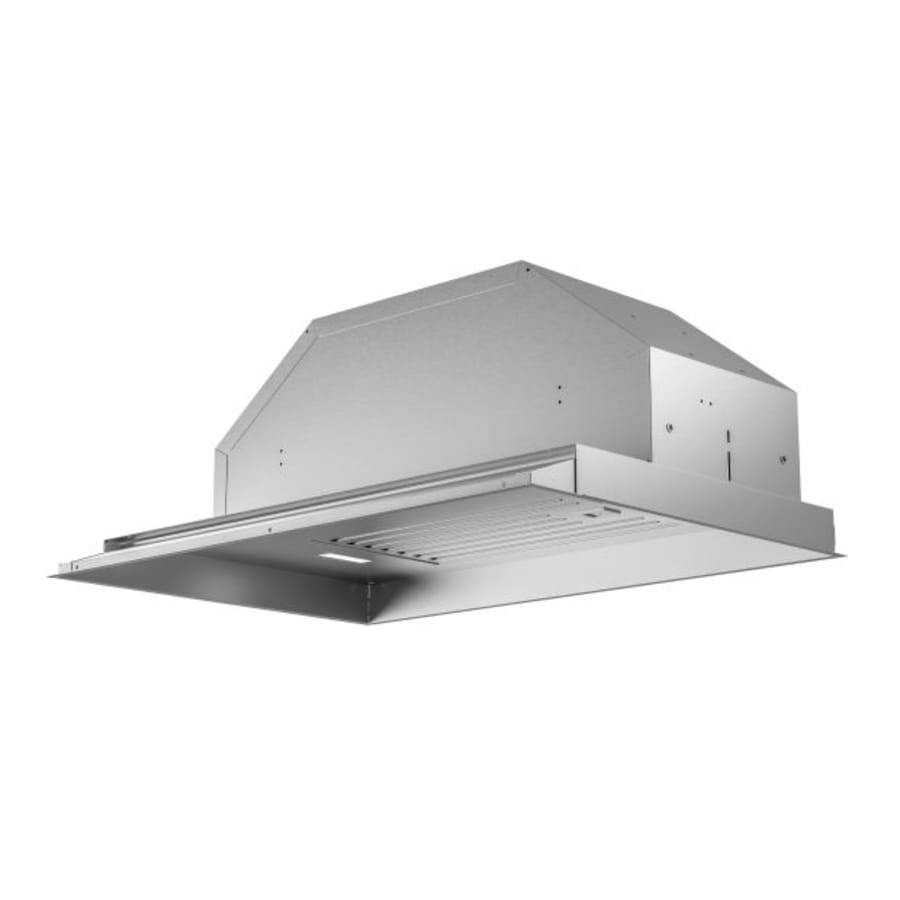

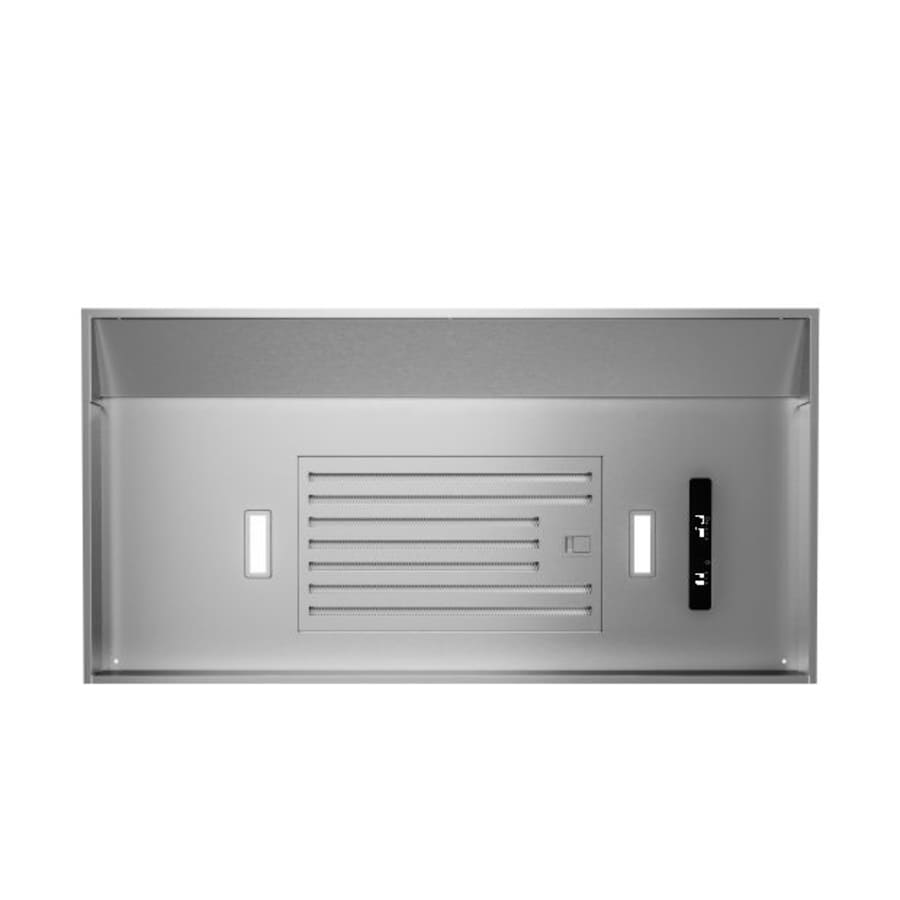

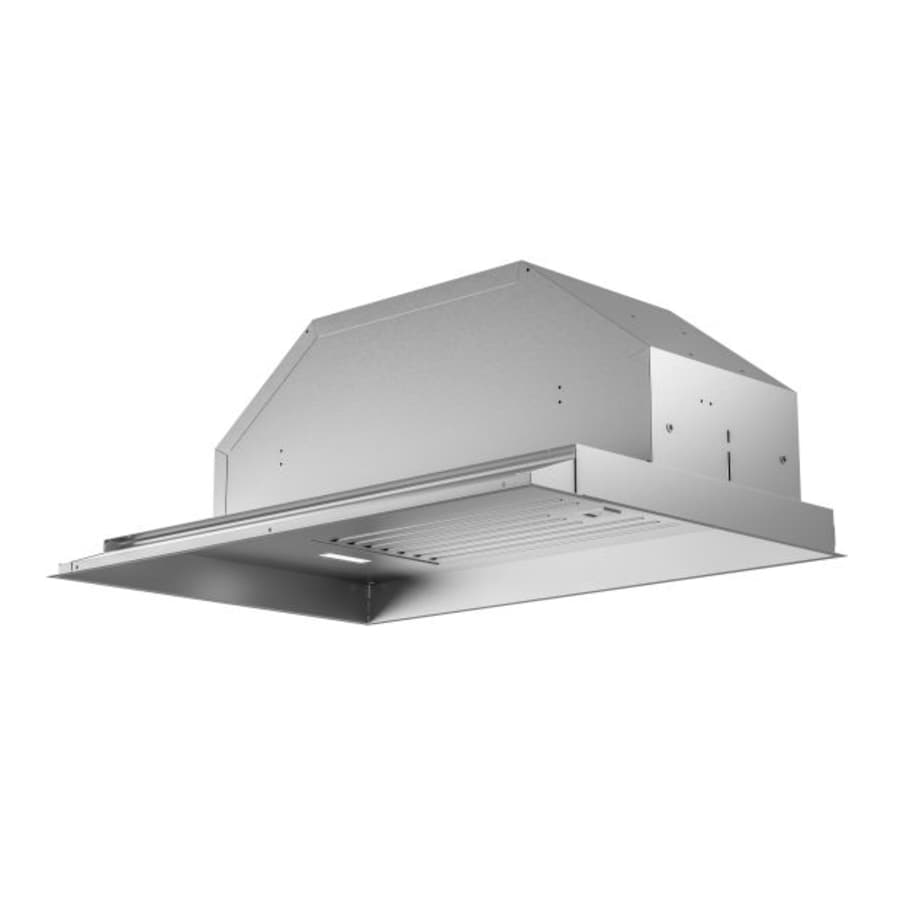

The Vortex insert leads the way as the industry’s first adjustable-depth insert. Vortex is designed to extend 3 inches to accommodate custom hood depths from 17-1/2 to 20-1/2 inches. Add to this its quiet, 390-CFM blower, dual-level LumiLight LED lighting, and optional recirculating kit — Vortex stands tall among the rest.
Features:
Blower outputs up to 390 CFM to keep your kitchen free of cooking fumes and odors
Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration
3 speed mechanical slide controls allow you to easily set the power level of your range hood
Adjustable in Depth
Dual-Level LumiLight LED lighting illuminates cooking area
Covered under a 1 year labor and 3 year parts warranty
Product Technologies:
LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The multi-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen
Specifications:
CFM: 200, 390
Sones: 1.4, 5
Nominal Width: 35″
Width: 34-3/8″
Height: 12-5/16″
Depth: 17-1/2″
Duct Size: 6″ Round
Ceiling Height: 96″ – 144″
Amperage: 4A
Voltage: 120V
Wattage: 480W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Vortex Collection
Specifications
| Material | Stainless Steel |
| Bubbler Type | LED |
| Smart Home | No |
| Insulation Type | Full Installation |
| Number of Bulbs | 2 |
| Control Type | Slide |
| Panel Ready | No |
| Blower Type | Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Baffle Filters |
| Collection | Core Collection |
| Country Of Origin | Taiwan |
| ADA | No |
| Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
| Title 20 Compliant | Yes |
| Title 24 | Yes |
| Approved for Commercial Use | No |
| Energy Star | No |
| Outdoor Approved | No |
| Height | 12.3125 in. |
| Nominal Width | 35 in. |
| Product Weight | 34.6 lbs. |
| Width | 34.375 in. |
| Depth | 17.5 in. |
| Ceiling Height (Max) | 144 in. |
| Ceiling Height (Min) | 96 in. |
| CFM | 200, 390 |
| Duct Size | 6" Round |
| Height Above Cooktop | 24" to 34" |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Voltage | 120 |
| Wattage | 480 |
| Watts Per Bulb | 6 |
| Amperage | 4 |
| Sones | 1.4, 5 |
| Speeds | 3 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
