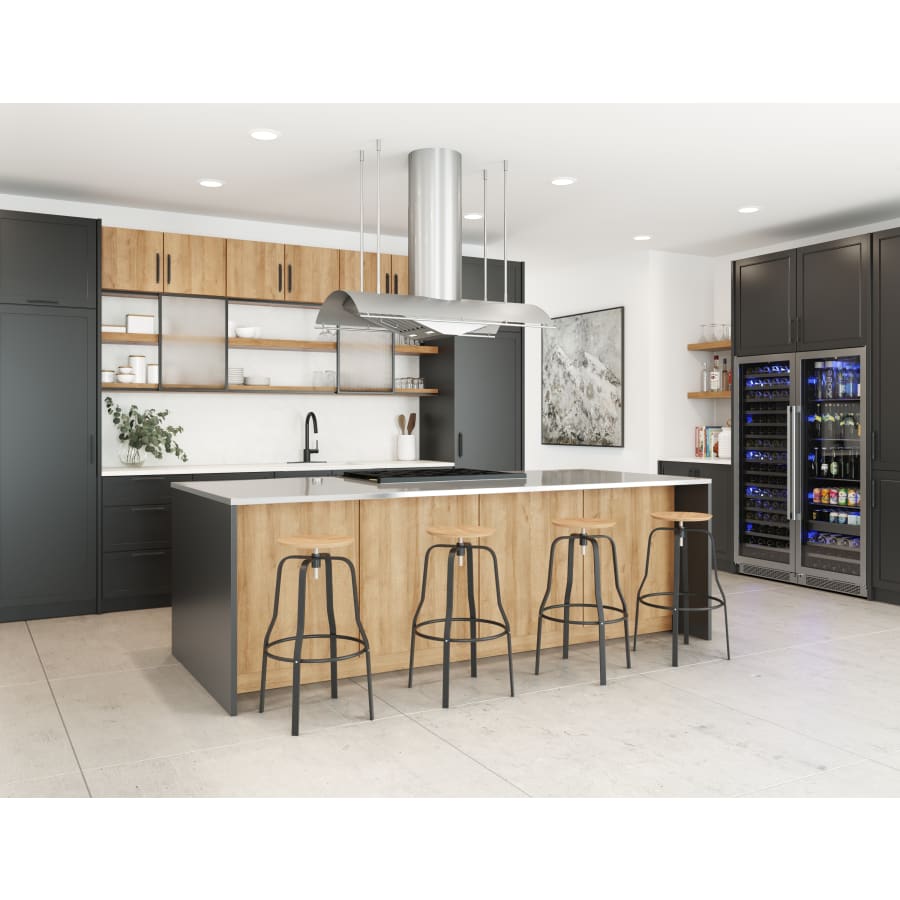

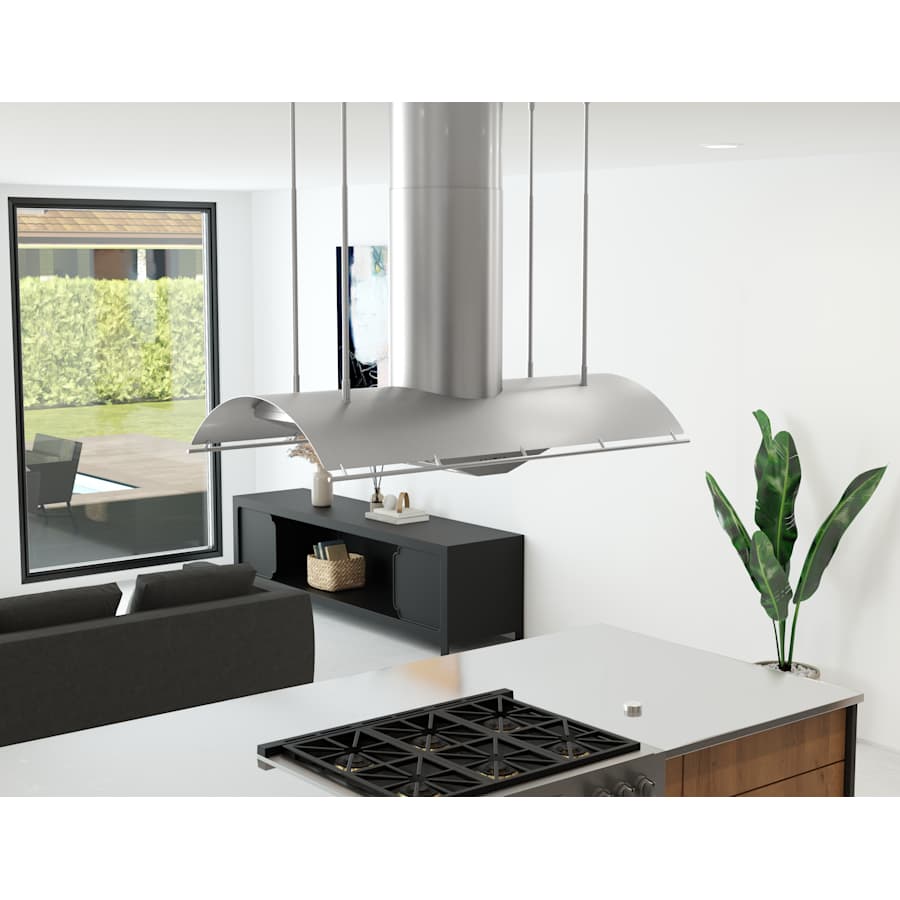

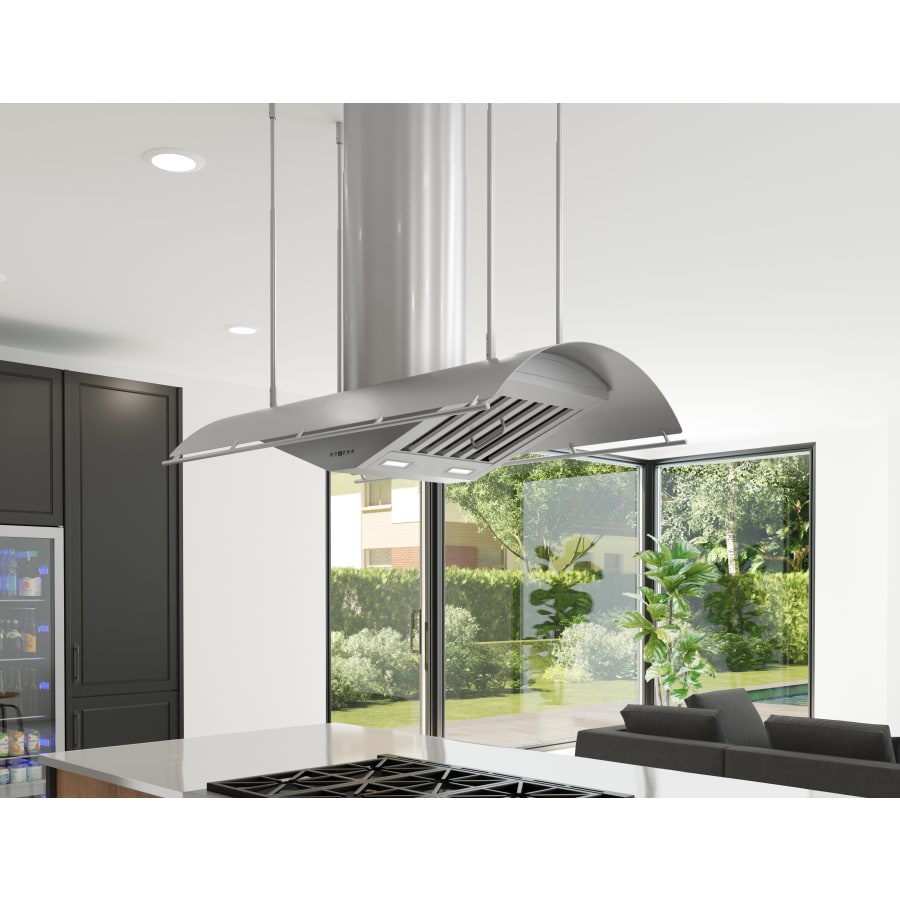

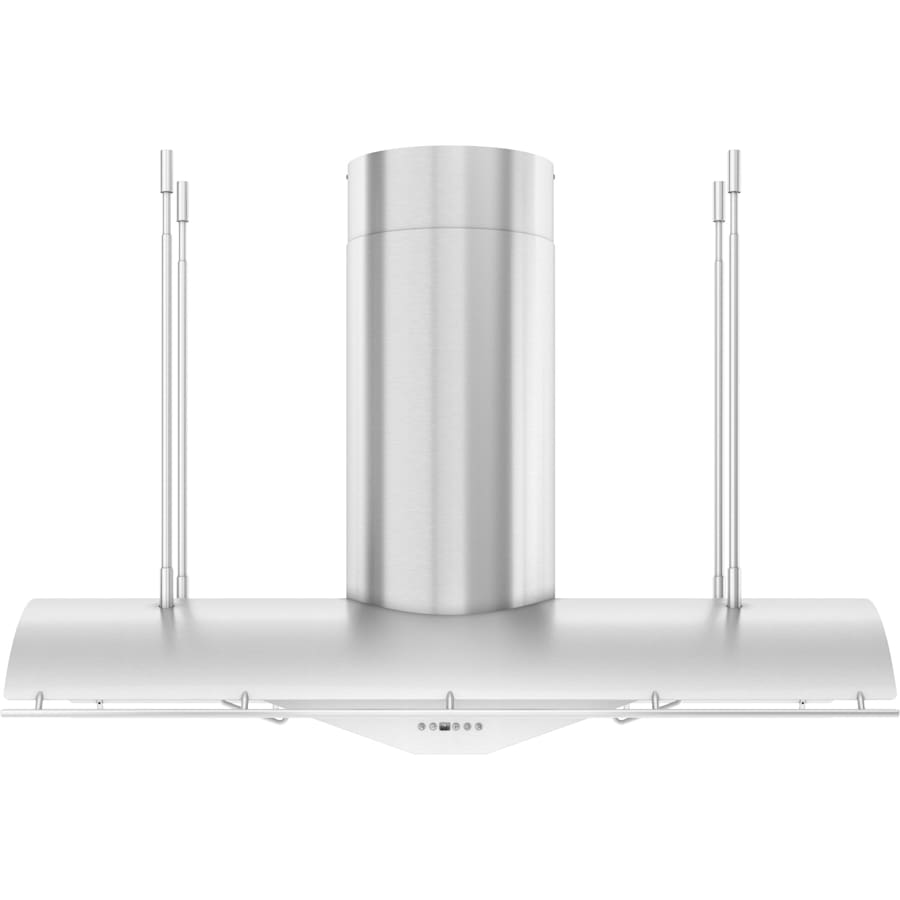

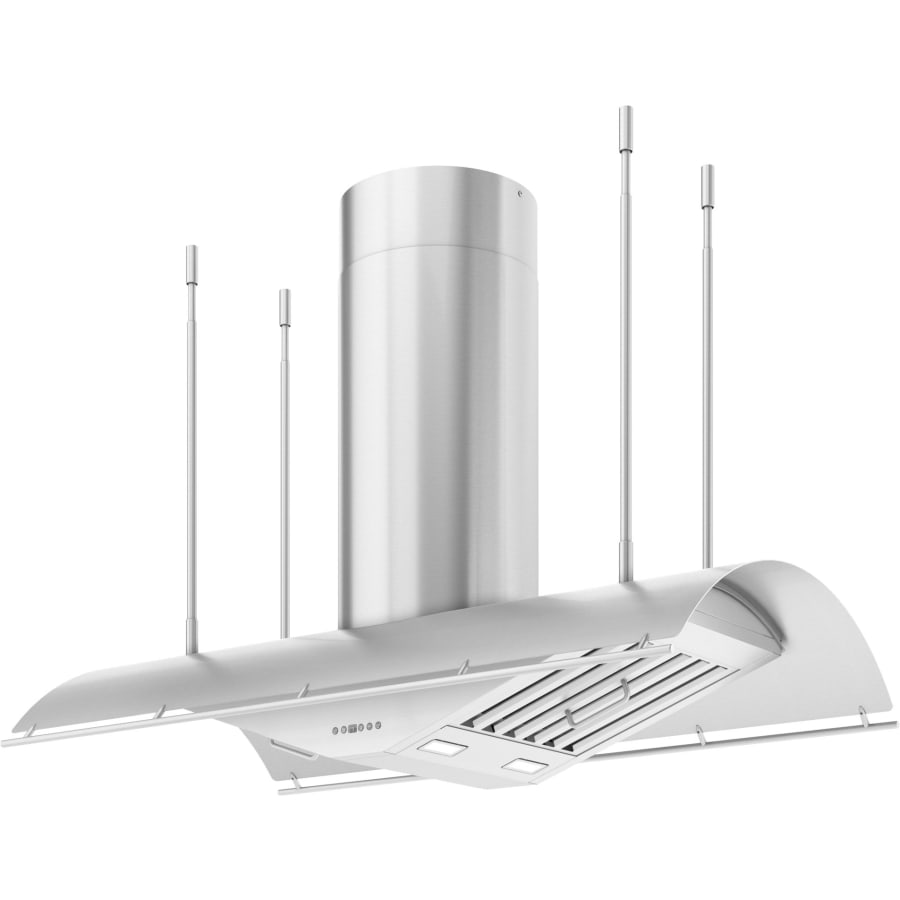

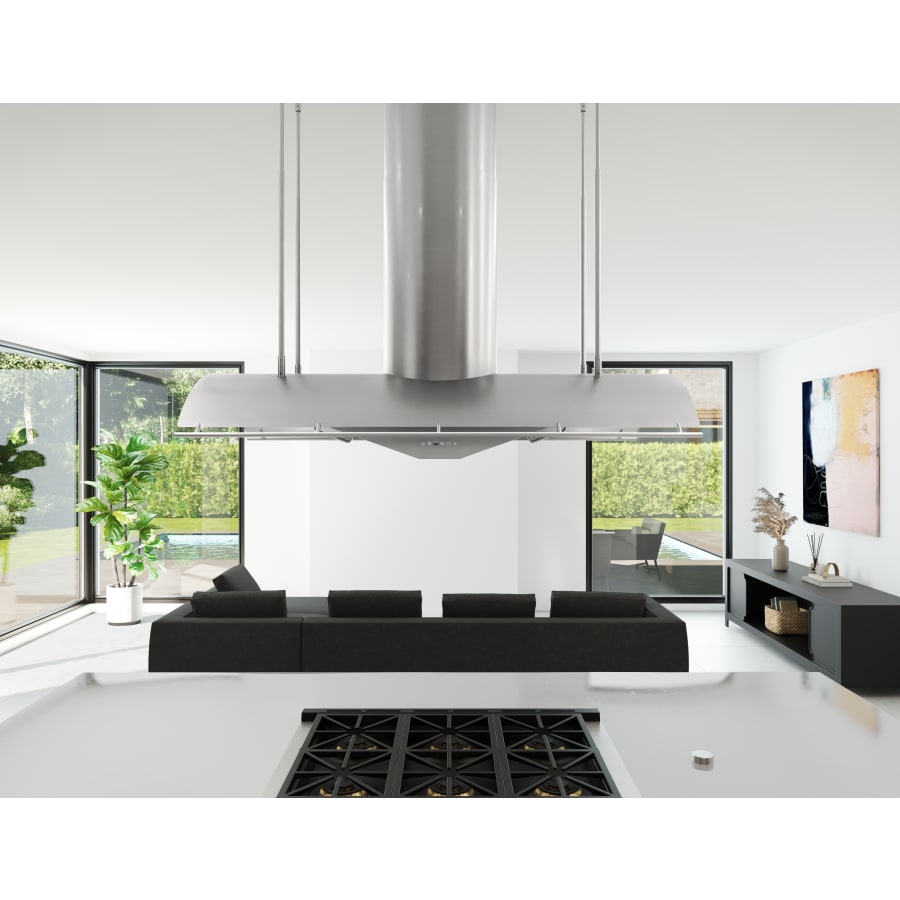

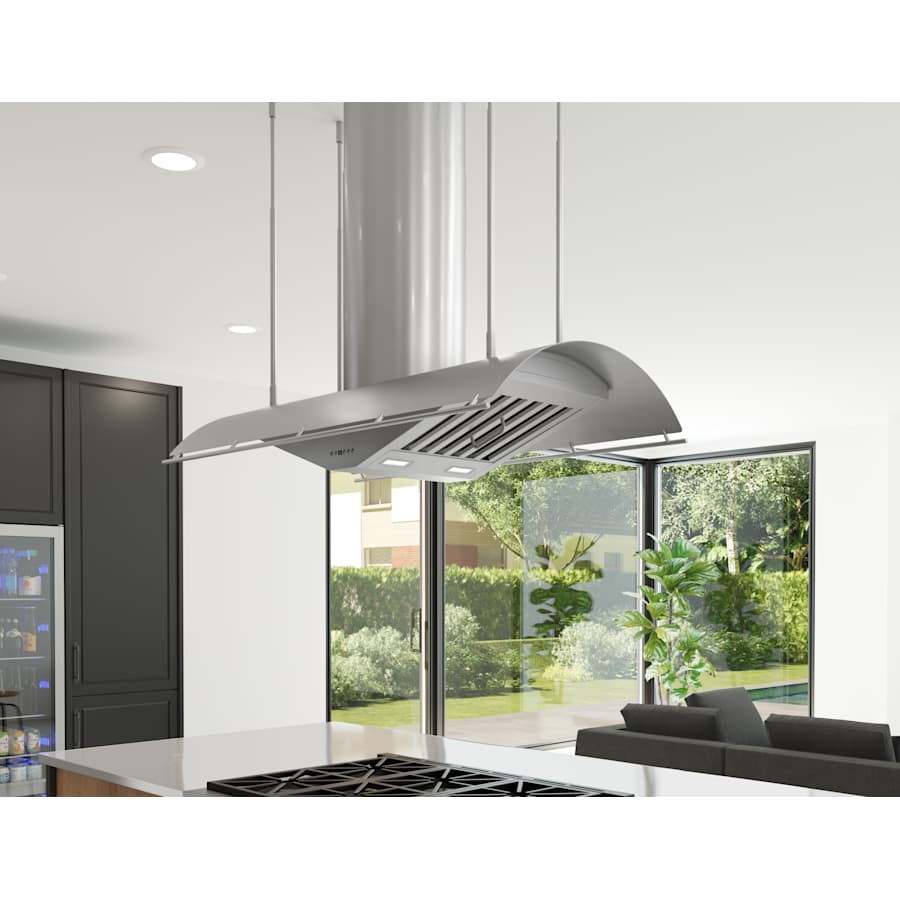

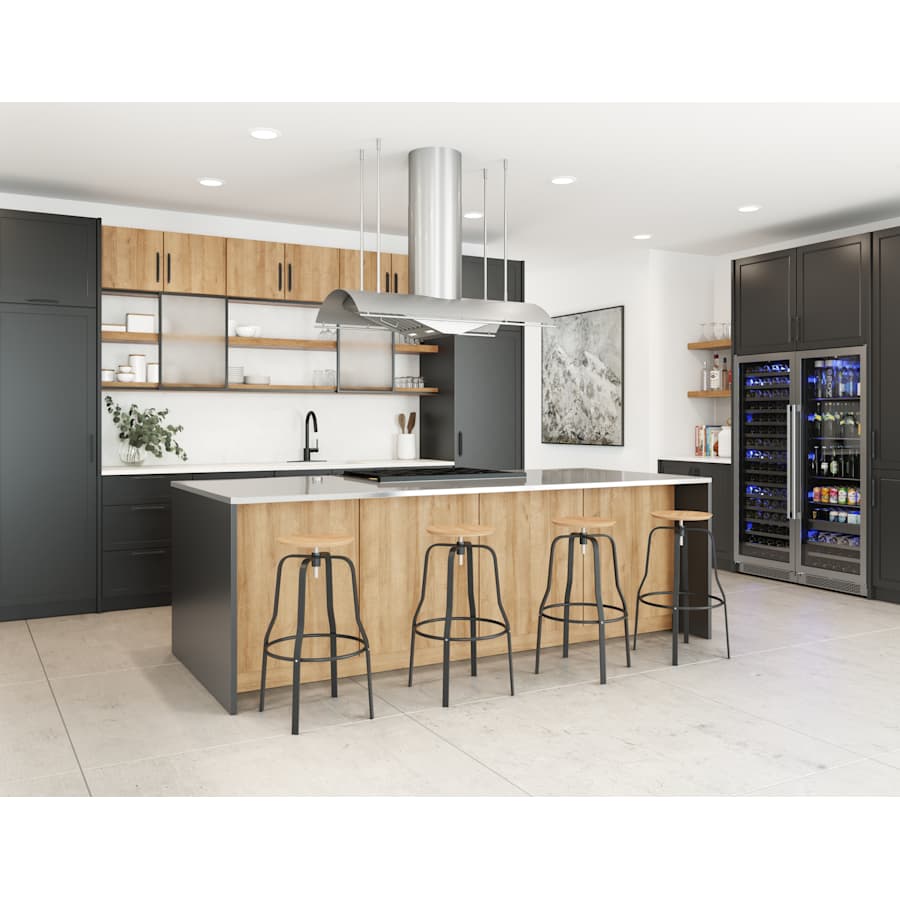

Light and airy Trapeze is a streamlined reprieve from its bulky, conventional counterparts. Using a sleek suspension structure, the Trapeze seems to float in midair. Featuring directional LumiLight LED lighting and a graceful, slow-curve canopy, the Trapeze is more than a focal point — it’s a statement.
Features:
Blower outputs up to 1000 CFM to keep your kitchen free of cooking fumes and odors
Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
4 Lumilight directional LED lights illuminate the cooking area
Complements items from the Designer collection
Electronic touch controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Multiple blower options
Optional wireless remote control
Optional extension duct cover kit
ADA compliant with optional remote
Covered under Zephyr’s 1 year labor and a 3 year parts warranty
Specifications:
CFM: 1000, 200, 290, 600
Sones: 1.4, 3, 6
Nominal Width: 54″
Width: 54″
Height: 34, 52″
Depth: 26-5/8″
Duct Size: 8″ Round
Ceiling Height: 96″ – 120″
Height Above Cooktop: 26″ to 36″
Amperage: 6.5A
Voltage: 120V
Wattage: 780W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Trapeze Collection
Specifications
| Depth | 26.62 in. |
| Height | 34, 52 in. |
| Nominal Width | 54 in. |
| Width | 54 in. |
| Product Weight | 88 lbs. |
| CFM | 1000, 200, 290, 600 |
| Duct Size | 8" Round |
| Height Above Cooktop | 26" to 36" |
| Ceiling Height (Max) | 120 in. |
| Ceiling Height (Min) | 96 in. |
| Light Included | Yes |
| Available Without Blower | Yes |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Includes Remote | No |
| Insulation Type | Shell Only |
| Number of Bulbs | 4 |
| Bubbler Type | LED |
| Material | Stainless Steel |
| Control Type | Touch |
| Panel Ready | No |
| Blower Type | External, In-Line, Internal |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
| ADA | Yes |
| Collection | Designer |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
| Outdoor Approved | No |
| Certifications | UL |
| Title 20 Compliant | Yes |
| Energy Star | No |
| Voltage | 120 |
| Wattage | 780 |
| Watts Per Bulb | 6 |
| Speeds | 3 |
| Amperage | 6.5 |
| Sones | 1.4, 3, 6 |
| Color | Stainless Steel |
