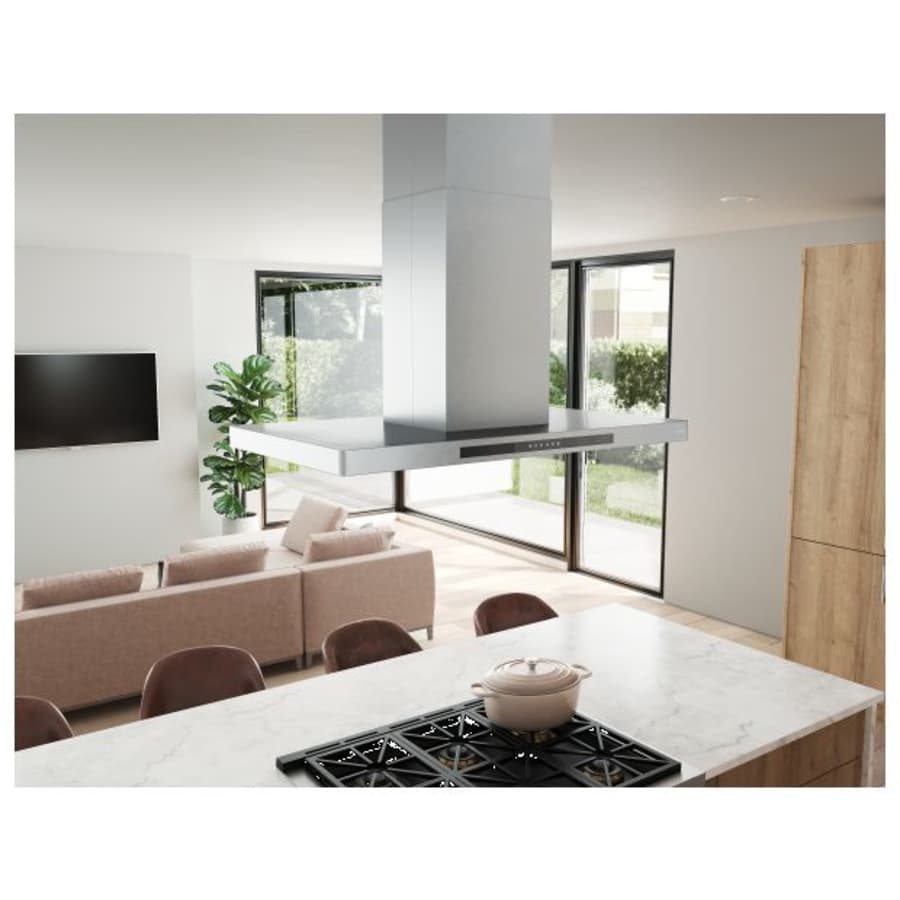

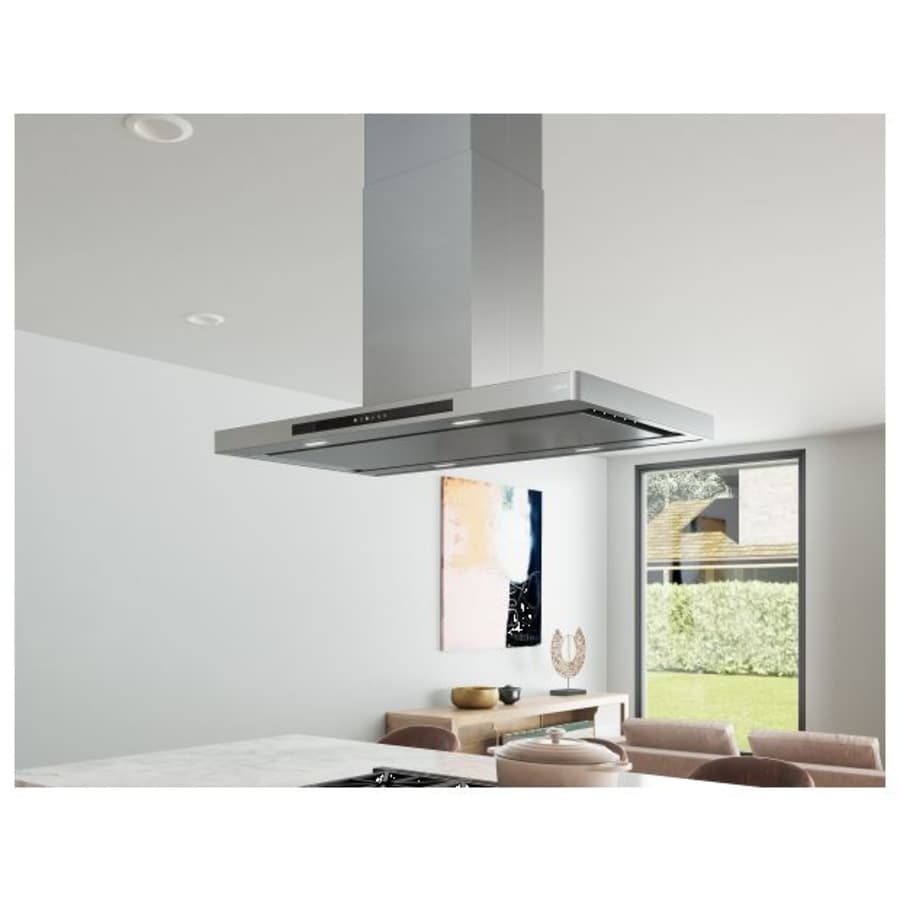

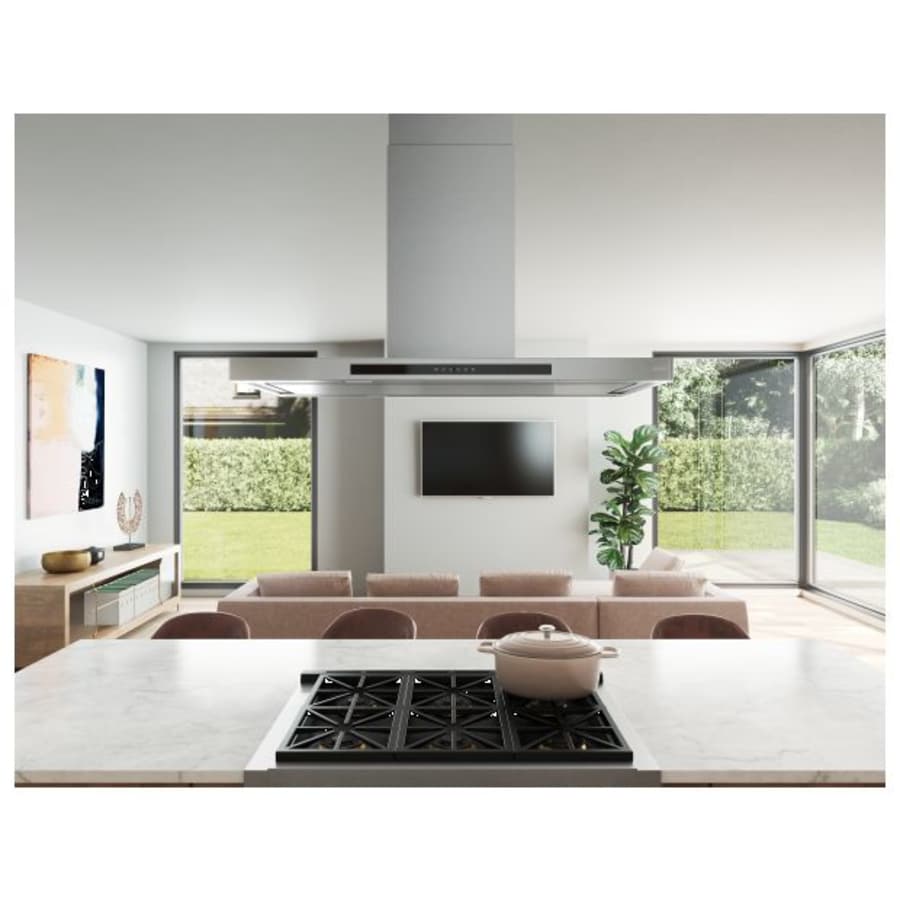

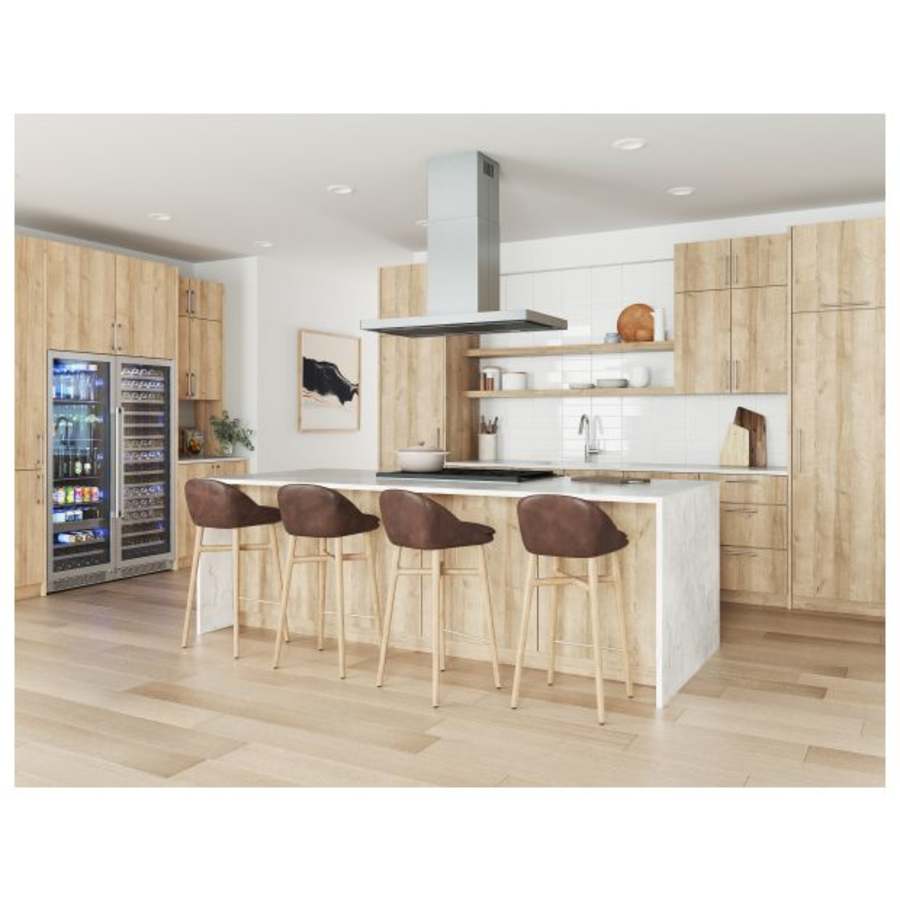

Island life has never looked so good — the low-profile Vista Island hood has curved good looks and the engineering and power to back it up. Our Perimeter Aspiration System ensures increased air velocity and improved capture of contaminants for the cleanest cooking yet. The sleek stainless body, brilliant LED lighting and Invisible Touch Controls that stay hidden until you need them all serve to make this hood as efficient as it is beautiful. Optional remote control is available as an accessory.
Features:
Keeps your kitchen free of cooking fumes and odors
Multiple blower options are available to fit your application
Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface
Tri-Level lighting illuminates cooking area
Wireless remote control places the hood’s operations at your fingertips from anywhere in the kitchen (remote not included)
Extension duct cover kit to accommodate ceiling heights up to 12′ (see spec sheets for more details)
ADA compliant with optional remote
Covered under a 1 year labor and 2 year parts warranty
Product Technologies:
Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen
Specifications:
Nominal Width: 36″
Width: 35-7/8″
Height: 29-1/2″
Depth: 23-5/8″
Duct Size: 10″ Round, 6″ Round, 8″ Round
Ceiling Height: 96″ – 144″
ADA Approved: Yes (with optional remote)
Voltage: 120V
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Vista Collection
Specifications
| Depth | 23.625 in. |
| Height | 29.5 in. |
| Nominal Width | 36 in. |
| Product Weight | 100 lbs. |
| Width | 35.875 in. |
| Duct Size | 10" Round, 6" Round, 8" Round |
| Height Above Cooktop | 24" to 36" |
| Ceiling Height (Max) | 144 in. |
| Ceiling Height (Min) | 96 in. |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | Yes |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Insulation Type | Shell Only |
| Material | Stainless Steel |
| Bubbler Type | LED |
| Number of Bulbs | 4 |
| Smart Home | No |
| Control Type | Touch |
| Panel Ready | No |
| Blower Type | External, In-Line, Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Mesh Filters |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Designer Collection |
| Country Of Origin | Italy |
| Manufacturer Warranty | 1 Year Labor, 2 Year Parts |
| Outdoor Approved | No |
| Title 20 Compliant | Yes |
| Title 24 | Yes |
| Energy Star | No |
| Amperage | 6.63 |
| Voltage | 120 |
| Wattage | 795 |
| Watts Per Bulb | 5 |
| Speeds | 3 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
