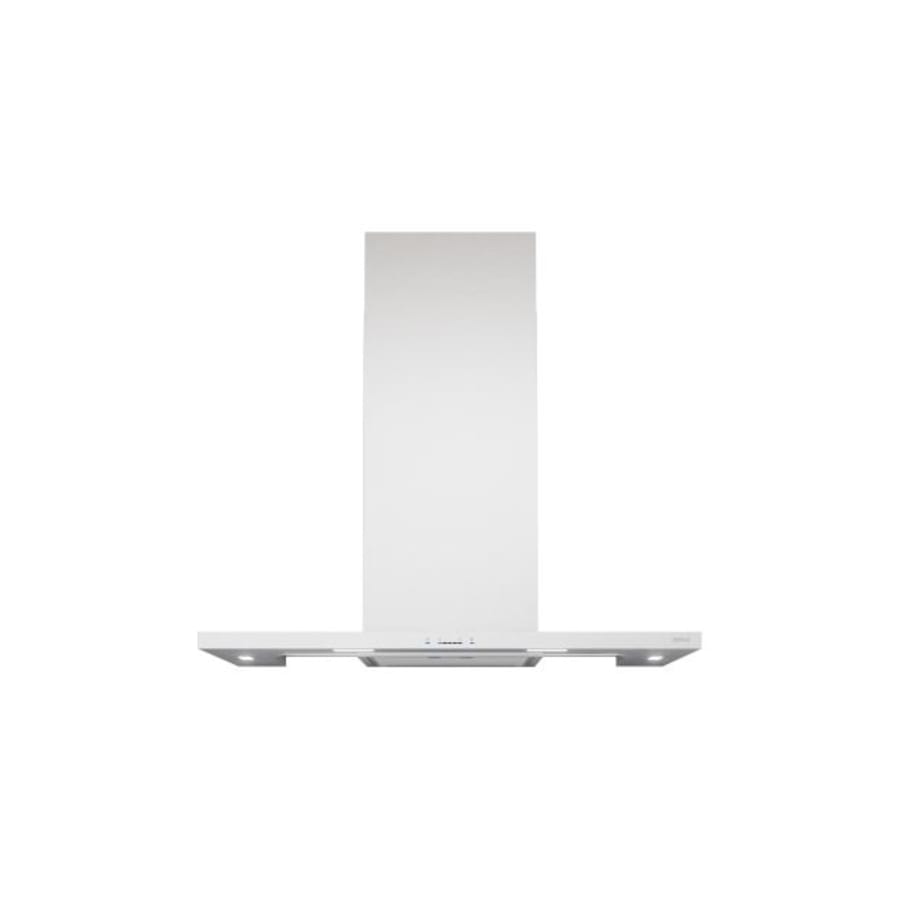

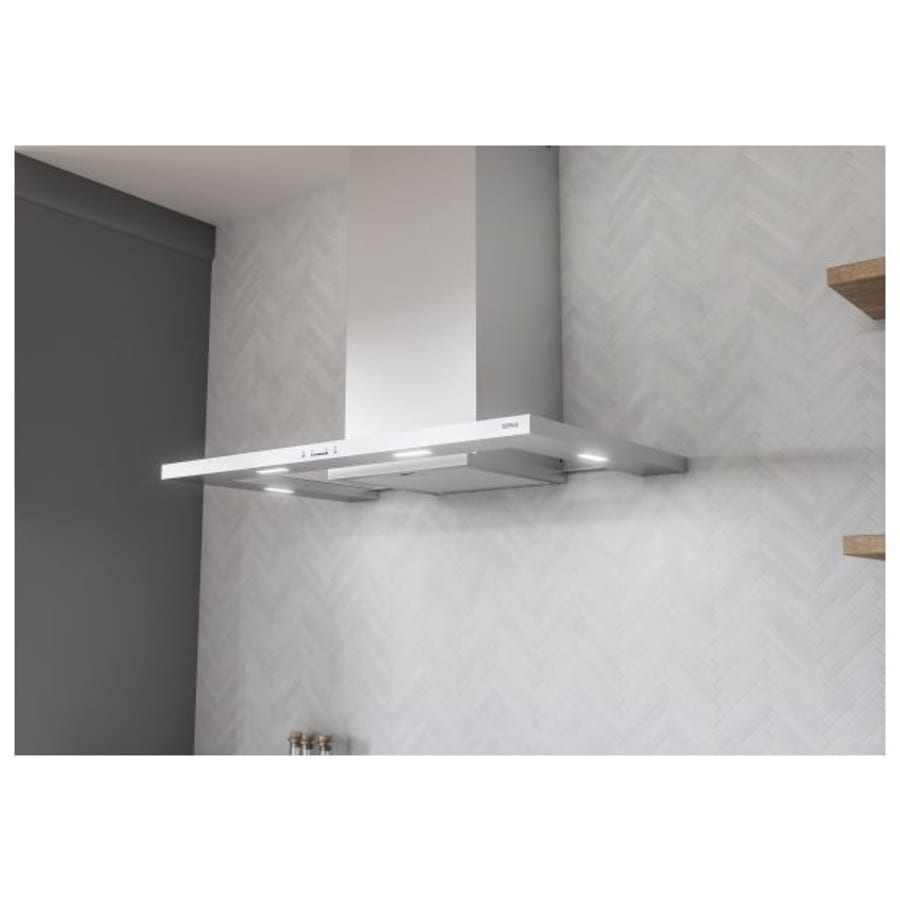

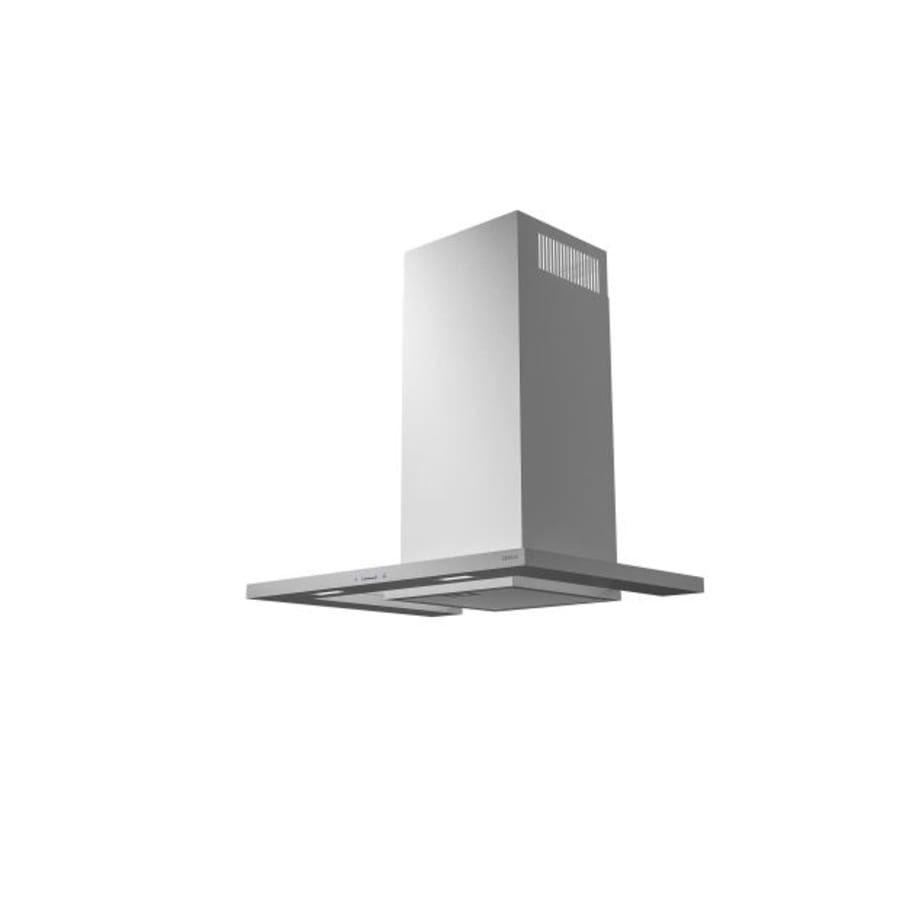

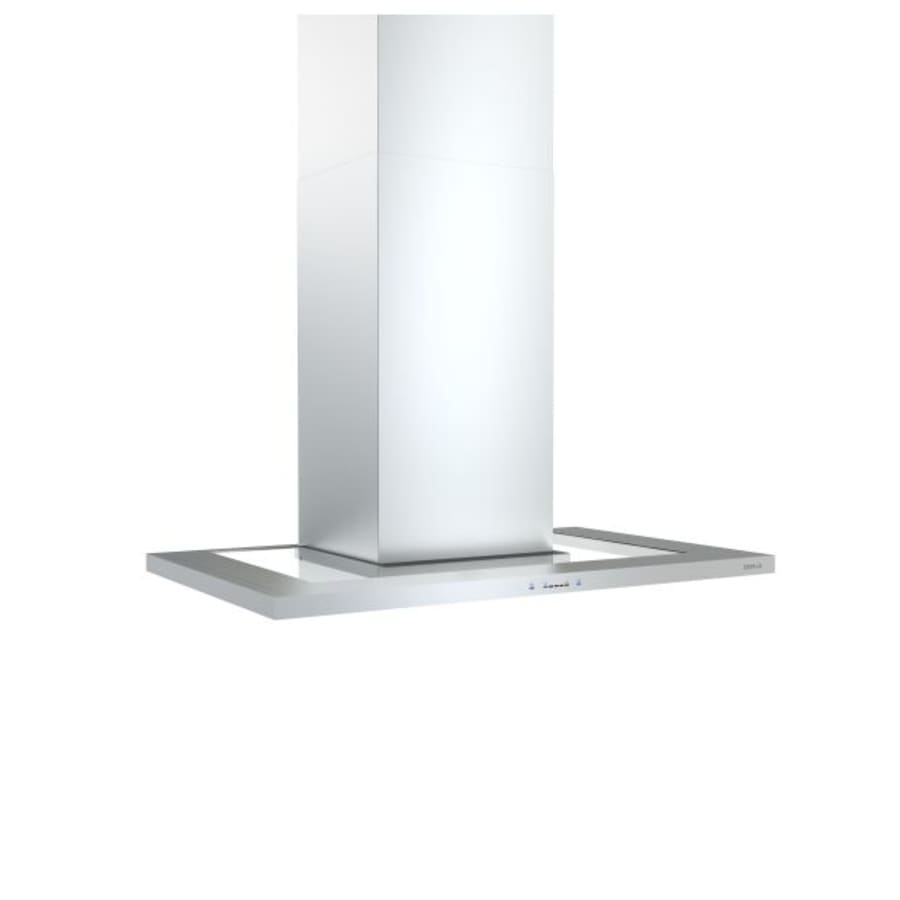

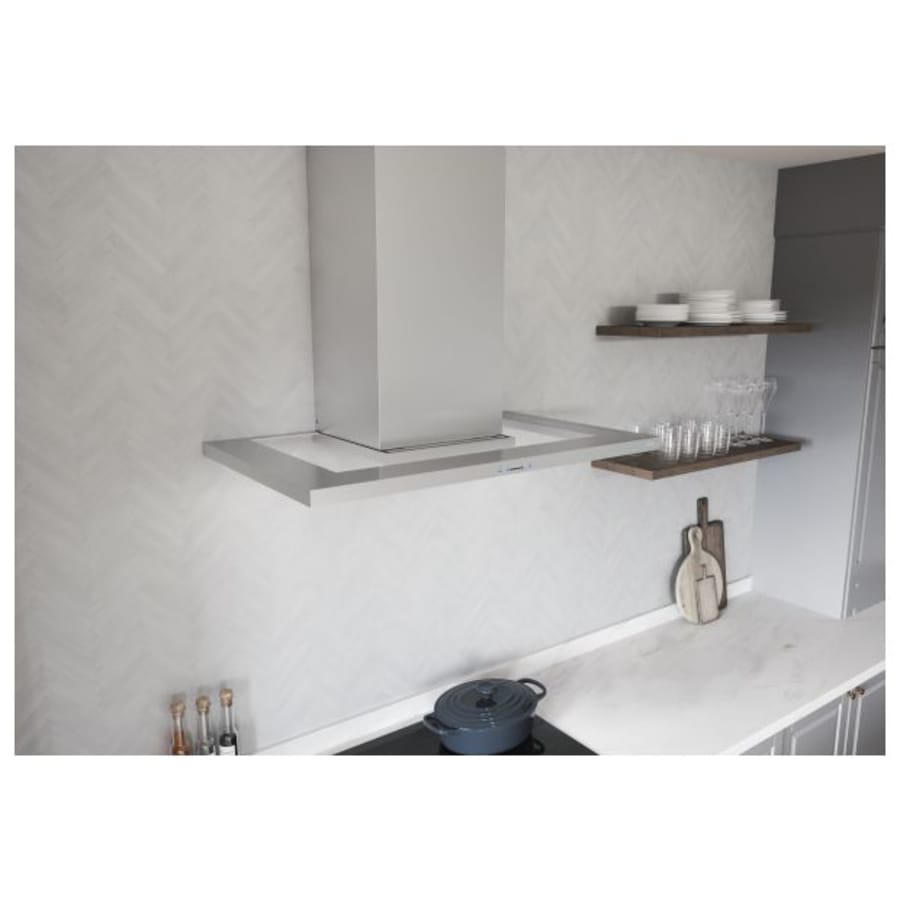

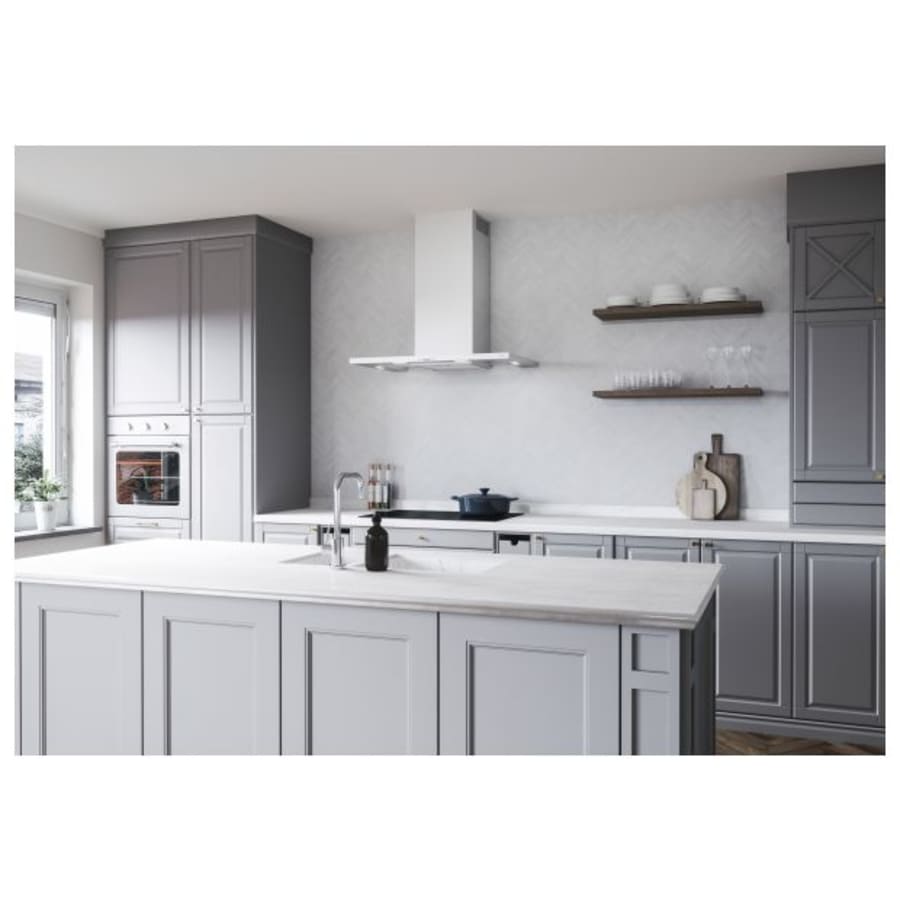

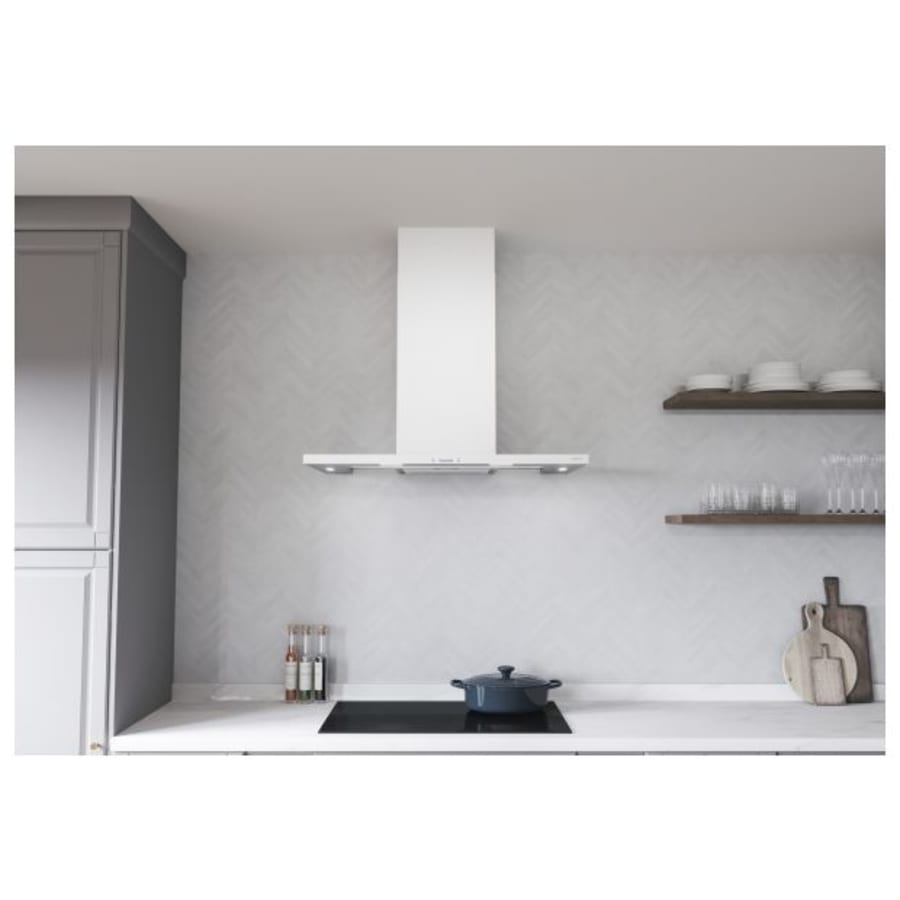

Resembling a floating island made of steel and glass, Modena houses LumiLight LED lighting and 5-speed ICON Touch® controls within its one-inch stainless steel canopy. Nestled discreetly between the chimney and its outer ring, Modena’s glass canopy adds a sense of lightness and augments the range hood’s symmetry and low-profile design.
Features:
Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors
2 LumiLight LED lights illuminate the cooking area
ICON Touch™ controls allow you to easily set the power level of your range hood
Dishwasher safe aluminum mesh filters
Low-profile body for a minimalist appearance
Extension duct cover kit to accommodate ceiling heights up to 12′ (see spec sheets for more details)
Covered under a 1 year labor and 3 year parts warranty
Product Technologies:
Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The multi-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
ICON Touch® controls: ICON Touch™ Controls seamlessly integrate into the hood’s stainless steel canopy, which lets users control functions such as the speed, delay-off, multi-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen
Specifications:
CFM: 200, 290, 600
Sones: 1, 6
Nominal Width: 30″
Width: 29-7/8″
Height: 27, 50″
Depth: 22-1/8″
Duct Size: 8″ Round
Ceiling Height: 96″ – 120″
Height Above Cooktop: 24″ to 36″
Amperage: 4A
Voltage: 120V
Wattage: 480W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Modena Collection
Specifications
| Height | 27, 50 in. |
| Width | 29.9 in. |
| Depth | 22.125 in. |
| Nominal Width | 30 in. |
| Product Weight | 69.5 lbs. |
| Ceiling Height (Max) | 120 in. |
| Ceiling Height (Min) | 96 in. |
| CFM | 200, 290, 600 |
| Duct Size | 8" Round |
| Height Above Cooktop | 24" to 34" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 24 in. |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Number of Bulbs | 2 |
| Thermostat | Modern |
| Bubbler Type | LED |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Smart Home | No |
| Blower Type | Internal |
| Control Type | Touch |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Panel Ready | No |
| Voltage | 120 |
| Wattage | 480 |
| Watts Per Bulb | 6 |
| Amperage | 4 |
| Sones | 1, 6 |
| Speeds | 5 |
| ADA | No |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
| Outdoor Approved | No |
| Title 24 | Yes |
| Collection | Modena |
| Approved for Commercial Use | No |
| Certifications | UL |
| Energy Star | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
