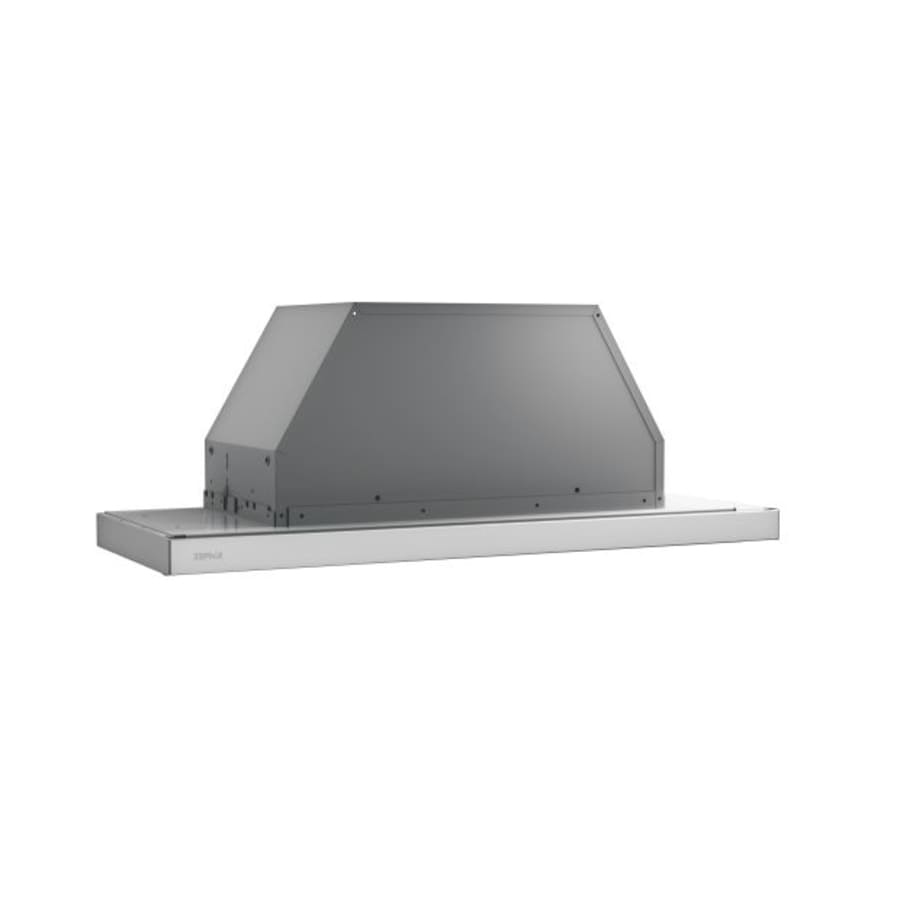

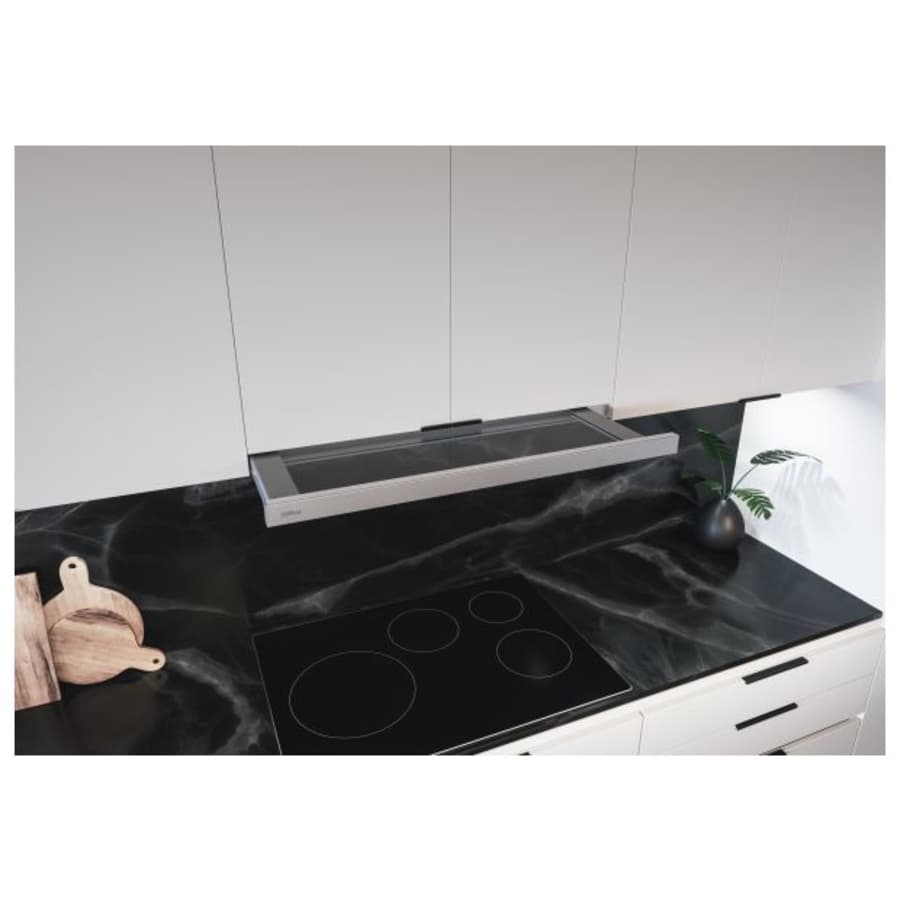

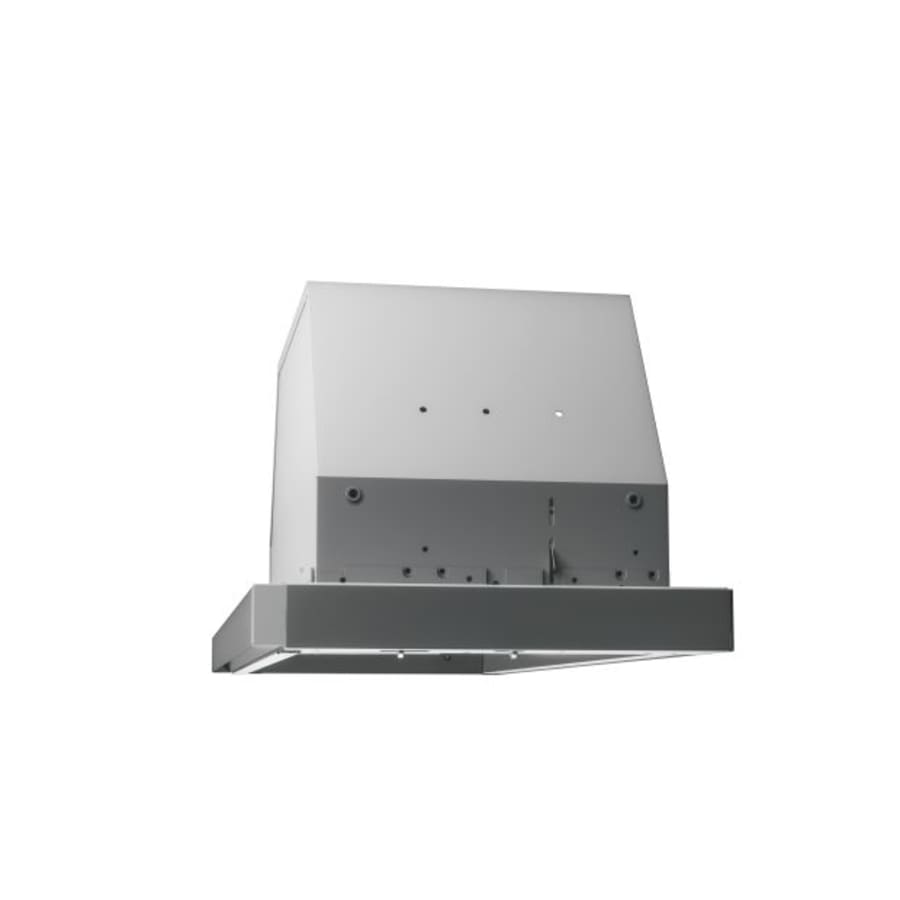

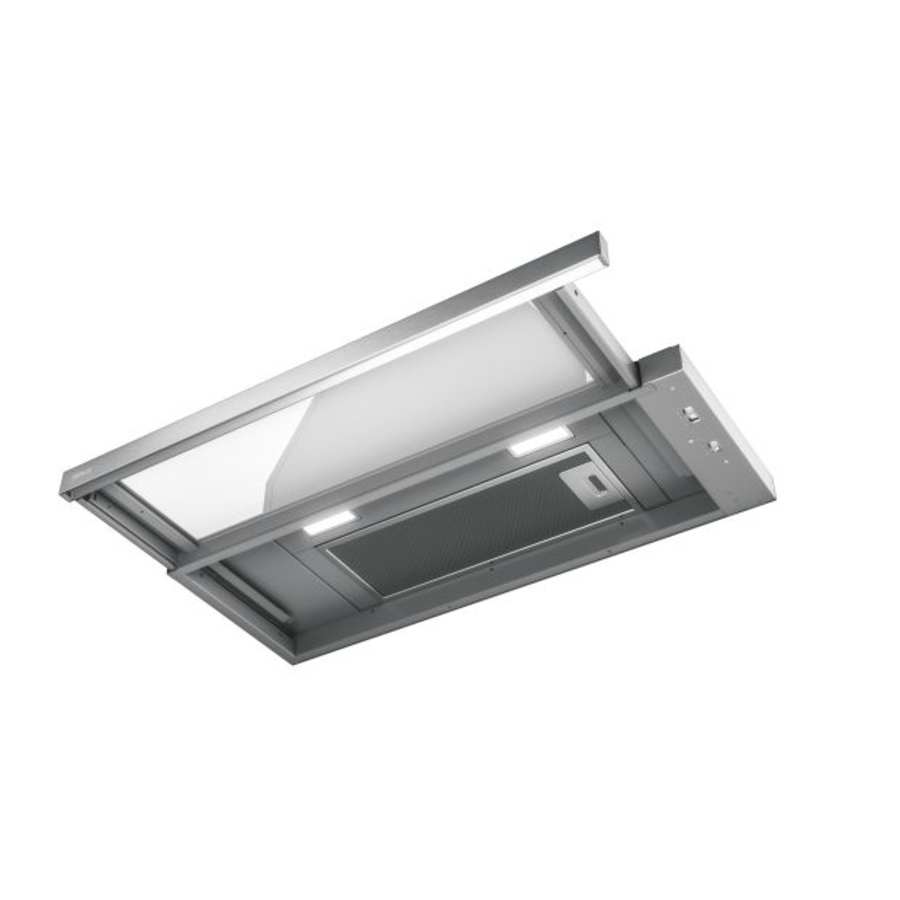

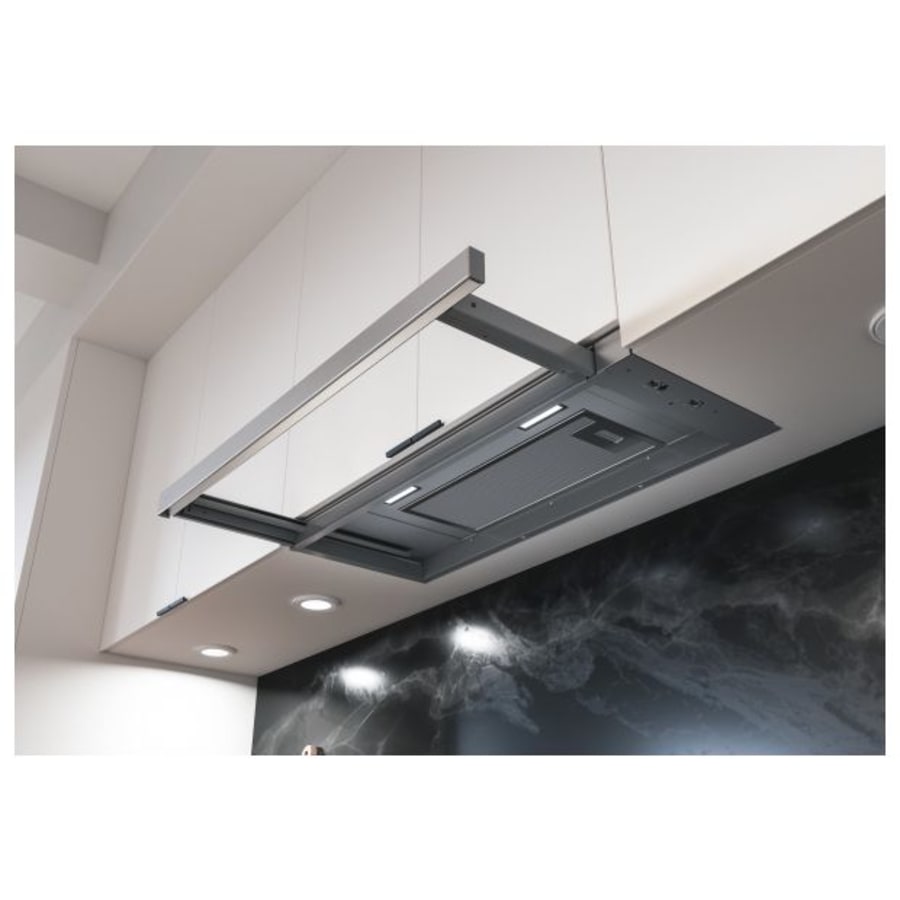

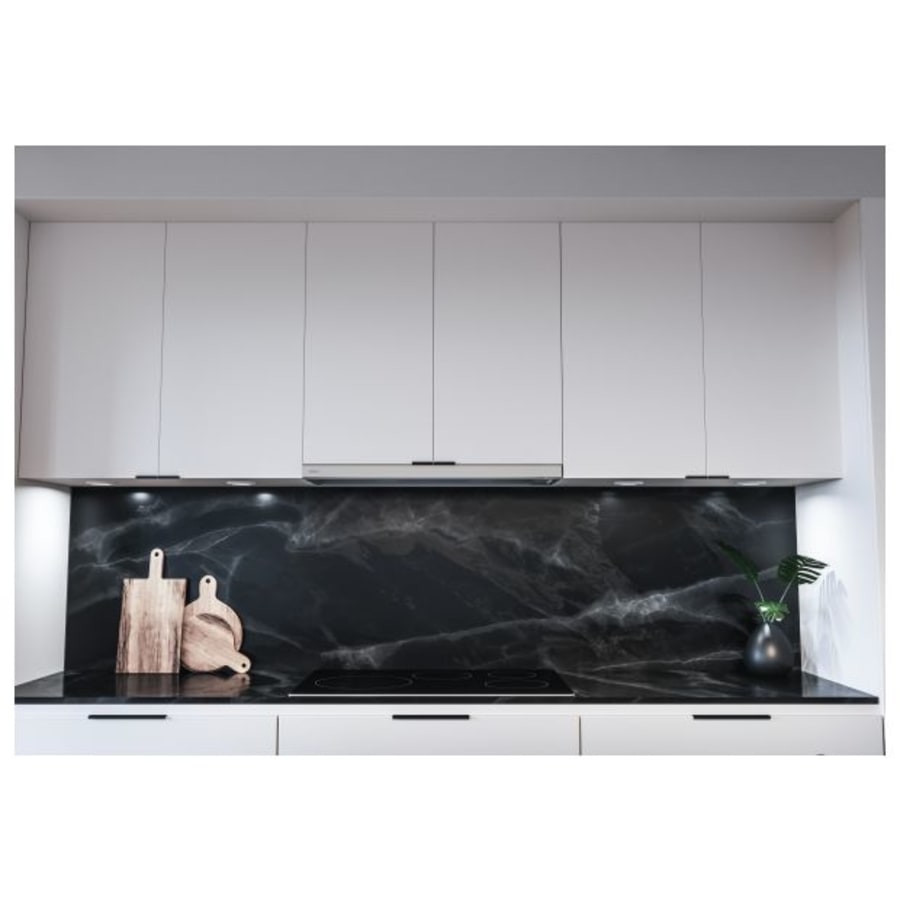

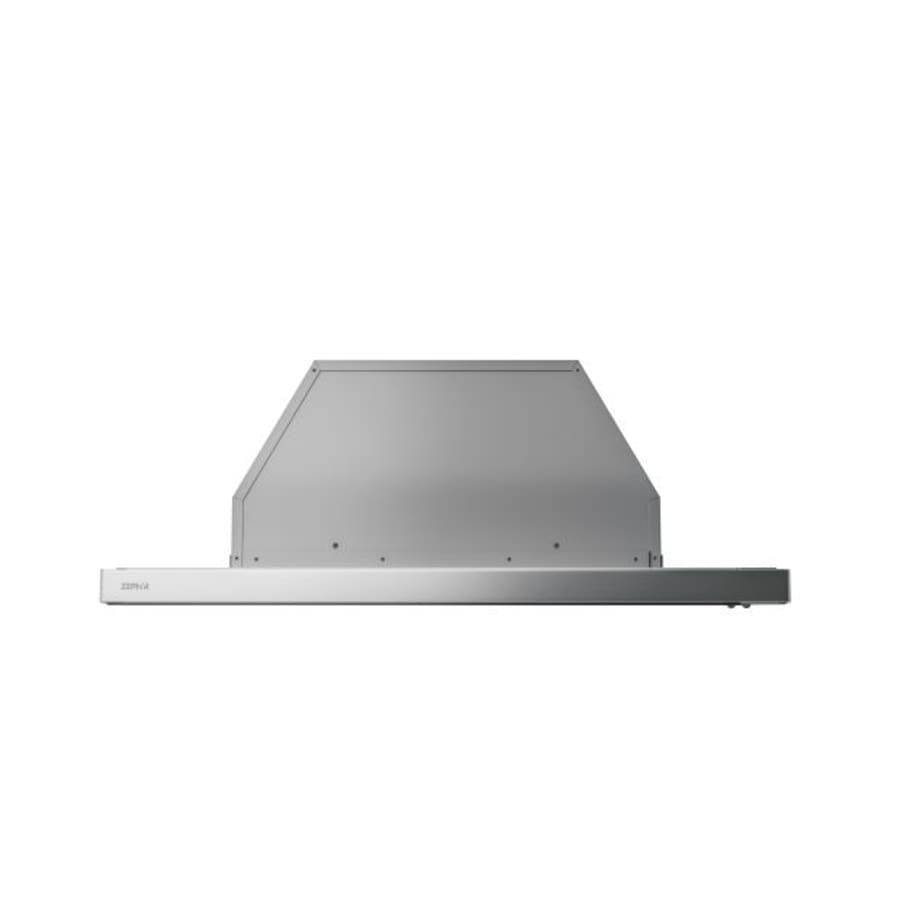

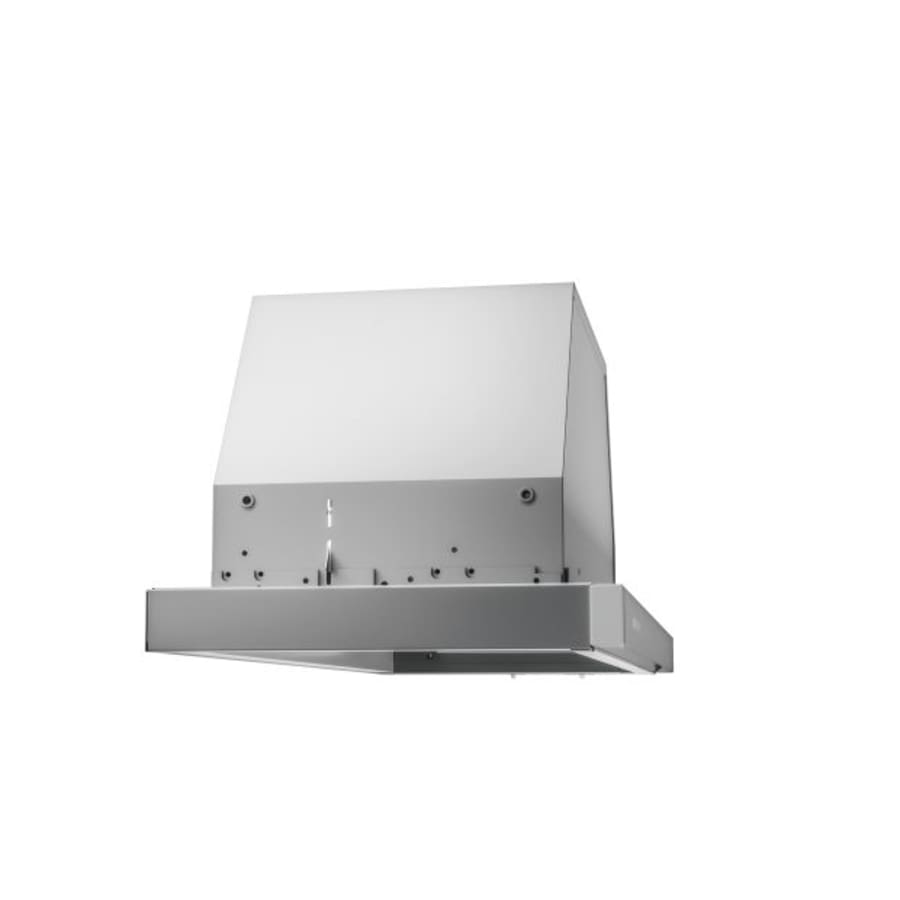

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with LumiLight LED Lighting and powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.
Features:
Blower outputs up to 290 CFM to keep your kitchen free of cooking fumes and odors
Mechanical slide controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
2 LumiLight LED lights illuminate the cooking area
Aluminum mesh filters effectively trap and filter out unwanted smoke, odors, and grease
Recirculating option
Low-profile body for a minimalist appearance
Covered under a 1 year labor and 3 year parts warranty
Product Technologies:
LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The multi-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
Specifications:
CFM: 180, 290
Sones: 1.3, 3.2
Nominal Width: 36″
Width: 35-7/8″
Height: 11-1/4″
Depth: 11-1/8″
Duct Size: 6″ Round
Ceiling Height: 96″ – 144″
Amperage: 2A
Voltage: 120V
Wattage: 240W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Pisa Collection
Specifications
| Depth | 11.125 in. |
| Nominal Width | 36 in. |
| Width | 35.875 in. |
| Height | 11.25 in. |
| Product Weight | 36 lbs. |
| CFM | 180, 290 |
| Duct Size | 6" Round |
| Height Above Cooktop | 20" to 32" |
| Ceiling Height (Max) | 144 in. |
| Ceiling Height (Min) | 96 in. |
| Material | Steel |
| Insulation Type | Full Installation |
| Control Type | Slide |
| Number of Bulbs | 2 |
| Smart Home | No |
| Bubbler Type | LED |
| Panel Ready | No |
| Blower Type | Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Mesh Filters |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Core Collection |
| Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
| Country Of Origin | Taiwan |
| Title 24 | Yes |
| Energy Star | No |
| Outdoor Approved | No |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Amperage | 2 |
| Voltage | 120 |
| Sones | 1.3, 3.2 |
| Wattage | 240 |
| Watts Per Bulb | 6 |
| Speeds | 3 |
| Color | Stainless Steel / Glass |
| Color Tone | Stainless Steel |
