Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″Â depth ensures a true fit with popular cabinet styles.
Features:
Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors
3 speed mechanical slide controls allow you to easily set the power level of your range hood
This hood has the ability to vent either out the top or out the back

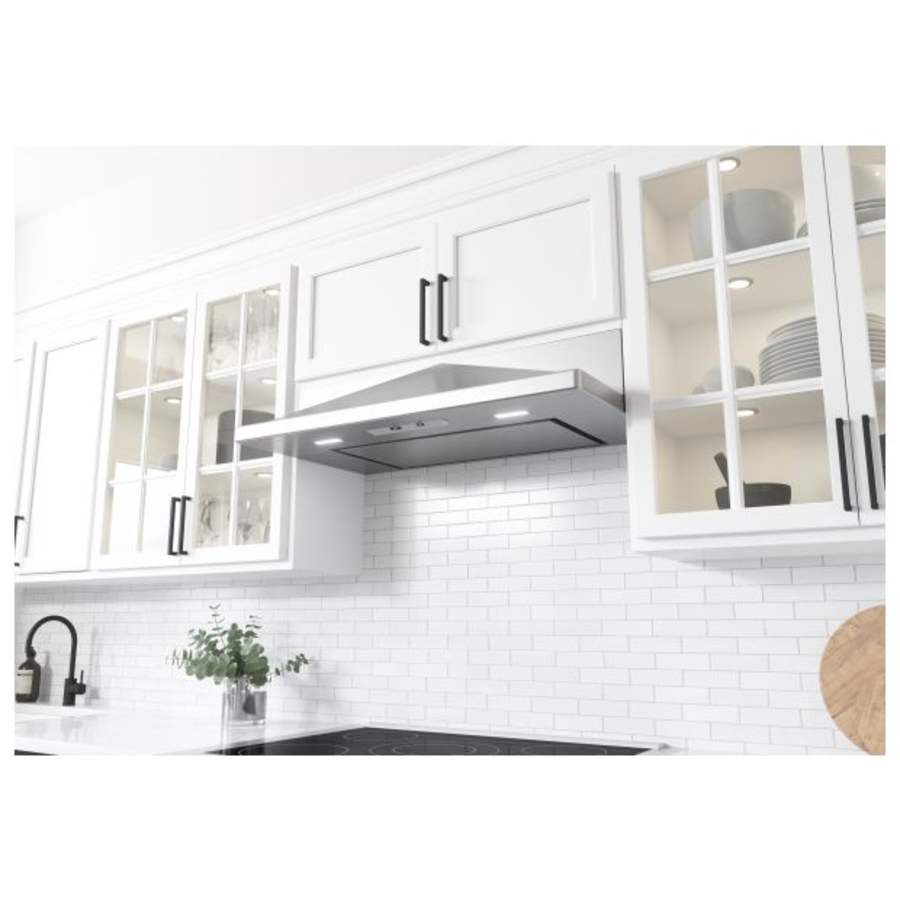

Dual-Level LumiLight LED lighting illuminates cooking area
Dishwasher safe aluminum mesh filters
Covered under a 1 year labor and 3 year parts warranty
Product Technologies:
LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The multi-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.

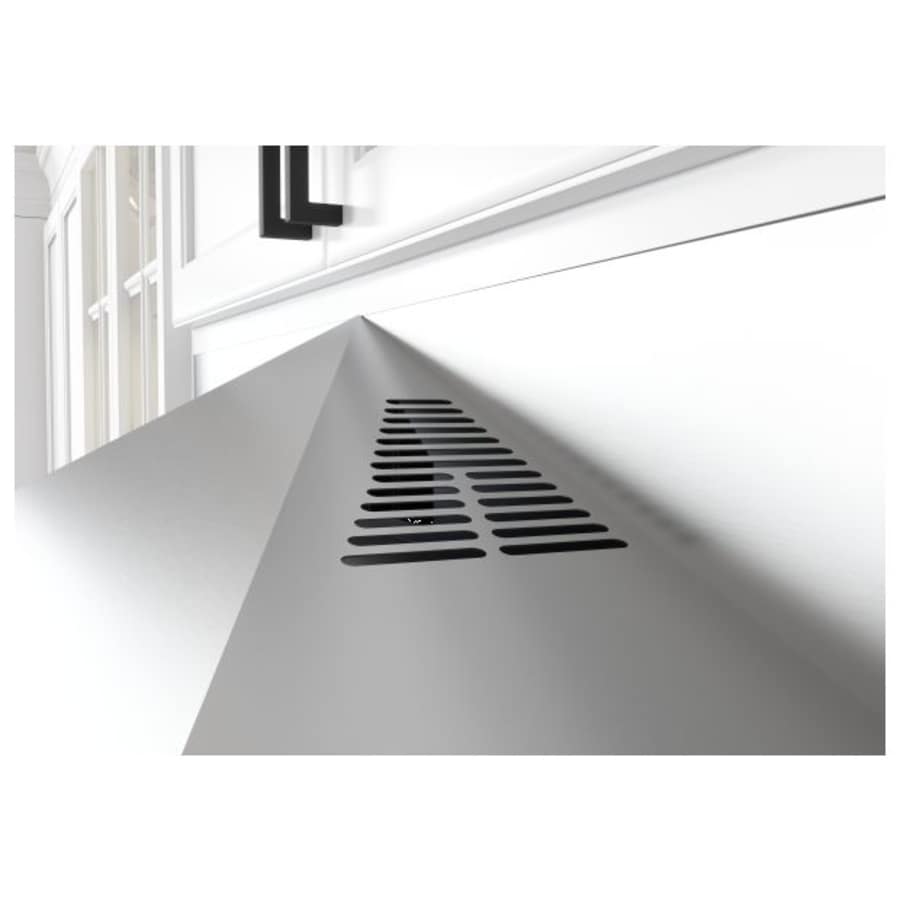

Perimeter Aspiration System: This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen
Specifications:
CFM: 210, 400
Sones: 2, 5
Nominal Width: 30″
Width: 29-15/16″
Height: 7-3/8″
Depth: 21″
Duct Size: 3-1/4″ x 10″, 7″ Round
Ceiling Height: 96″ – 144″
Amperage: 2A
Voltage: 120V
Wattage: 240W
Additional Zephyr Links
View the Manufacturer Warranty
Browse all Zephyr Products
Zephyr Pyramid Collection
Specifications
| Height | 7.375 in. |
| Width | 29.9375 in. |
| Product Weight | 31.2 lbs. |
| Depth | 21 in. |
| Nominal Width | 30 in. |
| Duct Size | 3-1/4" x 10", 7" Round |
| CFM | 210, 400 |
| Height Above Cooktop | 24" to 32" |
| Ceiling Height (Max) | 144 in. |
| Ceiling Height (Min) | 96 in. |
| Bulb Included | Yes |
| Light Included | Yes |
| Includes Remote | No |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Bubbler Type | LED |
| Material | Stainless Steel |
| Number of Bulbs | 2 |
| Insulation Type | Full Installation |
| Smart Home | No |
| Control Type | Slide |
| Panel Ready | No |
| Duct Discharge | Horizontal, Vertical |
| Blower Type | Internal |
| Filter Type | Mesh Filters |
| Voltage | 120 |
| Wattage | 240 |
| Watts Per Bulb | 6 |
| Amperage | 2 |
| Sones | 2, 5 |
| Speeds | 3 |
| ADA | No |
| Collection | Core Collection |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
| Approved for Commercial Use | No |
| Outdoor Approved | No |
| Title 20 Compliant | Yes |
| Energy Star | No |
| Title 24 | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
