Features:
700 CFM blower can quickly clear the air from your kitchen
Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
3 year parts warranty
Specifications:
CFM: 480, 560, 650, 700
Speeds: 4
Duct Size: 8″ Round
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 36″
Height: 18″
Depth: 24″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Professional Collection
Specifications

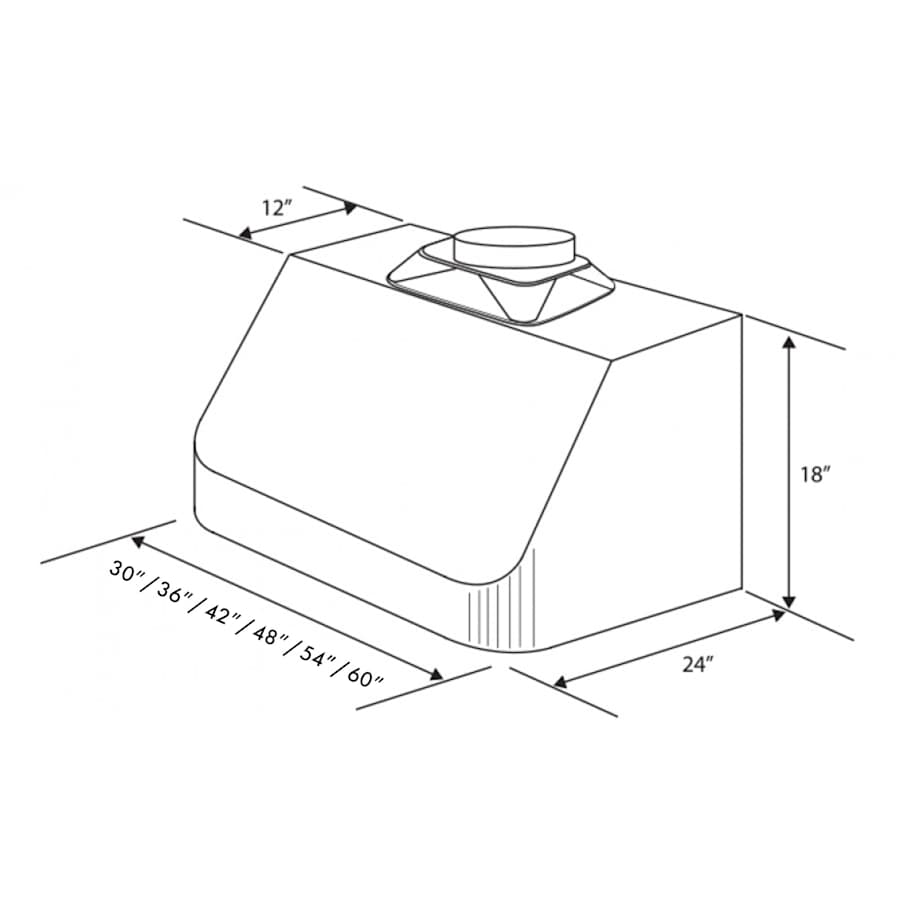

Dimensions and Measurements
| Depth | 24 in. |
| Height | 18 in. |
| Nominal Width | 36 in. |
| Product Weight | 55 lbs. |
| Width | 36 in. |
| CFM (High) | 700 |
| CFM | 480, 560, 650, 700 |
| Duct Size | 8" Round |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 30 in. |
Included Components
| Bulb Included | Yes |
| Includes Remote | No |
| Light Included | Yes |
| Convertible to Ductless / Recirculating | Yes |
| Available Without Blower | No |
| Ductless | No |
Characteristics and Features
| Bubbler Type | LED |
| Material | Stainless Steel |
| Number of Bulbs | 4 |
| Insulation Type | Full Installation |
| Control Type | Push Button |
| Panel Ready | No |
| Filter Type | Baffle Filters |
| Blower Type | Built-In |
| Duct Discharge | Vertical |
Electrical and Operational Information
| Voltage | 120 |
| Wattage | 385 |
| Amperage | 3.5 |
| Speeds | 4 |
| Frequency | 60 Hertz |
Warranty and Product Information
| Certifications | ETL |
| Collection | Professional |
| Country Of Origin | China |
| Manufacturer Warranty | 3 Year Parts |
| ADA | No |
| Title 24 | No |
| Energy Star | No |
| Outdoor Approved | No |
| Color | Brushed Stainless Steel |
