Features:
280 CFM blower can quickly clear the air from your kitchen
Mesh filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
3 year parts warranty
Specifications:
CFM: 280
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 1
Duct Size: 3-1/4″ x 10″
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 30″
Height: 5″
Depth: 19″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Professional Collection
Specifications

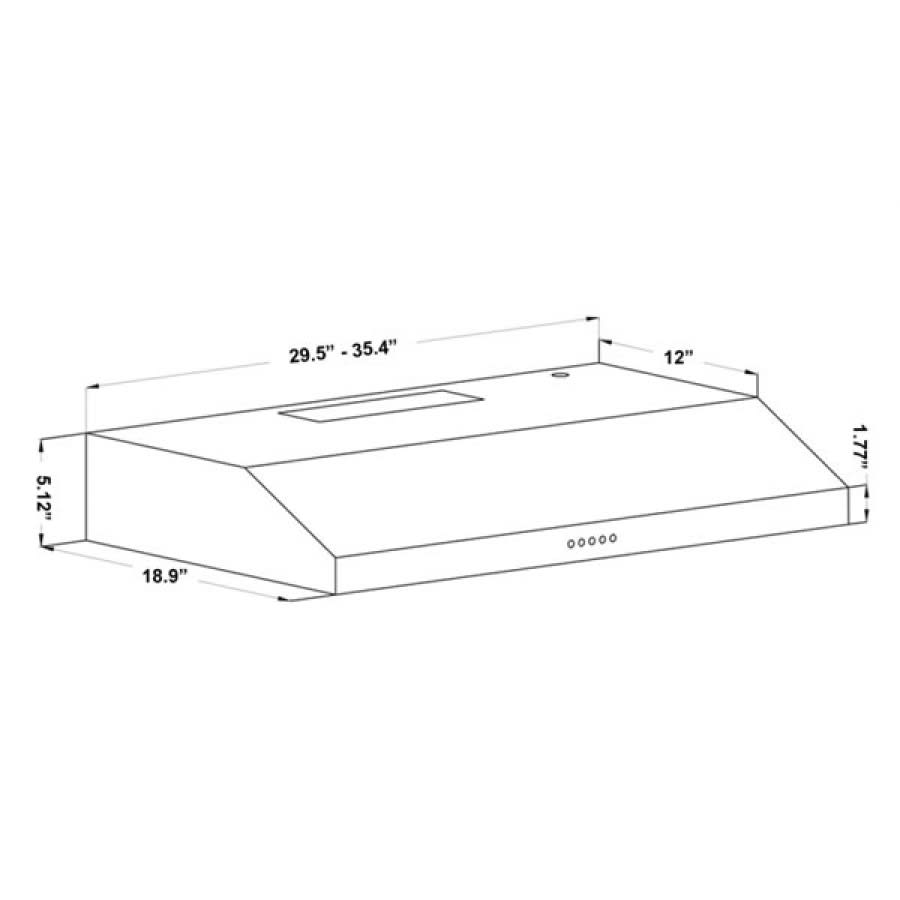

Dimensions and Measurements
| Height | 5 in. |
| Product Weight | 30 lbs. |
| Width | 30 in. |
| Depth | 19 in. |
| Nominal Width | 30 in. |
| CFM | 280 |
| Duct Size | 3-1/4" x 10" |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 30 in. |
Warranty and Product Information
| Manufacturer Warranty | 3 Year Parts |
| Collection | Professional |
| Certifications | ETL |
| Country Of Origin | China |
| ADA | No |
| Title 24 | No |
| Energy Star | No |
| Outdoor Approved | No |
Characteristics and Features
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Number of Bulbs | 1 |
| Control Type | Push Button |
| Bubbler Type | LED |
| Panel Ready | No |
| Filter Type | Mesh Filters |
| Duct Discharge | Vertical |
| Blower Type | Built-In |
Electrical and Operational Information
| Wattage | 385 |
| Voltage | 120 |
| Amperage | 3.5 |
| Speeds | 3 |
| Frequency | 60 Hertz |
| Sones | 1.5, 0.6, 1.1, 2.5 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
Included Components
| Bulb Included | Yes |
| Light Included | Yes |
| Includes Remote | No |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Available Without Blower | No |
| Color | Brushed Stainless Steel |
| Color Tone | Stainless Steel |
