Features:
600 CFM blower can quickly clear the air from your kitchen
Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
3 year parts warranty
Specifications:
CFM: 270, 380, 490, 600
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 36″
Height: 10″
Depth: 22″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Professional Collection
Specifications

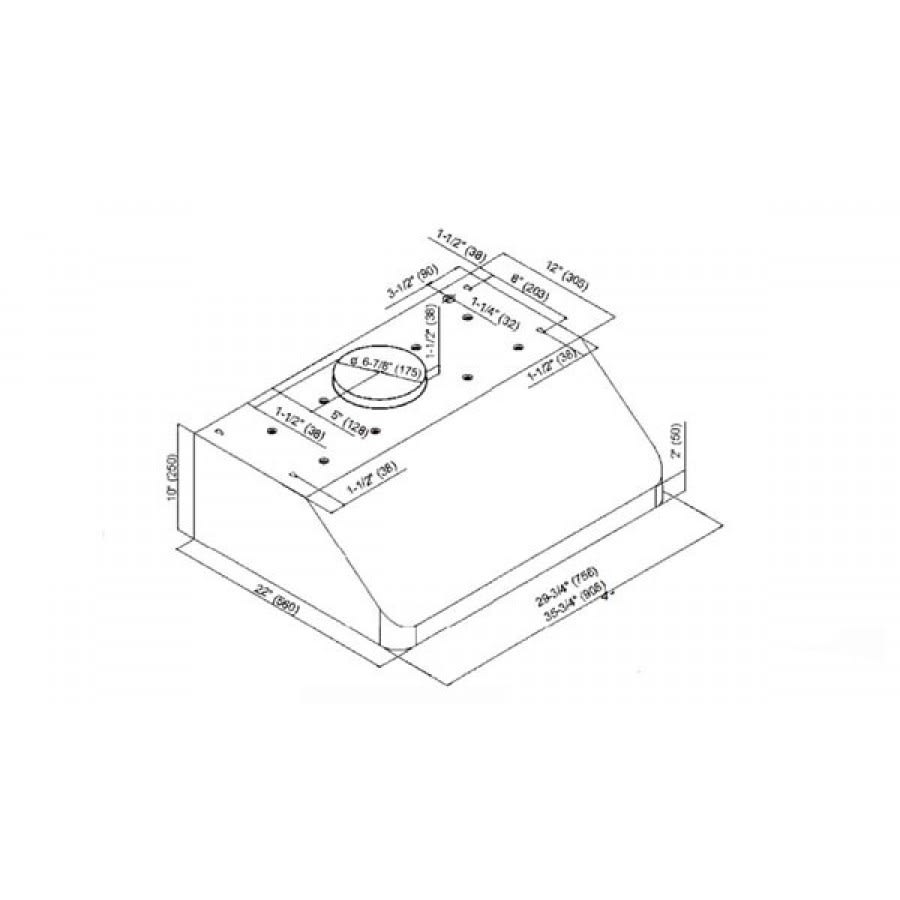

Dimensions and Measurements
| Height | 10 in. |
| Product Weight | 66 lbs. |
| Width | 36 in. |
| Depth | 22 in. |
| Nominal Width | 36 in. |
| Duct Size | 6" Round |
| CFM | 600, 270, 380, 490 |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 30 in. |
Characteristics and Features
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Control Type | Push Button |
| Blower Type | Built-In |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
| Panel Ready | No |
Warranty and Product Information
| ADA | No |
| Country Of Origin | China |
| Manufacturer Warranty | 3 Year Parts |
| Collection | Professional |
| Certifications | ETL |
| Title 24 | No |
| Outdoor Approved | No |
| Energy Star | No |
Included Components
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Includes Remote | No |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
Electrical and Operational Information
| Voltage | 120 |
| Wattage | 385 |
| Amperage | 3.5 |
| Frequency | 60 Hertz |
| Speeds | 4 |
| Sones | 1.5, 0.6, 2.5, 1.1 |
| Color | Brushed Stainless Steel |
| Color Tone | Stainless Steel |
