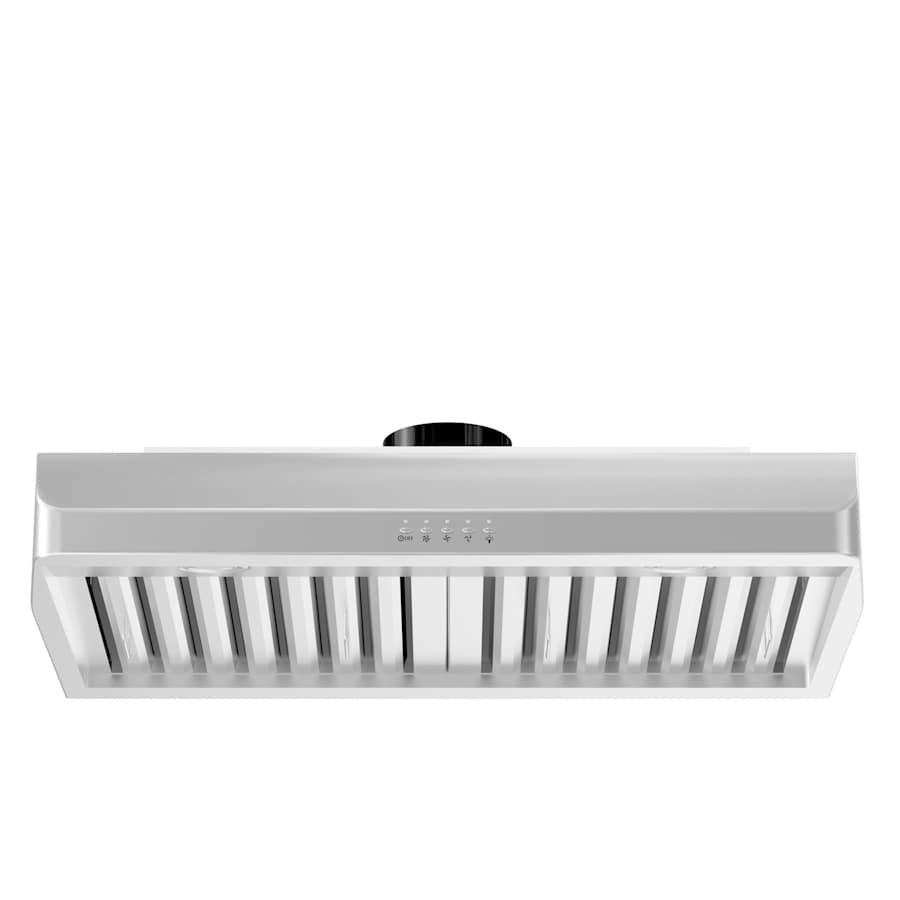

Features:
600 CFM blower can quickly clear the air from your kitchen

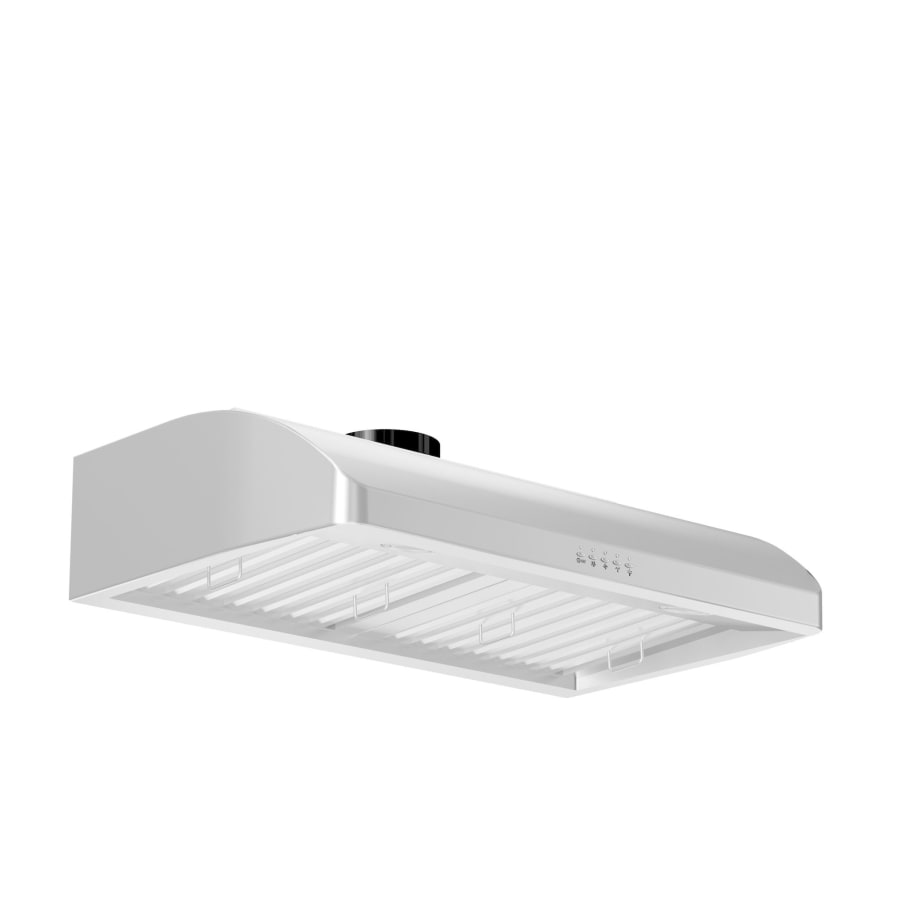

Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
3 year parts warranty
Specifications:
CFM: 270, 380, 490, 600
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED

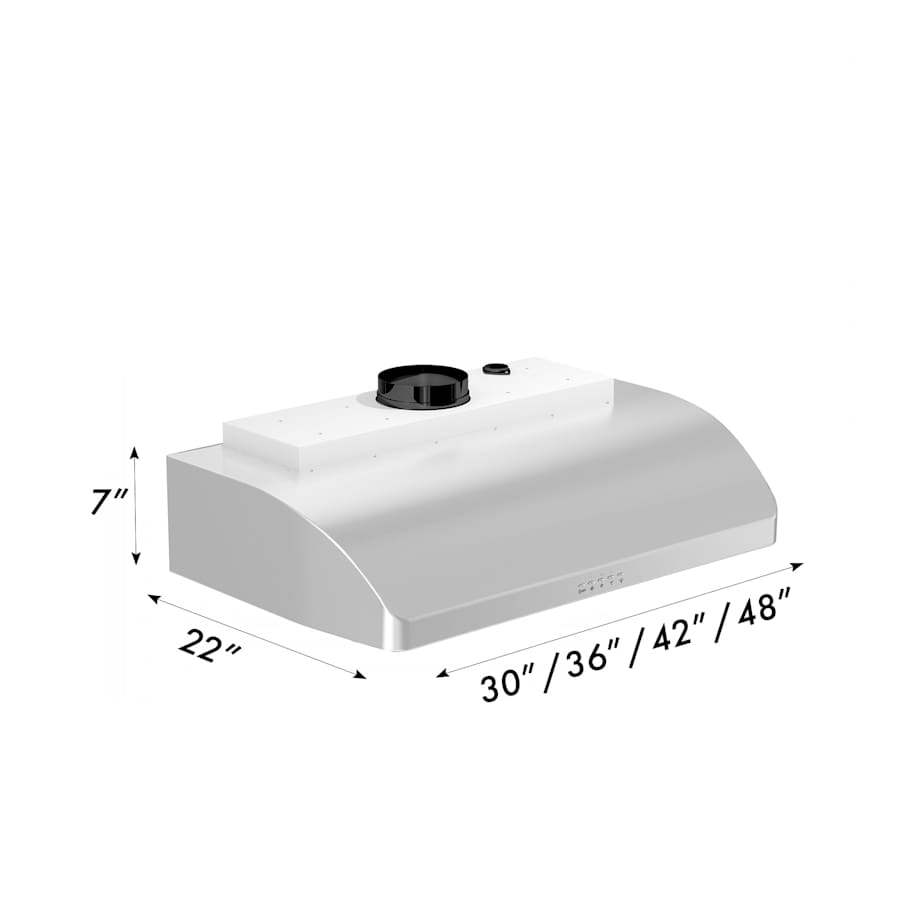

Nominal Width: 30″
Height: 10″
Depth: 22″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Professional Collection
Specifications
Dimensions and Measurements
| Product Weight | 61 lbs. |
| Width | 30 in. |
| Depth | 22 in. |
| Height | 10 in. |
| Nominal Width | 30 in. |
| CFM | 270, 380, 490, 600 |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Min) | 30 in. |
| Height Above Cooktop (Max) | 36 in. |
Warranty and Product Information
| Manufacturer Warranty | 3 Year Parts |
| Collection | Professional |
| Country Of Origin | China |
| Certifications | ETL |
| ADA | No |
| Outdoor Approved | No |
| Title 24 | No |
| Energy Star | No |
Characteristics and Features
| Material | Stainless Steel |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Insulation Type | Full Installation |
| Control Type | Push Button |
| Blower Type | Built-In |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
| Panel Ready | No |
Electrical and Operational Information
| Voltage | 120 |
| Wattage | 385 |
| Amperage | 3.5 |
| Speeds | 4 |
| Frequency | 60 Hertz |
| Sones | 2.5, 1.1, 0.6, 1.5 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
Included Components
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Light Included | Yes |
| Includes Remote | No |
| Color | Brushed Stainless Steel |
