Features:
400 CFM blower can quickly clear the air from your kitchen

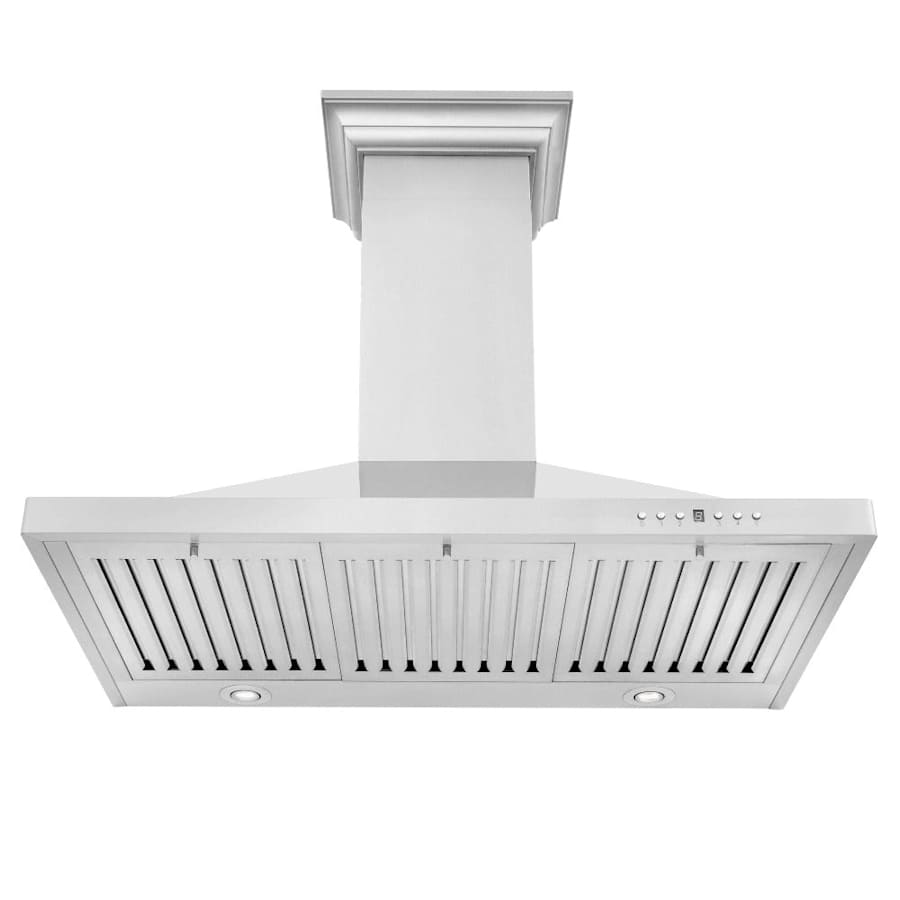

Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface

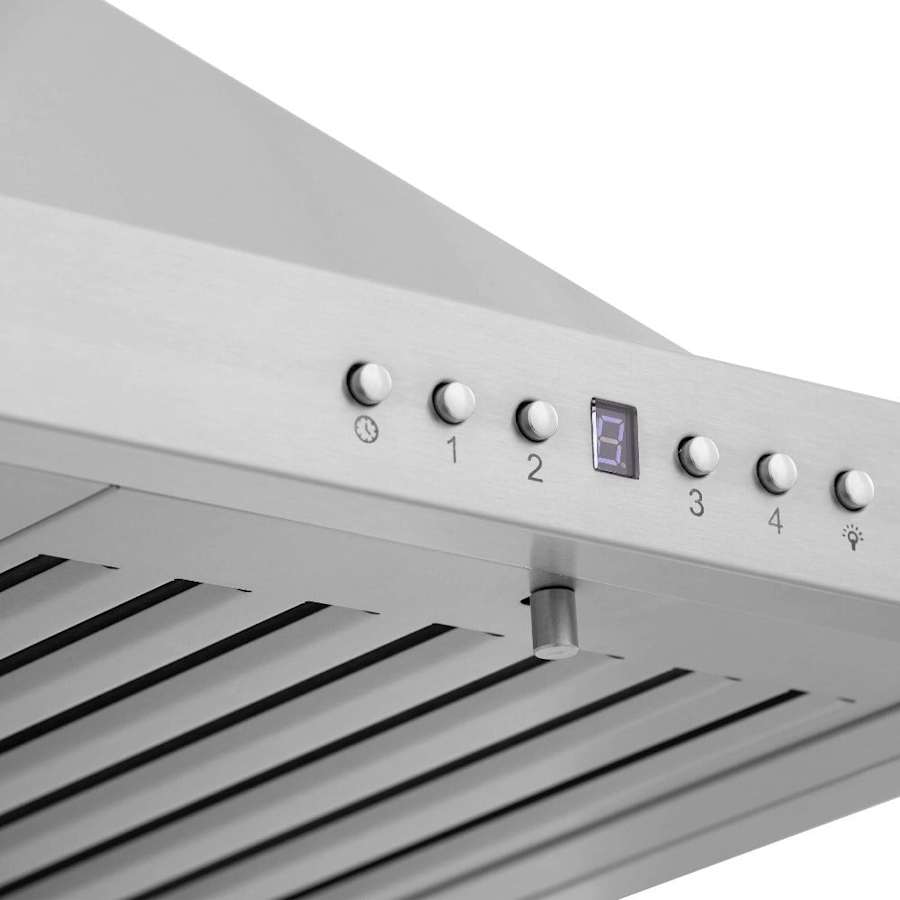

Push-button controls allow for easy control of lighting and fan
May be used as a recirculating range hood in installations where there is no way to vent the air to the outside
3 year parts warranty
Specifications:
CFM: 120, 240, 320, 400
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 42″
Height: 10-1/2″
Depth: 20″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Classic Collection
Specifications

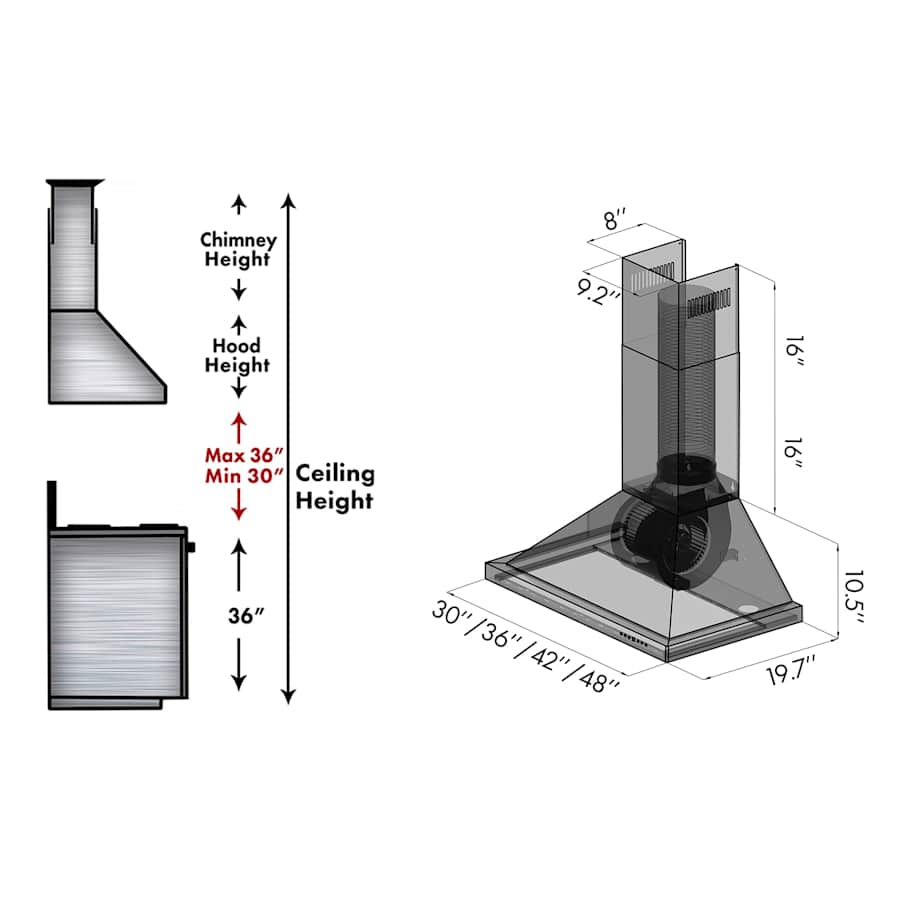

Dimensions and Measurements
| Product Weight | 50 lbs. |
| Height | 10.5 in. |
| Width | 42 in. |
| Depth | 20 in. |
| Nominal Width | 42 in. |
| CFM | 120, 320, 400, 240 |
| Duct Size | 6" Round |
| Ceiling Height (Max) | 114 in. |
| Ceiling Height (Min) | 92.4 in. |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 30 in. |
Warranty and Product Information
| Manufacturer Warranty | 3 Year Parts |
| ADA | No |
| Certifications | ETL |
| Collection | Classic |
| Country Of Origin | China |
| Energy Star | No |
| Title 24 | No |
| Outdoor Approved | No |
Included Components
| Bulb Included | Yes |
| Light Included | Yes |
| Includes Remote | No |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
Characteristics and Features
| Bubbler Type | LED |
| Material | Stainless Steel |
| Number of Bulbs | 4 |
| Insulation Type | Full Installation |
| Control Type | Push Button |
| Duct Discharge | Vertical |
| Blower Type | Built-In |
| Filter Type | Baffle Filters |
| Panel Ready | No |
Electrical and Operational Information
| Voltage | 120 |
| Wattage | 385 |
| Speeds | 4 |
| Frequency | 60 Hertz |
| Amperage | 3.5 |
| Sones | 2.5, 1.5, 1.1, 0.6 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
| Color | Brushed Stainless Steel |
| Color Tone | Stainless Steel |
