Features:
400 CFM blower can quickly clear the air from your kitchen

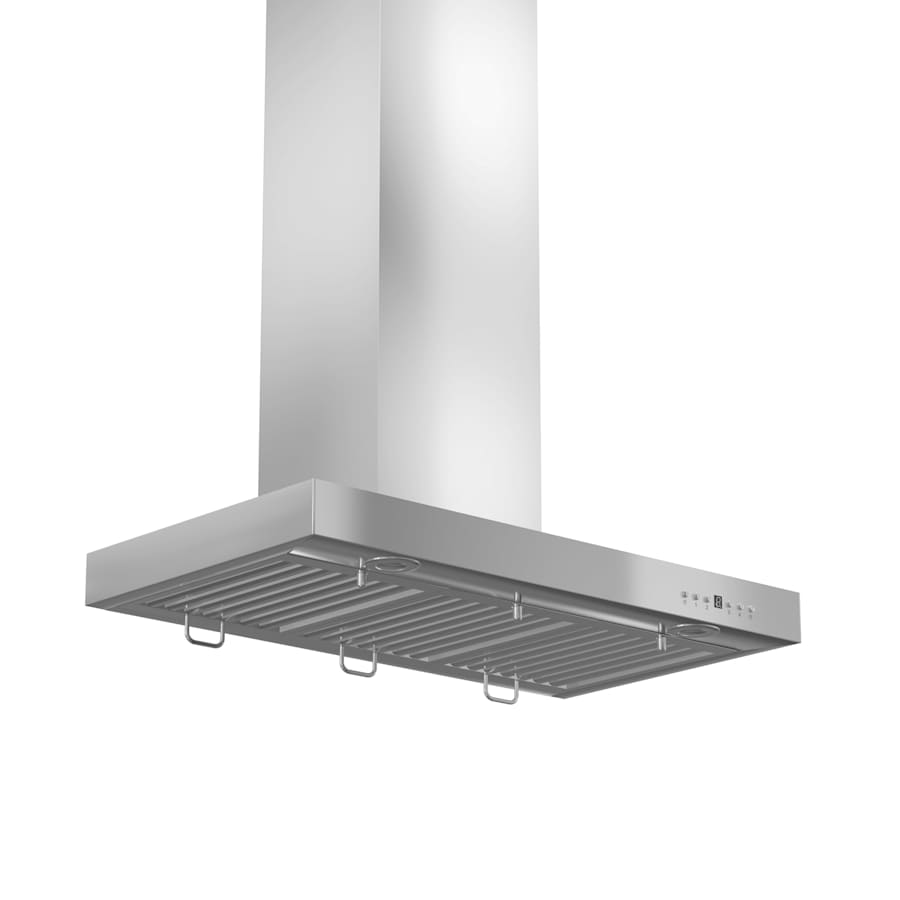

Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
May be used as a recirculating range hood in installations where there is no way to vent the air to the outside
Please note the position of a grill lid can block the range hood filters and decrease range hood performance. We recommend moving the range hood to accommodate your grill lid or ensure range hood depth will surpass the size of the grill and mounted 38-42 inches above the grill
3 year parts warranty
Specifications:
CFM: 120, 240, 320, 400
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED

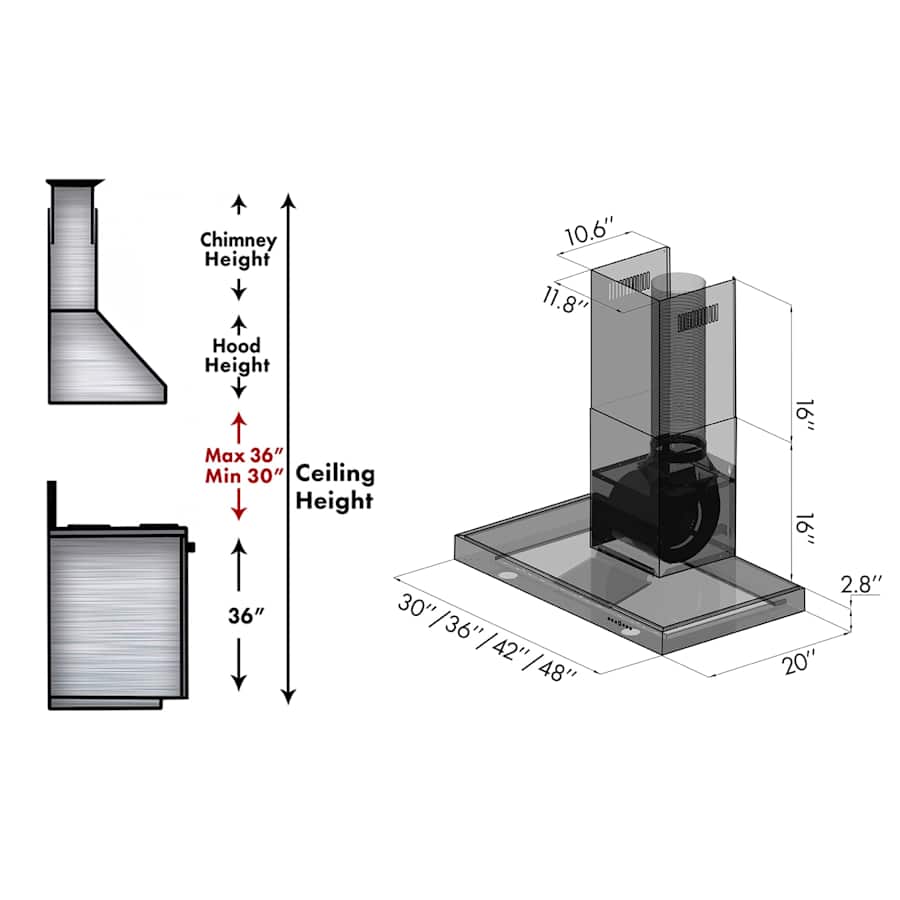

Nominal Width: 30″
Height: 2-13/16″
Depth: 19-3/4″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Classic Collection
Specifications
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Panel Ready | No |
| Control Type | Push Button |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
| Smart Home | No |
| Approved for Commercial Use | No |
| Collection | Classic |
| ADA | No |
| Manufacturer Warranty | 3 Year Parts |
| Certifications | HVI, ETL, UL |
| Country Of Origin | China |
| Outdoor Approved | No |
| Energy Star | No |
| Title 24 | No |
| Depth | 19.75 in. |
| Height | 2.8 in. |
| Nominal Width | 30 in. |
| Product Weight | 39 lbs. |
| Width | 30 in. |
| Ceiling Height (Max) | 105.6, 110.76 in. |
| Ceiling Height (Min) | 68.76, 85.2 in. |
| CFM | 120, 240, 320, 400 |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 30 in. |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Amperage | 3.5, 5 |
| Voltage | 110, 120 |
| Wattage | 385, 550 |
| Watts Per Bulb | 2.5 |
| Speeds | 4 |
| Frequency | 60 Hertz |
| Sones | 0.6, 1.1, 1.5, 2.5 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
| Color | Brushed Stainless Steel, Stainless Steel / Snow |
| Color Tone | Stainless Steel |
