Features:
400 CFM blower can quickly clear the air from your kitchen

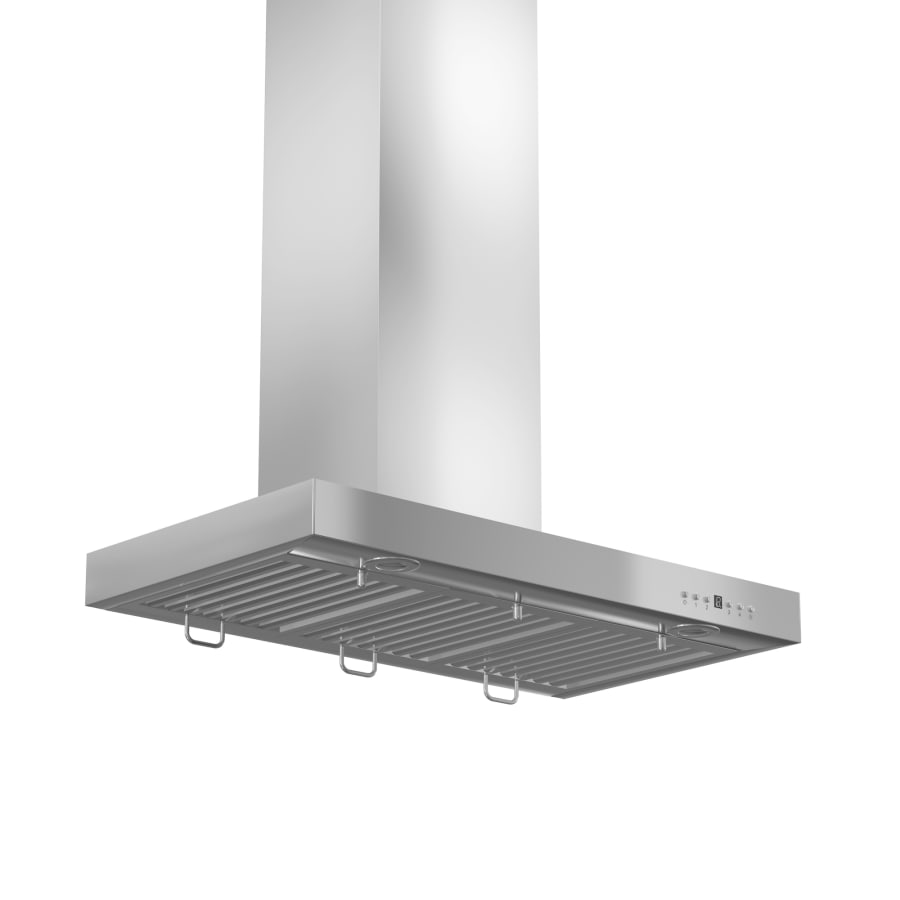

Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
May be used as a recirculating range hood in installations where there is no way to vent the air to the outside
3 year parts warranty
Specifications:
CFM: 120, 240, 320, 400
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 48
Height: 3″
Depth: 20″
Height Above Cooktop: 30″ to 36″
Voltage: 120v
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Classic Collection
Specifications

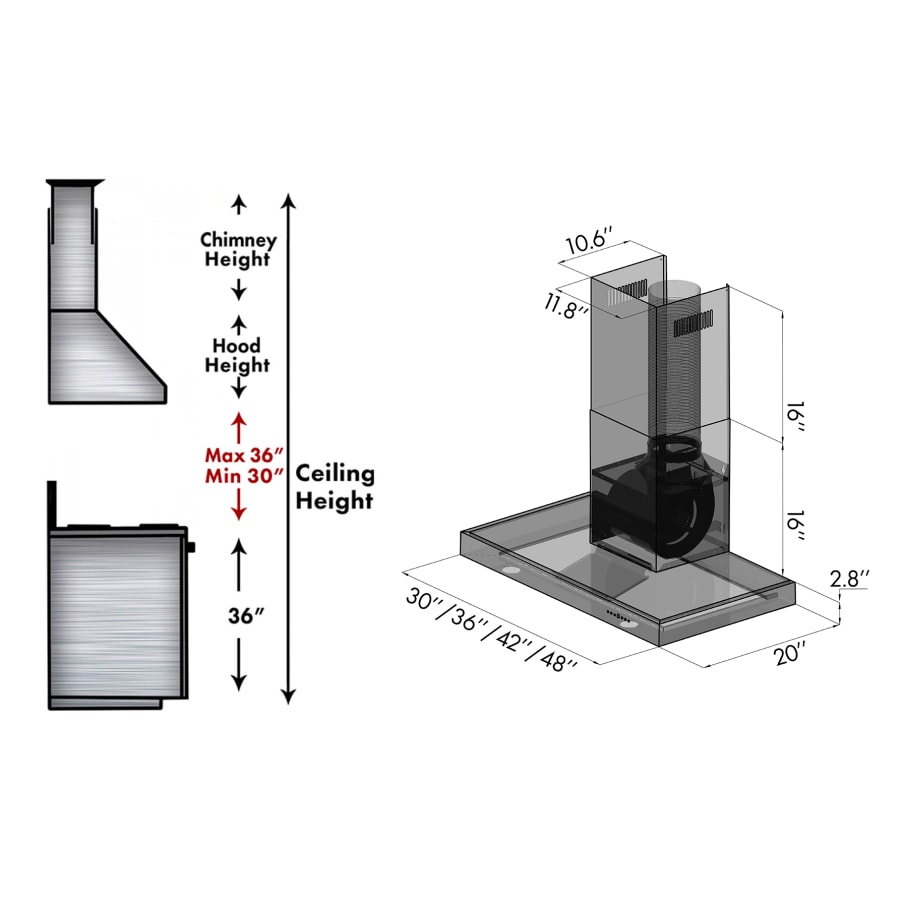

Dimensions and Measurements
| Height | 3 in. |
| Width | 48 in. |
| Depth | 20 in. |
| Nominal Width | 48 in. |
| Product Weight | 55 lbs. |
| Duct Size | 6" Round |
| CFM | 320, 120, 240, 400 |
| Ceiling Height (Max) | 105.6 in. |
| Ceiling Height (Min) | 85.2 in. |
| Height Above Cooktop | 30" to 36" |
Characteristics and Features
| Bubbler Type | LED |
| Number of Bulbs | 4 |
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Stainless Steel Grade | 430 |
| LED | Yes |
| Control Type | Push Button |
| Duct Discharge | Vertical |
| Panel Ready | No |
| Filter Type | Baffle Filters |
| Blower Type | Built-In |
Electrical and Operational Information
| Wattage | 385 |
| Voltage | 120 |
| Speeds | 4 |
| Amperage | 3.5 |
| Frequency | 60 Hertz |
| Fan Speeds | 4 |
| Sones | 1.5, 1.1, 2.5, 0.6 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
Warranty and Product Information
| Collection | Classic |
| Outdoor Approved | No |
| Certifications | ETL |
| ADA | No |
| Country Of Origin | China |
| Manufacturer Warranty | 3 Year Parts |
| Title 24 | No |
| Energy Star | No |
Included Components
| Light Included | Yes |
| Available Without Blower | No |
| Ductless | No |
| Convertible to Ductless / Recirculating | Yes |
| Includes Remote | No |
| Color | Brushed Stainless Steel |
| Color Tone | Stainless Steel |
