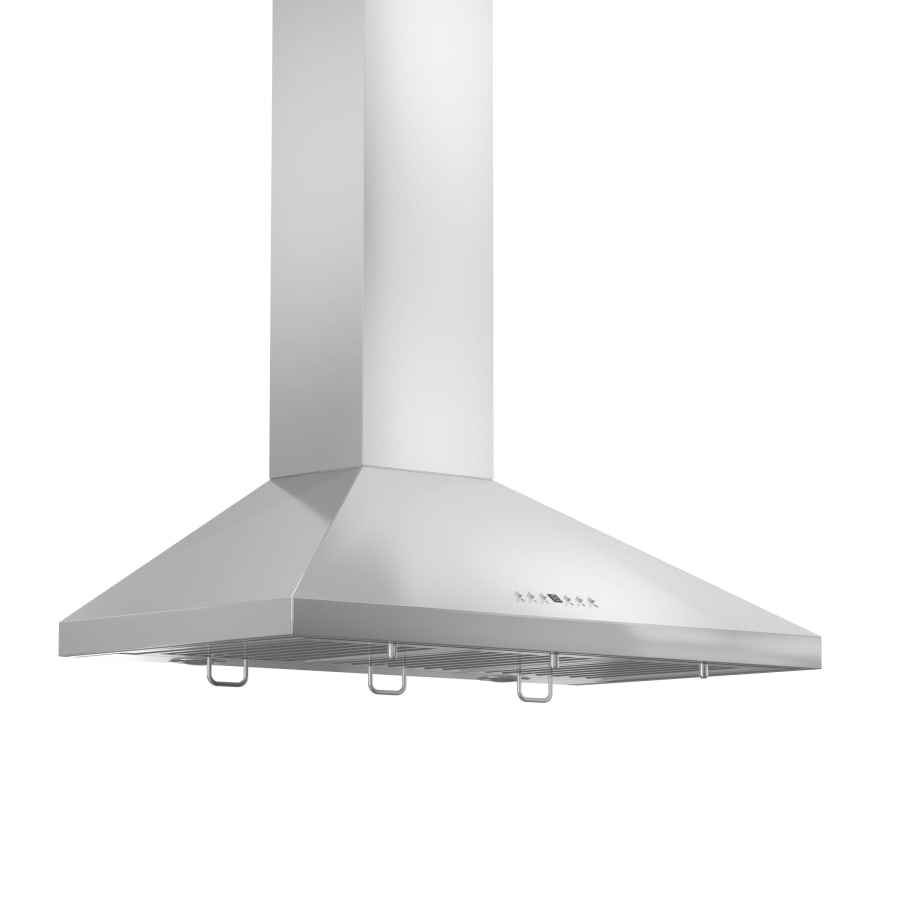

Features:
400 CFM blower can quickly clear the air from your kitchen
Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Push-button controls allow for easy control of lighting and fan
May be used as a recirculating range hood in installations where there is no way to vent the air to the outside
3 year parts warranty
Specifications:
CFM: 120, 240, 320, 400
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 48
Height: 10″
Depth: 20″
Height Above Cooktop: 30″ to 36″
Voltage: 120v
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Classic Collection
Specifications

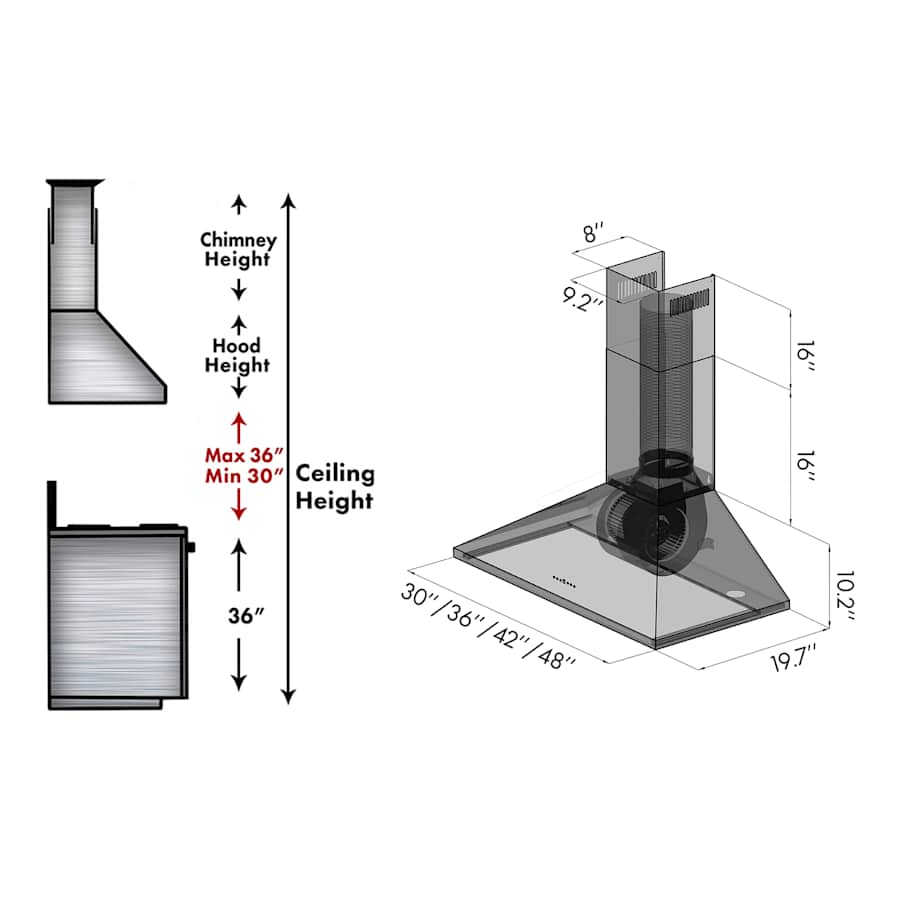

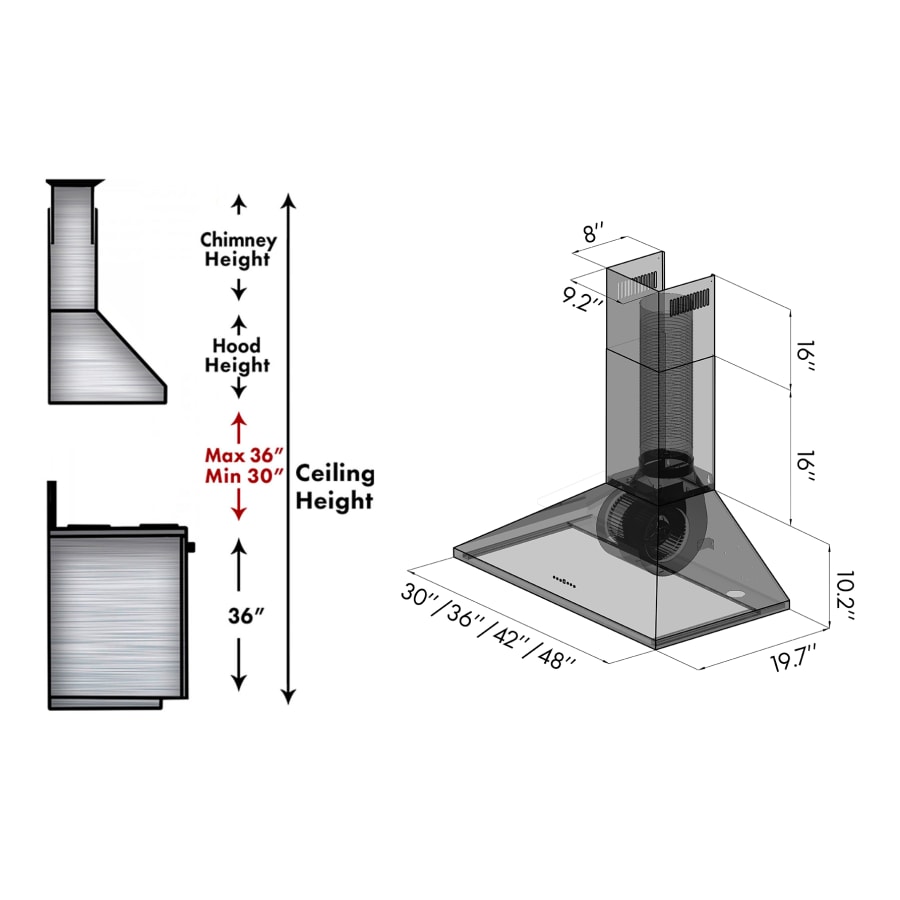

Dimensions and Measurements
| Product Weight | 60 lbs. |
| Height | 10 in. |
| Width | 48 in. |
| Ceiling Height (Max) | 112.8 in. |
| Ceiling Height (Min) | 92.4 in. |
| Depth | 20 in. |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" to 36" |
| Nominal Width | 48 in. |
| CFM | 400, 320, 240, 120 |
Warranty and Product Information
| Manufacturer Warranty | 3 Year Parts |
| Collection | Classic |
| Outdoor Approved | No |
| Country Of Origin | China |
| ADA | No |
| Certifications | ETL |
| Energy Star | No |
| Title 24 | No |
Included Components
| Available Without Blower | No |
| Ductless | No |
| Light Included | Yes |
| Includes Remote | No |
| Convertible to Ductless / Recirculating | Yes |
Characteristics and Features
| Blower Type | Built-In |
| Bubbler Type | LED |
| Control Type | Push Button |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Number of Bulbs | 4 |
| LED | Yes |
| Stainless Steel Grade | 430 |
| Panel Ready | No |
Electrical and Operational Information
| Voltage | 120 |
| Wattage | 385 |
| Amperage | 3.5 |
| Frequency | 60 Hertz |
| Fan Speeds | 4 |
| Sones | 1.5, 1.1, 2.5, 0.6 |
| Speeds | 4 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
| Color | Brushed Stainless Steel |
| Color Tone | Stainless Steel |
