Product Features:
This automatic remote drain pump and laundry tray system is pre-packaged for easy installation
Cast iron switch case, motor and pump housing are all designed for rapid heat dissipation and extended life
The engineered thermoplastic base with built-in strainer features a corrosion resistant design that easily passes laundry lint
The 1/3 HP thermally protected motor is oil-filled and hermetically sealed to prevent overheating
Non-clogging vortex impeller is capable of passing 1/2″ diameter solids
Vertical float switch has a solid and buoyant polypropylene design
The 15.75″ by 15.5″ polyethylene basin is high capacity and corrosion resistant with Gas Tight Cover
Threaded connection for easy installation; 2″ NPT intake, 2″ NPT vent and 1-1/2″ discharge
The 1-1/2″ slip-on check valve is engineered for longer life and quiet operation
9′ power cord for easy connection
UL Listed
Product Specifications:

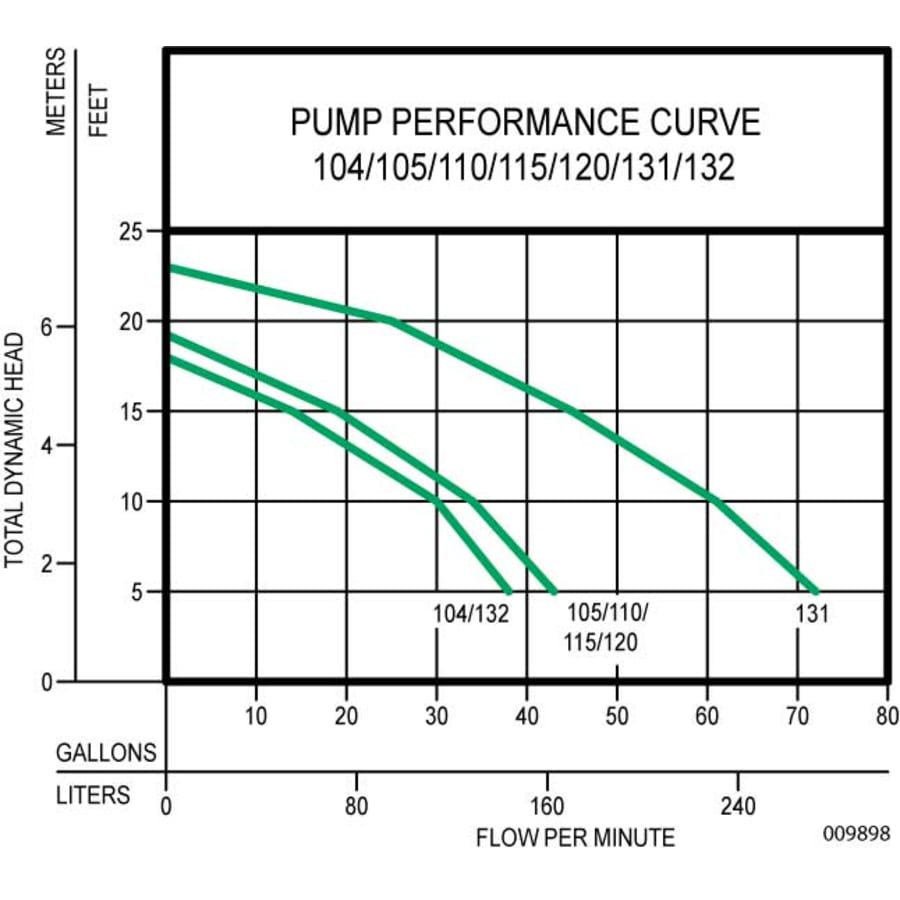

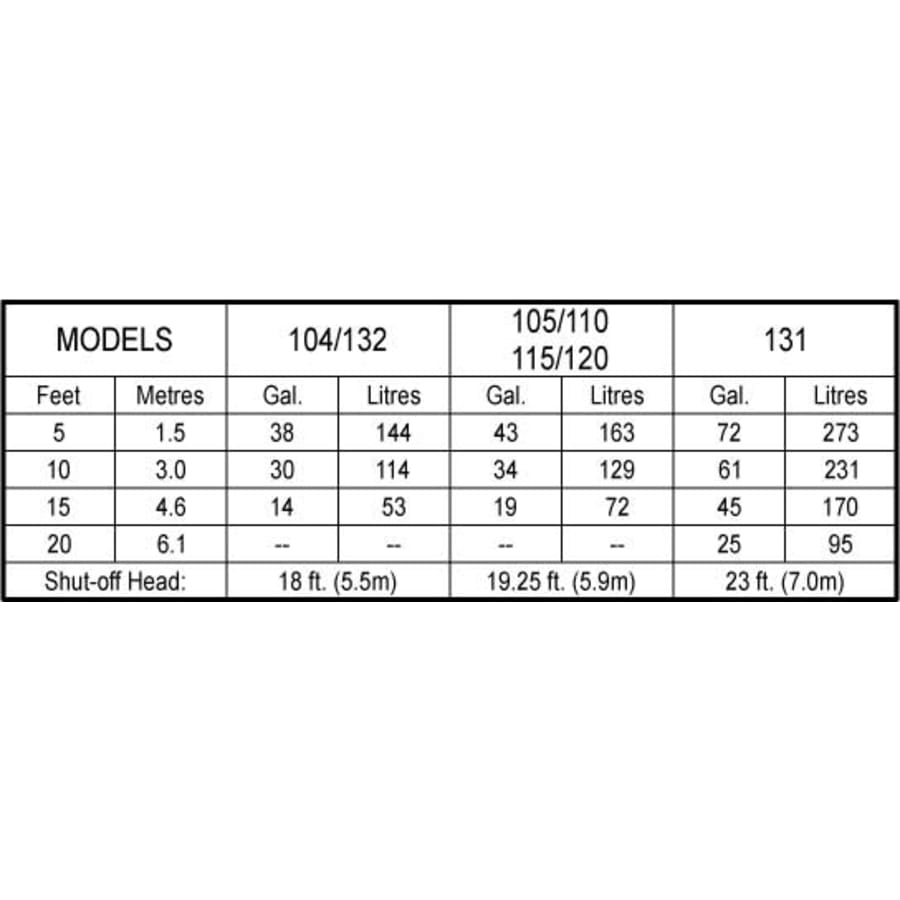

GPH @ 0 feet: 2680
GPH @ 5 feet: 2680
GPH @ 10 feet: 2040
GPH @ 15 feet: 1140
GPH @ 20 feet: Off
Discharge Port Size: 1-1/2″
Dimensions: 15.75″ wide by 15.5″ high
Additional Zoeller Links
View the Manufacturer Warranty
Specifications
| Product Weight | 30 lbs. |
| Height | 12.5, 15.5 in. |
| Width | 15.75 in. |
| Diameter | 14.5 in. |
| Flow Rate (GPM) | 45 |
| Water Connection | 1-1/2" |
| Cord Length | 8 in. |
| Discharge Diameter | 1.5 in. |
| Maximum Head Height | 19.25 in. |
| Max Float On | 7 in. |
| Min Float Off | 1 in. |
| Certifications | UL |
| Water Connection Type | NPT |
| Voltage | 15 |
| Horsepower | .5 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 130 °F |
| Motor RPM | 1550 |
| Color | Electric |
| Color Tone | Whites |
