Zoeller 820-0004 Features:
Automatic model with integral control
Durable, heavy-duty, finned cast iron construction
Legs provided for free-standing installation
Oil-filled, hermetically-sealed motor with Class B insulation, automatic reset thermal overload protected
Upper and lower ball bearings running in bath of oil
Hardened stainless steel cutter and disc
Cutters protected from abrasive solids
Stainless steel lifting handle, screws and bolts
Easily adapts to rail systems
Mechanical shaft seal – carbon/ceramic
Corrosion-resistant, powder coated epoxy finish
Thermal overload protection
Engineered plastic impeller
Zoeller 820-0004 Specifications:

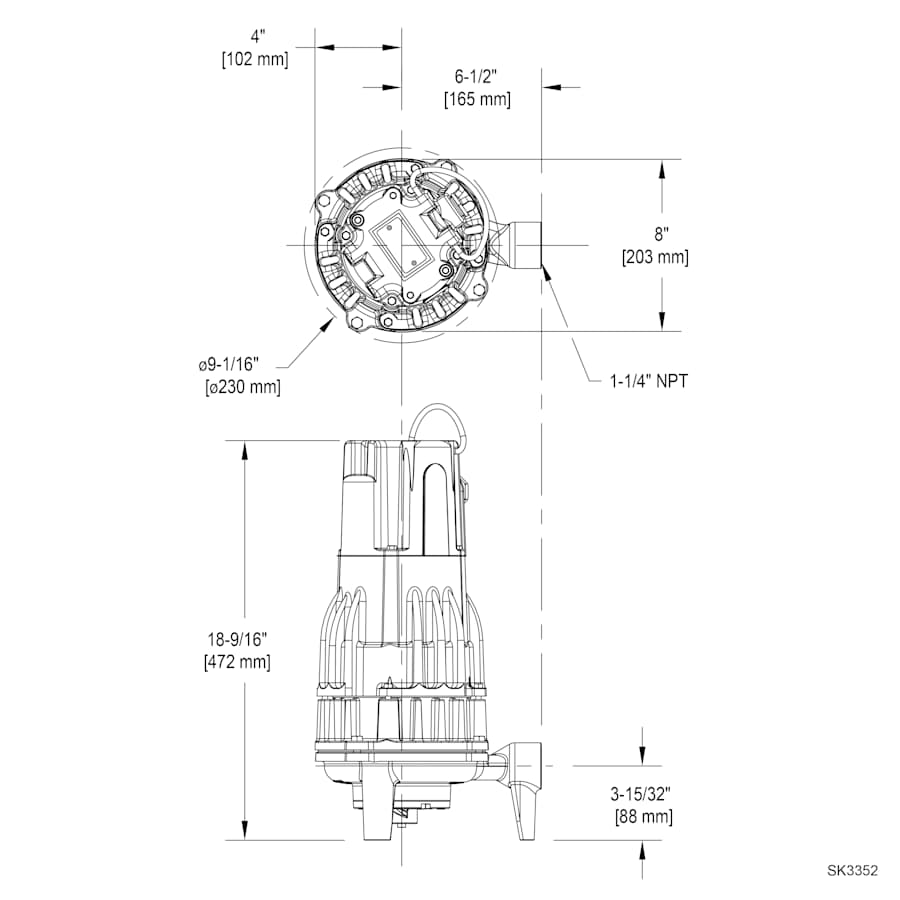

Height: 18-5/8″
Width: 11-5/8″
Motor: 2 HP
Voltage: 230
Hertz: 60
RPM: 3450
Discharge Size: 1-1/4″ FNPT
Max Flow Rate: 46 gallons per minute
Max Operating Temperature: 130
Additional Zoeller Links
View the Manufacturer Warranty
Zoeller Shark Collection
Specifications
| Product Weight | 88 lbs. |
| Length | 8 in. |
| Width | 11.625 in. |
| Height | 18.625 in. |
| Water Connection | 1-1/4" |
| Cord Length | 20 in. |
| Maximum Head Height | 107 in. |
| Maximum Flow Rate | 46 GPM |
| Discharge Diameter | 1.25 in. |
| Manufacturer Warranty | 3 Years |
| Approved for Commercial Use | Yes |
| Collection | Model 820 |
| Country Of Origin | USA |
| Made in America | Yes |
| Material | Cast Iron |
| Impeller Material | Plastic |
| Material Shaft | Stainless Steel |
| Voltage | 230 |
| Amperage | 14.5 |
| Horsepower | 2 |
| Motor RPM | 3450 |
| Frequency | 60 Hertz |
| Maximum Fluid Temperature | 130 °F |
| Operating Temperature (Max) | 130 °F |
| Electrical Phases | 1 |
| RPM | 3450 |
