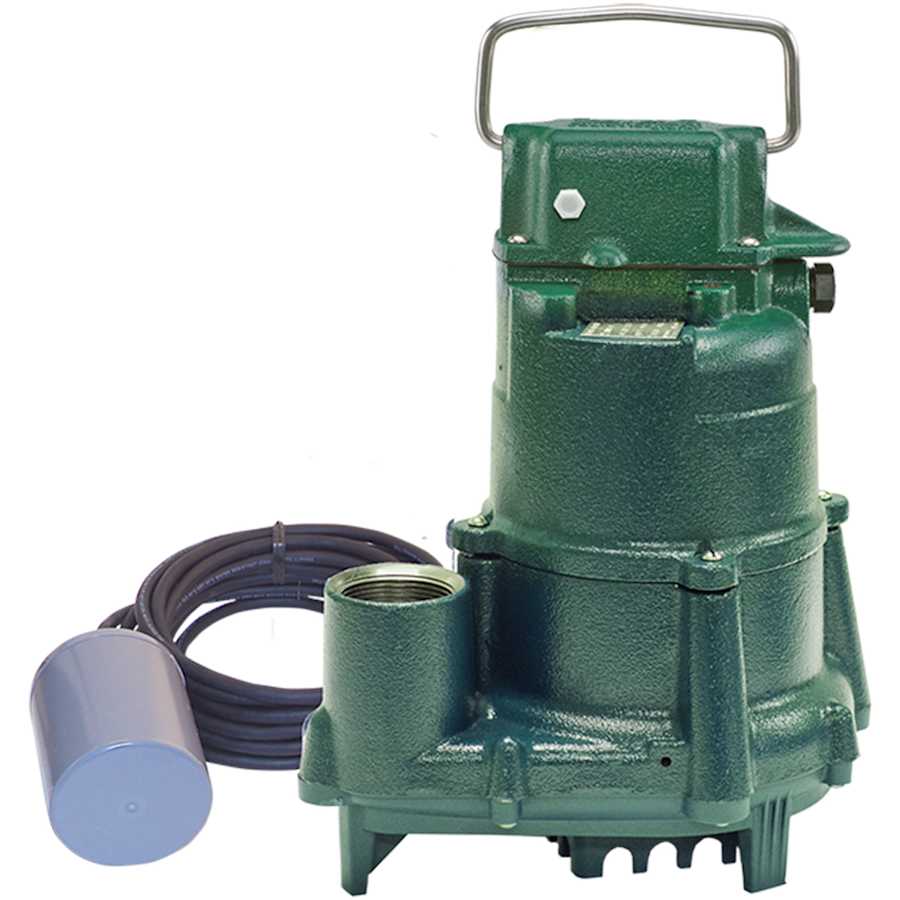

The 1/2 HP Model BN98 nonautomatic Effluent Pump with a variable level float switch is designed to remove groundwater from sump or septic system applications. This high pressure and high flow pump will provide the dependability expected from a Zoeller pump. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Zoeller 98-0005 Features:
Oil filled for optimal heat dissipation: This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications
A versatile nonautomatic pump that comes with a single piggyback float switch that is ideal for applications where the on and off points may vary depending on the depth of the dose tank on the site
Non-clogging, engineered thermoplastic vortex impeller design that allows free passage of solids to prevent clogging
The single piggyback float switch turns a nonautomatic pump into an automatic pump and also allows you to isolate the pump from the switch making it easier to troubleshoot issues in the field
Durable, cast iron construction for long-lasting corrosion and heat resistance
Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments
Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion
100% factory tested: Our factory-tested effluent pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures
3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Zoeller 98-0005 Specifications:
Height: 12-1/4″
Width: 7-3/4″
Length: 11″
Motor: 1/2 HP
Voltage: 115
Hertz: 60
RPM: 1725
Discharge Size: 1-1/2″ NPT
Max Flow Rate: 72 gallons per minute
Additional Zoeller Links
View the Manufacturer Warranty
Zoeller Flow-Mate Collection
Specifications
| Height | 12.25 in. |
| Product Weight | 31 lbs. |
| Water Connection | 1-1/2" |
| Width | 7.75 in. |
| Length | 11 in. |
| Cord Length | 15 in. |
| Maximum Flow Rate | 72 GPM |
| Discharge Diameter | 1.5 in. |
| Maximum Head Height | 23 in. |
| Material | Cast Iron |
| Impeller Material | Plastic |
| Material Shaft | Steel |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 3 Years |
| Collection | Model 98 |
| Made in America | Yes |
| Voltage | 115 |
| Amperage | 9.4 |
| Frequency | 60 Hertz |
| Horsepower | 0.5 |
| Electrical Phases | 1 |
| Operating Temperature (Max) | 130 °F |
| Maximum Fluid Temperature | 130 °F |
| Motor RPM | 1725 |
