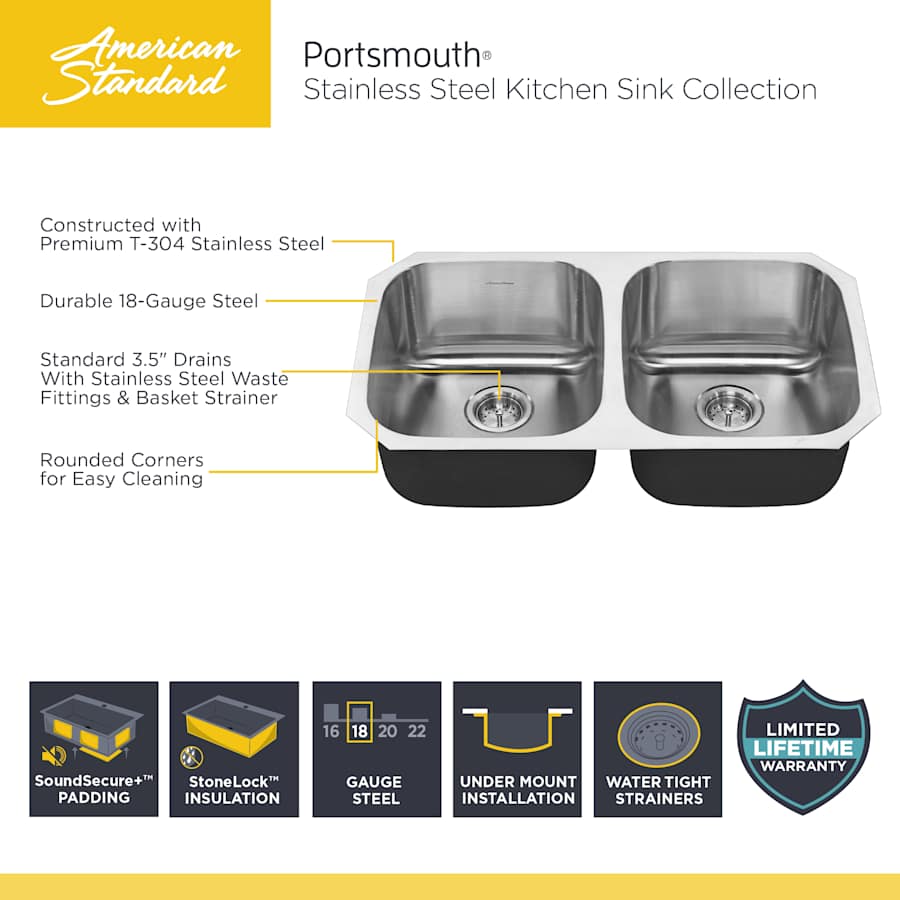

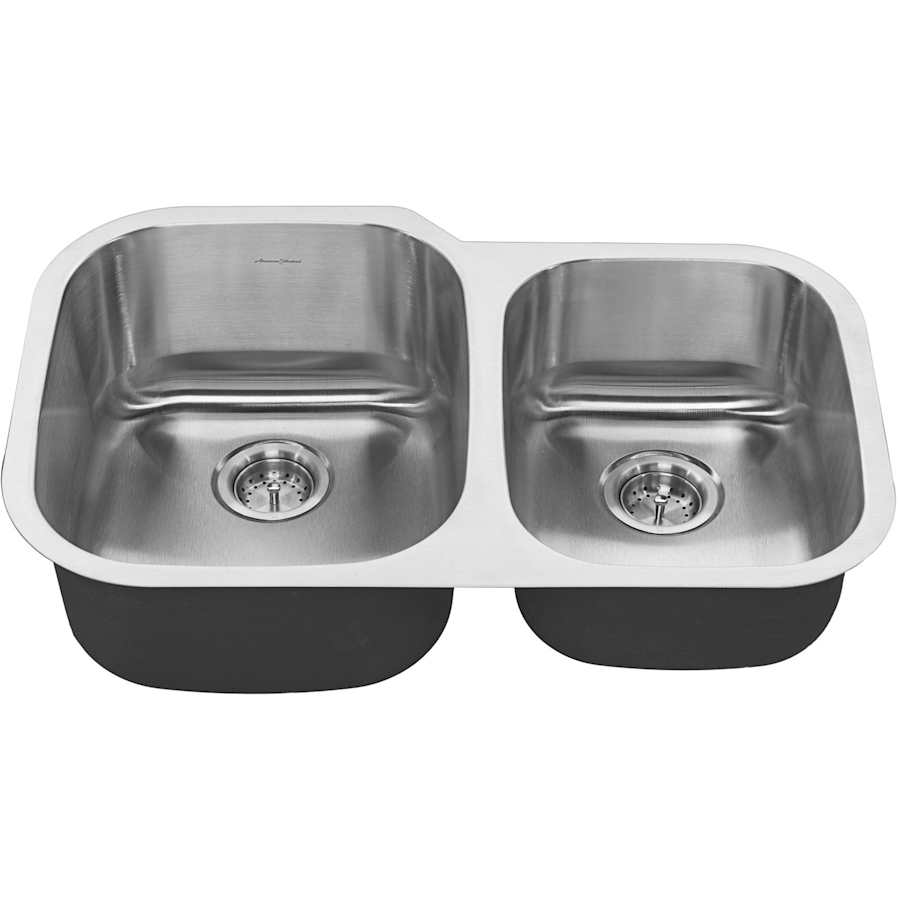

American Standard 18CR.9322100S Features:

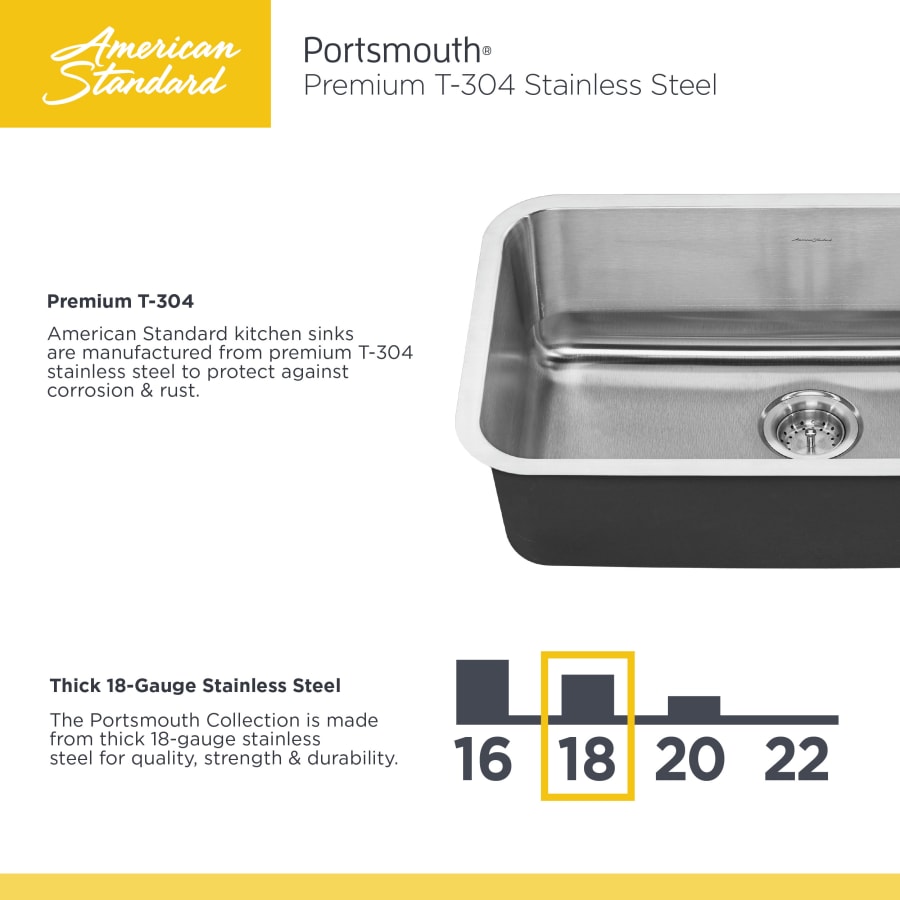

Made of 18 gauge stainless steel
Undermount installation
Double basin sink with a 60/40 split

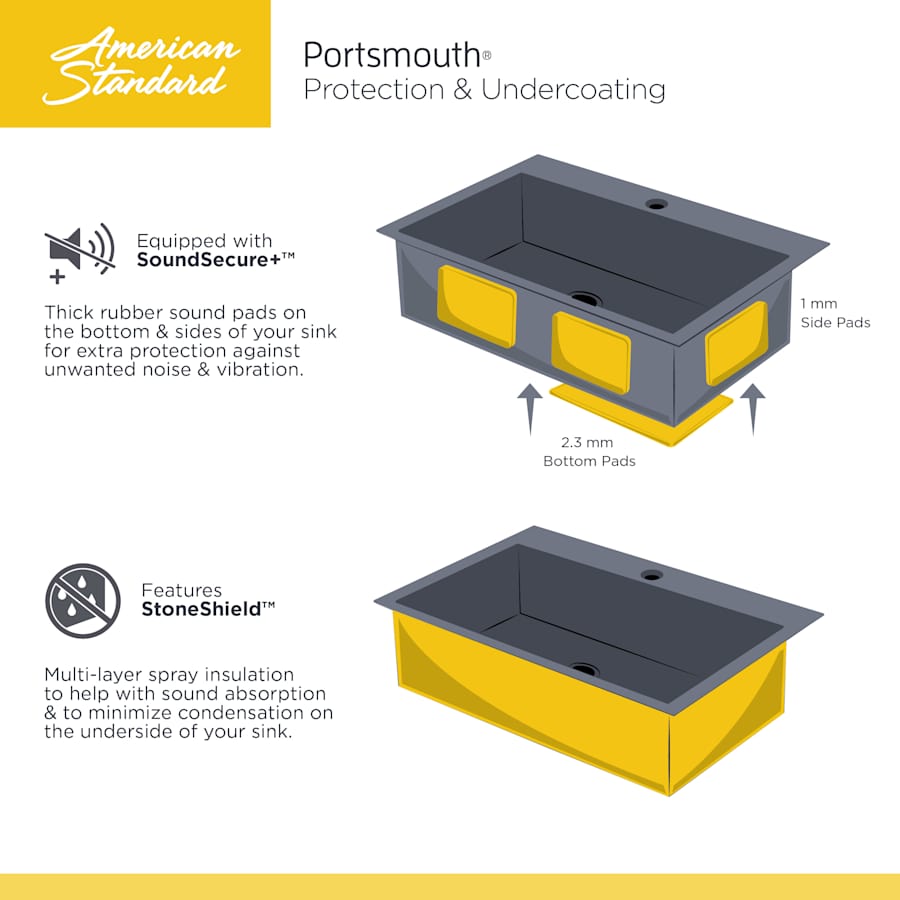

Sound absorbing pads prevents dish clatter and undercabinet condensation
Includes two drain fittings with strainer
Installation hardware and cut out template included
American Standard 18CR.9322100S Specifications:
Length: 31-7/16″ (left to right of the sink)
Width: 20-7/16″ (front to back of the sink)
Height: 9″ (top to bottom of the sink)
Right Basin Dimensions:
Length: 12-5/8″ (left to right)
Width: 16-1/4″ (front to back)
Height: 7-1/2″ (top to bottom)
Left Basin Dimensions:
Length: 15-7/16″ (left to right)
Width: 18-1/2″ (front to back)
Height: 9″ (top to bottom)
Drain Location: Center
Drain Connection Size: 3-9/16″
Number of Faucet Holes: 0
Minimum Cabinet Size: 36″ (minimum left to right cabinet dimension)
Why Buy American Standard From Us:
We are an American Standard Preferred Authorized Online Dealer
We Only Ship Showroom Quality products vs Builder Grade quality found at big box retailers
All metal parts, not plastic like some of our competitors
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products

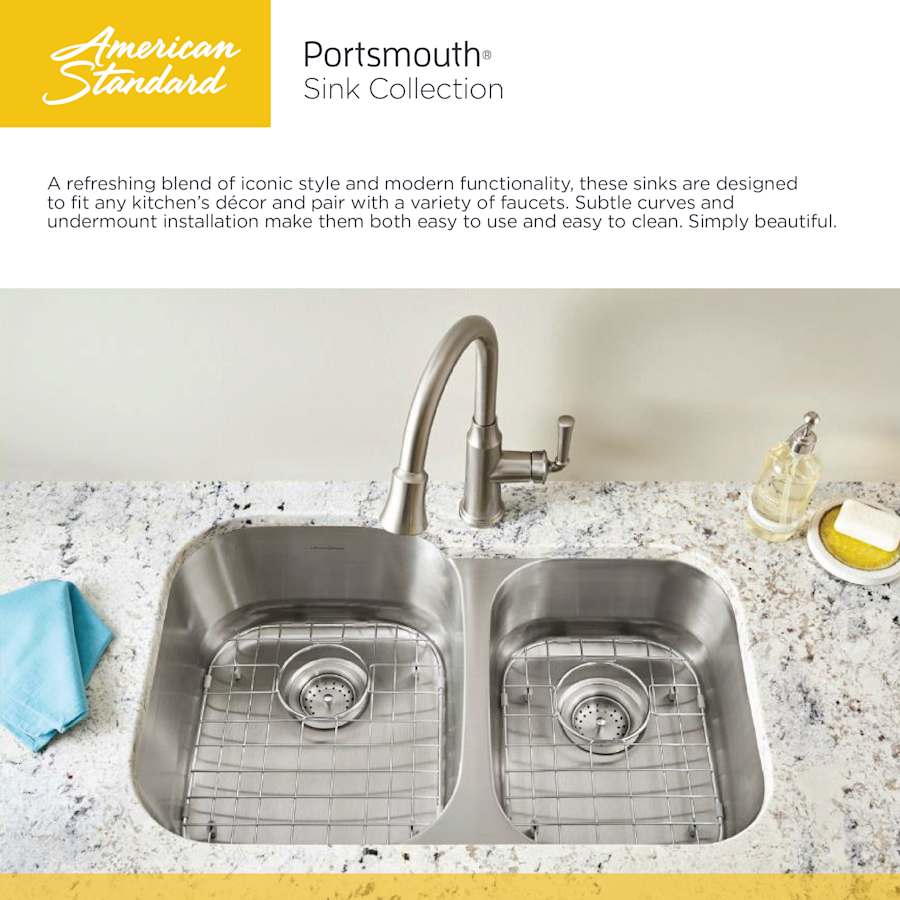

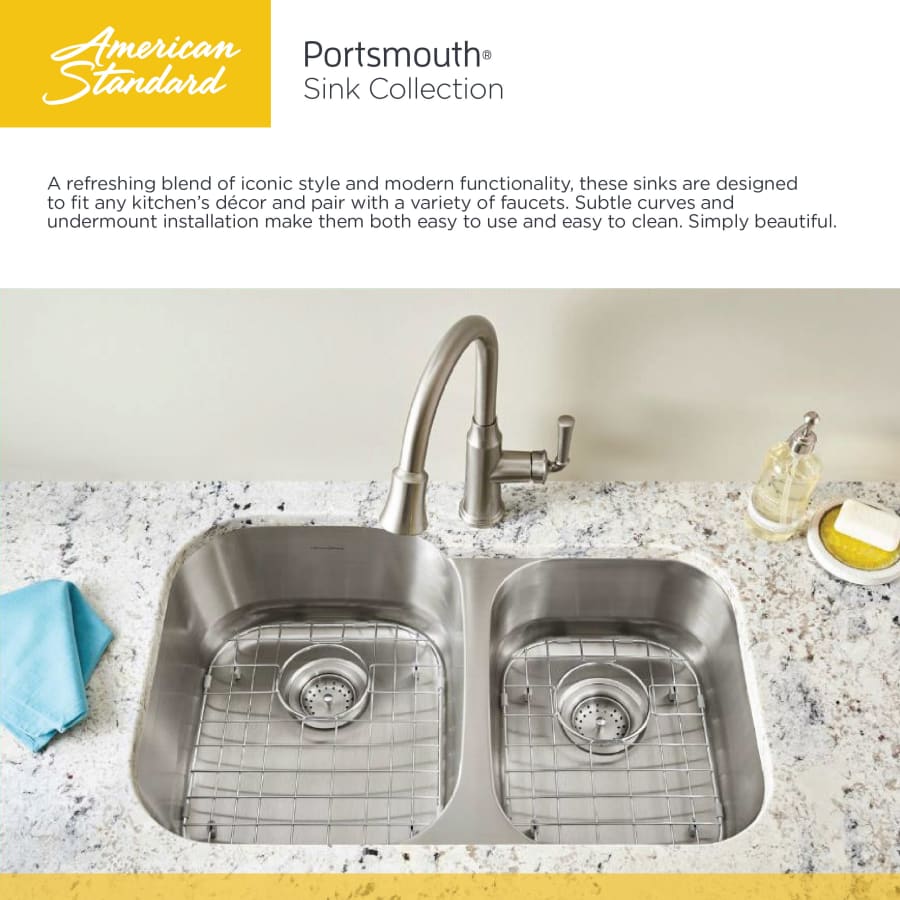

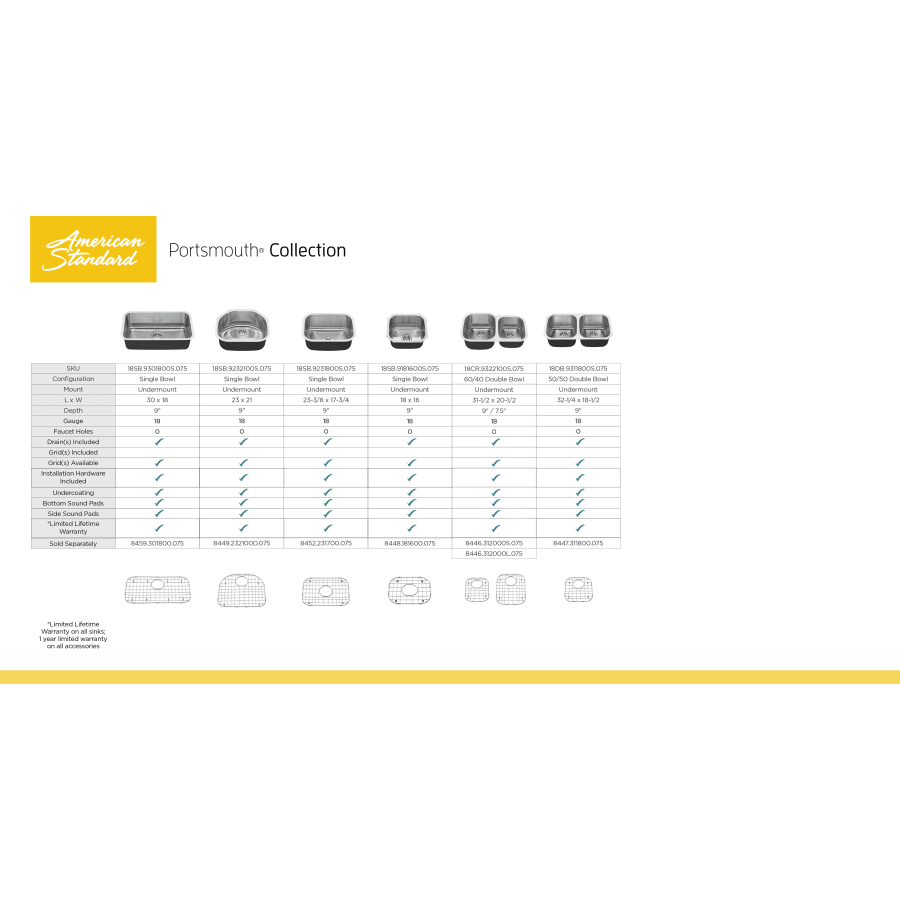

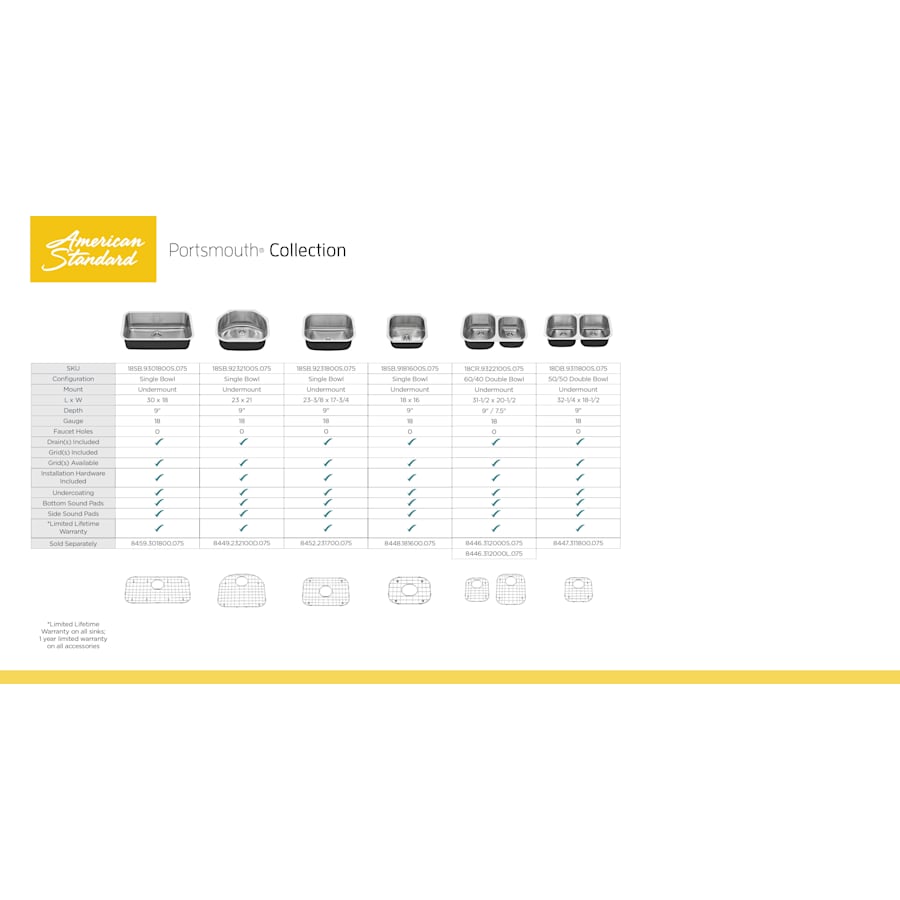

American Standard Portsmouth Collection
Specifications
| Height | 9 in. |
| Width | 20.438 in. |
| Nominal Width | 20 in. |
| Backplate Depth | 9, 7.5 in. |
| Basin Depth (Left) | 9 in. |
| Basin Depth (Right) | 7.5 in. |
| Basin Length (Left) | 15.438 in. |
| Basin Length (Right) | 12.625 in. |
| Basin Width (Left) | 18.5 in. |
| Basin Width (Right) | 16.25 in. |
| Drain Connection | 3.563 in. |
| Length | 31.438 in. |
| Minimum Cabinet Size | 36 in. |
| Nominal Length | 32 in. |
| Sink Length | 31.438 in. |
| Gauge | 18 |
| Thermostat | Modern |
| Material | Stainless Steel |
| Apron Front | No |
| Basin Split | 60/40 |
| Drain Placement | Center |
| Farmhouse | No |
| Insulation Type | Undermount |
| Number Of Bathers | 2 |
| Sink Shape | Specialty |
| Sound Dampening | Yes |
| Undercoating | Yes |
| Overflow | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Faucet Included | No |
| Installation Hardware Included | Yes |
| ADA | No |
| Certifications | ASME |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.19.3 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
