Double Cylinder Function: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.

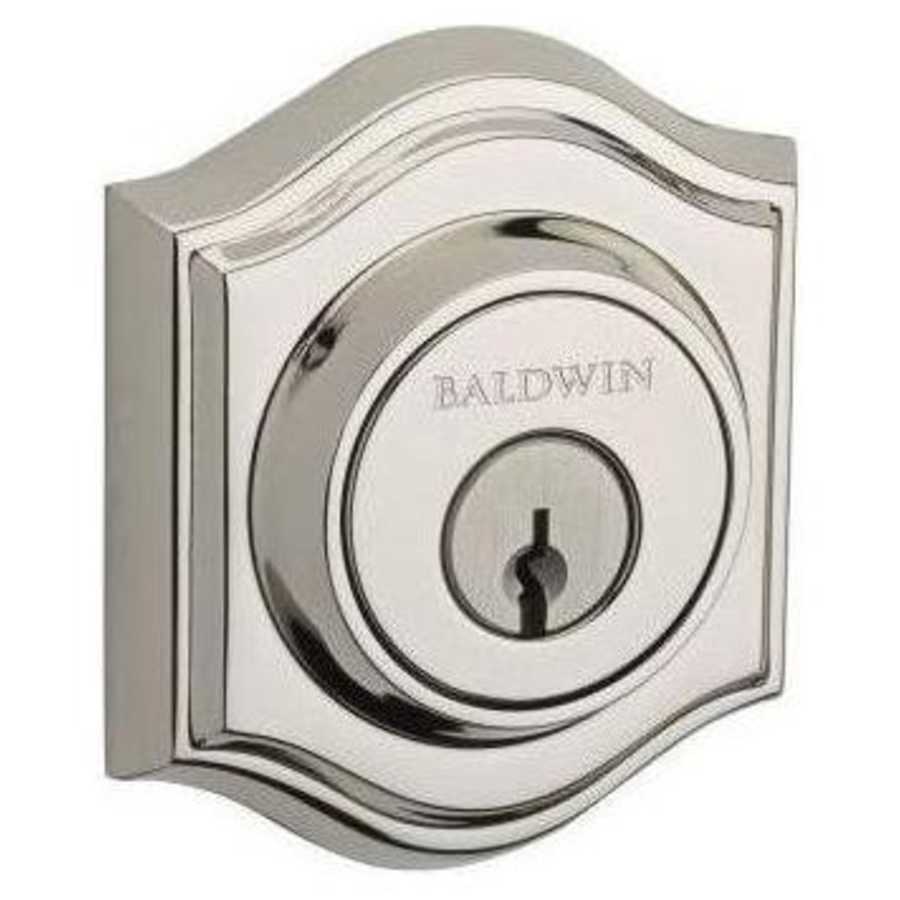

The shape of Baldwin’s Traditional Arch Deadbolt blends modern detailing with classic Federal styling, providing a uniquely versatile deadbolt for use with a large variety of décors. Pair this deadbolt with a Baldwin Traditional keyed or passage lever or knob with the Traditional Arch rosette for a complete entry set and a perfect match.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Traditional inspired design is available in 6 finishes.
Baldwin 5-pin SmartKey Re-Key Technology
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/4″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0705).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Features 1″ solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
Features low profile cylinder projection.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Traditional Arch Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Reserve |
| Series | Traditional Arch |
| BHMA Certification | Grade 2 |
| Material | Brass |
| Thermostat | Traditional |
| Solid Construction | Solid Brass |
| Function | Keyed Entry |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Cylinder Type | Double Cylinder |
| Cylinder | SmartKey 5 Pin |
| Keyway | KW1 |
| Door Thickness | 2", 2-3/8", 2-1/8", 2-1/2", 2-1/4", 1-7/8", 1-3/4" |
| Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Exterior Height | 3.0625 in. |
| Exterior Width | 2.6875 in. |
| Interior Height | 3.0625 in. |
| Interior Projection | 0.75 in. |
| Interior Width | 2.6875 in. |
| Exterior Projection | 0.75 in. |
| Color | Lifetime Polished Nickel, Matte Antique Nickel, Matte Brass & Black, Polished Brass, Polished Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
