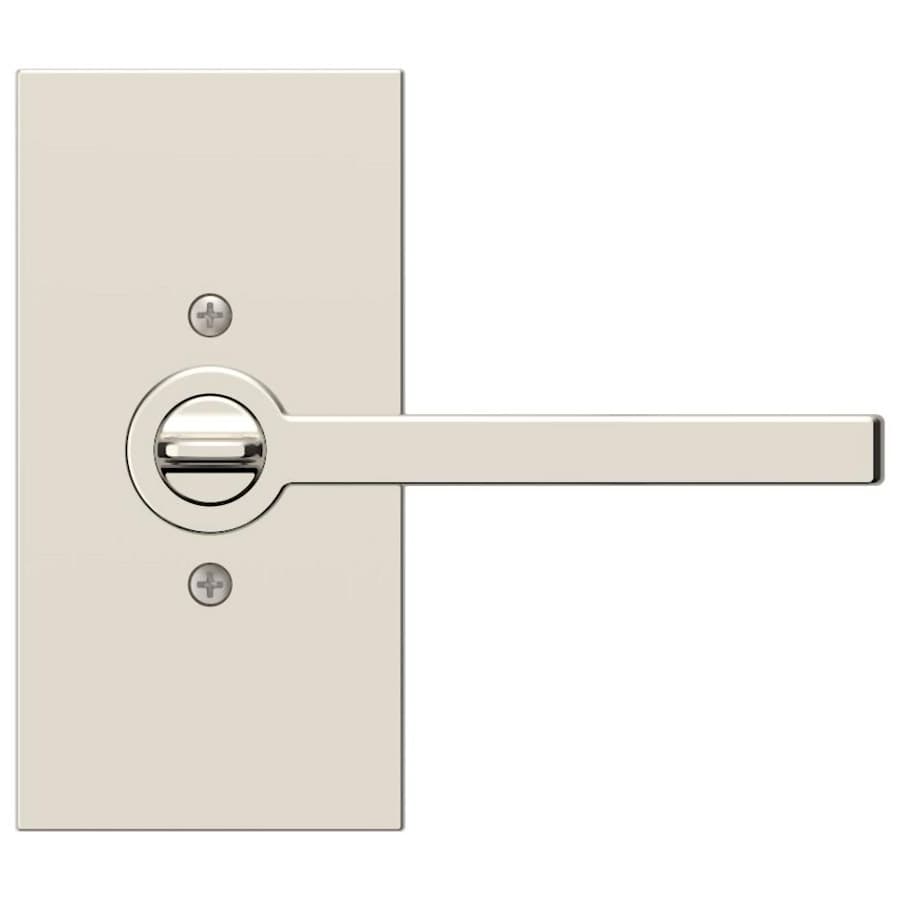

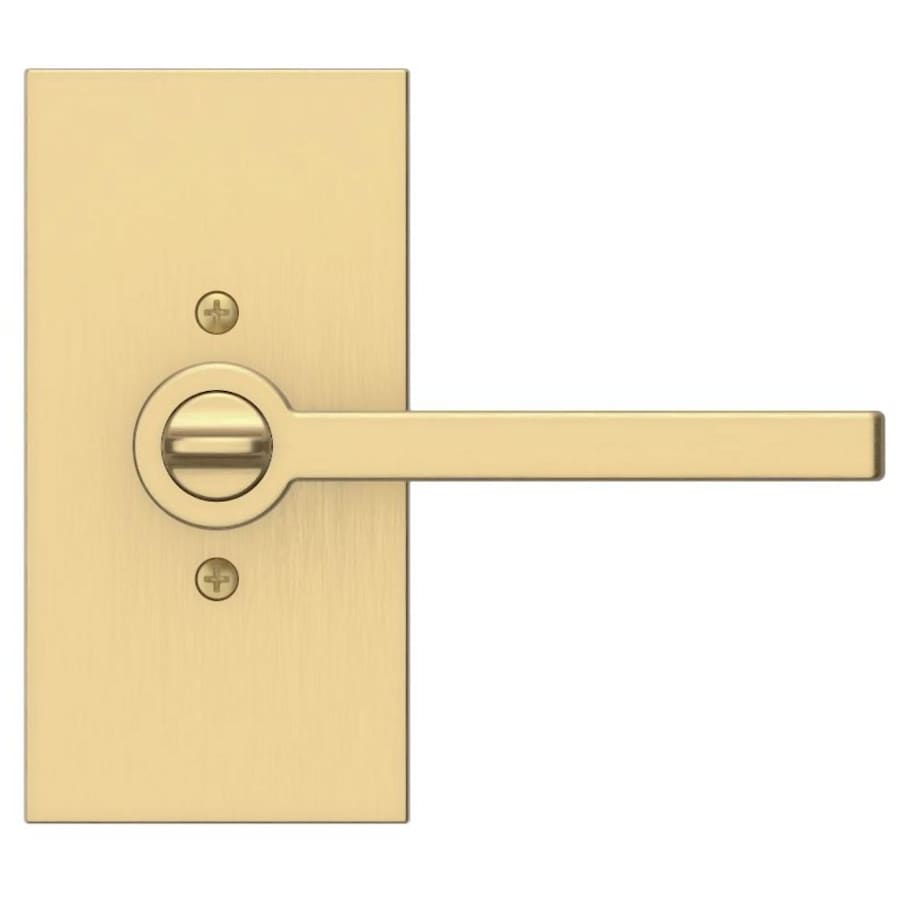

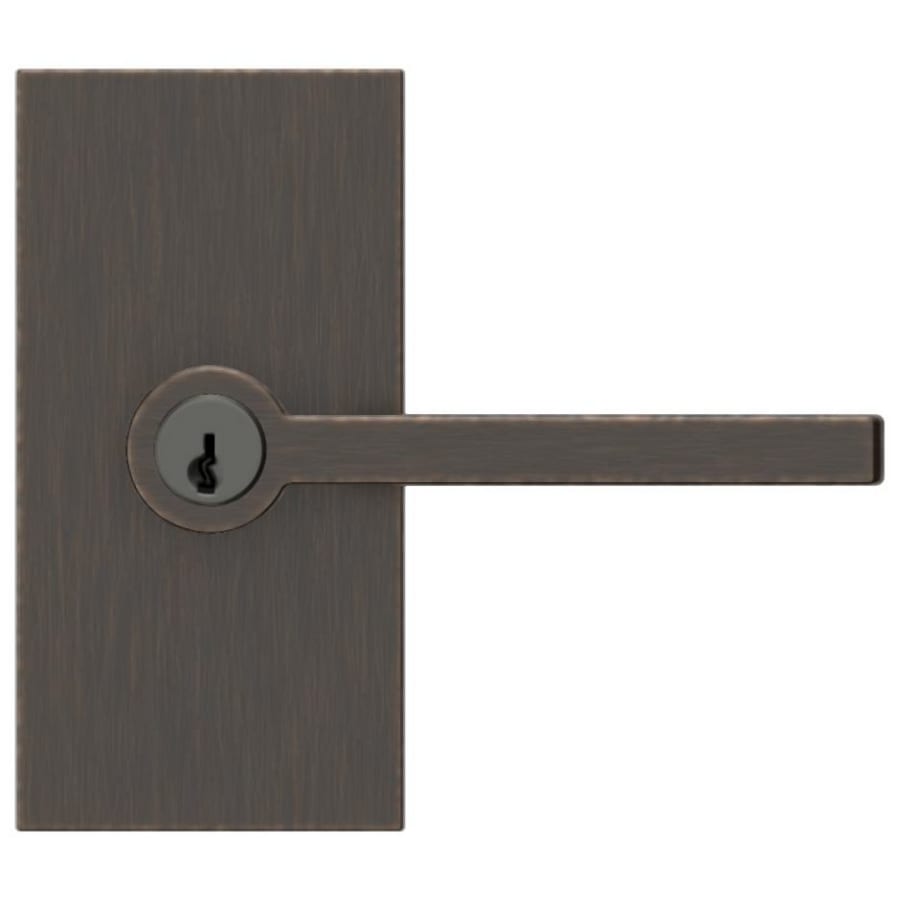

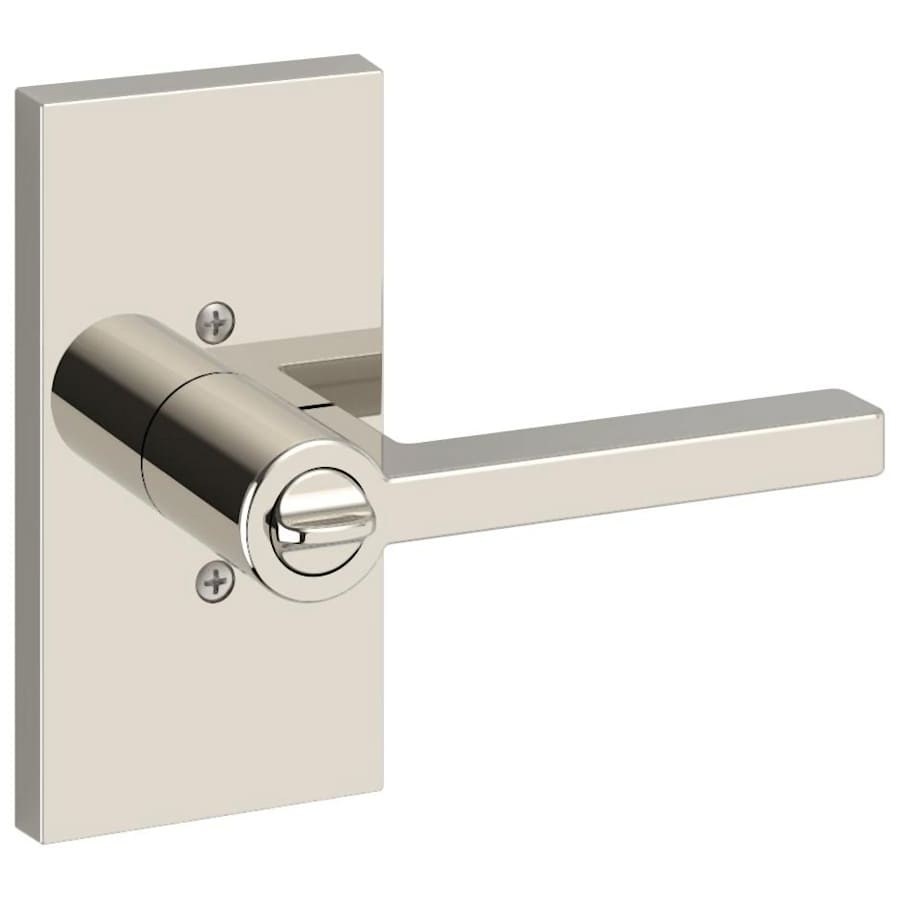

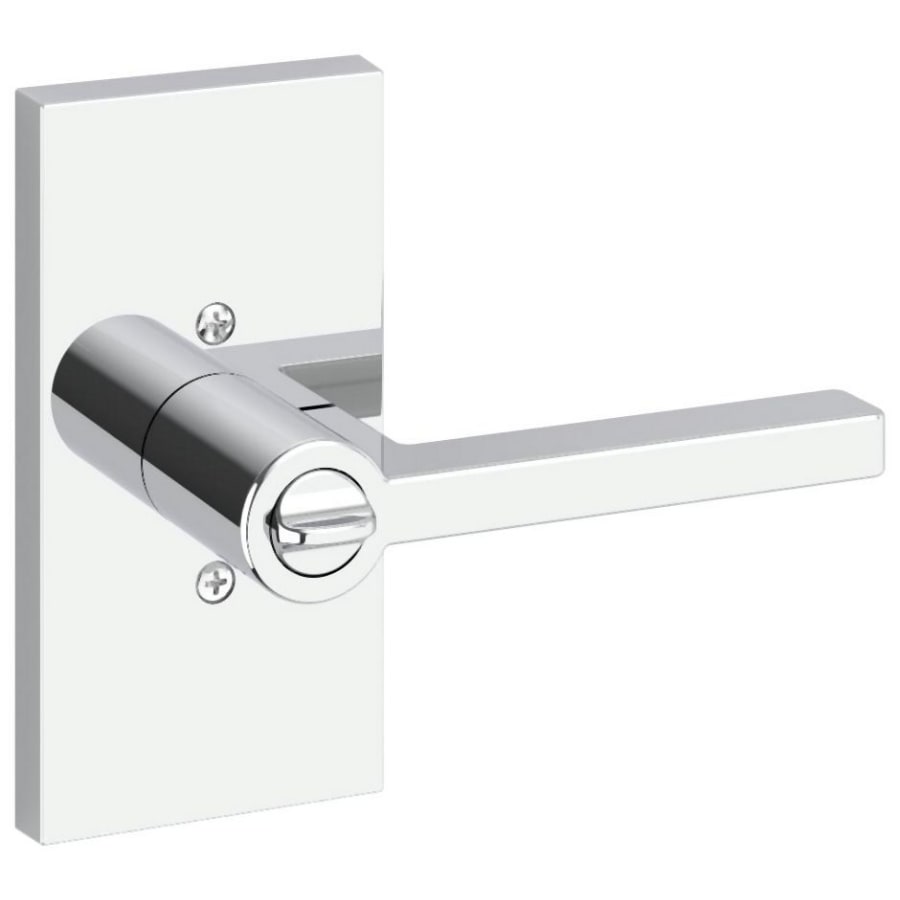

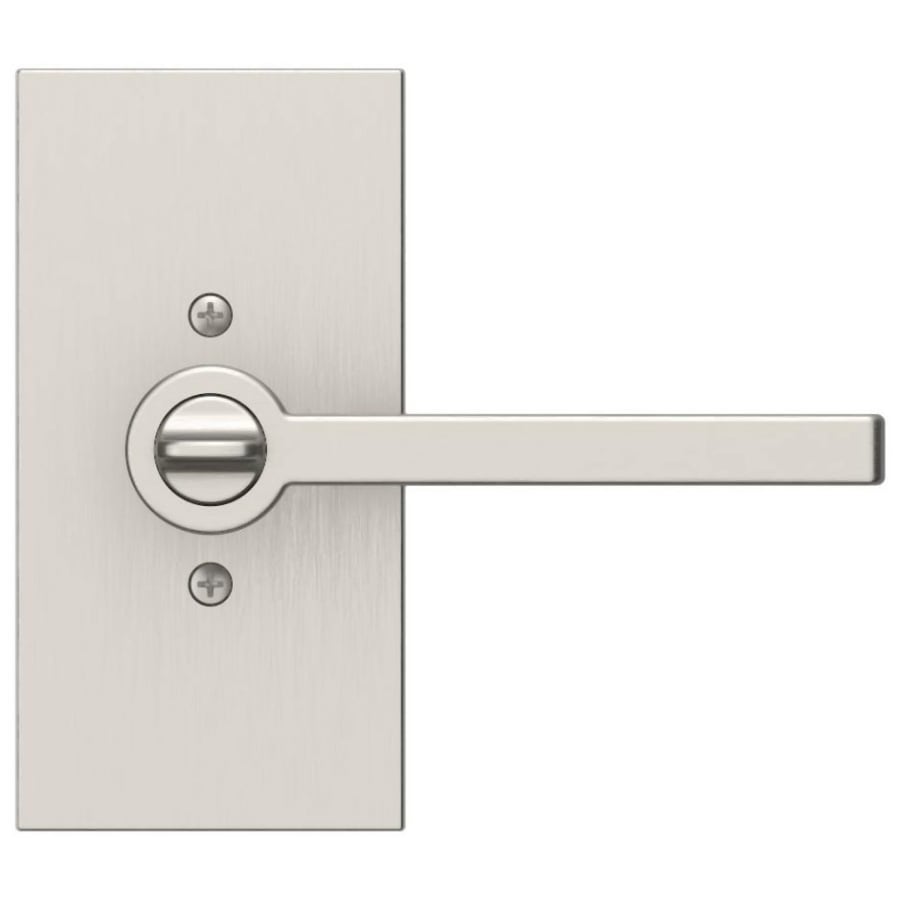

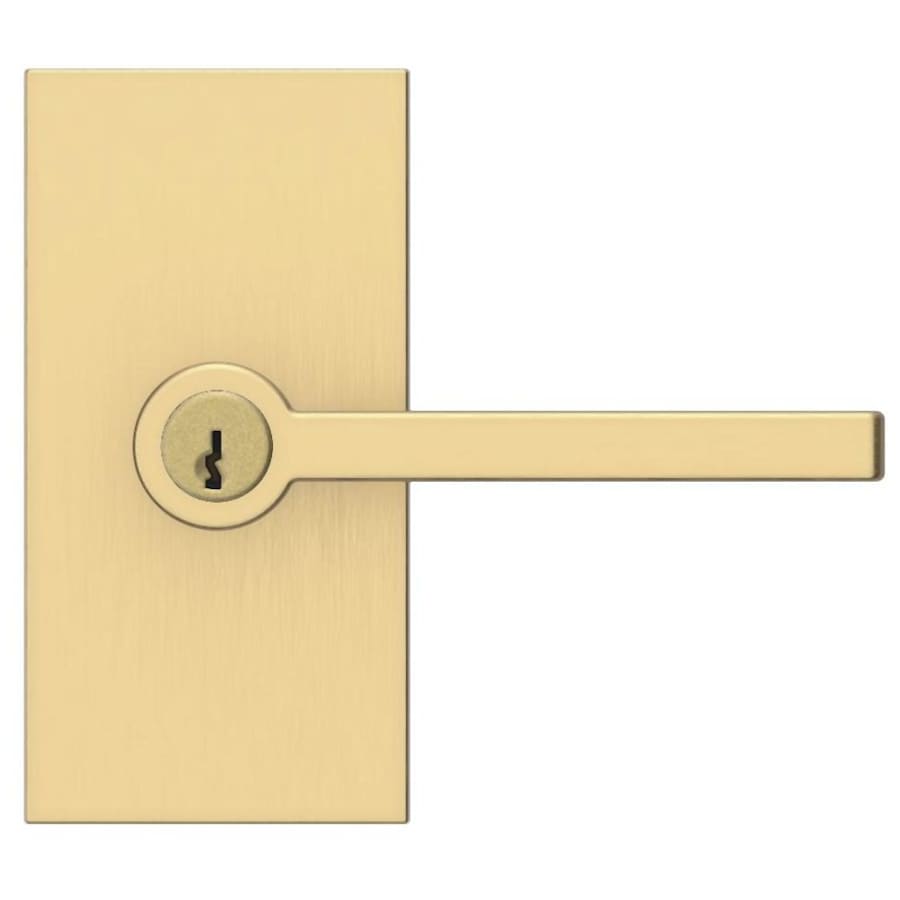

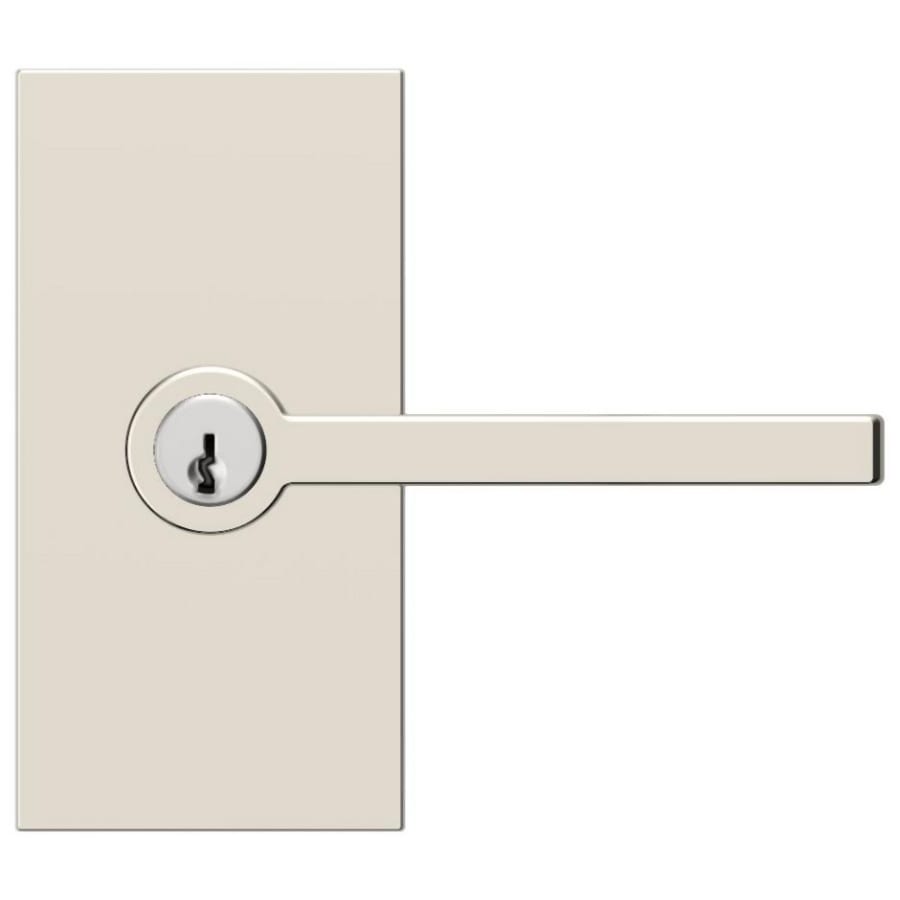

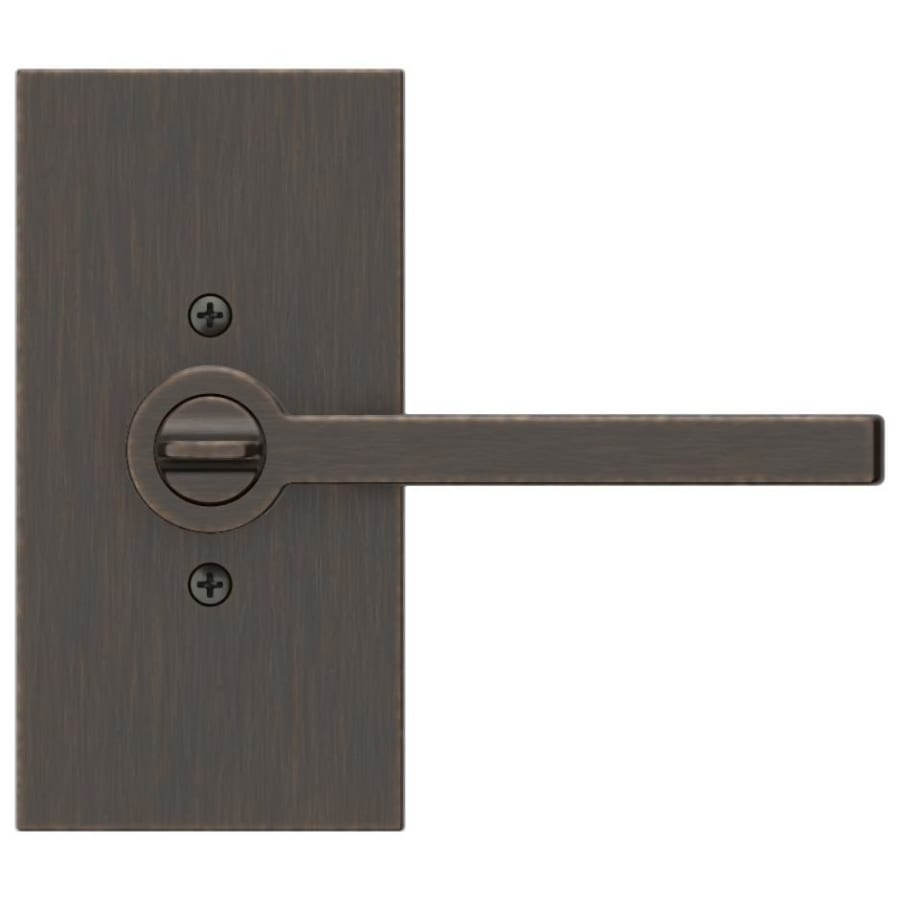

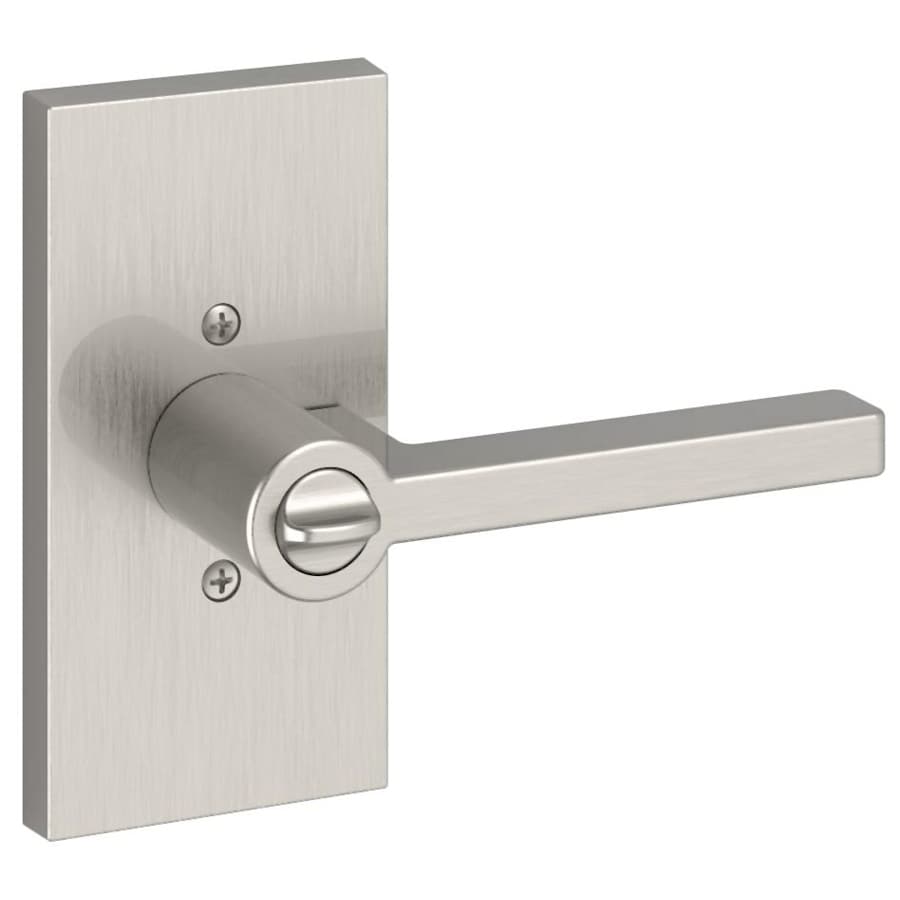

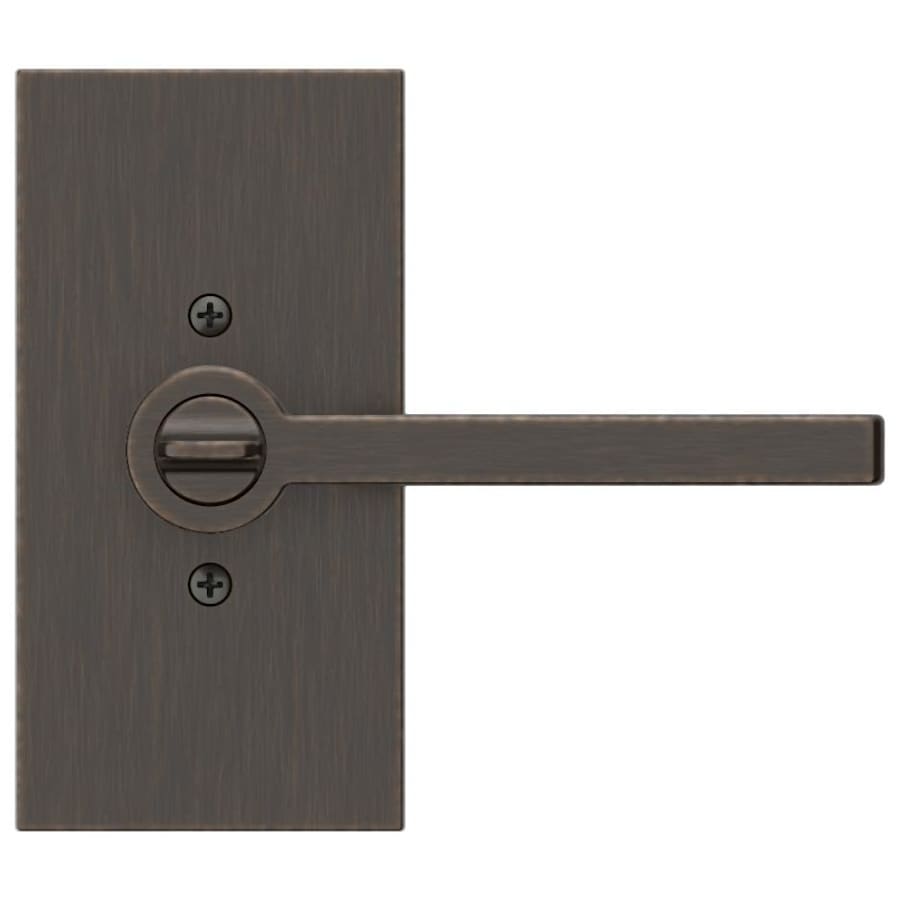

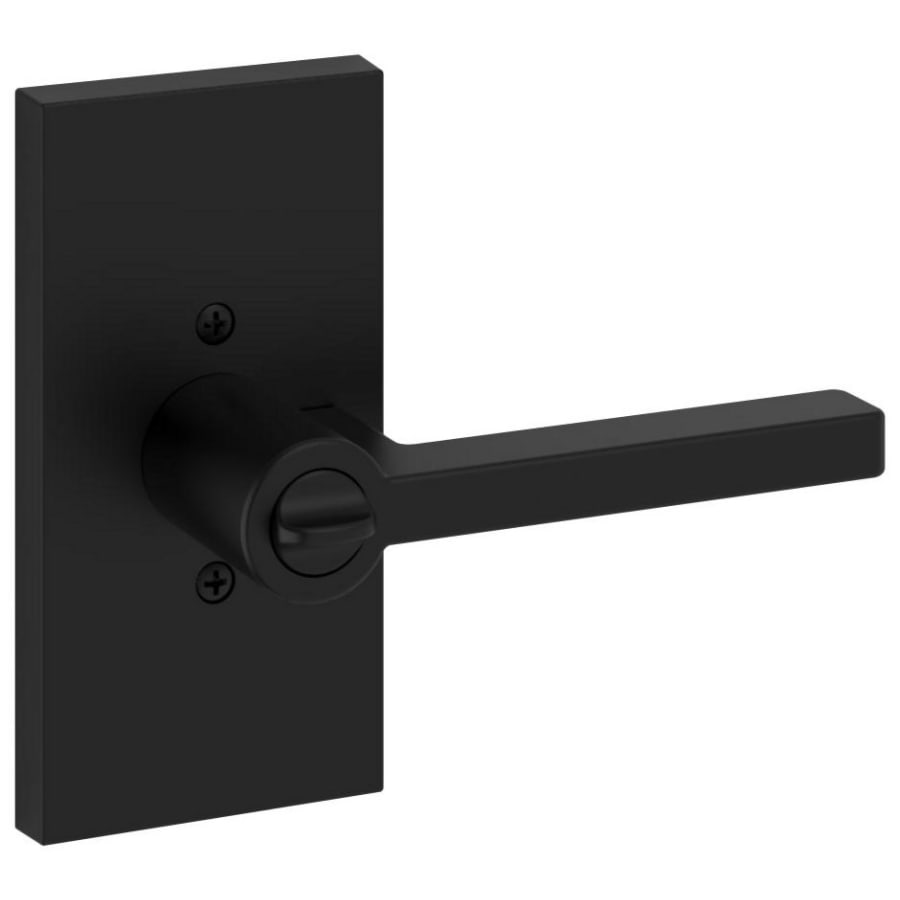

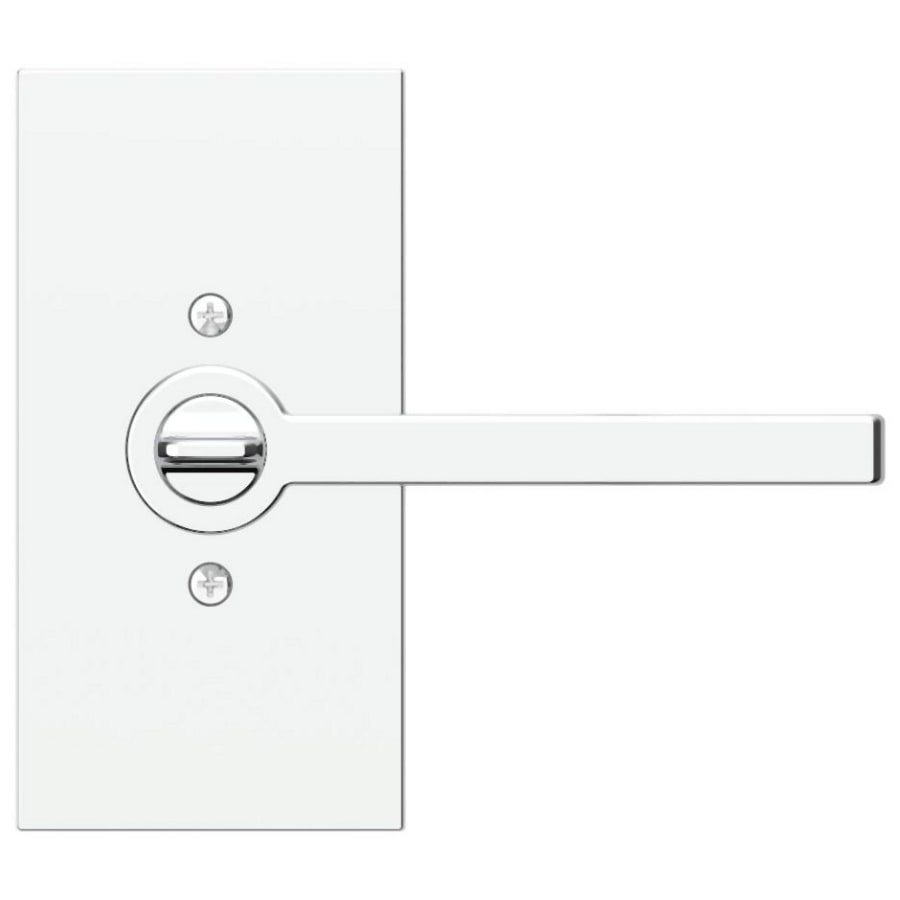

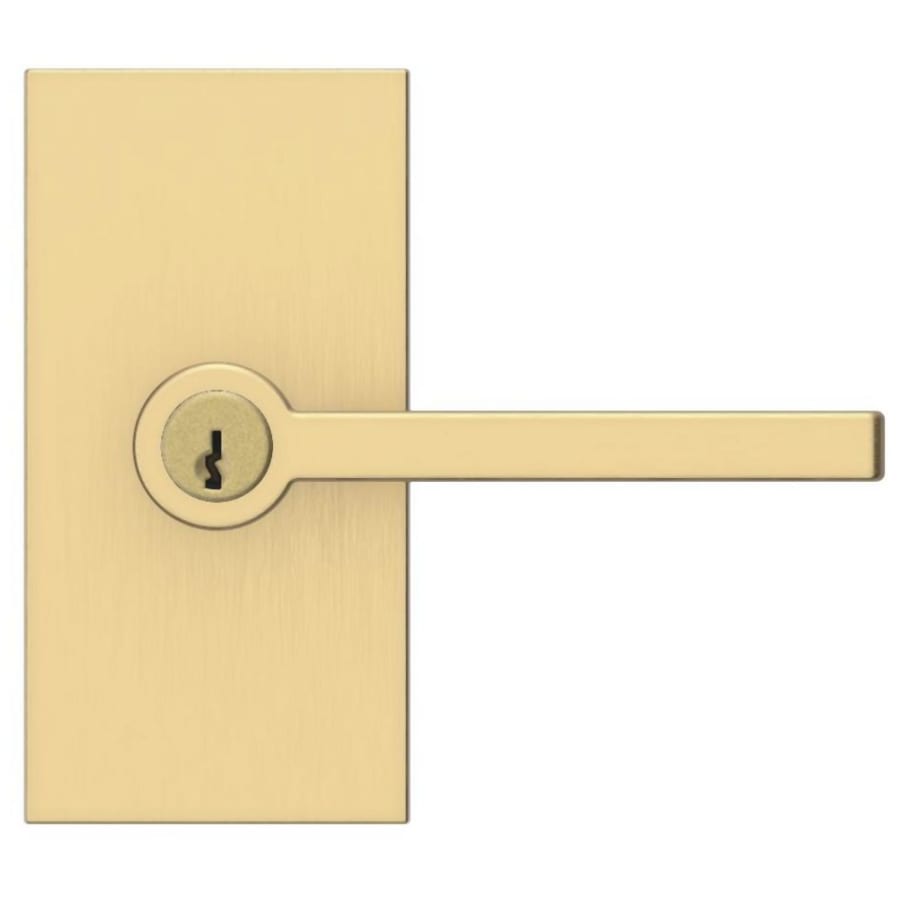

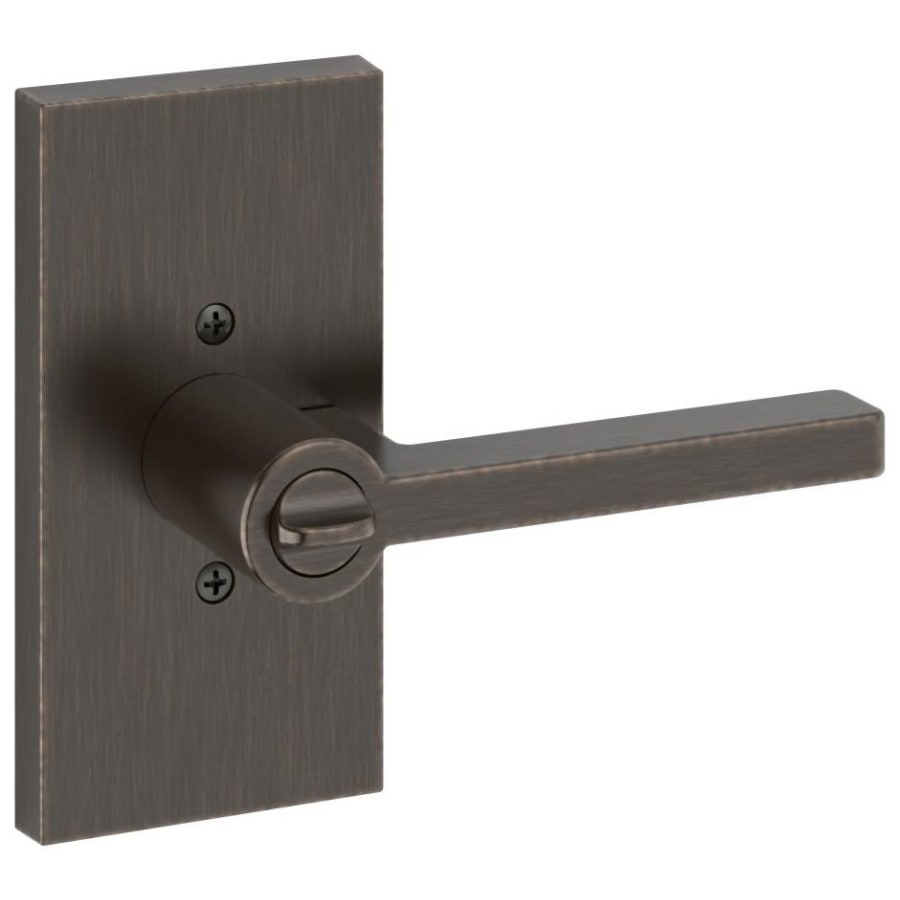

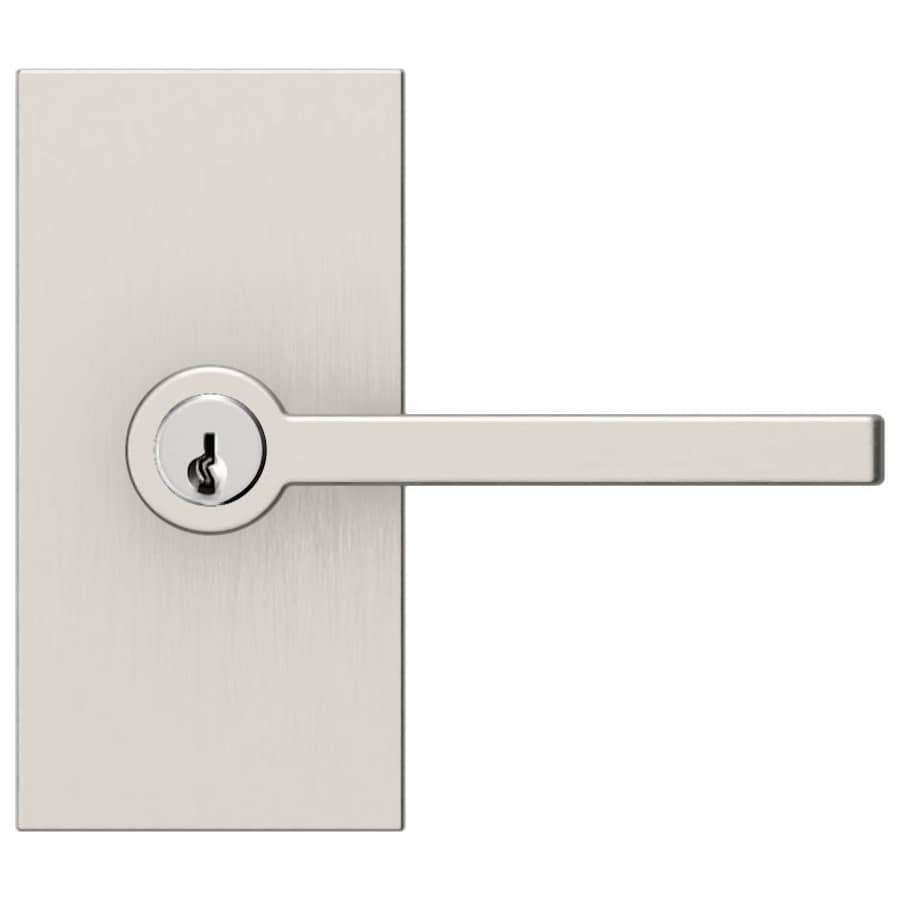

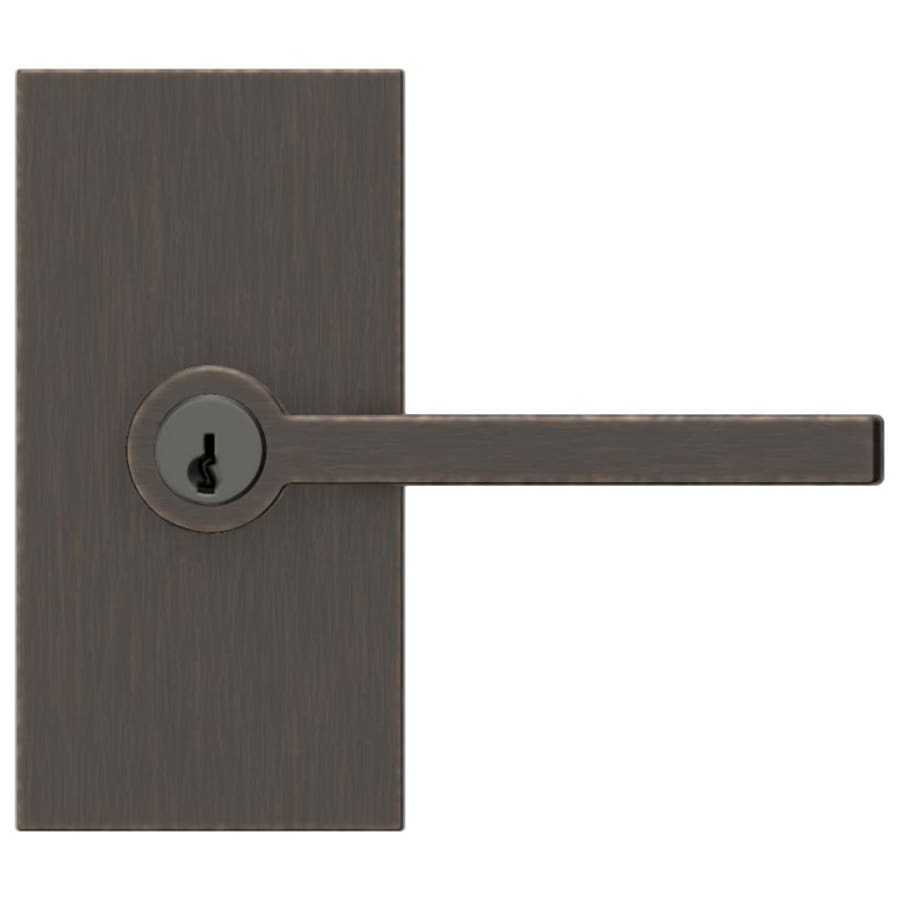

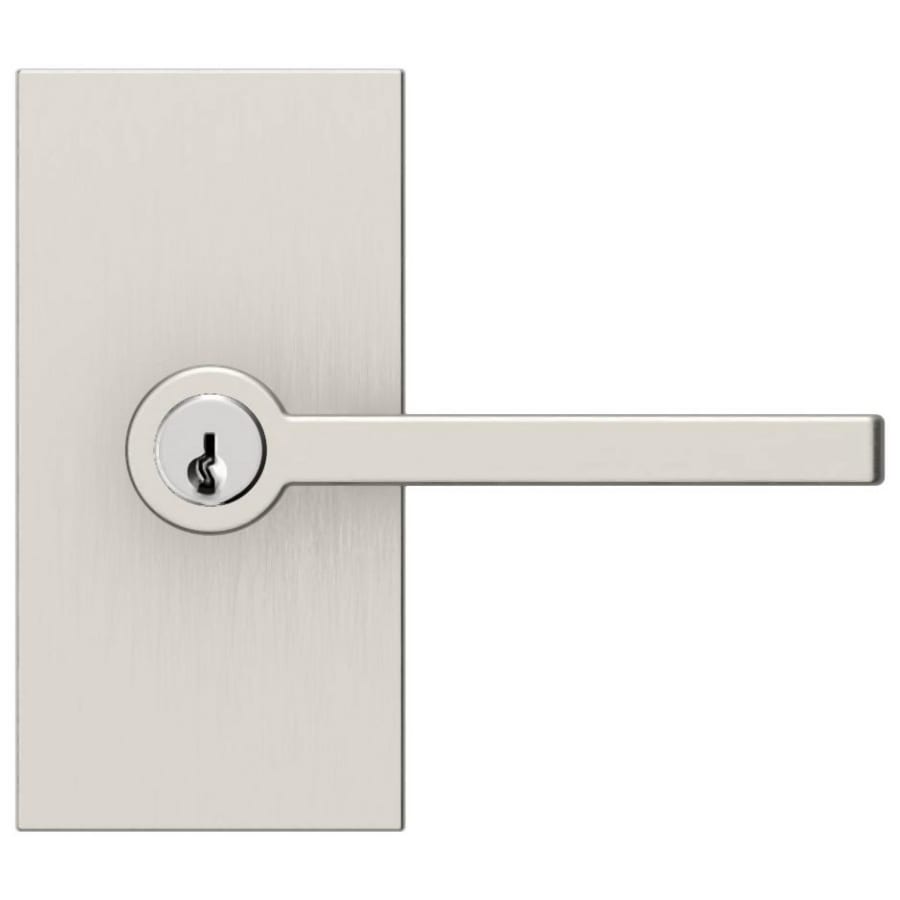

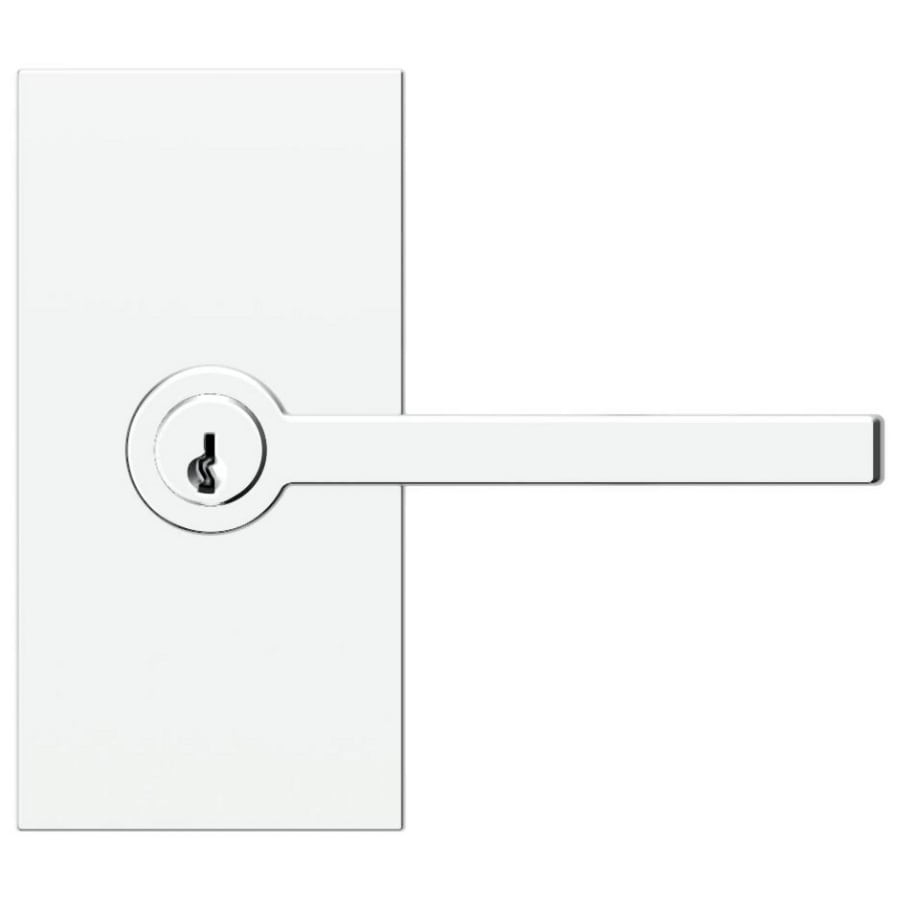

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Baldwin’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Reversible Left or Right
Handle Length: 4-1/4″
Handle Projection: 2-3/8″
Trim Width: 2-9/16″
Trim Height: 5″
Product Weight: 3 lbs.
Latch Faceplate: Round Corner or Square Corner
Cylinder: 5 Pin C
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Square Collection
Specifications
| Product Weight | 3 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Edge Bore | 1" |
| Handle Length | 4.25 in. |
| Handle Projection | 2.375 in. |
| Trim Height | 5 in. |
| Trim Width | 2.5625 in. |
| Thermostat | Contemporary |
| Material | Brass |
| Concealed Screws | No |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner, Square Corner |
| Lever Shape | Square, Straight |
| Rosette Shape | Rectangle |
| Handle Style | Lever |
| Solid Construction | Solid Brass |
| Cylinder | 5 Pin C |
| Keyway | C |
| Handle Design | Square |
| Handle Material | Metal |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Reserve |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Fire Rated | No |
| BHMA Certification | Grade 2 |
| Series | Square |
| Cylinder Included | Yes |
| Color | Lifetime Polished Nickel, Lifetime Satin Brass, Satin Black, Satin Black / Satin Nickel, Venetian Bronze, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
