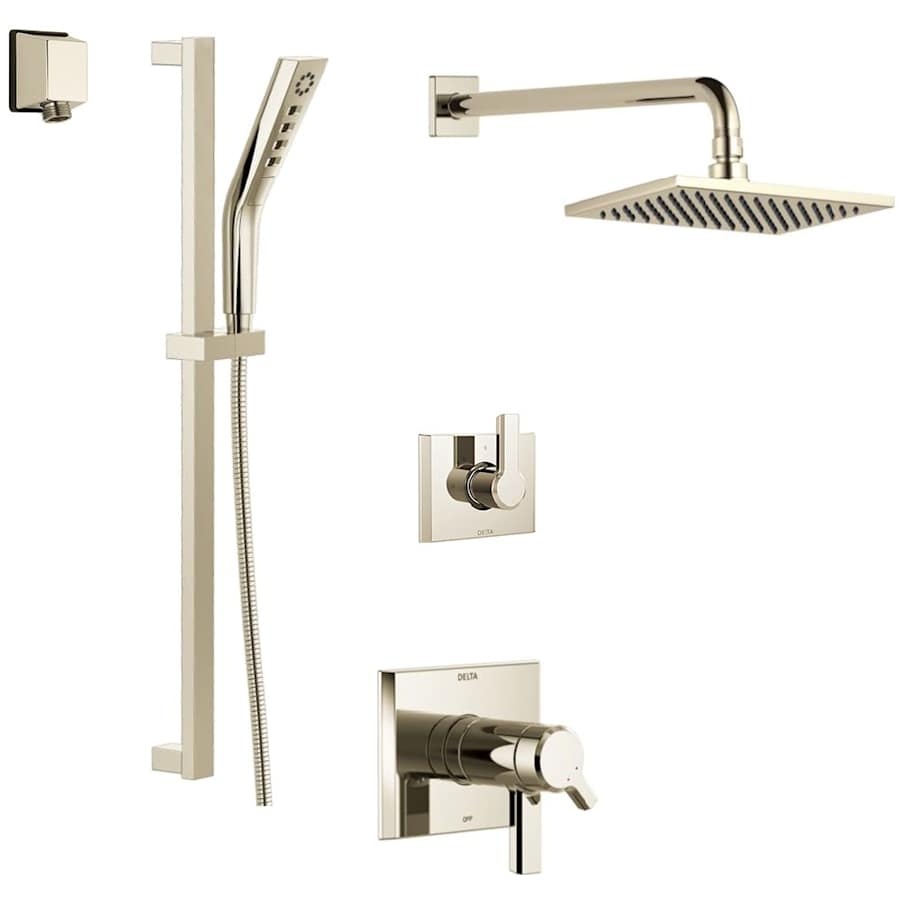

Delta DSS-Pivotal-17T01Â Shower System Includes:
Pivotal 17TÂ Series Shower Set (T17T299)
Pivotal 3Â Setting Diverter (T11899)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (51799)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWSHF)Â Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Delta DSS-Pivotal-17T01 Features:
Covered under Delta’s limited lifetime residential and 5 year limited commercial warranty
Thermostatic Operation for Precise Temperature Control
Dual Function: Handle Adjusts Volume; Dial on Handle Controls Temperature
TempAssure Valve Keeps Water Temperature to +/-3°F
3 Setting 2 Port Diverter: 2 Individual Positions, 1 Shared Position
Optional non shared cartridge available RP71717
Note: the RIGHT side diverter port MUST be capped
26-15/16″ slide bar included
Matching hand shower with pause control and 60″ – 82″ hose
Thermostatic rough-in valve with scald guard
High quality finish – will resist rust and corrosion through everyday use
Delta DSS-Pivotal-17T01 Technologies and Benefits:
MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.
H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.
TempAssure: All Delta tub and shower faucets are engineered to keep the water temperature within a safe ±3.6° F (±1.7° C)*. This technology makes sure your family doesn’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
Valve Trim Specifications:
Features integrated volume control
Features a thermostatic valve with Delta MultiChoice technology
Swinging temperature dial allows for pin-point water control
Rough-in valve is included with this package
Valve Trim Height: 5-1/2″ (bottom to top)
Valve Trim Width: 7″ (left to right)
Shower Head Specifications:
Single function shower head with full spray pattern
Shower Head Flow Rate: 2.5 gallons-per-minute
Shower Head Width: 5-11/16″ (left to right)
Shower Arm Length: 16″
Hand Shower Specifications:
Hose Length: 60″ – 82″
Hand Shower Flow Rate: 1.75 gallons-per-minute
Shower system includes wall supply for hand shower
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Pivotal Collection
Specifications
| Material | Brass, Plastic, Zinc |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Water Connection Type | NPSM, NPT |
| Faucet Type | Shower System |
| Handle Style | Lever |
| Number Of Handles | 3 |
| Valve Type | Thermostatic |
| Diverter Location | Wall Mounted |
| Scald Guard | Yes |
| Pause Control | No |
| Showerhead Shape | Rectangular |
| Spray Pattern | Full, Rain |
| Spray Settings | 1 |
| Water Efficient | No |
| ADA | No |
| Certifications | ASME, CSA |
| Collection | Pivotal |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| CA Drought Compliant | No |
| WaterSense Certified | No |
| Low Lead Compliant | No |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Water Connection | 1/2" |
| Flow Rate (GPM) | 2.5 |
| Hose Length | 82, 60 in. |
| Shower Arm Reach | 16 in. |
| Showerhead Flow Rate (GPM) | 2.5 |
| Showerhead Width | 5.7032 in. |
| Slide Bar Height | 26.9375 in. |
| Handshower Flow Rate | 1.75 |
| Valve Trim Height | 5.5 in. |
| Valve Trim Width | 7 in. |
| Valve Included | Yes |
| Integrated Diverter | No |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Installation Hardware Included | Yes |
| Diverter Included | Yes |
| Handshower Included | Yes |
| Shower Head Included | Yes |
| Wall Supply Included | Yes |
| Volume Control | Yes |
| Bodysprays Included | No |
| Shower Arm Included | Yes |
| Valve Trim Included | Yes |
| Tub Spout Included | No |
| Color | Brilliance Polished Nickel |
| Color Tone | Nickel Tones |
