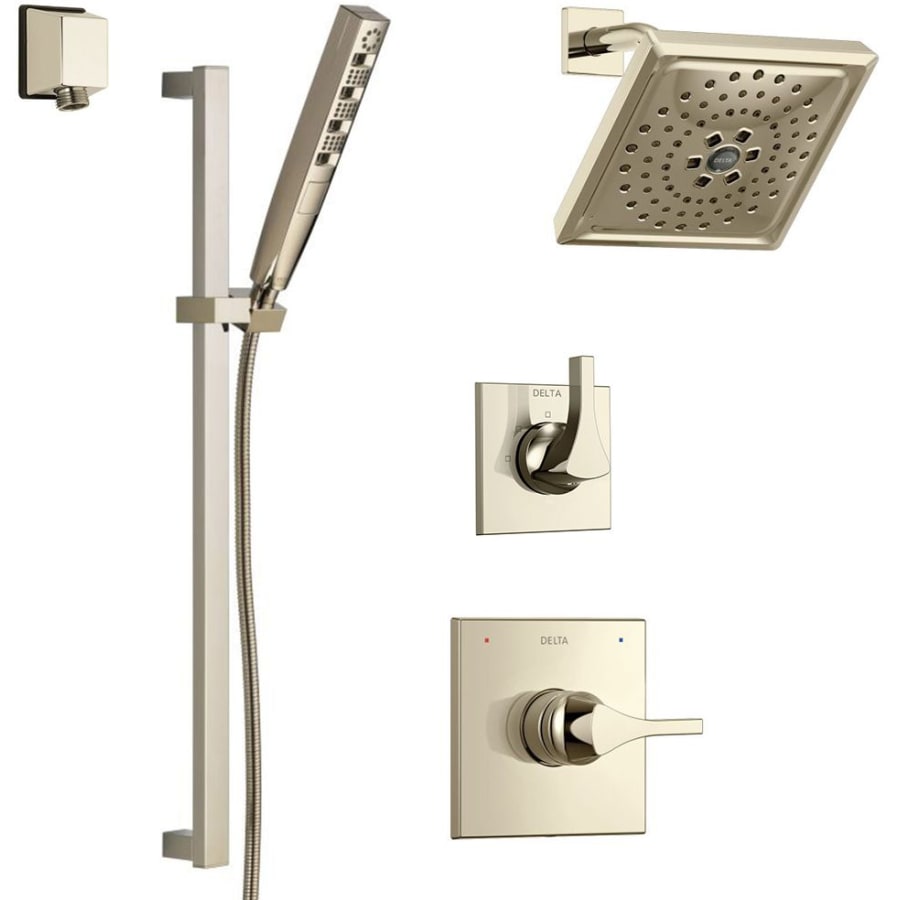

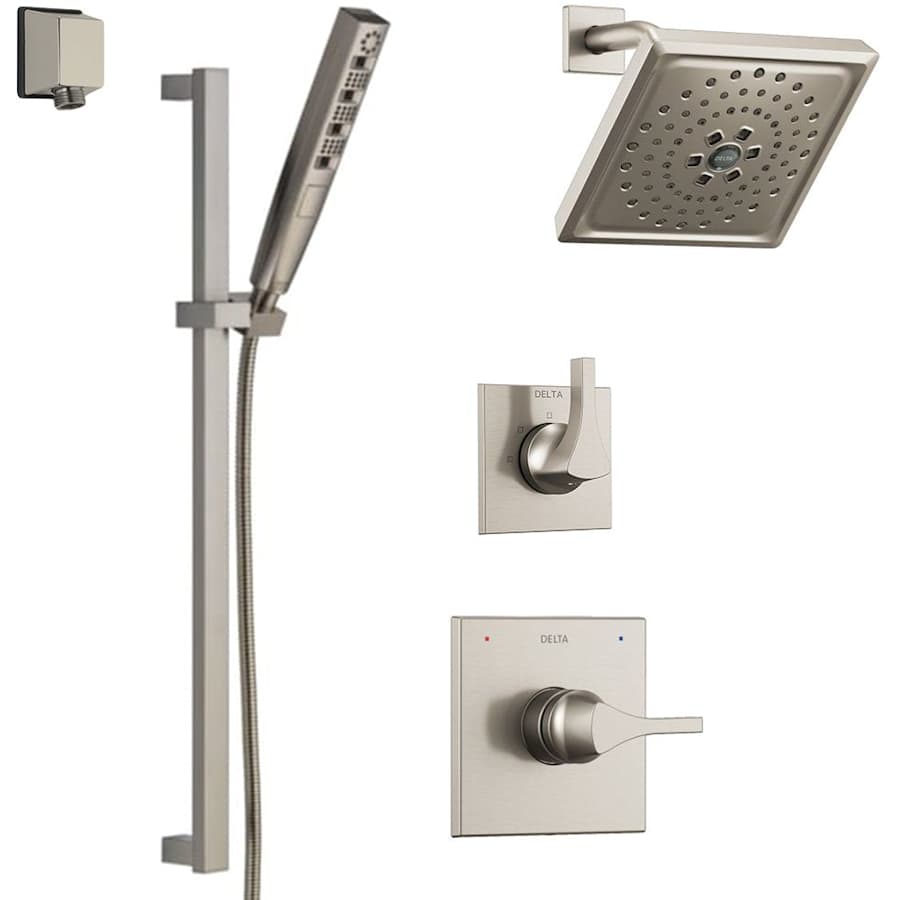

Delta DSS-Zura-1401Â Shower System Includes:
Trinsic 14Â Series Shower Set (T14274)
Trinsic 3Â Setting Diverter (T11874)
Hand Shower Set with 24″ Slide Bar and 69″ Hose (51140)
Wall Supply Elbow / Wall Union (50570)
Mixing Rough-In Valve (R10000-UNWSHF)Â Shower Only NO Tub Outlet
Diverter Rough-in Valve (R11000)
Delta DSS-Zura-1401 Features:
Covered under Delta’s Limited Lifetime Faucet and Finish Warranty
Single Function Pressure Balanced Valve Cartridge
Single Metal Lever Handle for Ease of Temperature Control
Monitor Scald-Guard Valve Keeps Water Temperature to +/-3°F
3 Setting 2 Port Diverter: 2 Individual Positions, 1 Shared Position
Optional non shared cartridge available RP71717
Note: the RIGHT side diverter port MUST be capped
26-15/16″ slide bar included
Matching hand shower with pause control and 60″ – 82″ hose
Pressure balanced rough-in valve with scald guard
High quality finish – will resist rust and corrosion through everyday use
Delta DSS-Zura-1401 Technologies and Benefits:
MultiChoice: Universal rough-in that easily upgrades your shower experience or updates your trim style without having to go behind the wall. This single rough works with both Delta Pressure Balance and TempAssure Thermostatic trims.
H2Okinetic: H2Okinetic Technology is the study of water in motion. By controlling water’s shape, velocity and thermal dynamics, we’ve reinvented the showering experience—creating a warmer, more luxurious spray, giving the feeling of a high-flow spray with a fraction of the water.
TempAssure: All Delta tub and shower faucets are engineered to keep the water temperature within a safe ±3.6° F (±1.7° C)*. This technology makes sure your family doesn’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine.
Valve Trim Specifications:
Features a pressure balanced valve with Delta MultiChoice technology
Swinging temperature dial allows for pin-point water control
Rough-in valve is included with this package
Valve Trim Height: 6-9/16″ (bottom to top)
Valve Trim Width: 6-9/16″ (left to right)
Shower Head Specifications:
Multi function shower head features full spray, pauce control, and H2Okinetic spray patterns
Shower Head Flow Rate: 1.75 gallons-per-minute
Shower Head Height: 3-3/16″ (spray nozzles to connection outlet)
Shower Head Width: 7-5/8″ (left to right)
Hand Shower Specifications:
Hose Length: 60″ – 82″
Hand Shower Flow Rate: 1.75 gallons-per-minute
Shower system includes wall supply for hand shower
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Zura Collection
Specifications
| Material | ABS, Brass, Plastic |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Water Connection Type | NPSM, NPT |
| Faucet Type | Shower System |
| Handle Style | Lever |
| Number Of Handles | 2 |
| Valve Type | Pressure Balanced |
| Handle Material | Metal |
| Diverter Location | Wall Mounted |
| Scald Guard | Yes |
| Pause Control | Yes |
| Showerhead | Multi Function |
| Showerhead Shape | Square |
| Spray Pattern | Pause, Full, Drench, Massage |
| Spray Settings | 3 |
| Water Efficient | No |
| ADA | No |
| Certifications | ASME, CSA |
| Collection | Zura |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| CA Drought Compliant | No |
| WaterSense Certified | No |
| Low Lead Compliant | No |
| ASSE Code | A112.18.1 |
| CSA Code | B125.1 |
| Water Connection | 1/2" |
| Flow Rate (GPM) | 1.75 |
| Hose Length | 82, 60 in. |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Height | 3.1875 in. |
| Showerhead Width | 7.625 in. |
| Slide Bar Height | 26.9375 in. |
| Handshower Flow Rate | 1.75 |
| Valve Trim Height | 6.5625 in. |
| Valve Trim Width | 6.5625 in. |
| Valve Included | Yes |
| Integrated Diverter | No |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Installation Hardware Included | Yes |
| Diverter Included | Yes |
| Handshower Included | Yes |
| Shower Head Included | Yes |
| Wall Supply Included | Yes |
| Volume Control | No |
| Bodysprays Included | No |
| Shower Arm Included | Yes |
| Valve Trim Included | Yes |
| Tub Spout Included | No |
| Color | Brilliance Polished Nickel, Brilliance Stainless, Champagne Bronze, Chrome, Matte Black |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones, Stainless Steel |
