Product Features:
All brass body with vandal resistant locking pin to prevent damage to counter top(can be removed in field if not required)
Assembled shank
Brass locknut and raised lockwasher to provide positive gripping during installation
Teck Lab compression structure
Chrome plated brass renewable seat
1/4″ NPT tailpiece and coupling nut
Spout can be oriented to suit left, center, or right side handle operation

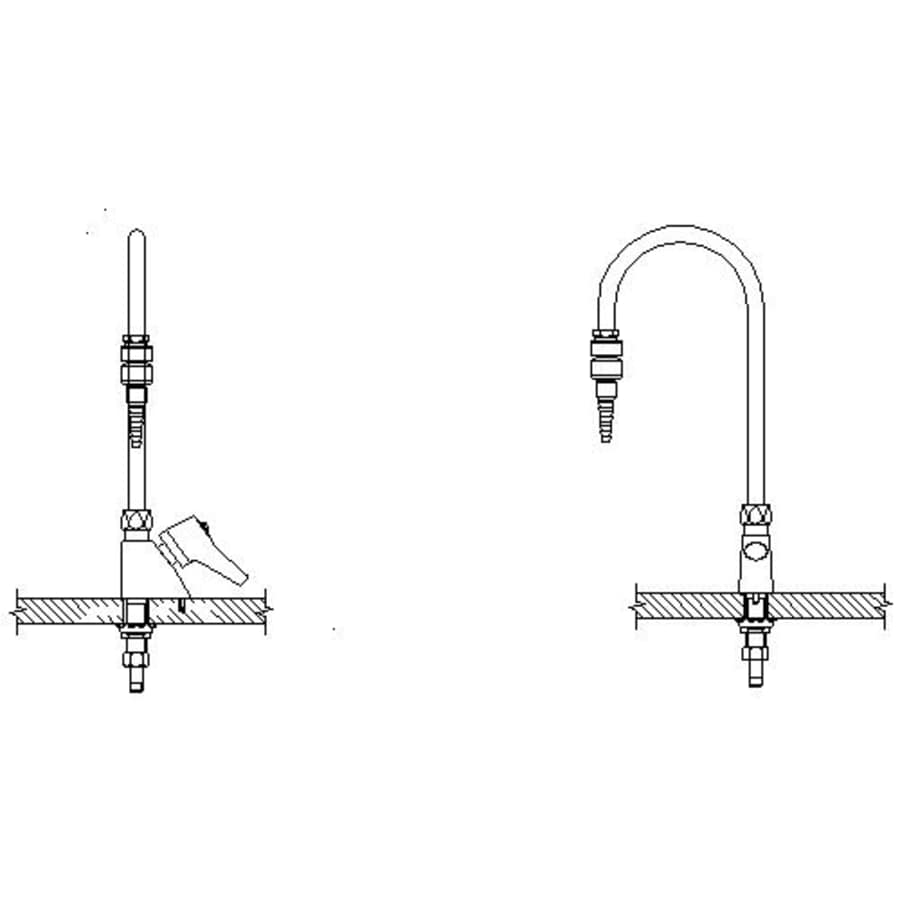

Deckmount single faucet with rigid/swivel spout, fits a maximum 1-1/4″ diameter hole
Spout: R5 – Gooseneck-6.0″ radius-12.0″ height(unmounted)-Standard rigid/swivel field installation unless LS Limited swing option selected-Vandal resistant .090″ wall thickness
Outlet#: 9 – w/ 1/4″ ID Serrated Nozzle Outlet Plus In-Line Dual Check Vacuum Breaker(-9 series)
Handle#: C – 70 mm (2-3/4″) ADA compliant Lever Blade Handle-Metal-Color indexed-Vandal resistant screws
Indexed For: CW – Cold Water(Green)-60 psi max
Product Certifications:
CSA certified
Complies to ASME A112.18.1/CSA B125.1
ADA compliant and meets Handicapped Accessibility Standard ASME A117.1 of less than 5 lbs
In-line VB tested and approved in conformance with ASSE 1035 “Laboratory Faucet Vacuum Breakers”. CSA certified to B64.7
Additional Delta Links
View the Manufacturer Warranty
Browse all Delta Products
Delta Commercial Collection
Specifications
| Height | 14.74 in. |
| Product Weight | 6.22 lbs. |
| Spout Height | 6.04 in. |
| Spout Reach | 6 in. |
| Spout Swivel | 360 Degrees |
| Max Deck Thickness | 1.5 in. |
| Material | Brass |
| Valve Type | Ceramic Disc |
| Faucet Holes | 1 |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Handle Material | Metal |
| Pre Rinse | No |
| Pullout Spray | No |
| Mounting Type | Single Hole |
| Approved for Commercial Use | Yes |
| Collection | Commercial |
| ADA | Yes |
| Country Of Origin | Canada |
| Made in America | Yes |
| Drain Assembly Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Filtering | No |
| Sidespray | No |
| Color | Chrome |
| Color Tone | Silver Tones |
