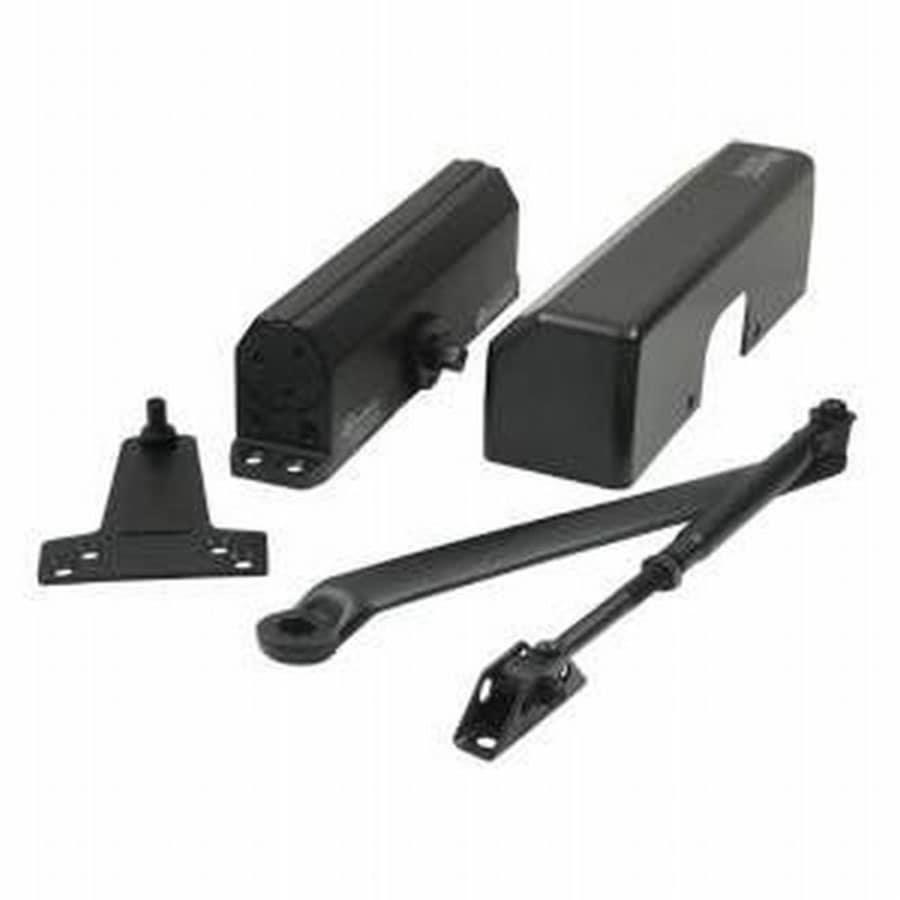

ADA Compliant Adjustable Spring Sizes 1-4 Surface Mount Door Closer
Deltana is the architectural hardware manufacturer with a proven record for exceptional service and quality. Deltana inventories the country’s largest selection of architectural, lighting, and door hardware in several stunning finishes made from many solid, high quality materials.
ADA Compliant
Power Adjustable from Sizes 1-4
Universal Application: Standard, Top-Jamb and Parallel Arm
For Doors 55-165 lbs
Additional Deltana Links
View the Manufacturer Warranty
Browse all Deltana Products
Specifications
Dimensions and Measurements
| Height | 1.75 in. |
| Product Weight | 6 lbs. |
| Projection | 2.625 in. |
| Max Door Weight | 180 lbs. |
| Max Door Width | 42 in. |
| Closer Body Length | 9.75 in. |
| Closer Size | 1-4 |
| Horizontal Mounting Holes | 9.0625 in. |
| Max Door Opening | 180 Degrees |
| Vertical Mounting Holes | 2.375 in. |
Characteristics and Features
| Material | Aluminum |
| Handshower | Left, Reversible, Right |
| Barrier Free | Yes |
| Arm Type | Standard |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Delay Action | No |
| Hold Open | No |
| Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
Warranty and Product Information
| ADA | Yes |
| Manufacturer Warranty | 5 Year |
| Collection | 10 |
| Certifications | ANSI, UL10C, UL |
| Approved for Commercial Use | Yes |
| Series | 10 |
| Fire Rated | Yes |
| Usage Level | Standard Duty |
| ANSI Certification | A156.4 |
| BHMA Certification | Grade 1 |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum |
| Color Tone | Neutrals |
