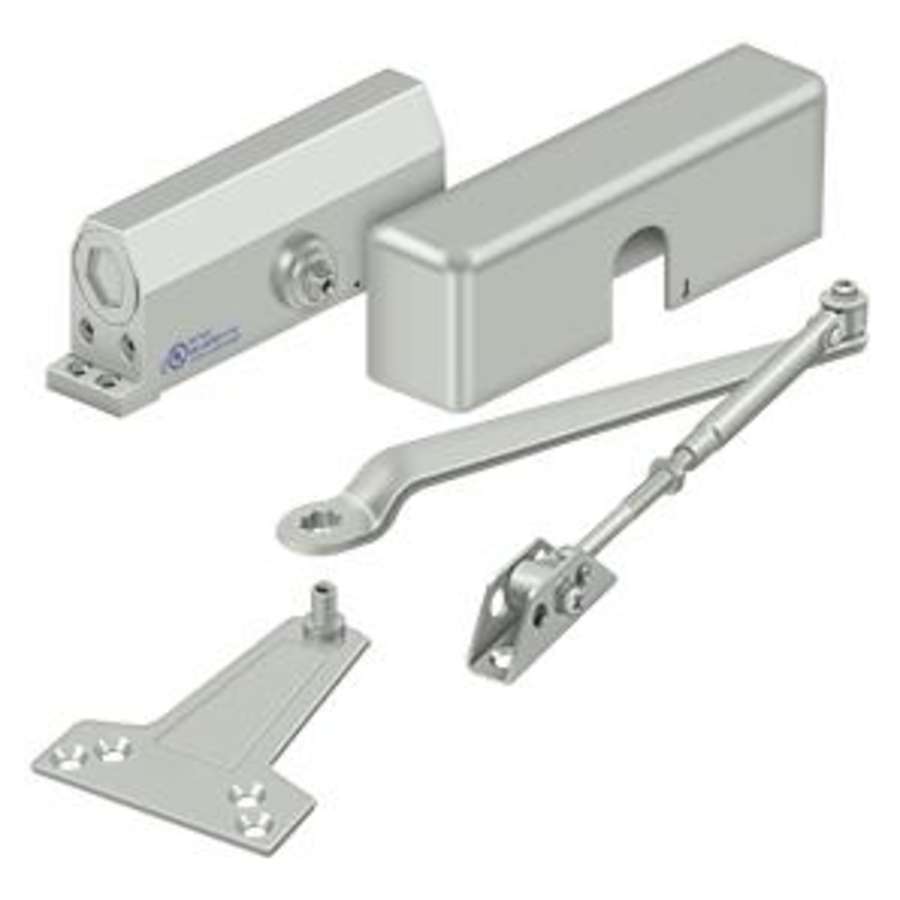

Features:
Adjustable backcheck
Parallel, regular and top jamb arms included
Constructed of high quality aluminum, cast iron, and steel for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Deltana’s 5 year limited manufacturer warranty
Specifications:
Height: 3″
Projection: 3-1/8″
Closer Body Length: 10-5/8″
Horizontal Mounting Holes: 8-1/4″
Vertical Mounting Holes: 7/8″
Max Door Opening: 120 Degrees
Max Door Weight: 140 lb.
Additional Deltana Links
View the Manufacturer Warranty
Browse all Deltana Products
Specifications
Dimensions and Measurements
| Height | 3 in. |
| Length | 10.625 in. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Projection | 3.125 in. |
| Max Door Weight | 140 lbs. |
| Closer Body Length | 10.625 in. |
| Closer Size | 3 |
| Horizontal Mounting Holes | 8.25 in. |
| Max Door Opening | 120 Degrees |
| Vertical Mounting Holes | 0.875 in. |
Warranty and Product Information
| Certifications | UL |
| Manufacturer Warranty | 5 Year Limited |
| Approved for Commercial Use | Yes |
| ADA | No |
| Fire Rated | Yes |
| Usage Level | Commercial Grade |
Characteristics and Features
| Material | Aluminum, Cast Iron, Steel |
| Handshower | Left, Reversible, Right |
| Arm Type | Standard |
| Adjustable Backcheck | Yes |
| Adjustable Spring | No |
| Barrier Free | No |
| Delay Action | No |
| Hold Open | No |
| Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Aluminum |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Duro, Gold, White |
