The DreamLine Infinity-Z sliding shower or tub door offers classic style with a modern touch. The Infinity-Z will transform your bathroom with a beautiful balance of functionality, elegance and sophistication. A variety of finishes and glass options will match any bathroom décor. The SlimLine shower base and Q-wall backwalls completes the look with a low profile design for a sleek modern look. Choose the DreamLine Infinity-Z model for the ultimate solution to your shower project.
DreamLine DL-6118C-FR Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Infinity-Z Shower Door, 34″ x 60″ Single Threshold Shower Base and QWALL-5 Shower Backwall Kit
Overall Kit Dimensions: 34″ D x 60″ W x 76-3/4″ H

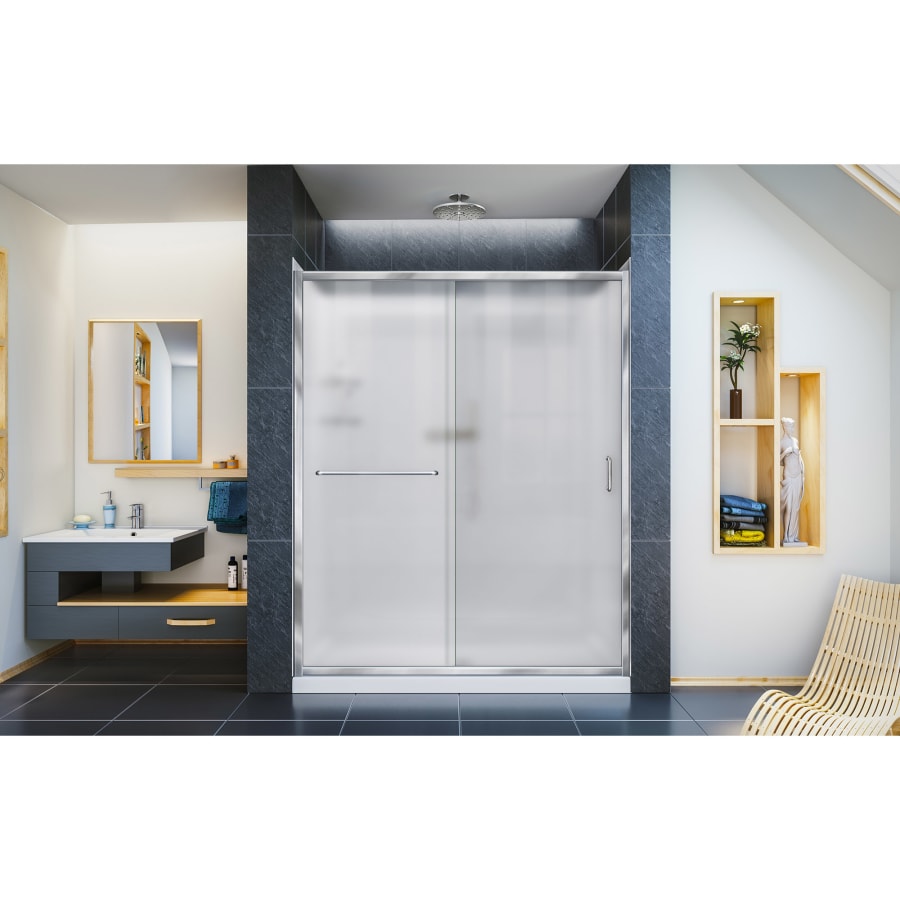

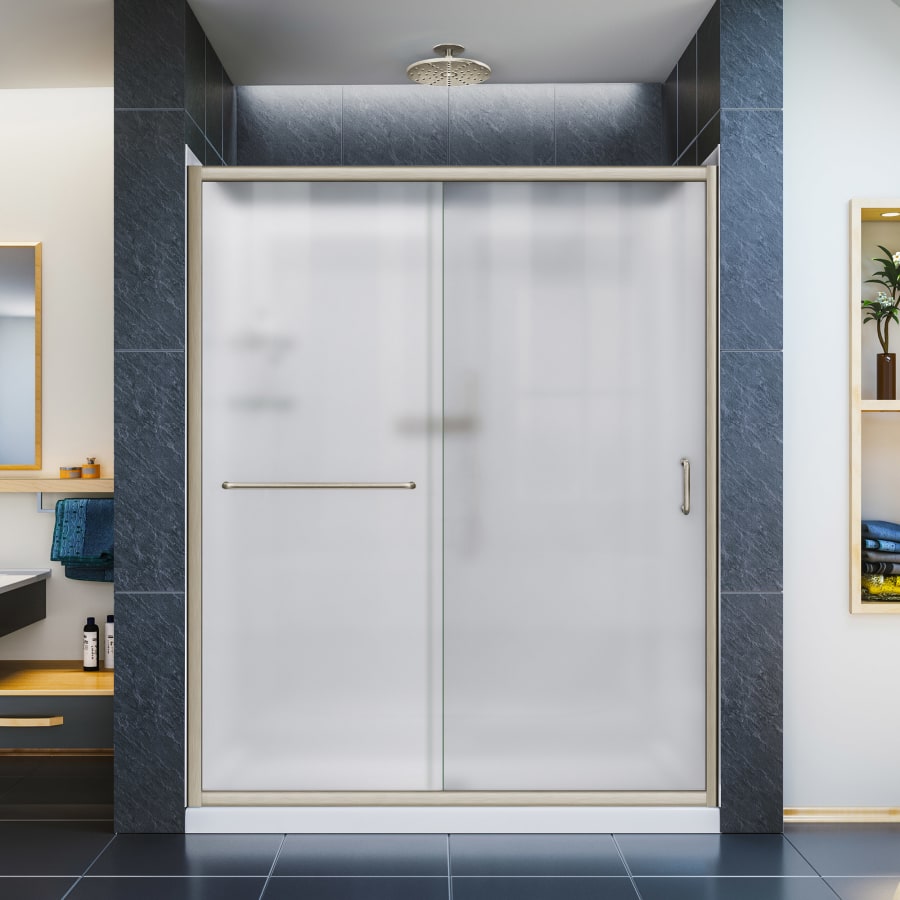

Infinity-Z Shower Door:
56 – 60″ W x 72″ H

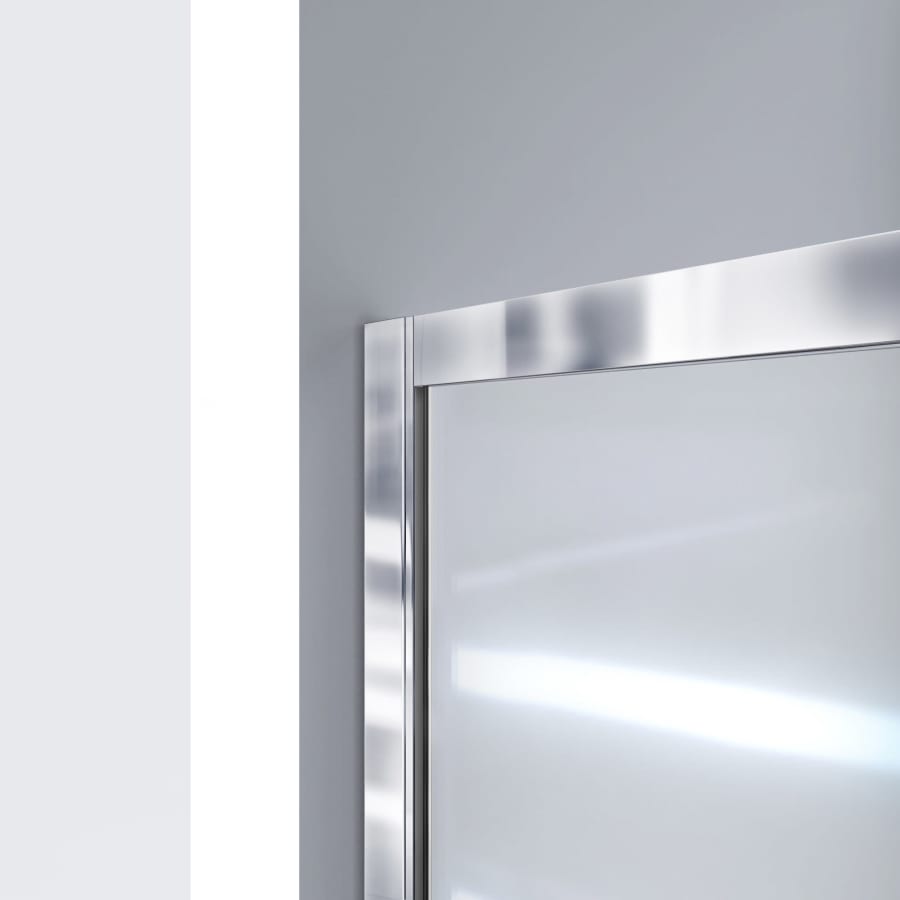

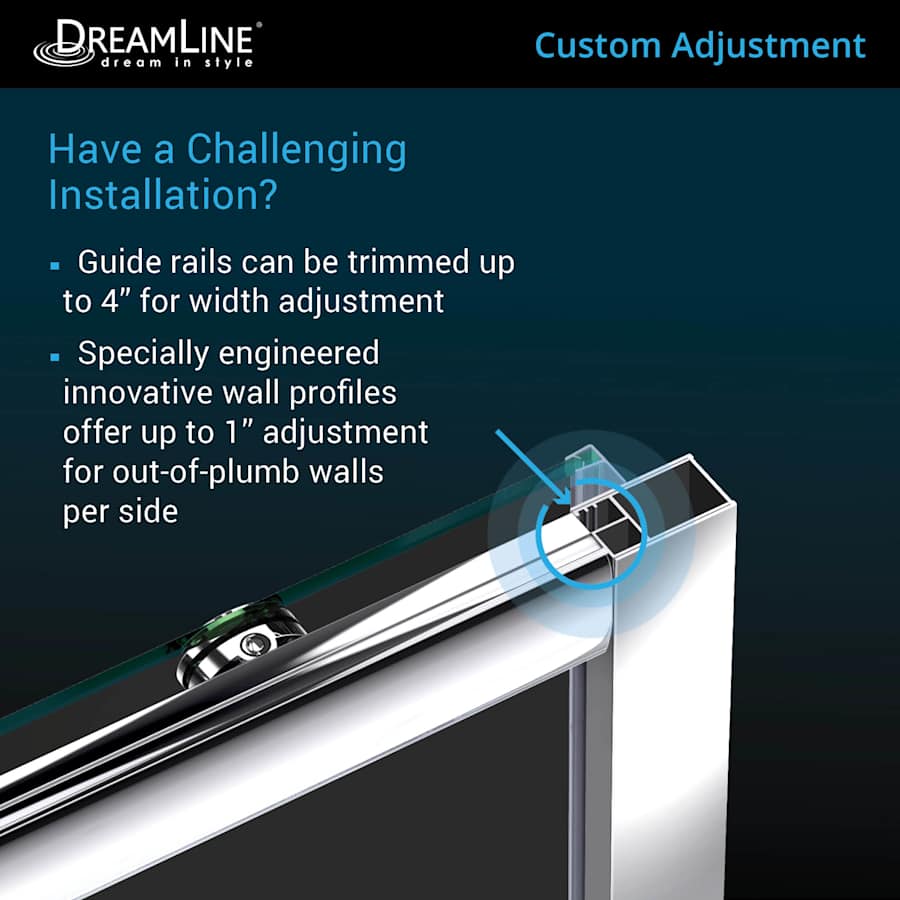

Anodized aluminum wall profiles provide up to 1″ width (horizontal) or out-of-plumb (vertical) adjustment
Frameless glass design
Model consists of single sliding panel and one stationary inline panel

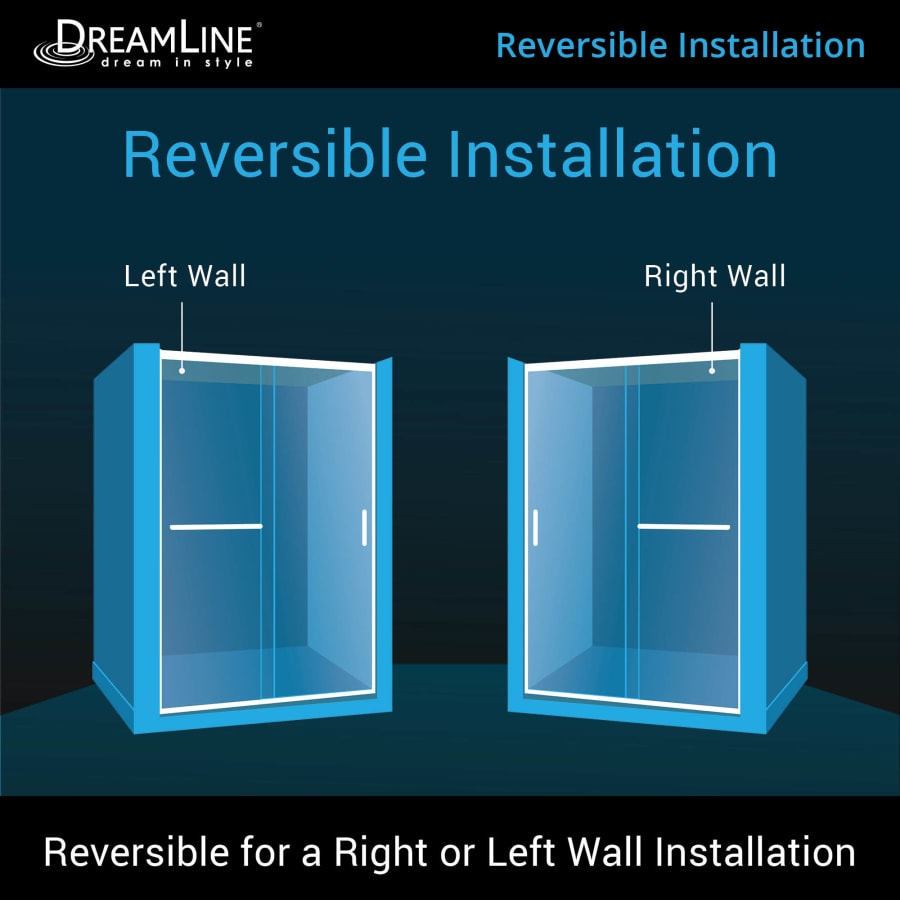

Reversible for right or left door opening installation
1/4″ (6mm) thick frosted tempered glass
Door Walk-In: 21-3/8 – 25-3/8″
Stationary Panel: 27″

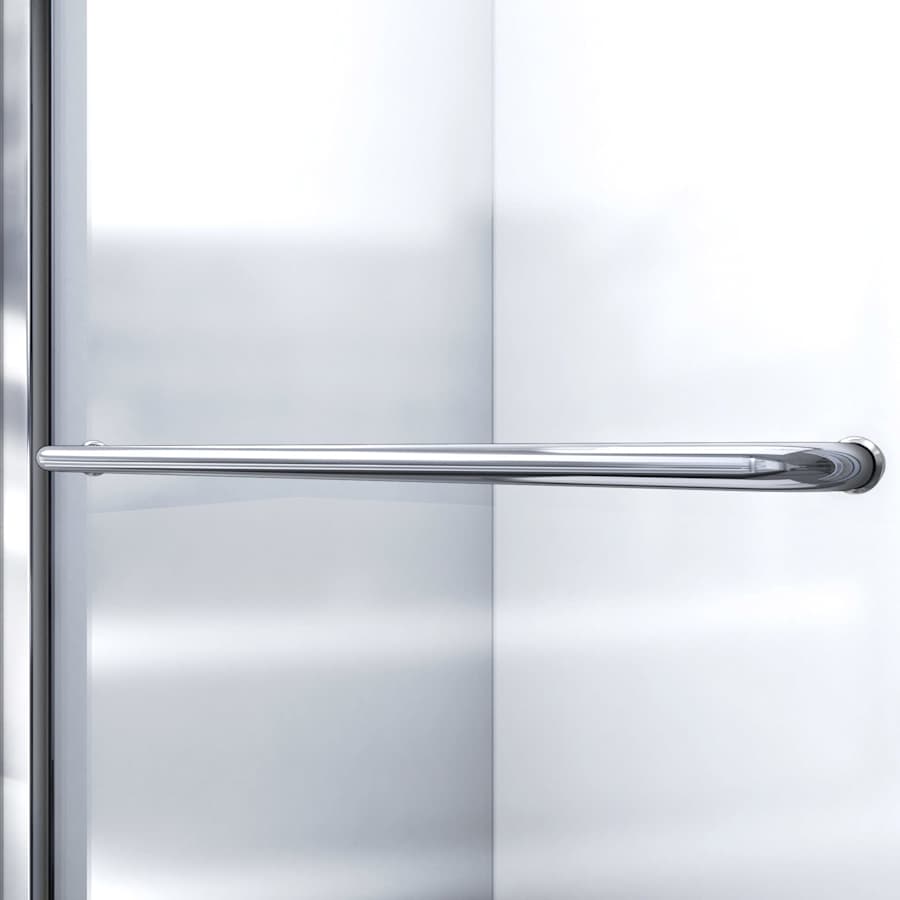

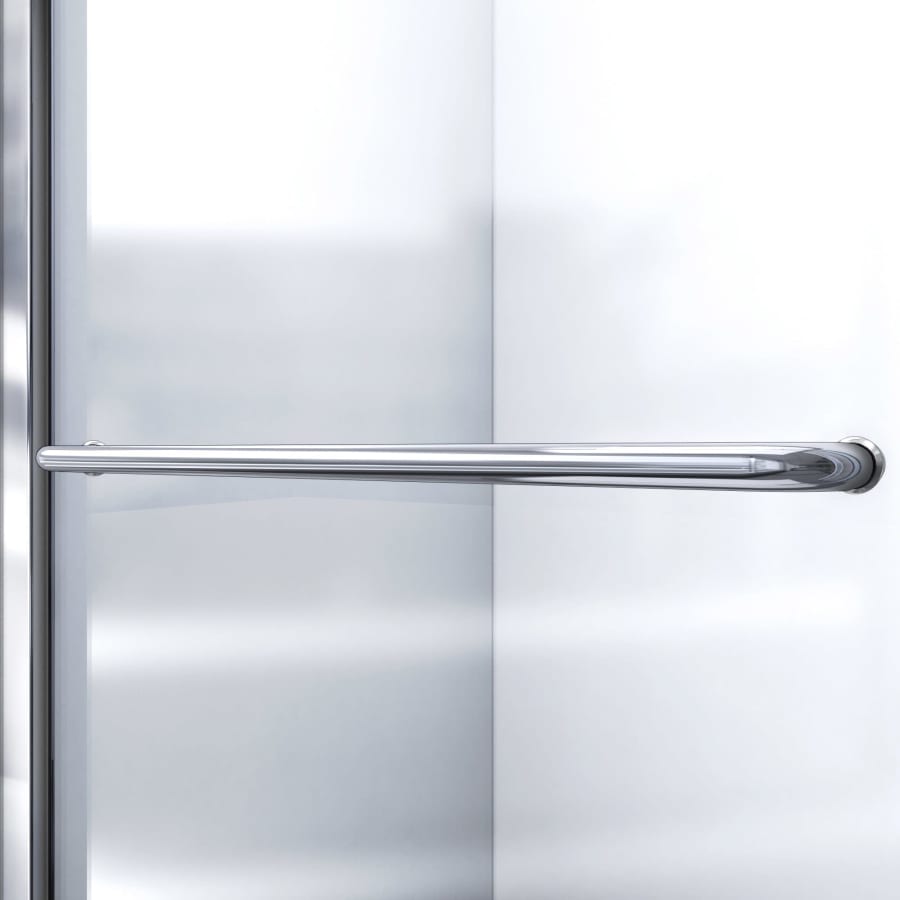

Convenient towel bar on stationary panel
Professional installation required

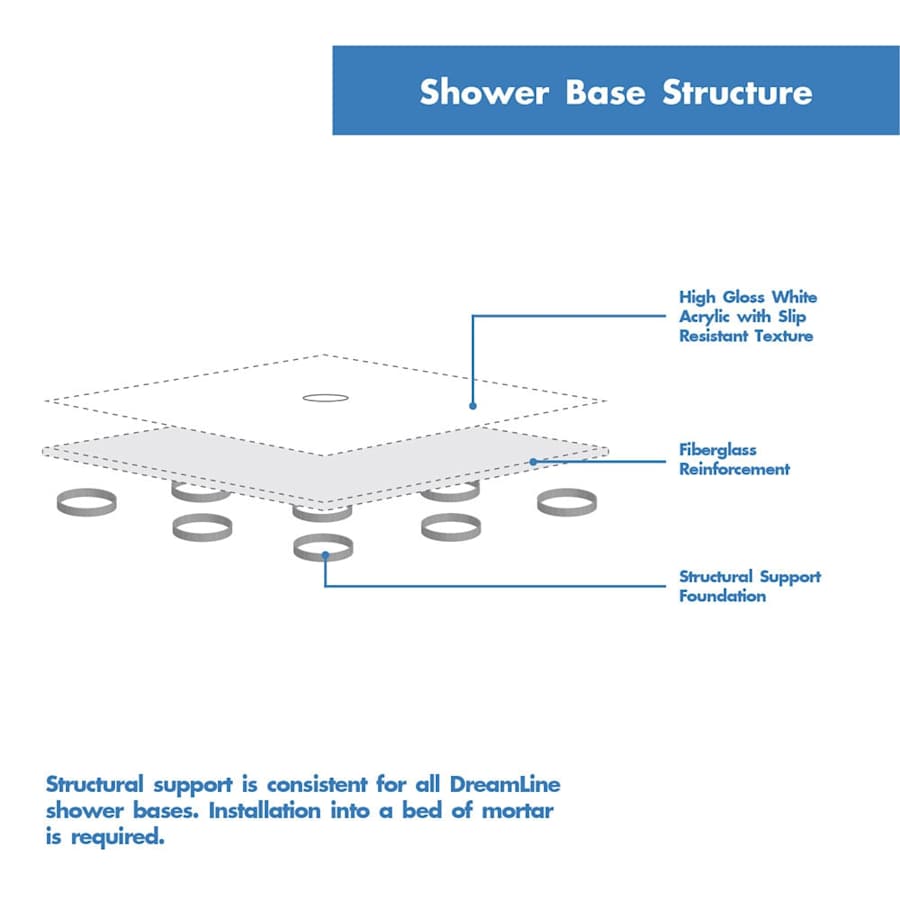

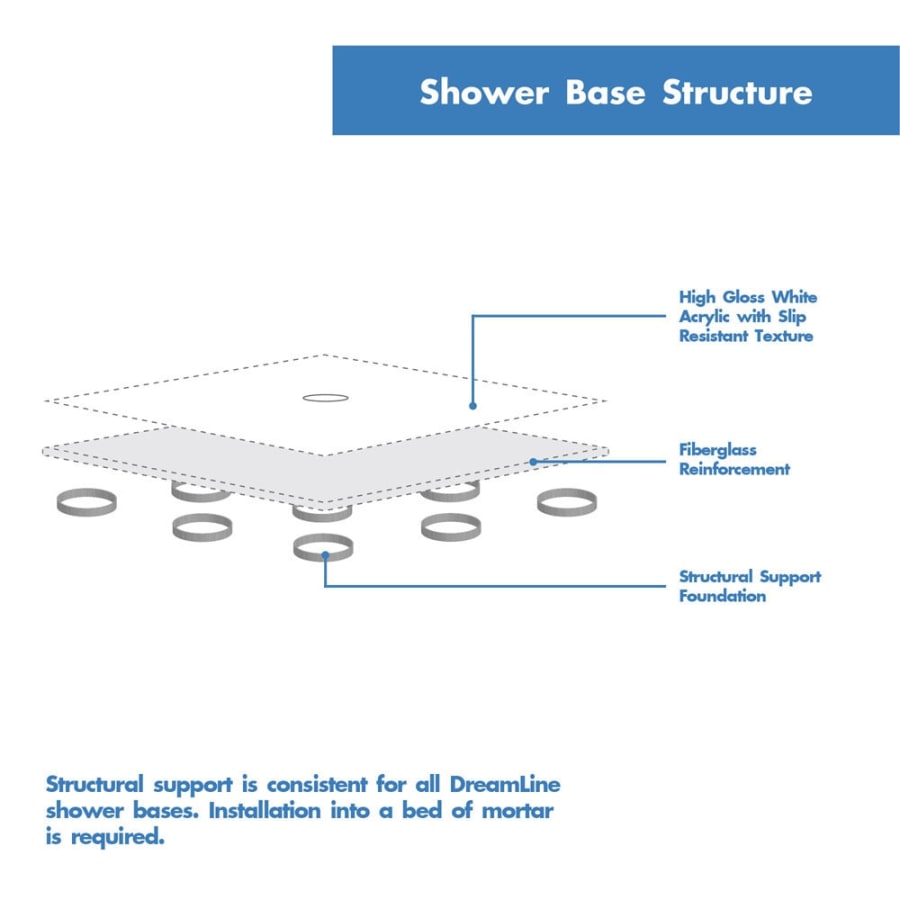

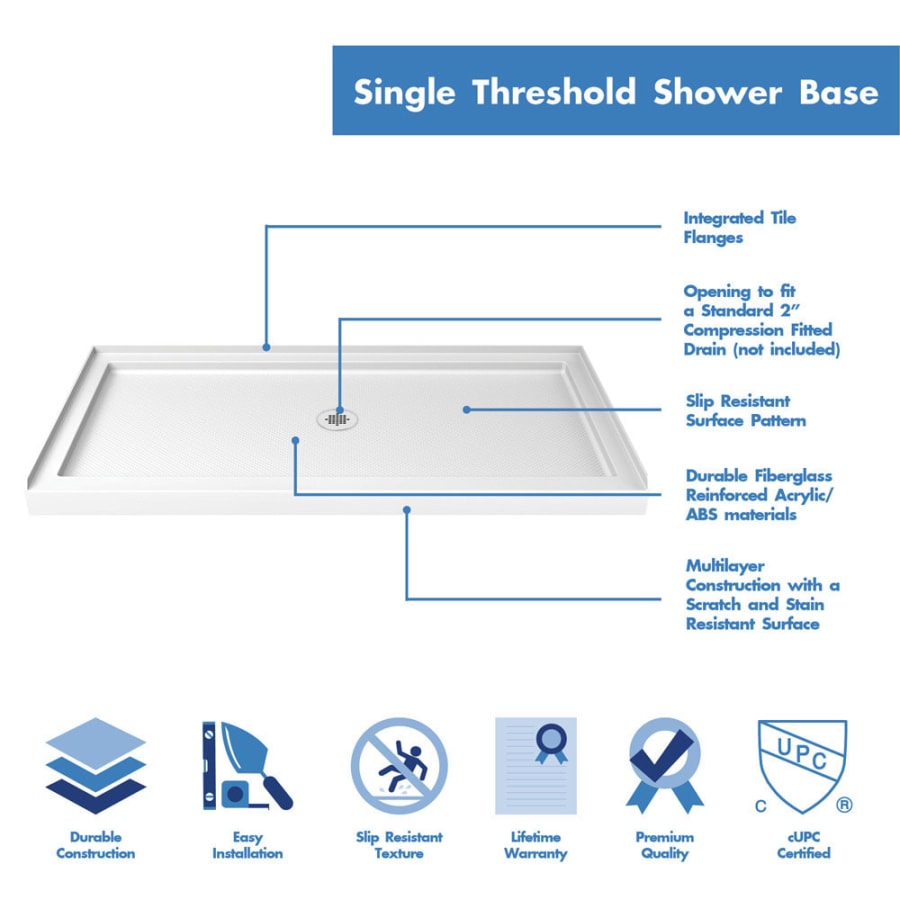

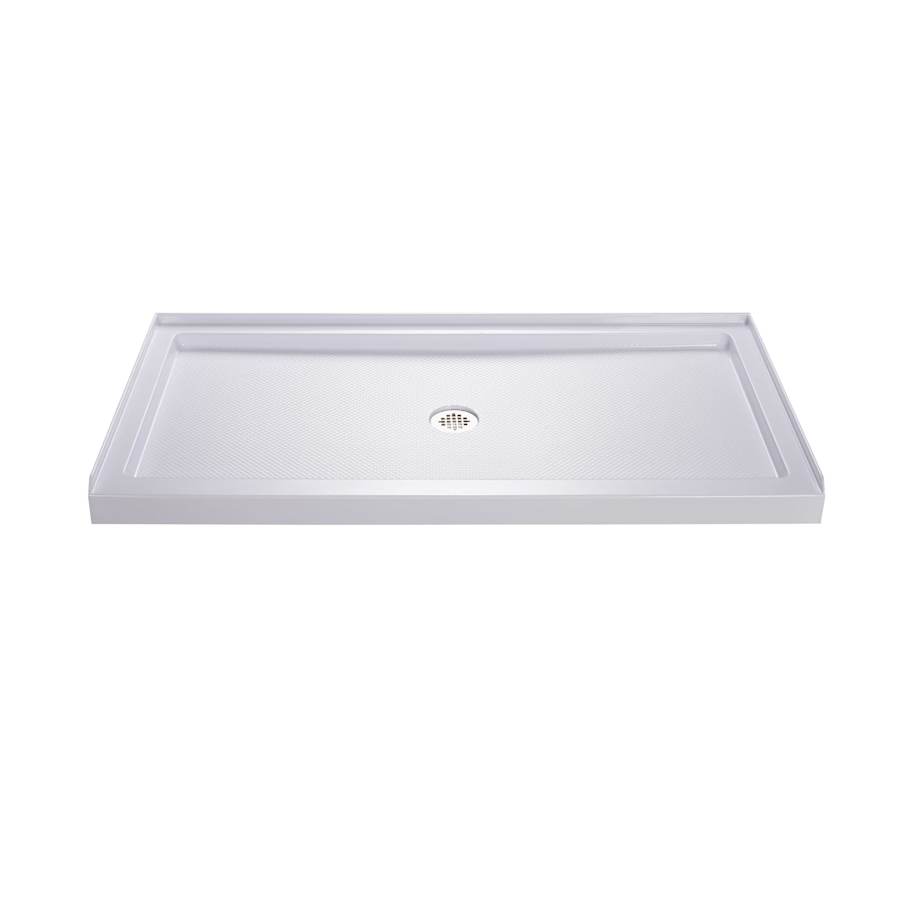

34″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic
Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing
Fiberglass reinforcement for durability
cUPC certified
Drain is not included

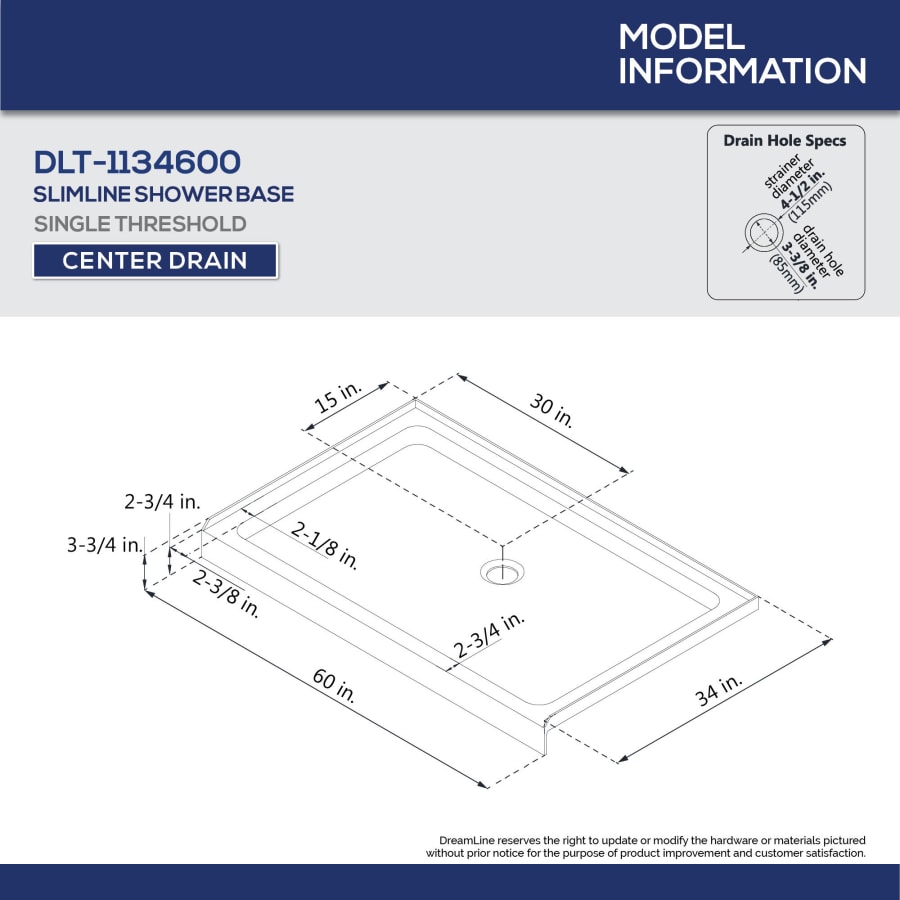

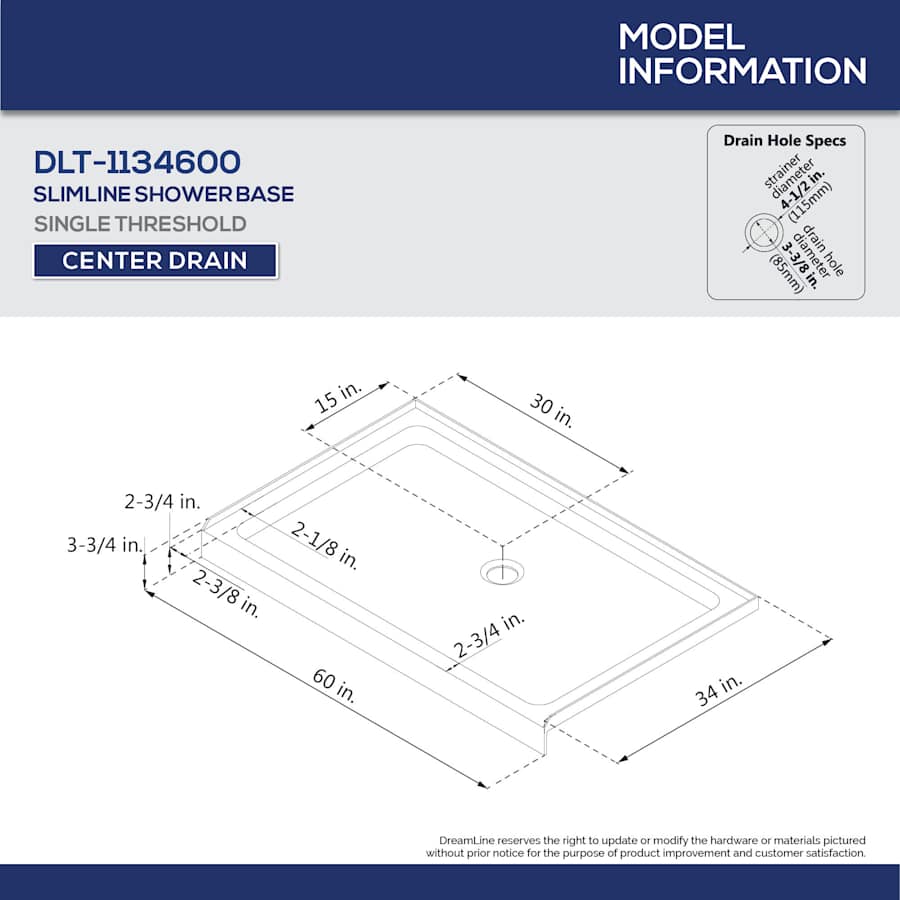

Center drain configuration. Please review the technical drawing for exact drain location

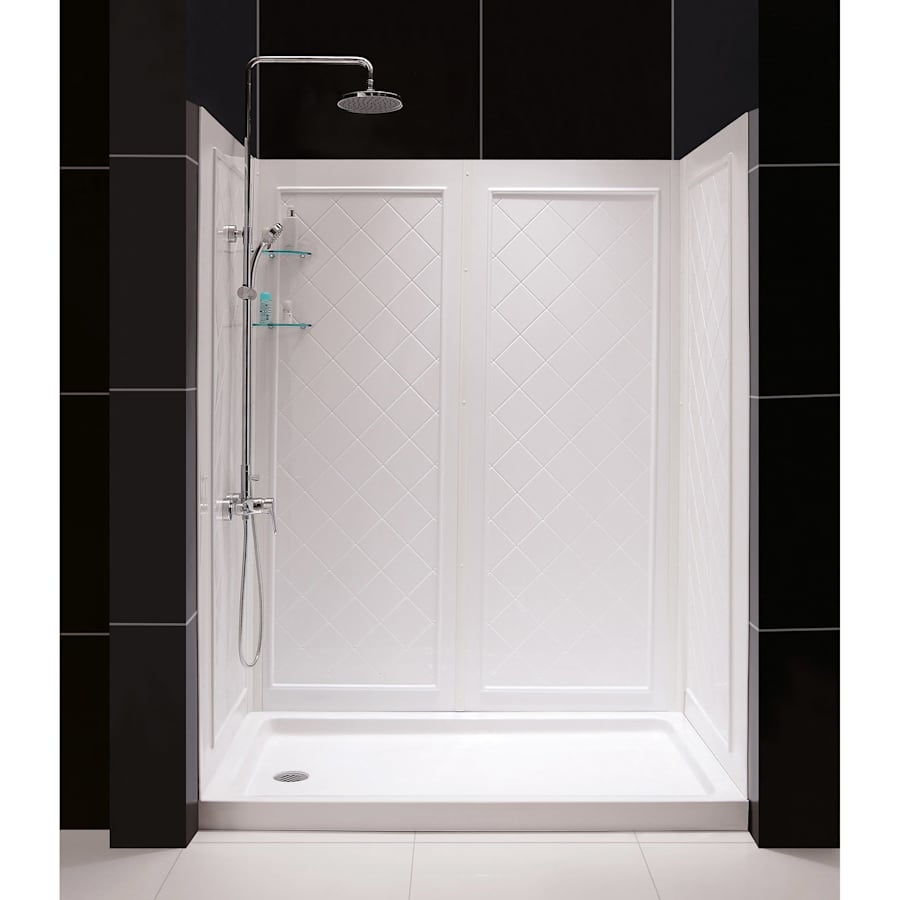

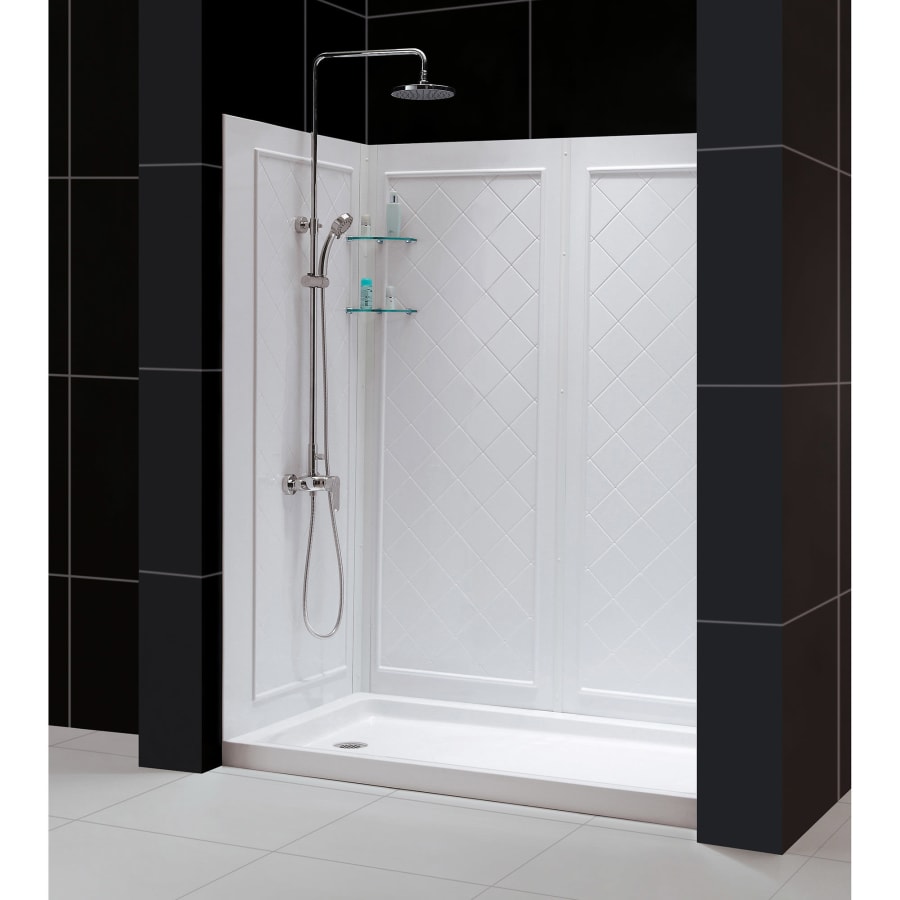

QWALL-5 Shower Backwall Kit:
Color: White
Assembly required

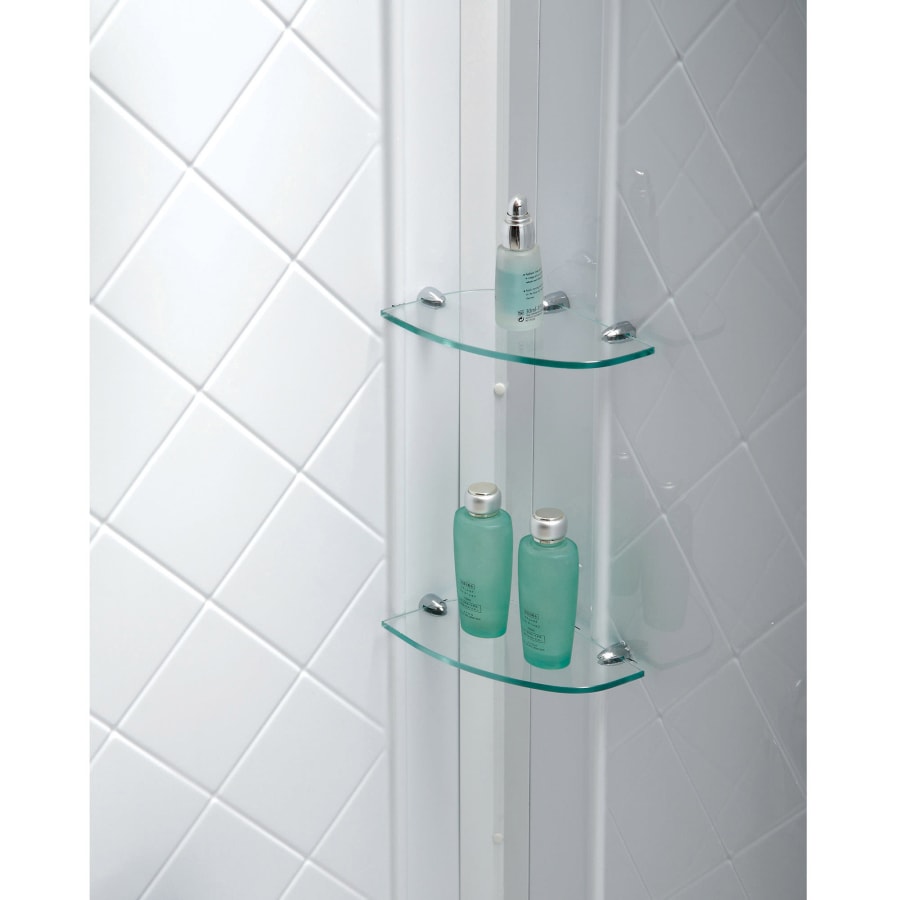

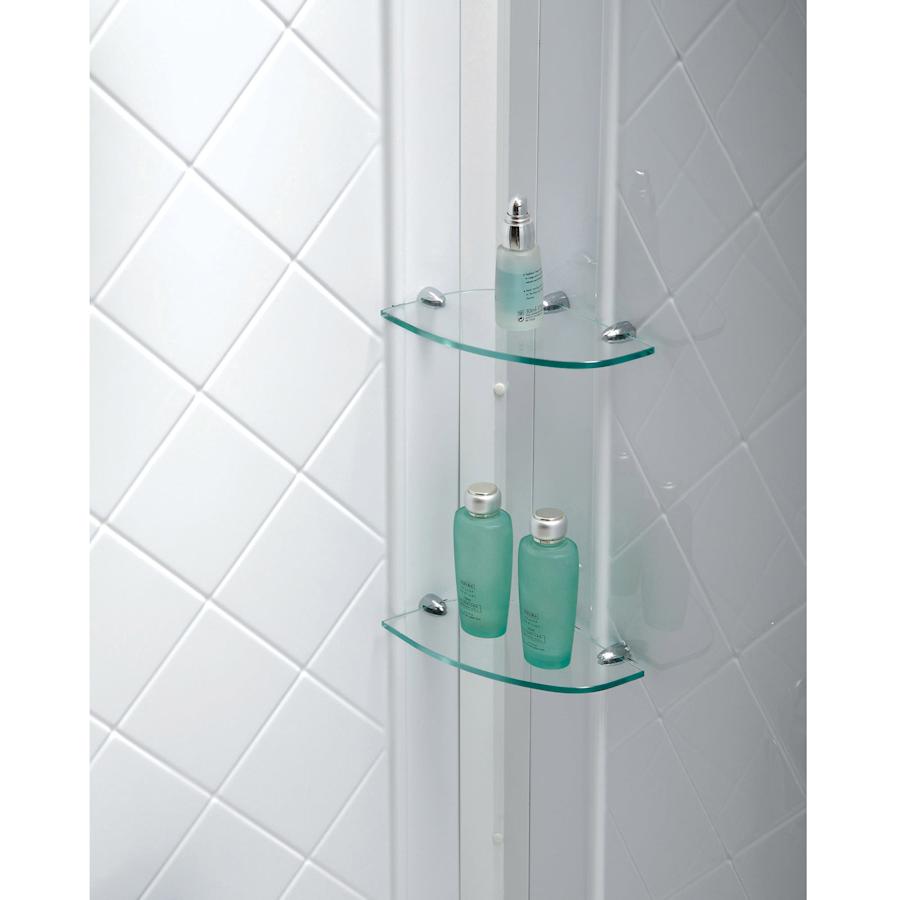

Includes 2 glass corner shelves
Attractive tile pattern
Unique water tight connection of panels
Durable acrylic/ABS construction
Trim-to-Size sidewall design
Must be trimmed during installation
Specially designed to be installed over existing solid surface not directly against the studs
Limited lifetime manufacturer warranty
Shower Backwalls: Limited 1 (one) year manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Infinity-Z Collection
Specifications
| Depth | 34 in. |
| Height | 76.75 in. |
| Nominal Width | 60 in. |
| Product Weight | 201 lbs. |
| Width | 60 in. |
| Quantity | 4 |
| Drain Connection | 3.25 in. |
| Door Width | 25.375 in. |
| Glass Thickness | .25 in. |
| Shower Door Width | 25.375 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Panel Width | 27 in. |
| Material | Acrylic, Aluminum, Tempered Glass |
| Thermostat | Modern |
| Configuration | Shower Enclosure |
| Insulation Type | Three Wall Alcove |
| Glass Features | Frosted Glass |
| Curb Location | Front |
| Drain Placement | Center |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Shape | Rectangular |
| Slip Resistant | Yes |
| Door Swing | Reversible, Right, Left |
| Door Type | Sliding |
| Frame Type | Framed |
| Number Of Doors | 1 |
| Number Of Shelves | 2 |
| Certifications | UPC, ANSI |
| Collection | Infinity-Z |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Shower Walls Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
