DreamLine DL-6217C-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Flex shower door, 32″ x 32″ Single threshold shower base and QWALL-5 shower backwall kit
Overall Kit Dimensions: 32″ D x 32″ W x 76-3/4″ H
Flex shower door:
28 to 32″ W x 72″ H

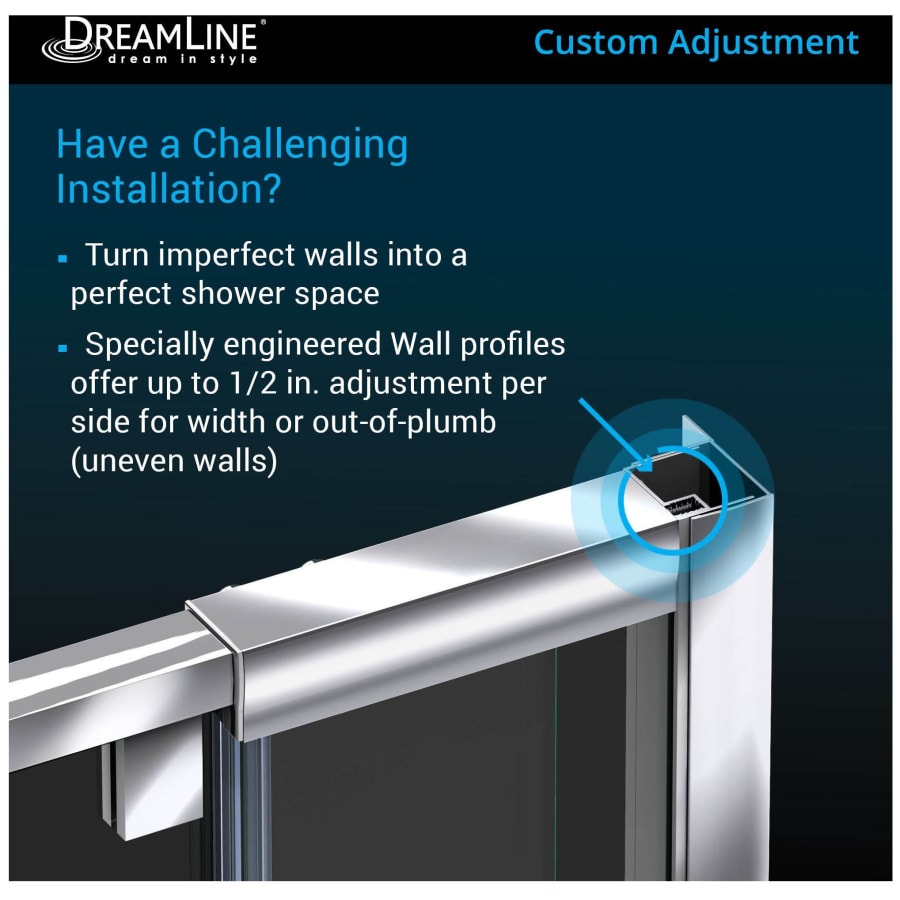

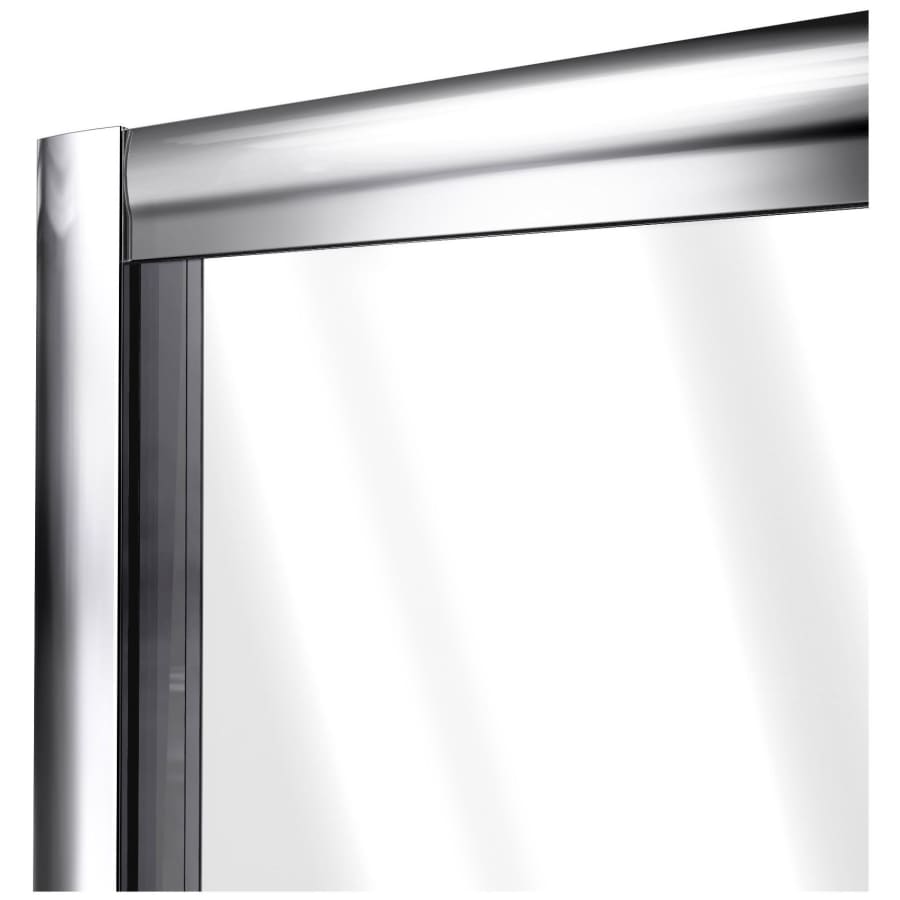

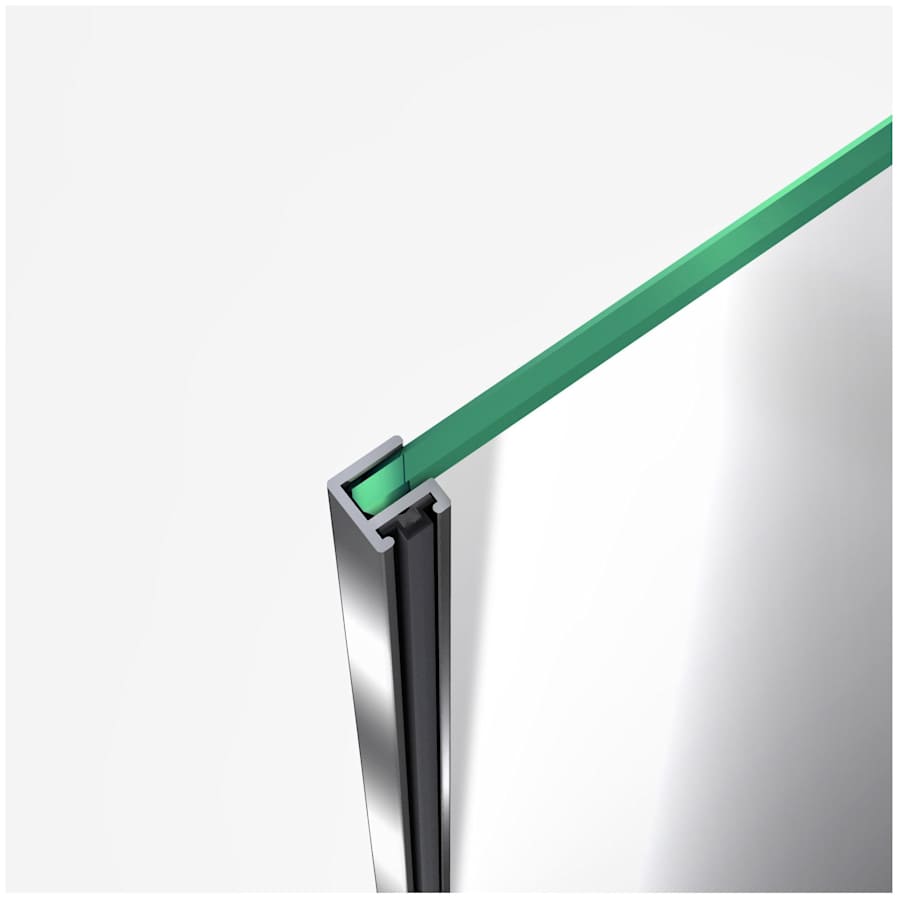

Anodized aluminum wall profile allows a 1″ width (horizontal) or out-of-plumb (vertical) adjustment

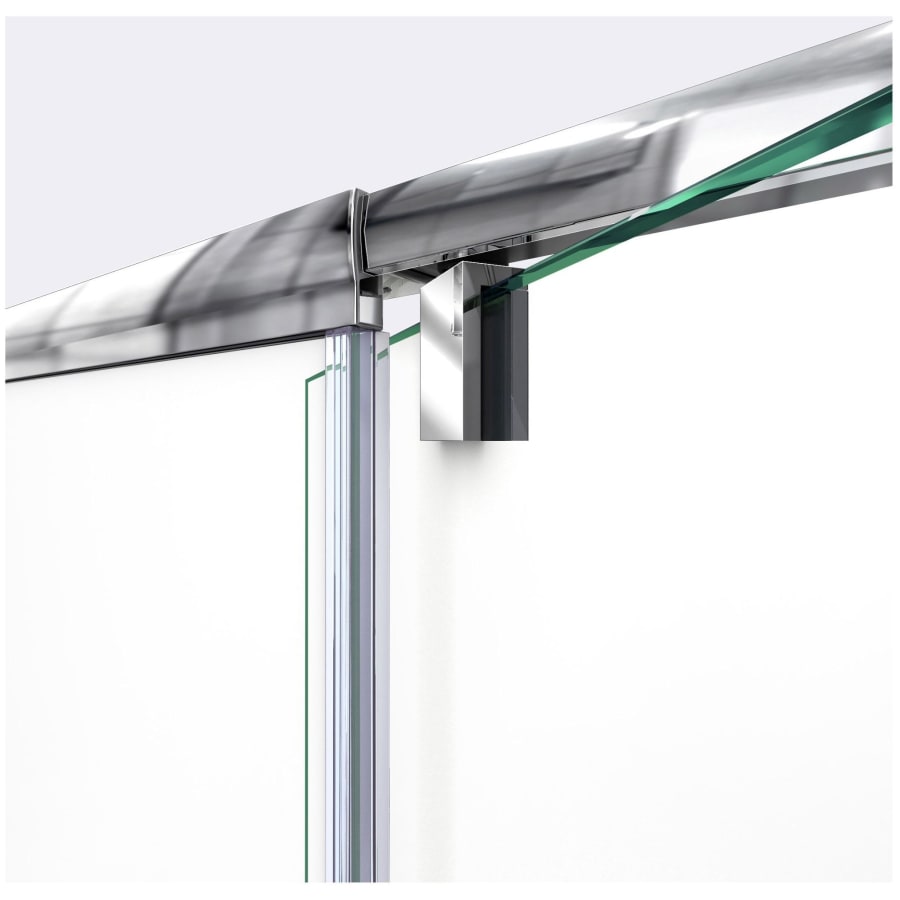

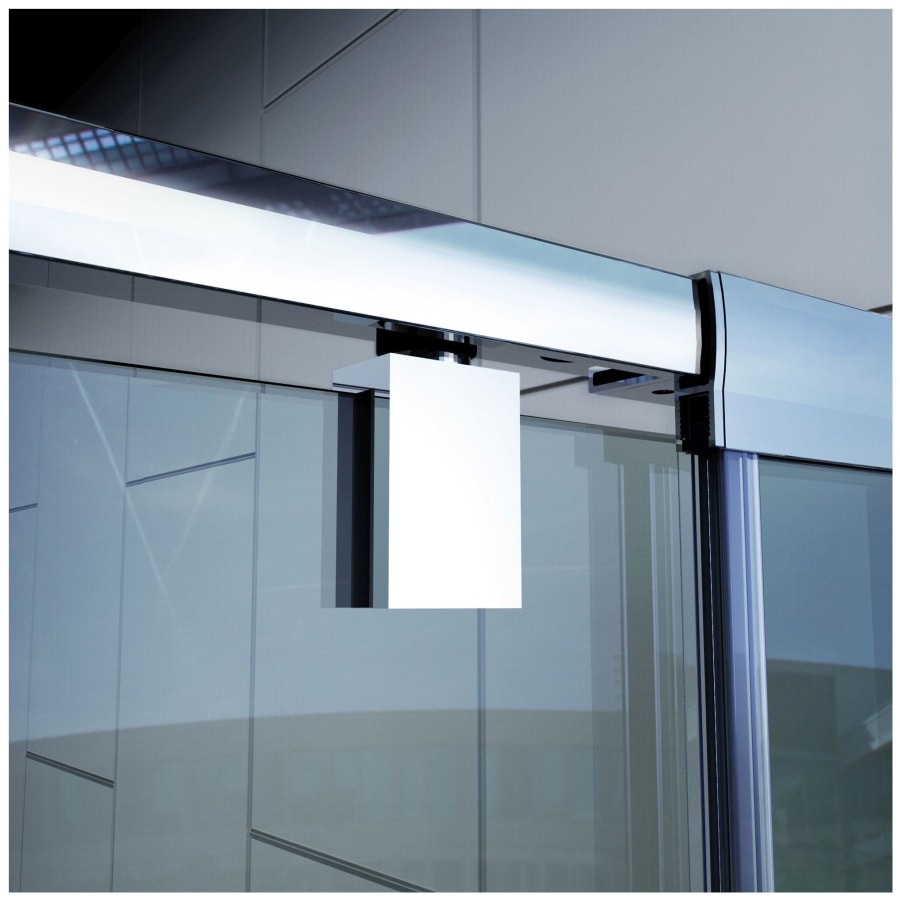

Cutting-edge expandable rails and pivot hardware allows a 3″ width (horizontal) adjustment
Model consists of a single pivot swing door and one stationary inline panel

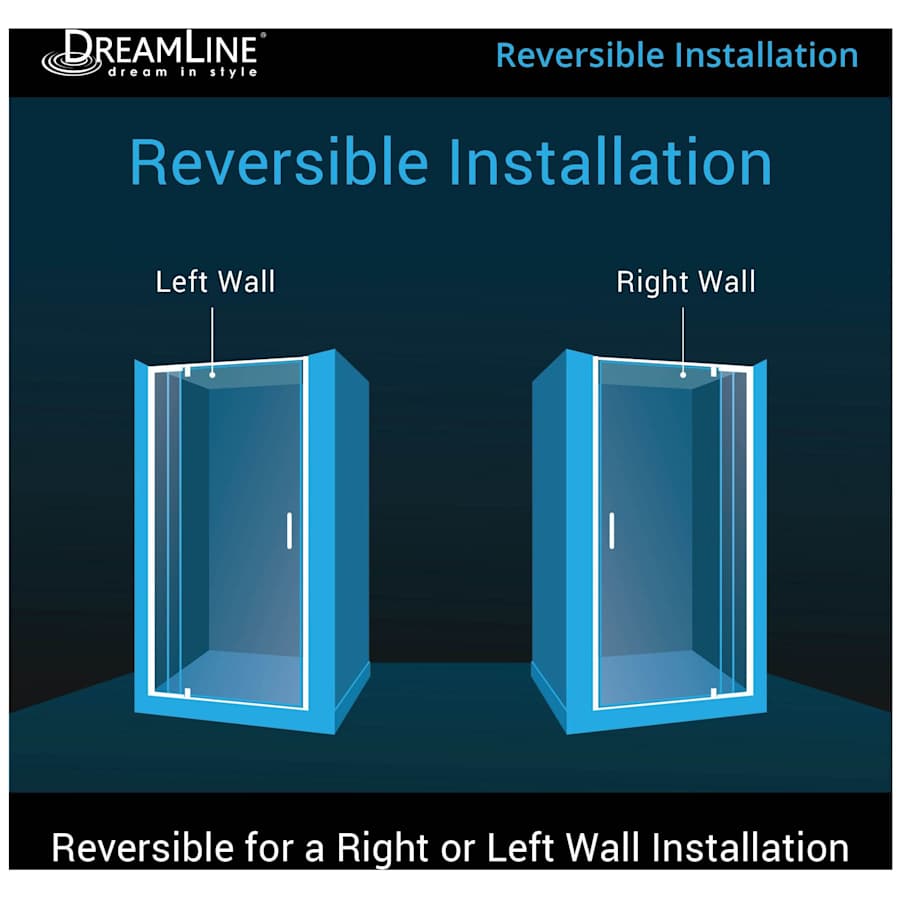

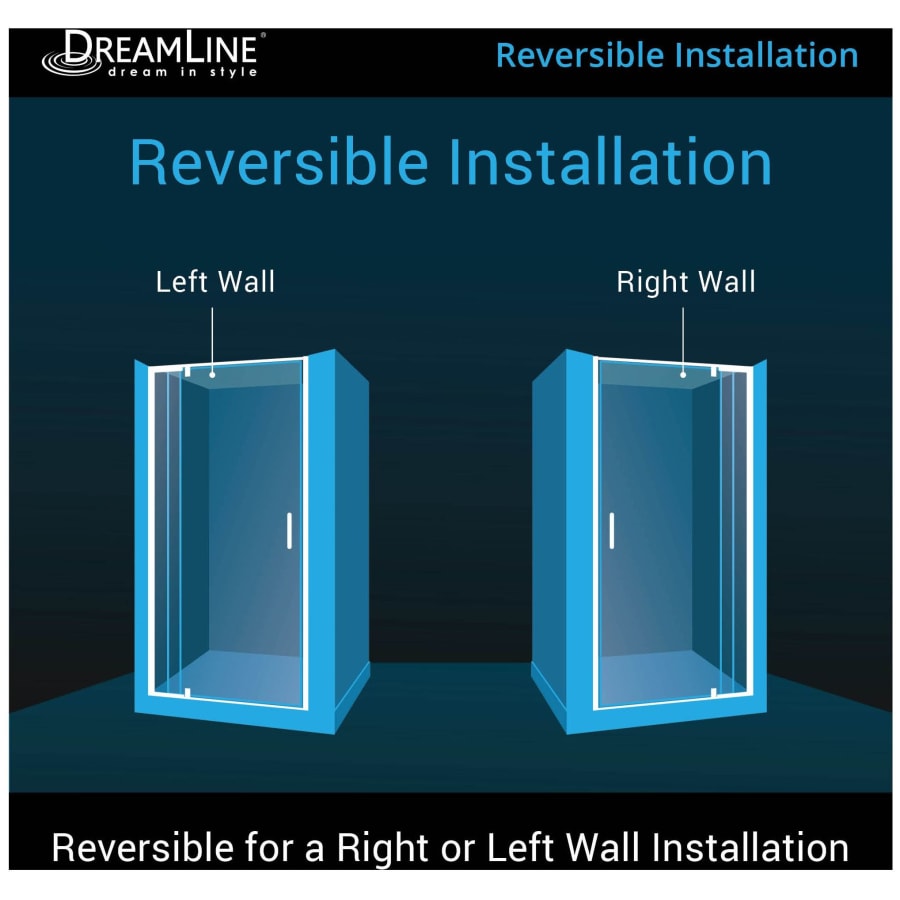

Reversible for right or left door opening
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 18-7/8″
Stationary Panel(s): 6-9/16″
Magnetic strip for water tight door closure
Professional installation recommended

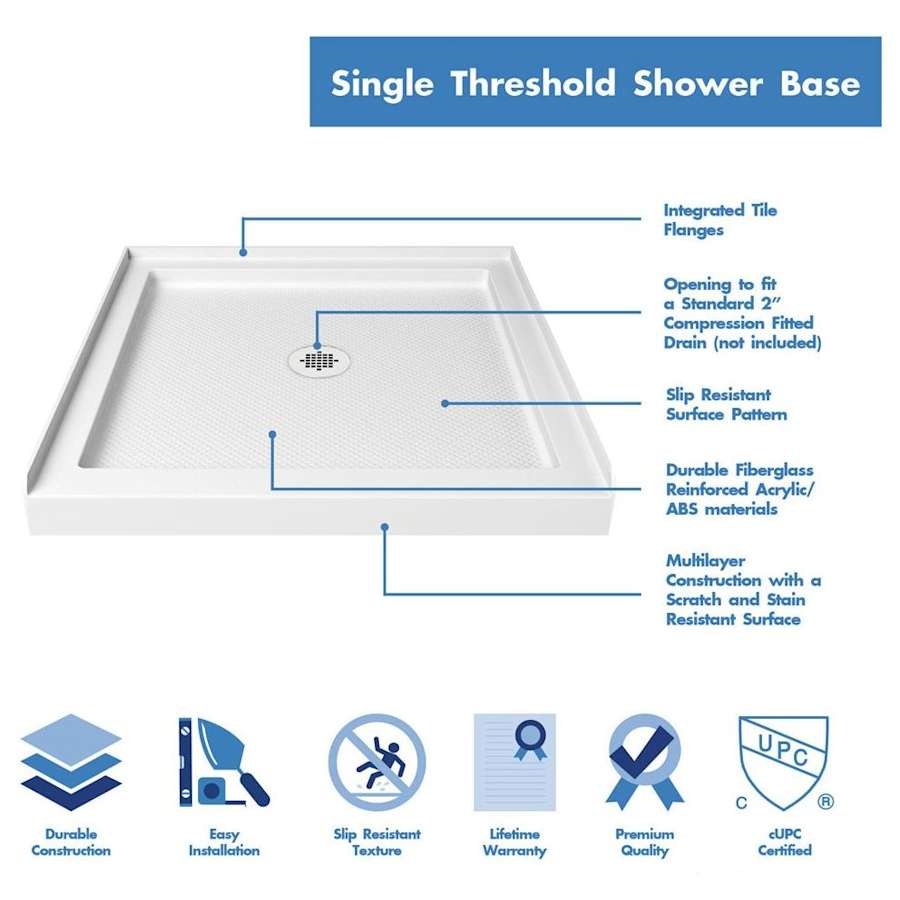

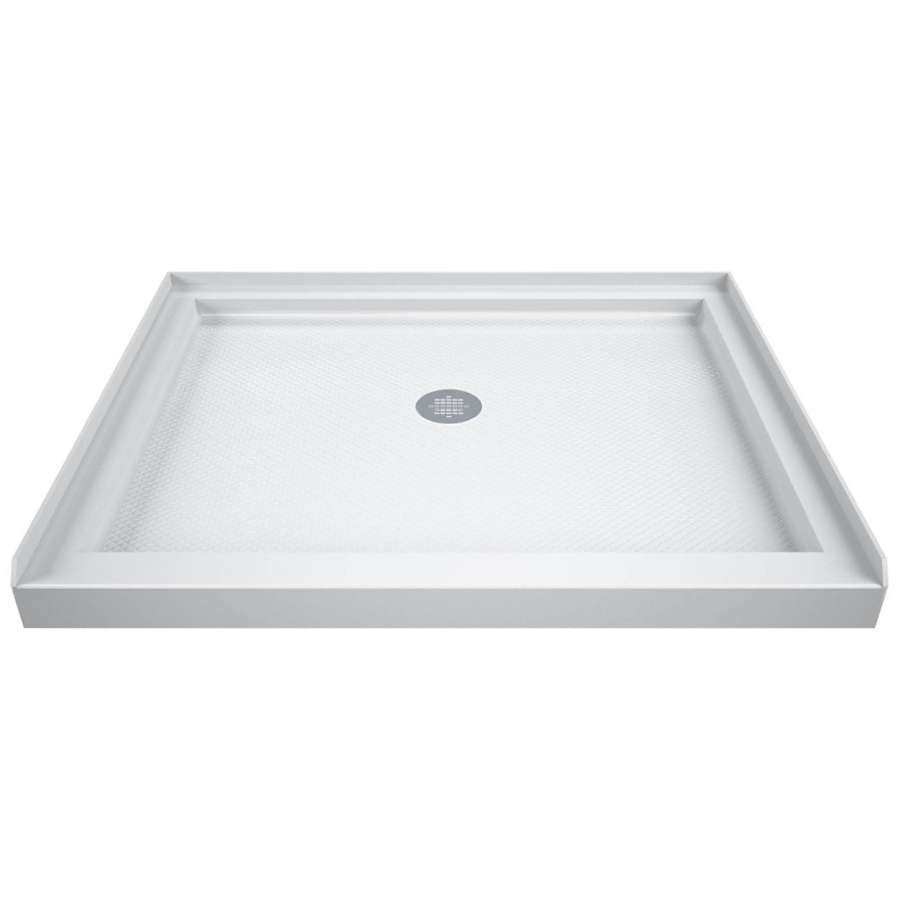

32″ x 32″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

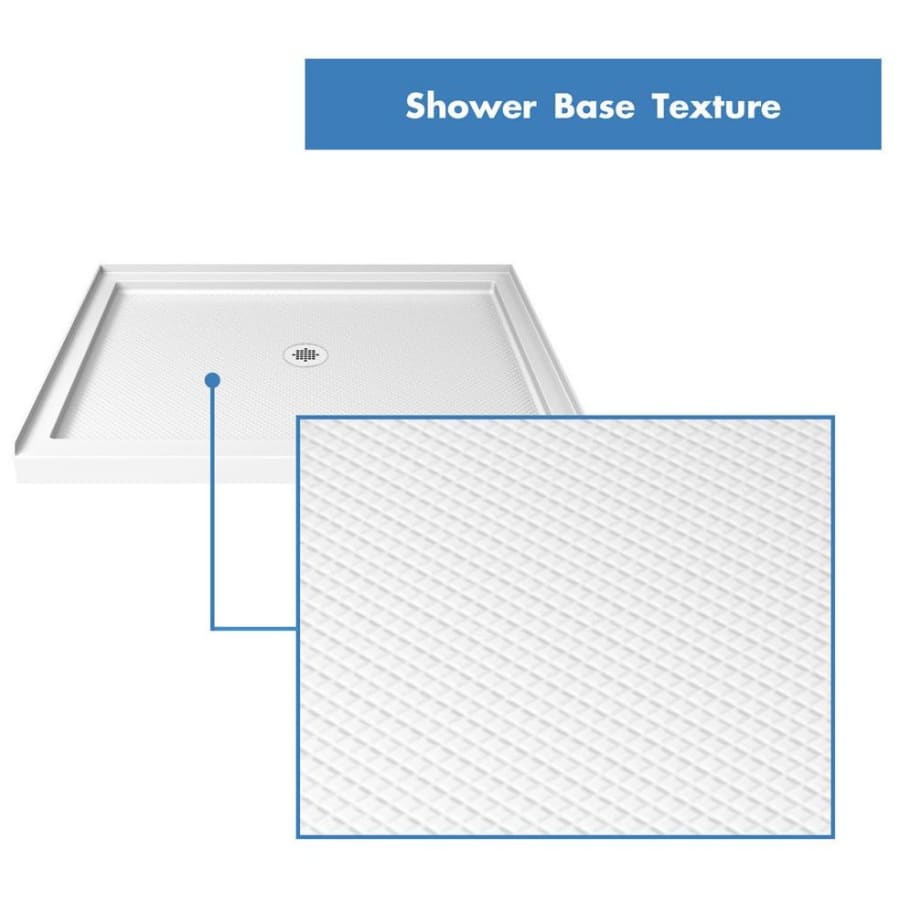

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

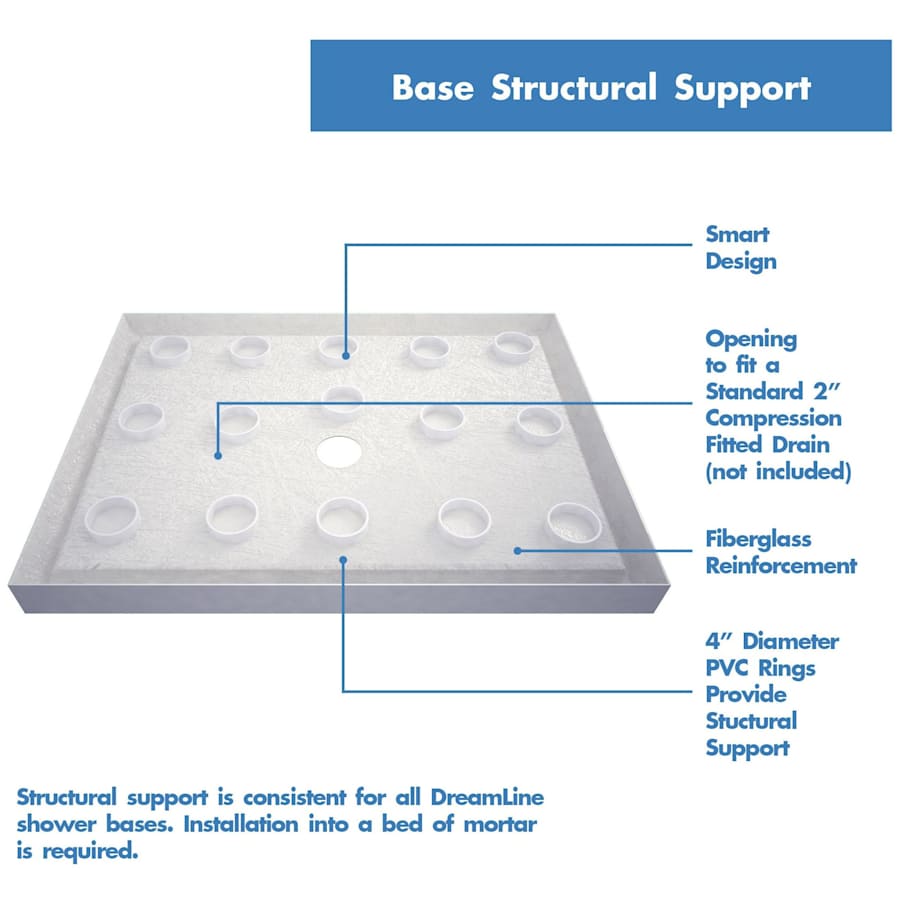

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

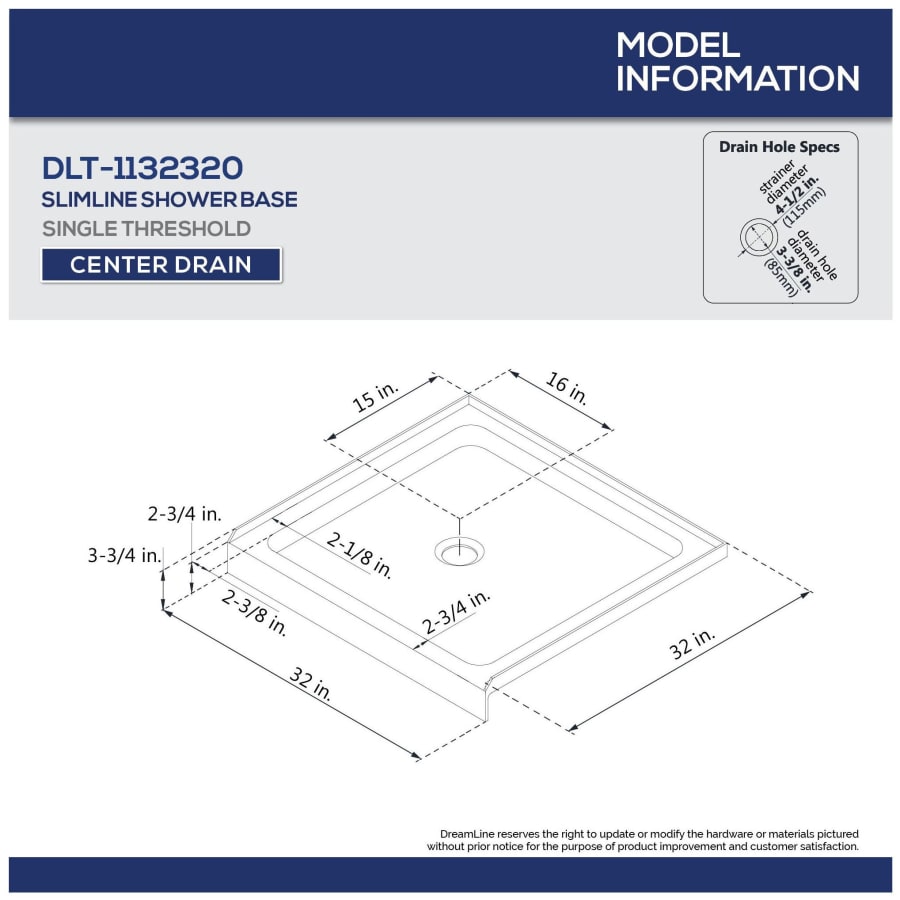

Center drain configuration. Please review the technical drawing for exact drain location
Plumbing codes vary by state; DreamLine is not responsible for code compliance

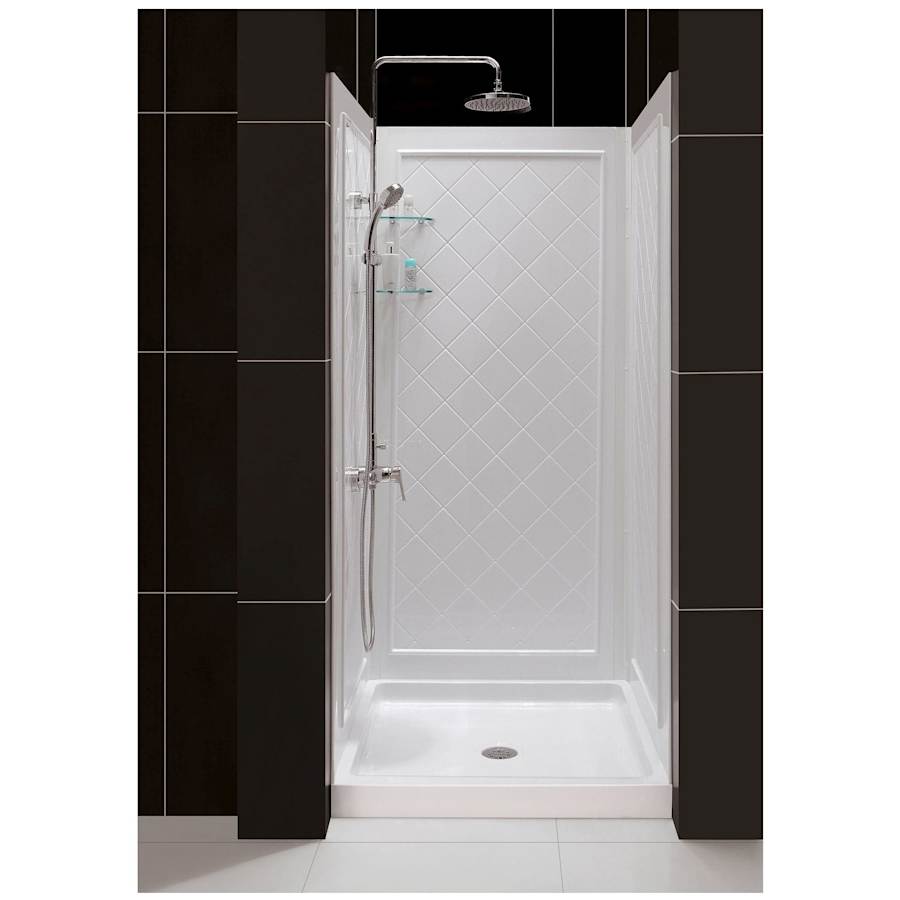

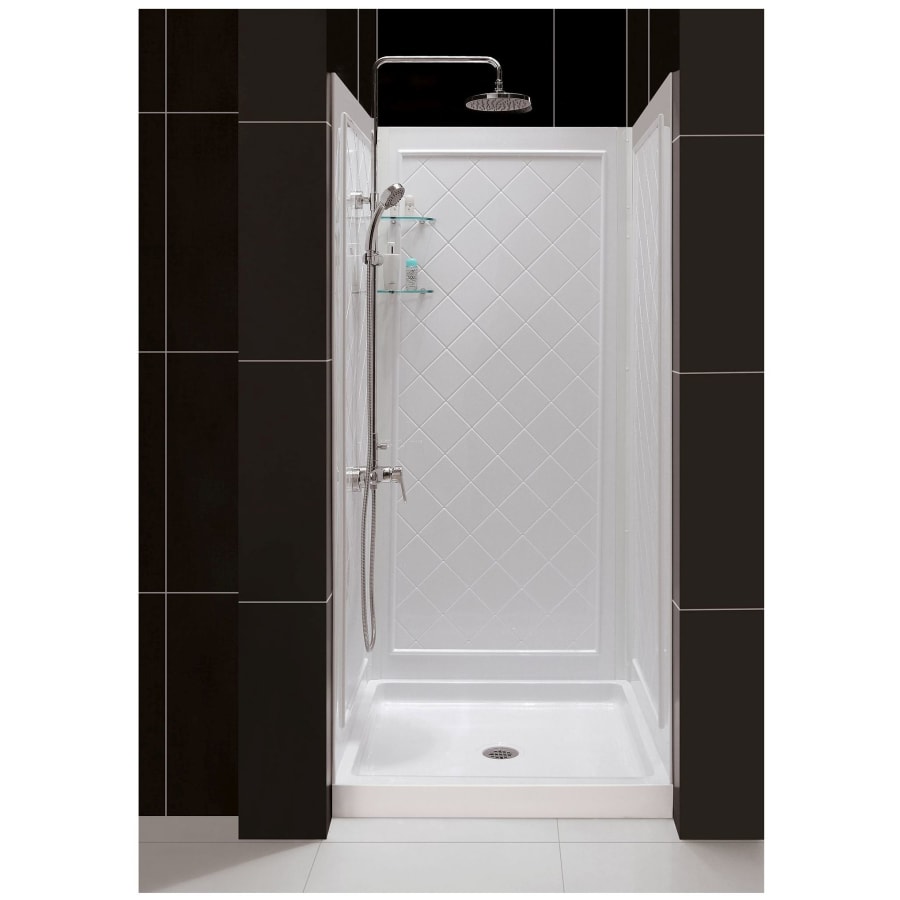

QWALL-5 Shower Backwall Kit:
Color: White
Assembly required
Includes 2 glass corner shelves
Attractive tile pattern
Unique water tight connection of panels
Durable acrylic/ABS construction
Trim-to-Size sidewall design
Must be trimmed during installation
Specially designed to be installed over existing solid surface not directly against the studs
Materials: Tempered glass, aluminum, acrylic
Tempered glass
Finished walls required for measurement and installation
Limited lifetime manufacturer warranty
Shower Backwalls: Limited 1 (one) year manufacturer warranty
About Collection:

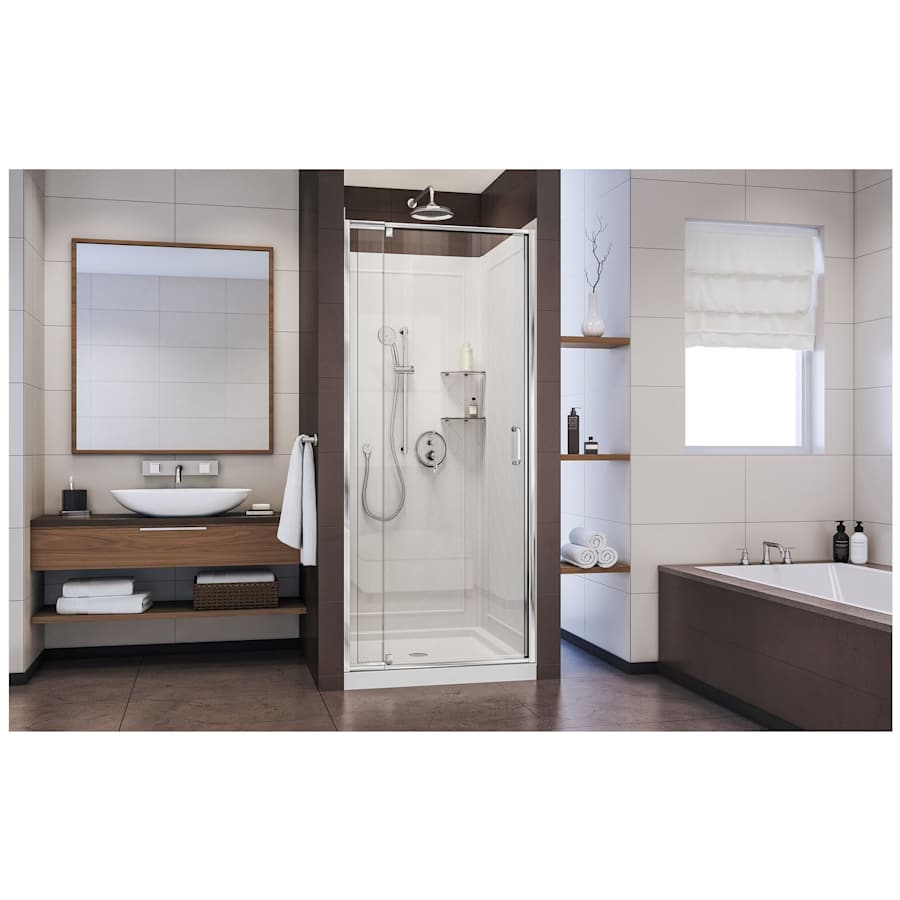

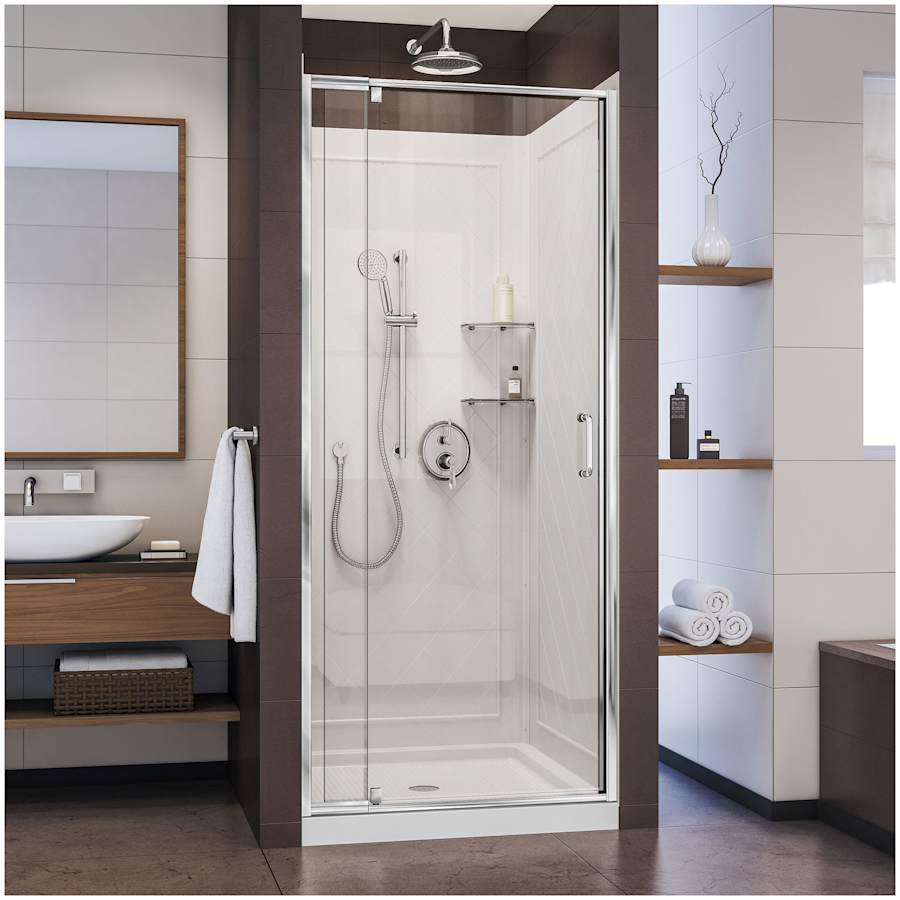

This beautiful and efficient DreamLine® shower kit includes a FLEX™ pivot shower door, universal shower backwall panels and a coordinating SlimLine™ shower base. The FLEX is a fully adjustable shower door that can be customized to fit your shower space for an easy installation. The SlimLine shower base incorporates a low profile design for a sleek modern look, while the shower backwall panels have a tile pattern. DreamLine® shower kits offer a complete solution to transform a shower space.
About DreamLine™:
DreamLine™ is a leading global manufacturer and distributor of high quality shower doors, tub doors, shower enclosures and acrylics shower bases. DreamLine is passionate about smart and visionary design delivering affordable luxury bathroom solutions to the bath and shower marketplace. DreamLine has achieved worldwide accolades for off-the-shelf and custom shower door solutions with sleek modern style and impressive value. DreamLine structures their company`s philosophy to ensure customer satisfaction, exceptional quality and overall excellence in their products and team members. DreamLine has “The Ultimate Shower Door” for any bathroom project.
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Flex Collection
Specifications
| Depth | 32 in. |
| Height | 76.75 in. |
| Nominal Width | 28, 29, 30, 31, 32 in. |
| Product Weight | 124 lbs. |
| Width | 32 in. |
| Quantity | 4 |
| Drain Connection | 3.25 in. |
| Door Width | 18.875 in. |
| Glass Thickness | .25 in. |
| Shower Door Width | 18.875 in. |
| Maximum Width | 32 in. |
| Minimum Width | 28 in. |
| Panel Width | 6.5625 in. |
| Material | Aluminum, Glass |
| Thermostat | Modern |
| Configuration | Shower Door |
| Insulation Type | Three Wall Alcove |
| Glass Features | Clear Glass |
| Curb Location | Front |
| Drain Placement | Center |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Shape | Square |
| Slip Resistant | Yes |
| Door Swing | Reversible, Left, Right |
| Door Type | Pivot, Hinged |
| Frame Type | Framed |
| Number Of Doors | 1 |
| Certifications | UPC, ANSI |
| Collection | Flex |
| Manufacturer Warranty | Limited Lifetime |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Shower Walls Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
