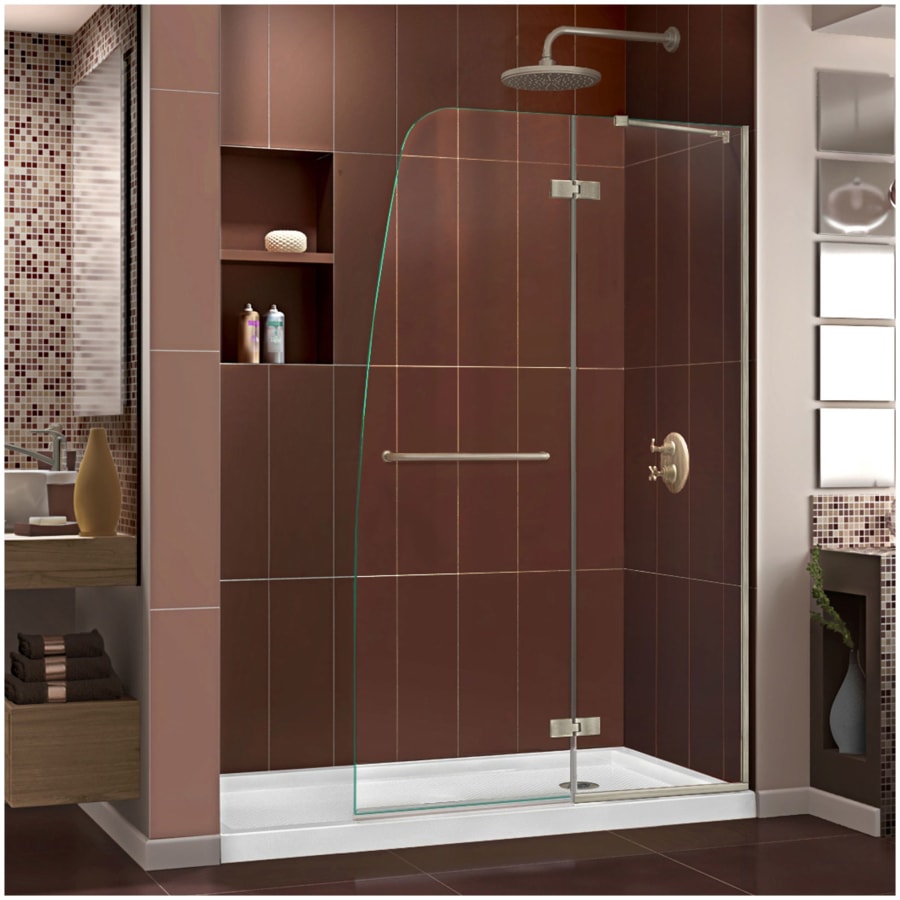

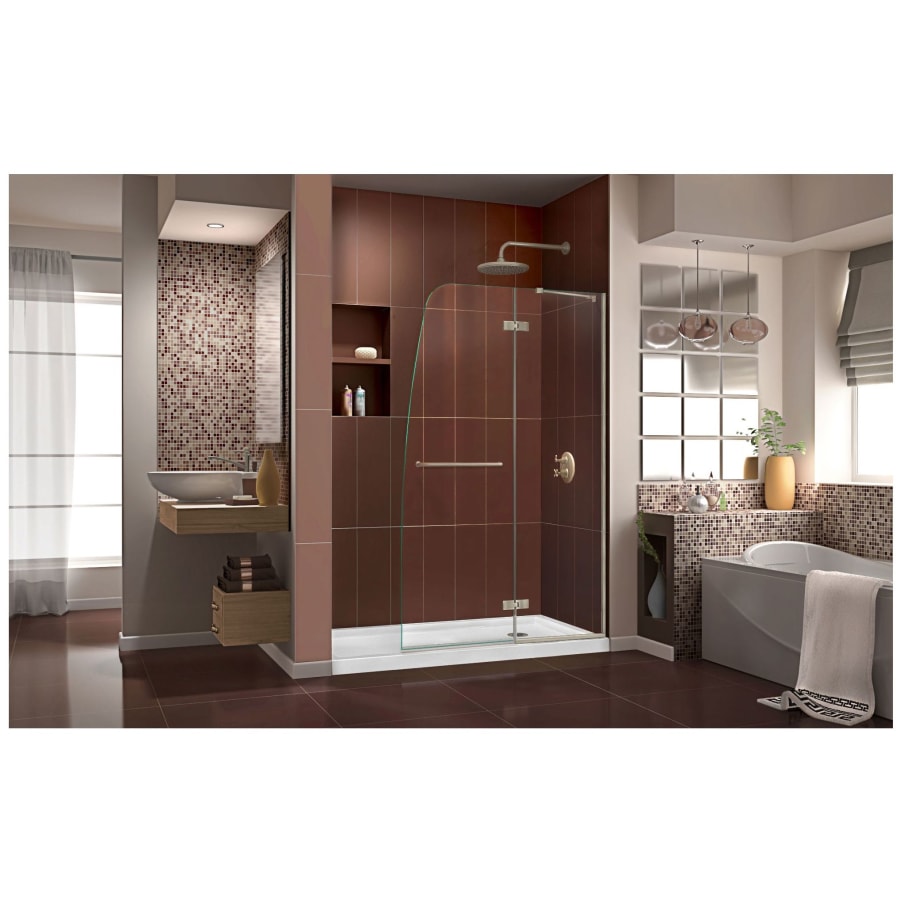

The DreamLine Aqua Ultra is a frameless shower or tub screen with European appeal and modern architectural design. With a stunning curved silhouette that creates an open, inviting feel, the Aqua Ultra will transform your bathroom with elegant style to match its functionality. A SlimLine shower base completes the transformation with a modern low profile design. DreamLine shower kits provide the perfect solution for a bathroom remodel or tub-to-shower conversion project.
DreamLine DL-6522R-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Aqua Ultra Shower Door and 34″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 34″ D x 60″ W x 74-3/4″ H
Note: To minimize possible water escaping outside the bathing area, position the shower head opposite of the door opening aimed at the tiled walls, fixed glass panel or straight down towards the shower floor
Aqua Ultra Shower Door:
45″ W x 72″ H

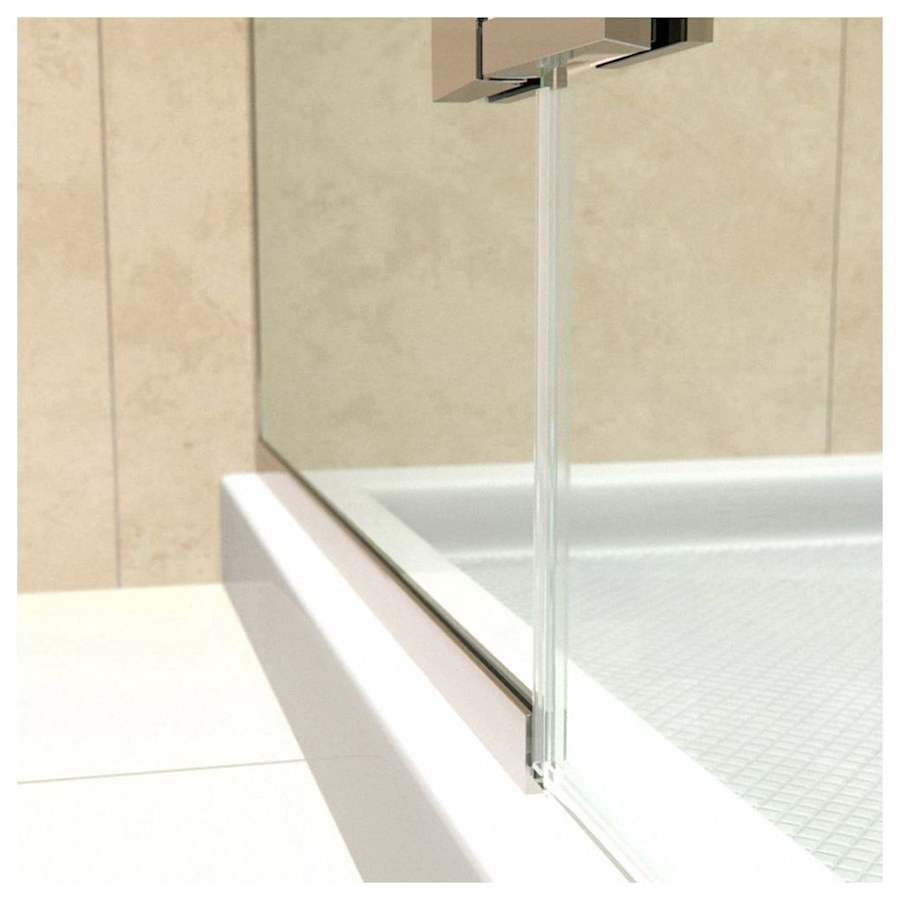

Frameless glass design

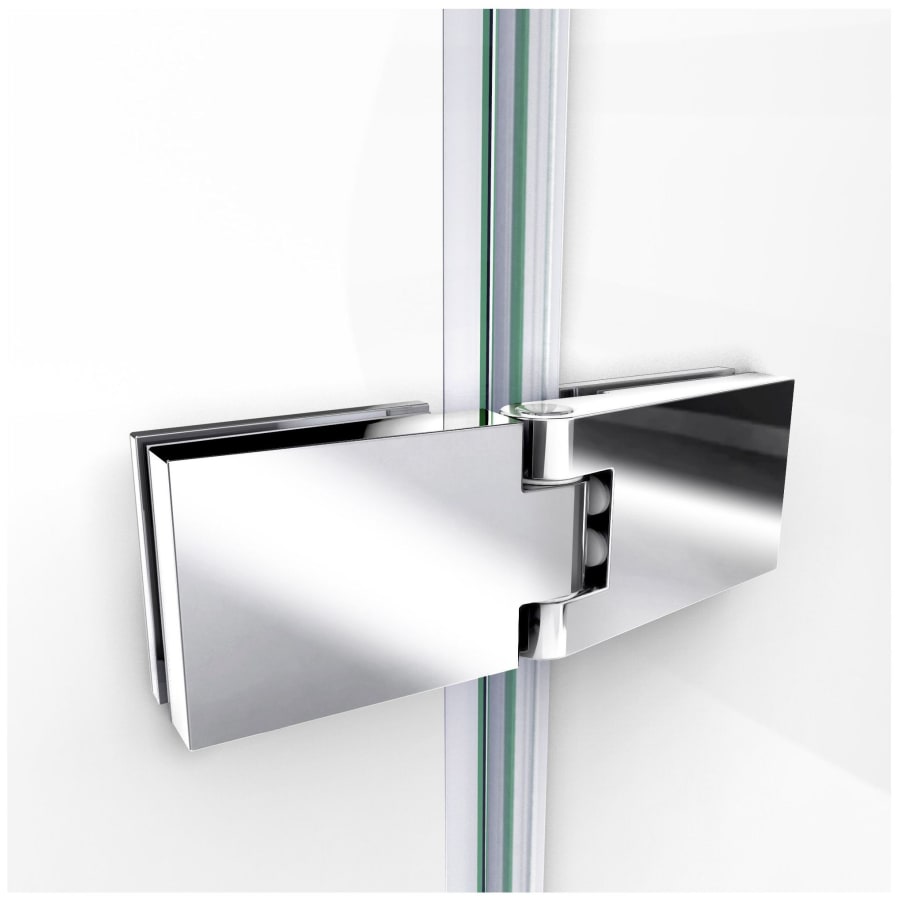

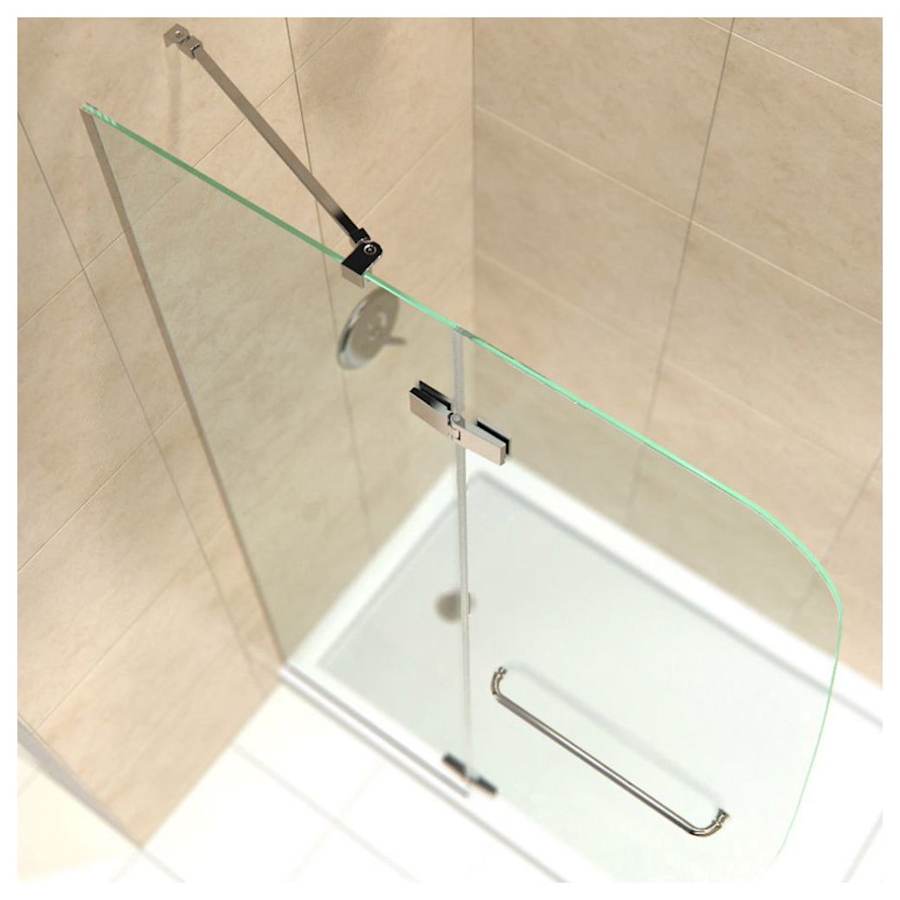

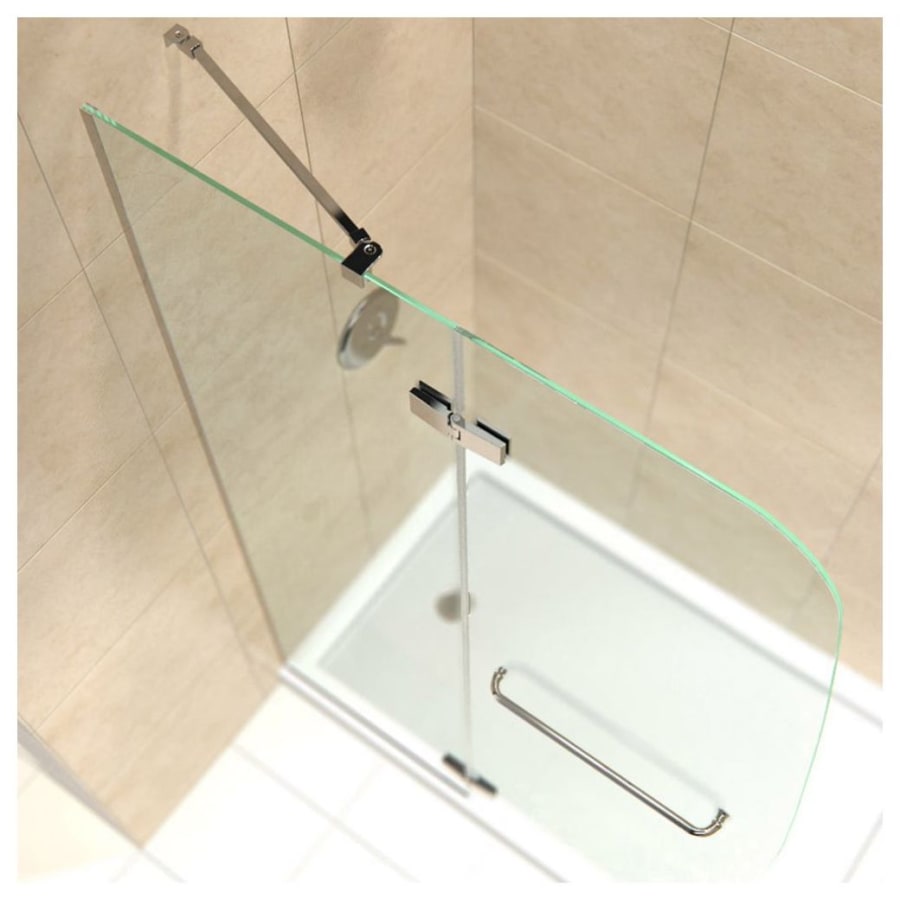

Model consists of one hinged door and stationary side glass panel
Anodized aluminum U shaped wall profile allows 1/4″ out-of-plumb (vertical) adjustment

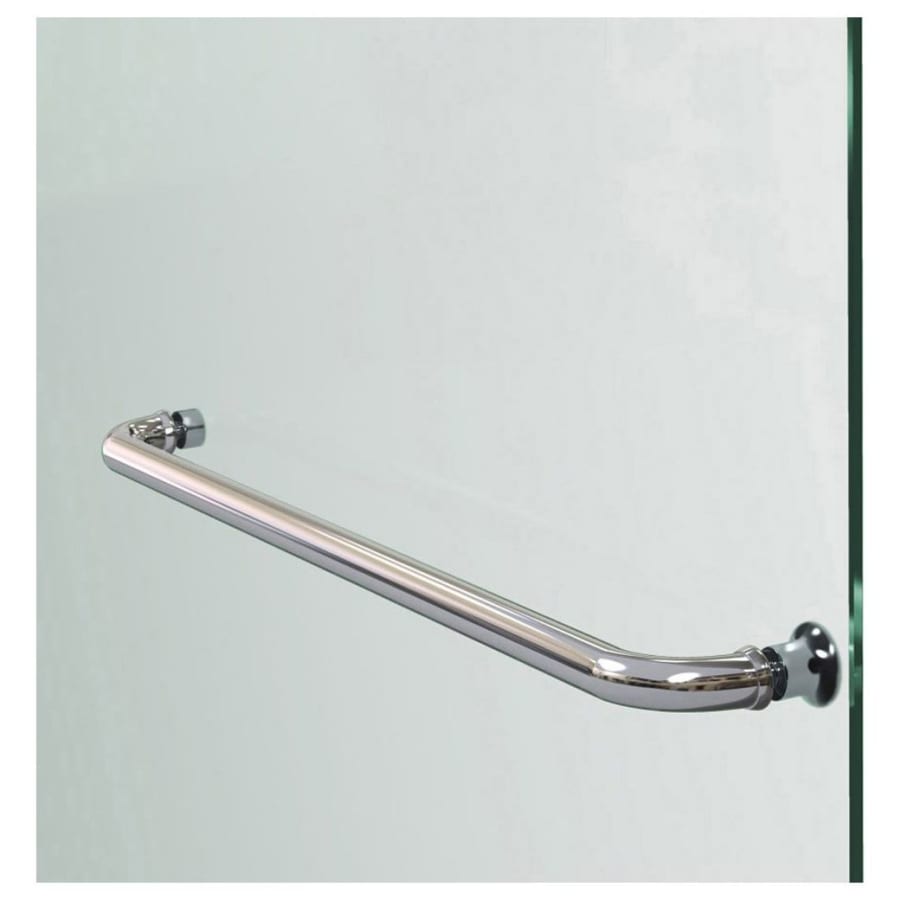

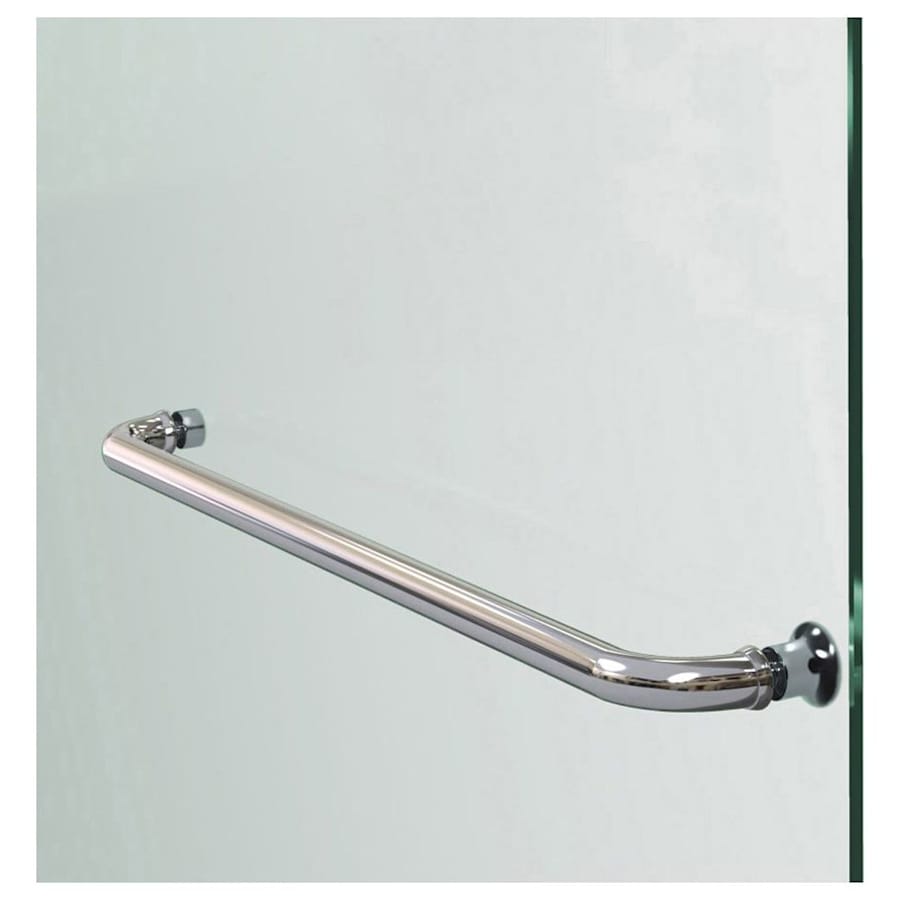

Reversible for a right or left door opening (door has a convenient towel bar)
Quality 5/16″ (8mm) thick clear tempered glass
Stationary Panel: 20 11/16″
Professional installation recommended

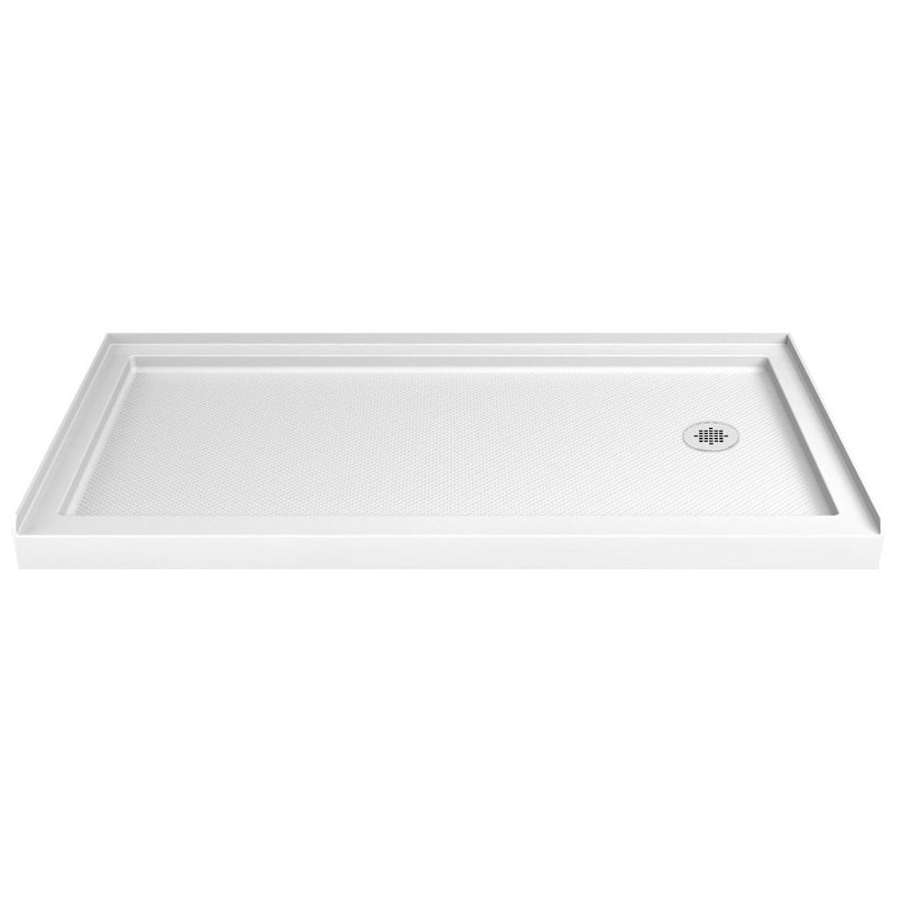

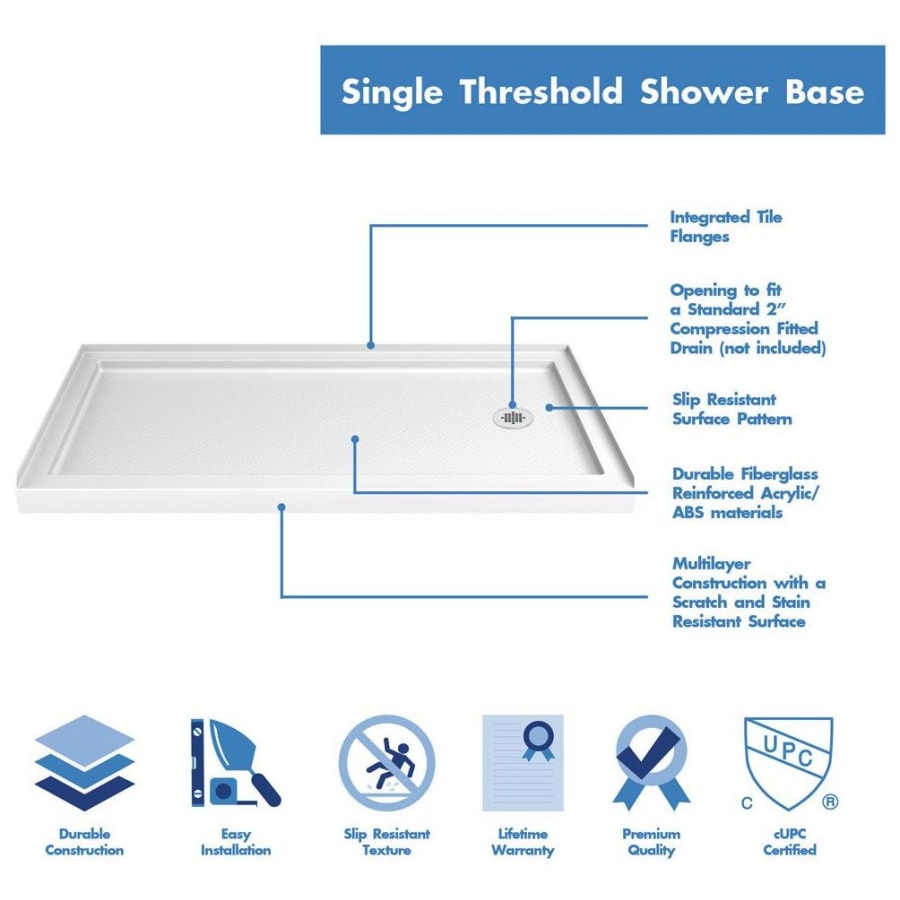

34″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

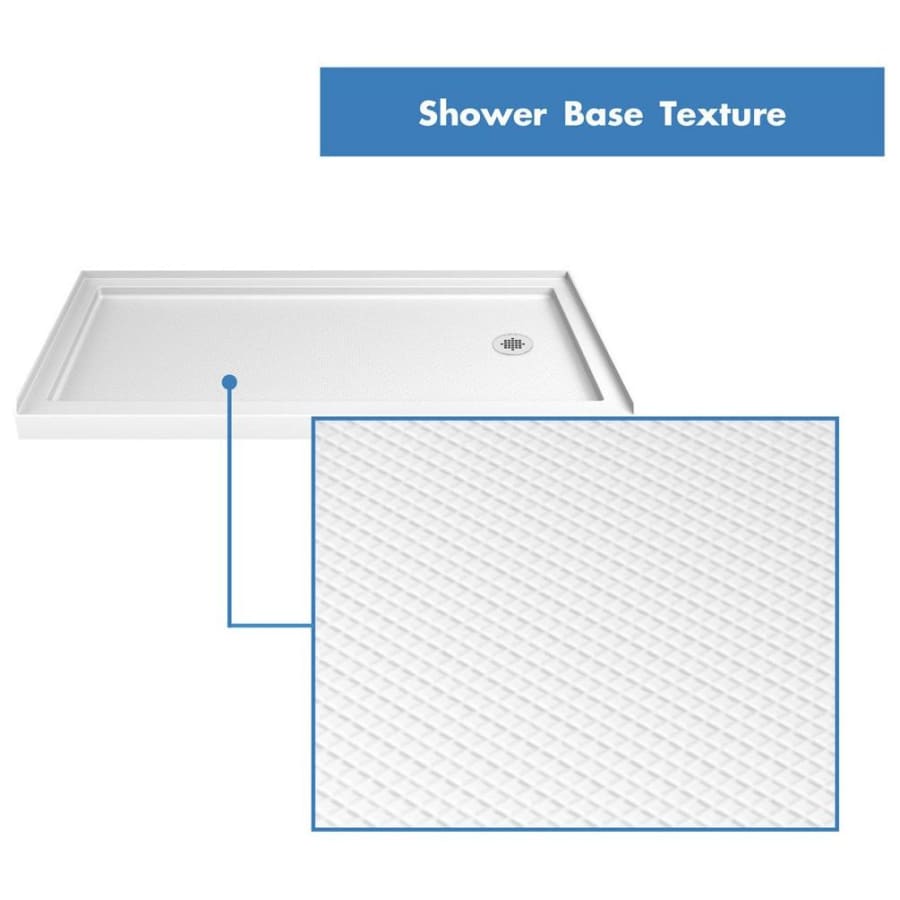

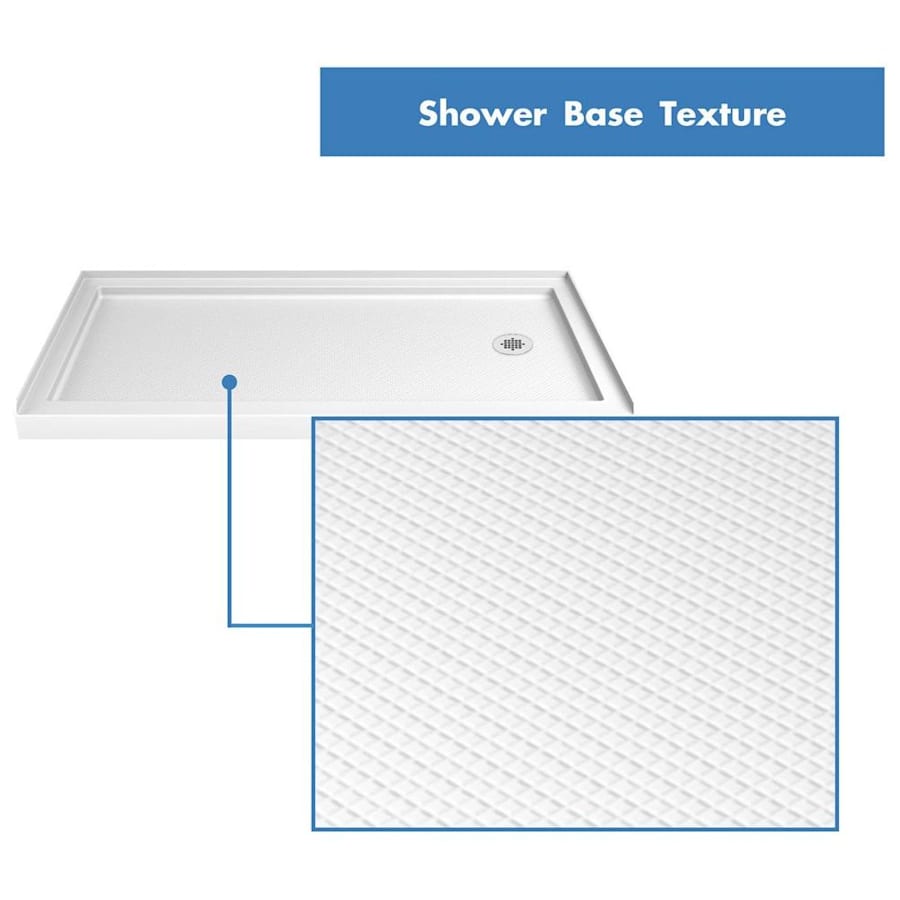

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

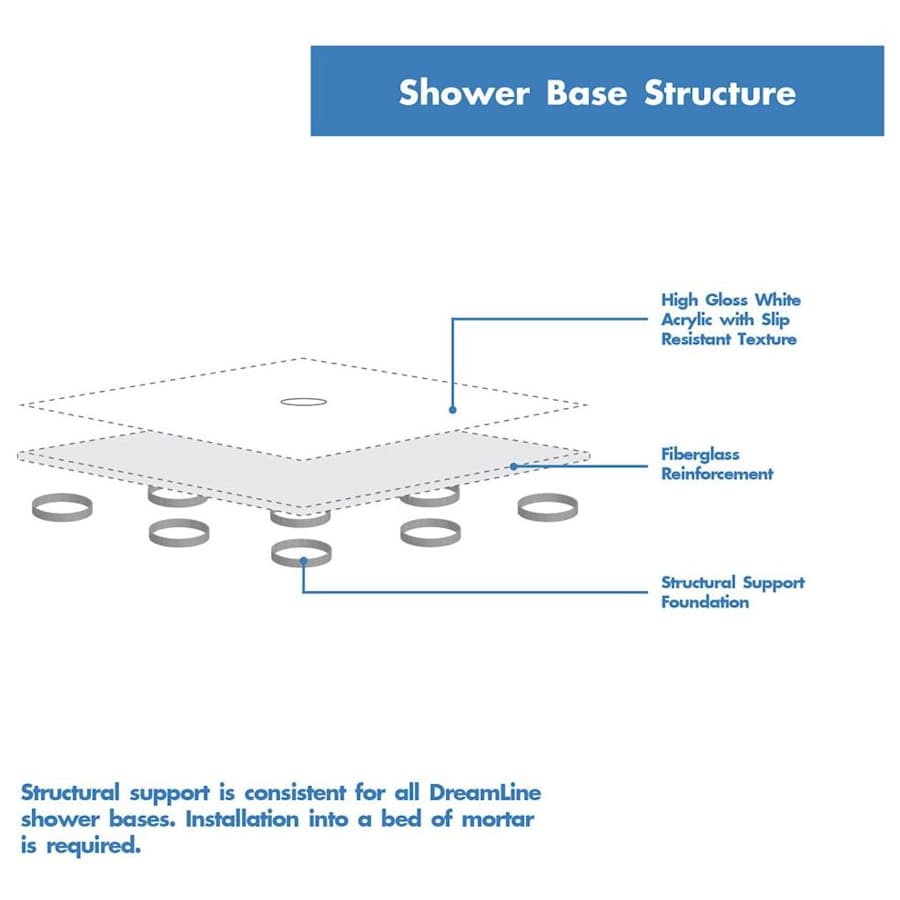

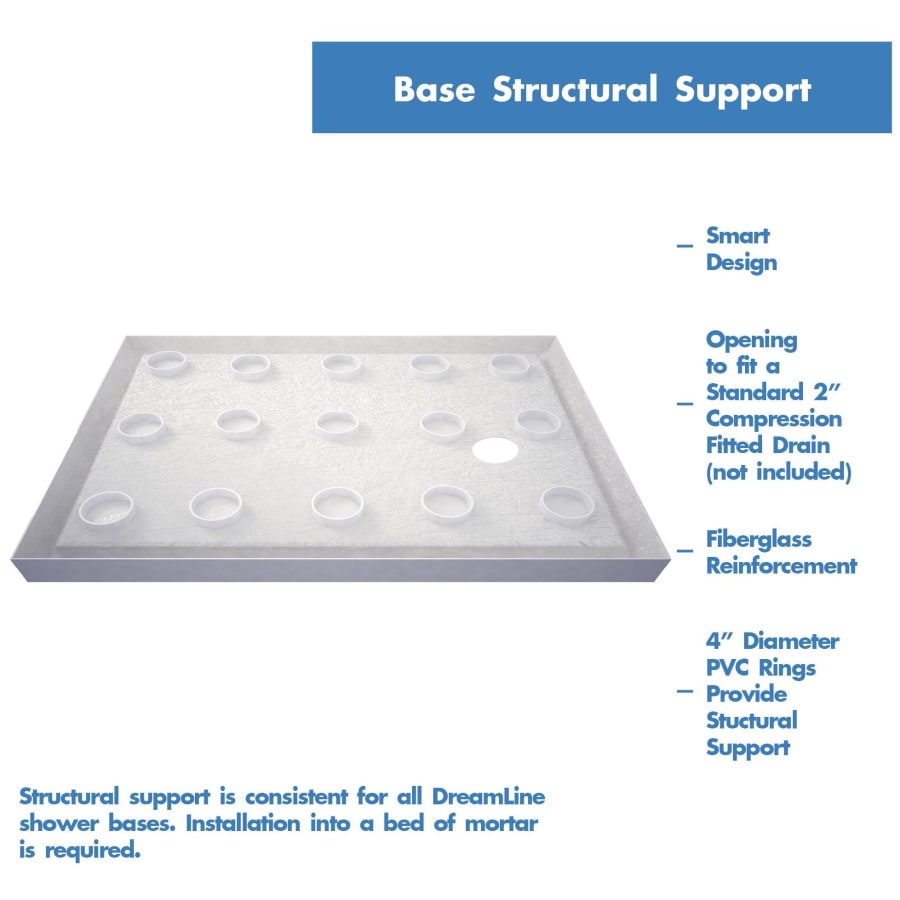

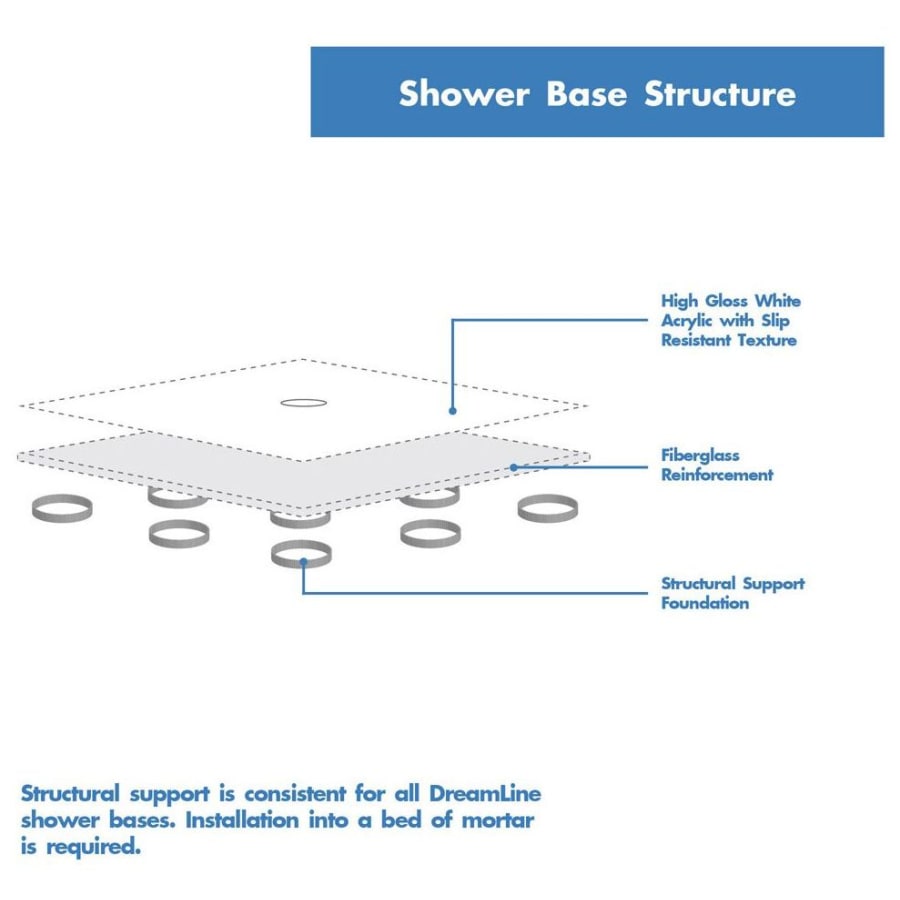

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

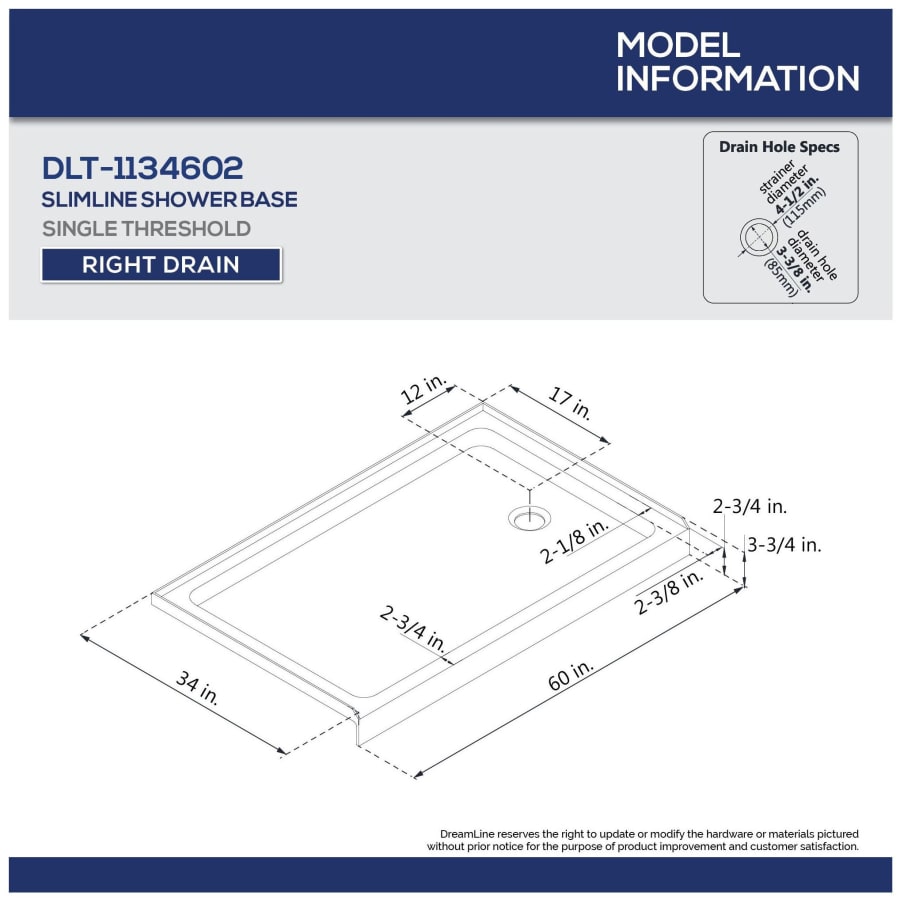

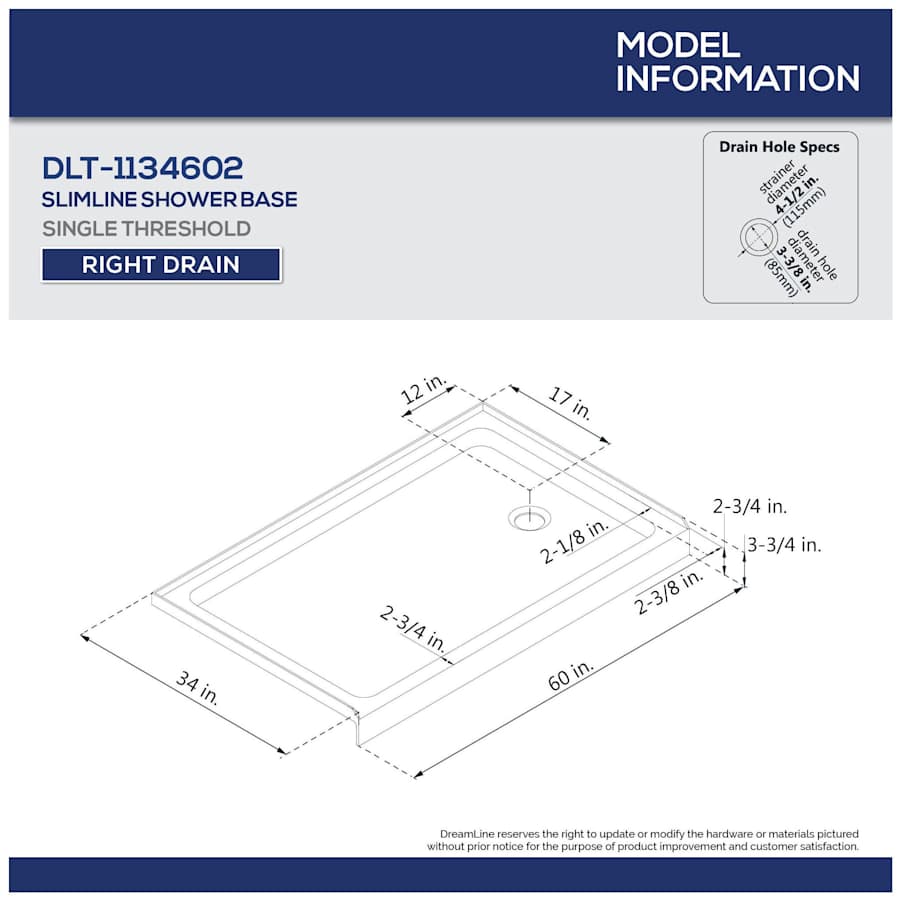

Right drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Aqua Ultra Collection
Specifications
| Height | 74.75 in. |
| Width | 60 in. |
| Depth | 34 in. |
| Nominal Width | 60 in. |
| Product Weight | 141 lbs. |
| Drain Connection | 3.25 in. |
| Door Width | 45 in. |
| Glass Thickness | .3125 in. |
| Panel Width | 20.6875 in. |
| Shower Door Width | 45 in. |
| Base Width | 34 in. |
| Bar Length | 60 in. |
| Glass Features | Clear Glass |
| Thermostat | Modern |
| Drain Placement | Right |
| Insulation Type | Three Wall Alcove |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Shape | Rectangular |
| Slip Resistant | Yes |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Door Swing | Reversible, Right, Left |
| Door Type | Hinged |
| Frame Type | Frameless |
| Number Of Doors | 1 |
| Collection | Aqua Ultra |
| Certifications | UPC, ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel |
