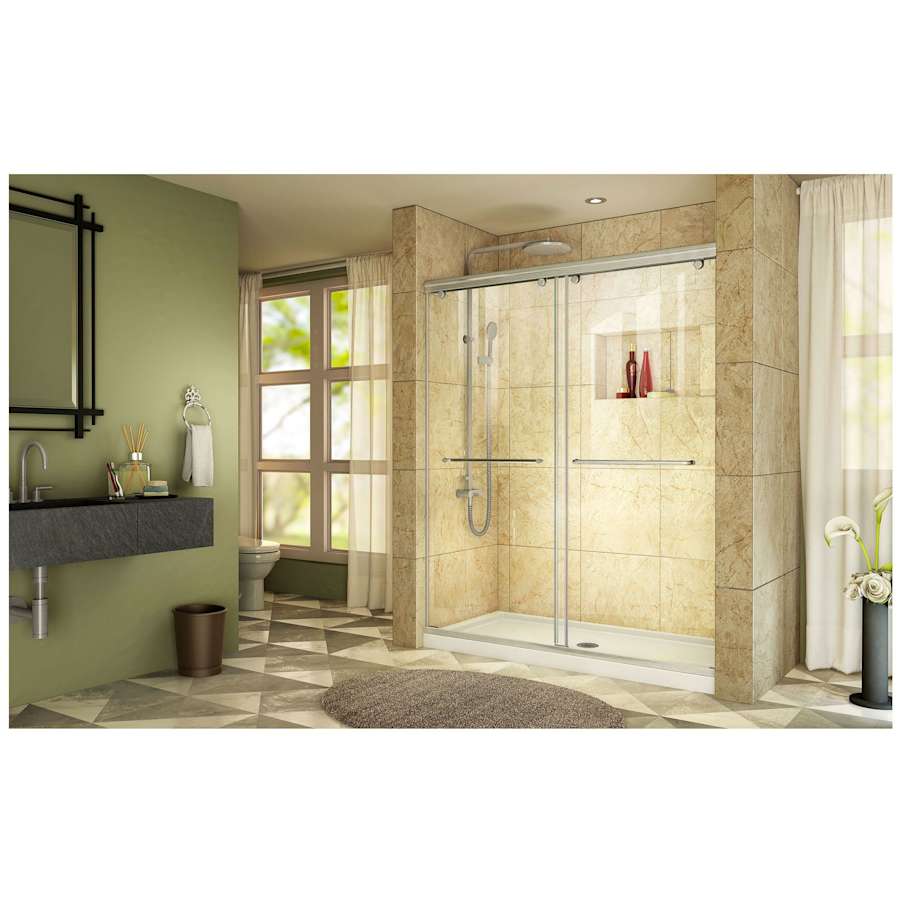

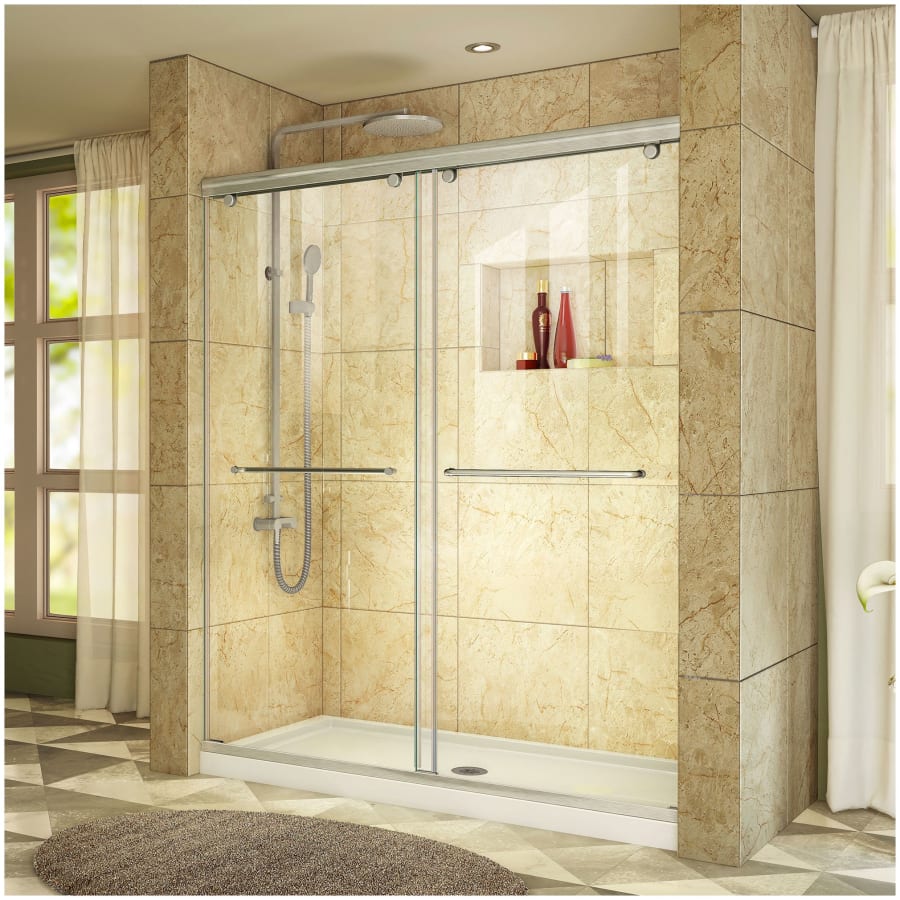

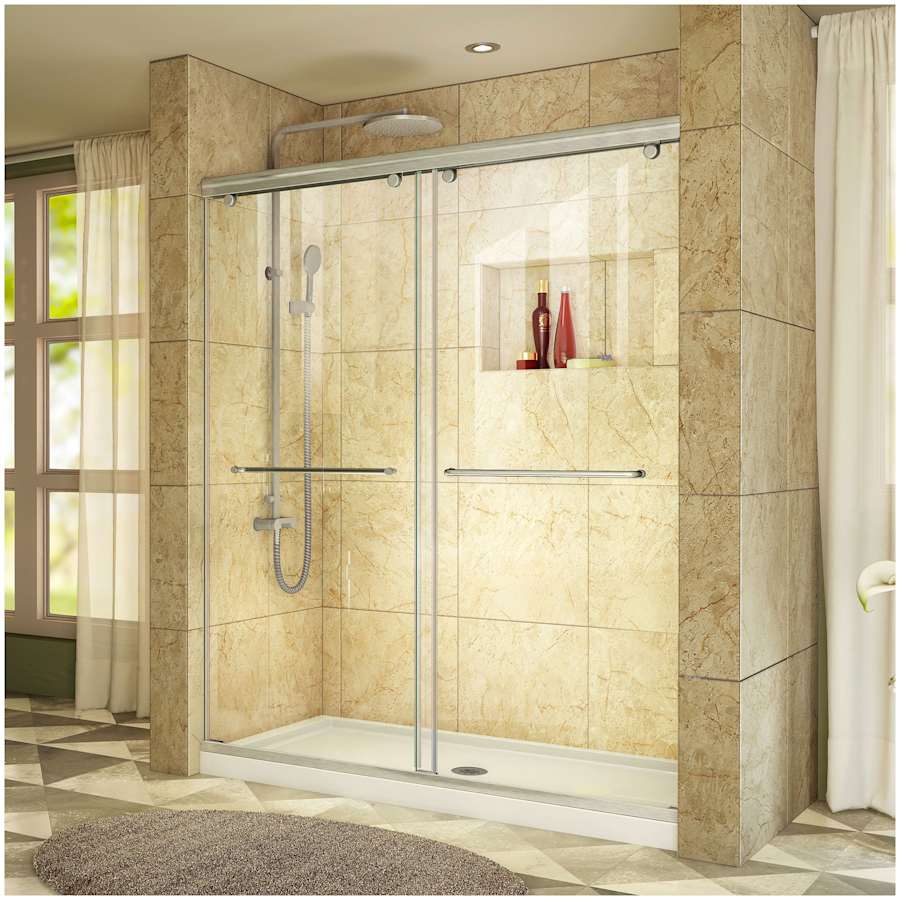

This DreamLine shower kit offers the perfect solution for a bathroom remodel or tub-to-shower conversion project with a Charisma frameless bypass shower door and a coordinating SlimLine shower base. The Charisma has a no wall profile design for the unique combination of a bypass sliding shower door and the beauty of frameless glass. Both frameless doors slide effortlessly across perfectly engineered rails, providing the ability to enter the shower space from either side. The SlimLine shower base completes the picture with a modern low profile design.
DreamLine DL-6940C-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Charisma Shower Door and 30″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 30″ D x 60″ W x 74-3/4″ H
Charisma Shower Door:
This model has no out of plumb (vertical) adjustment
56 – 60″ W x 72″ H
Door Walk-In: 25 – 29″
Panel: 30-3/4″

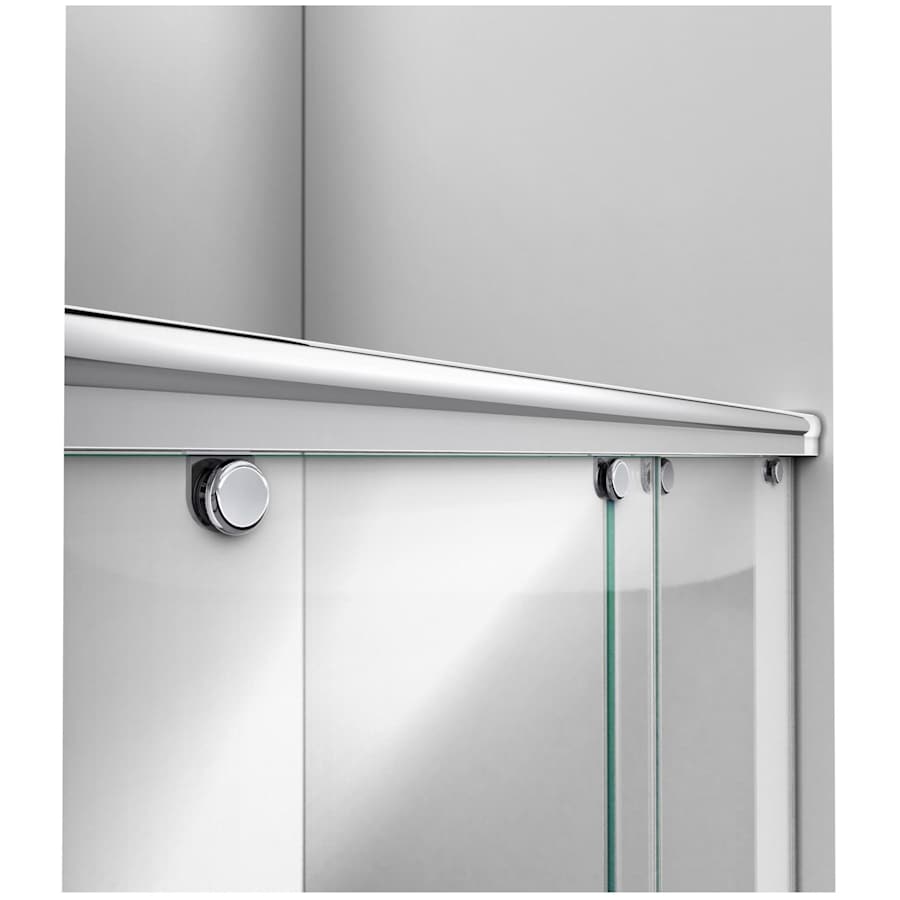

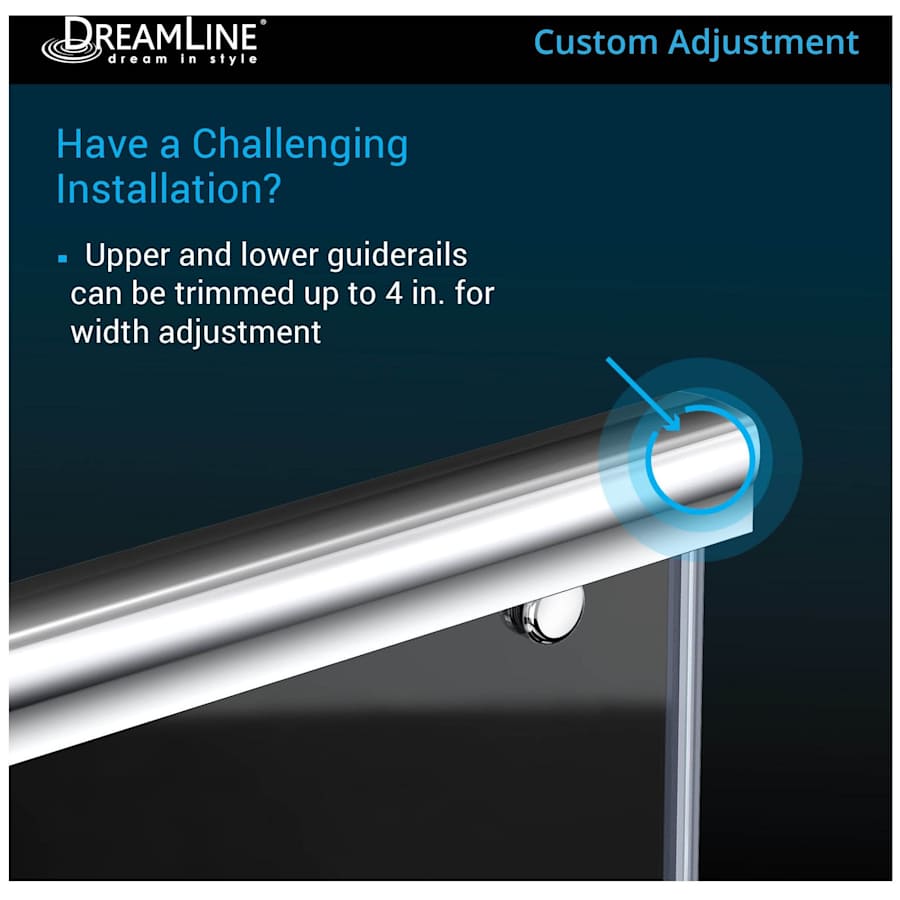

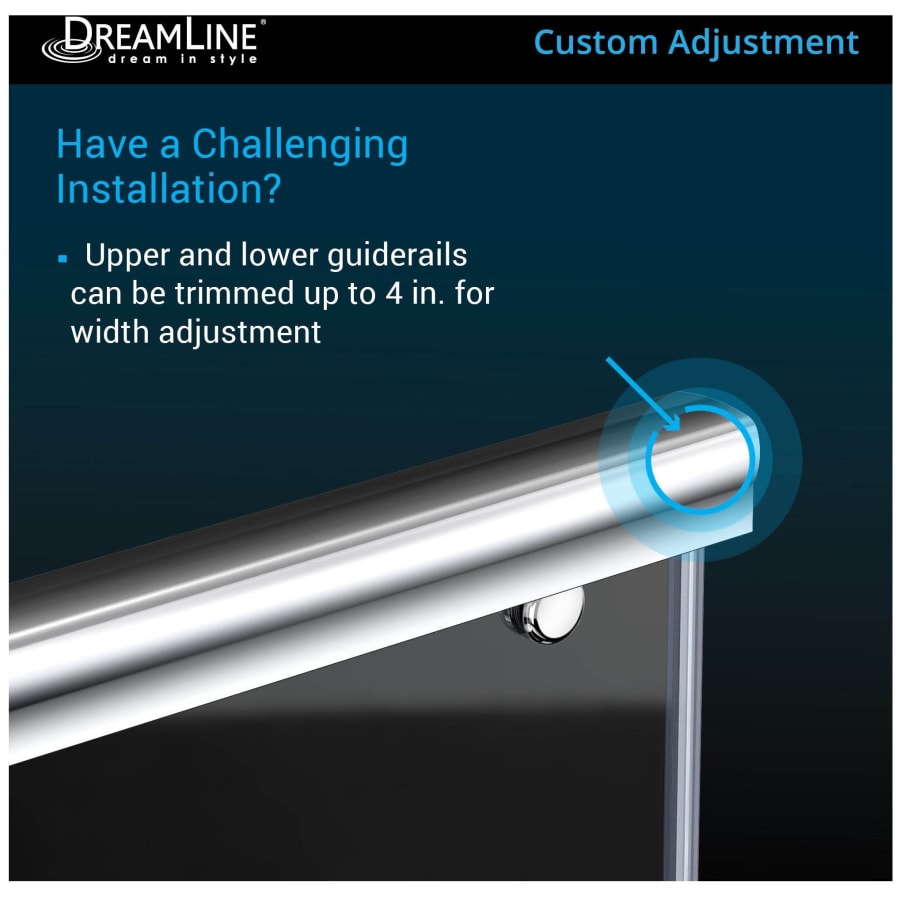

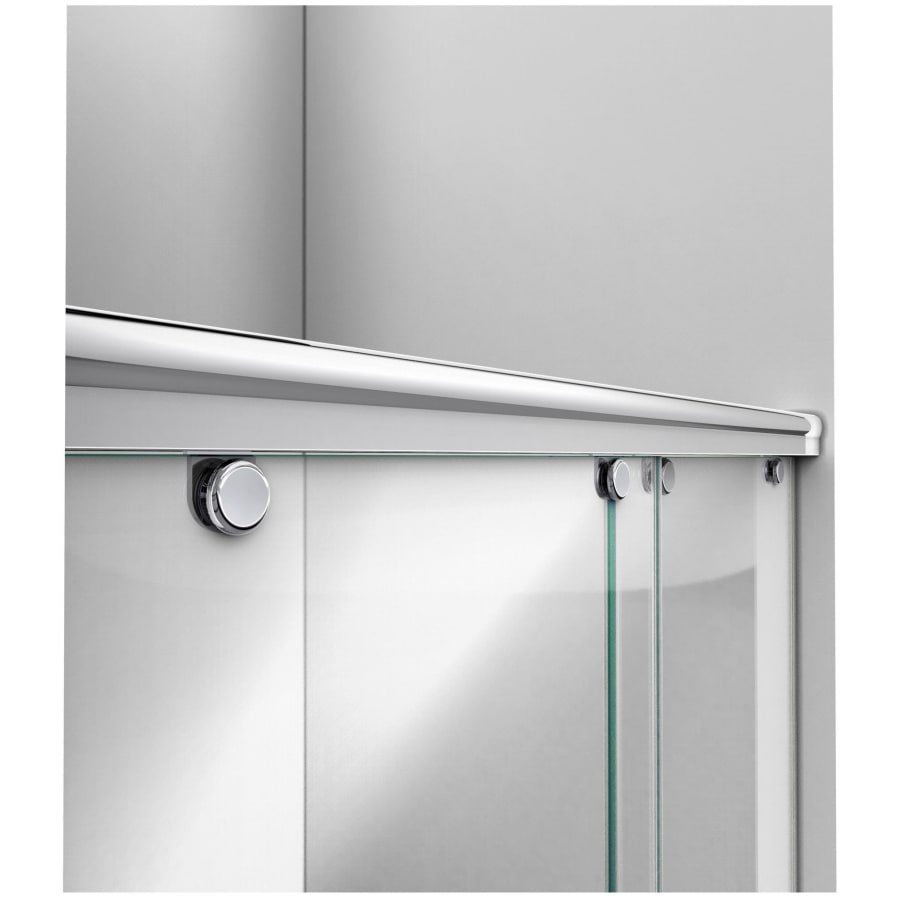

Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment
Frameless glass design

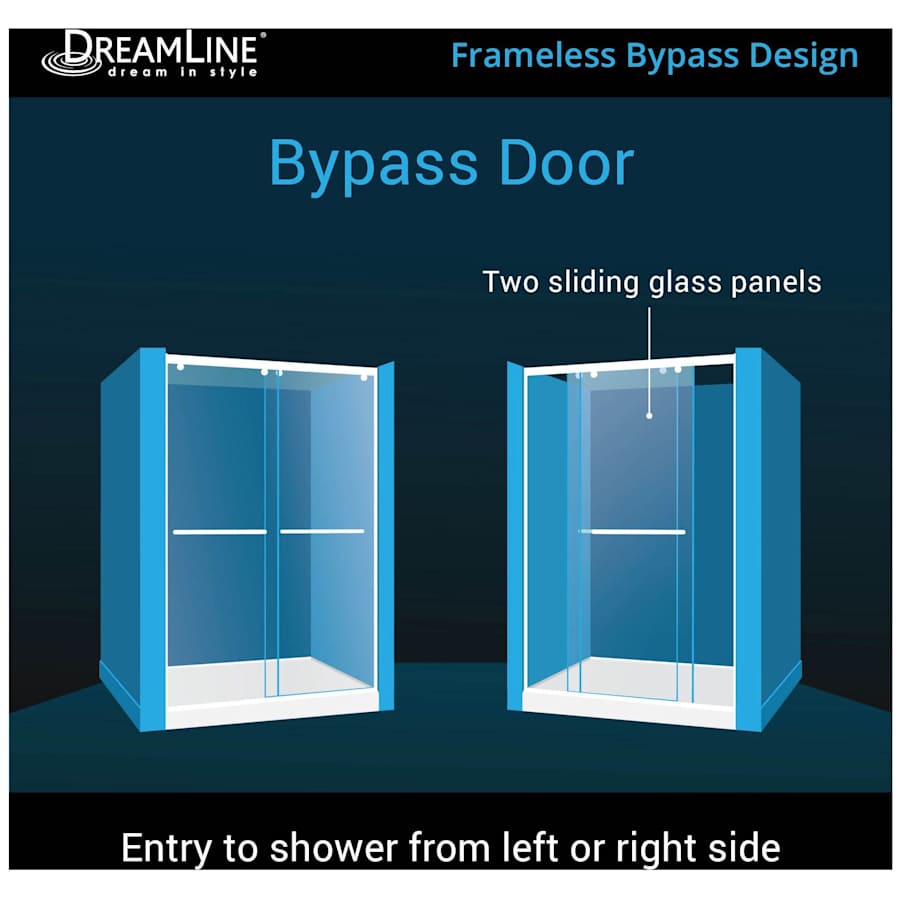

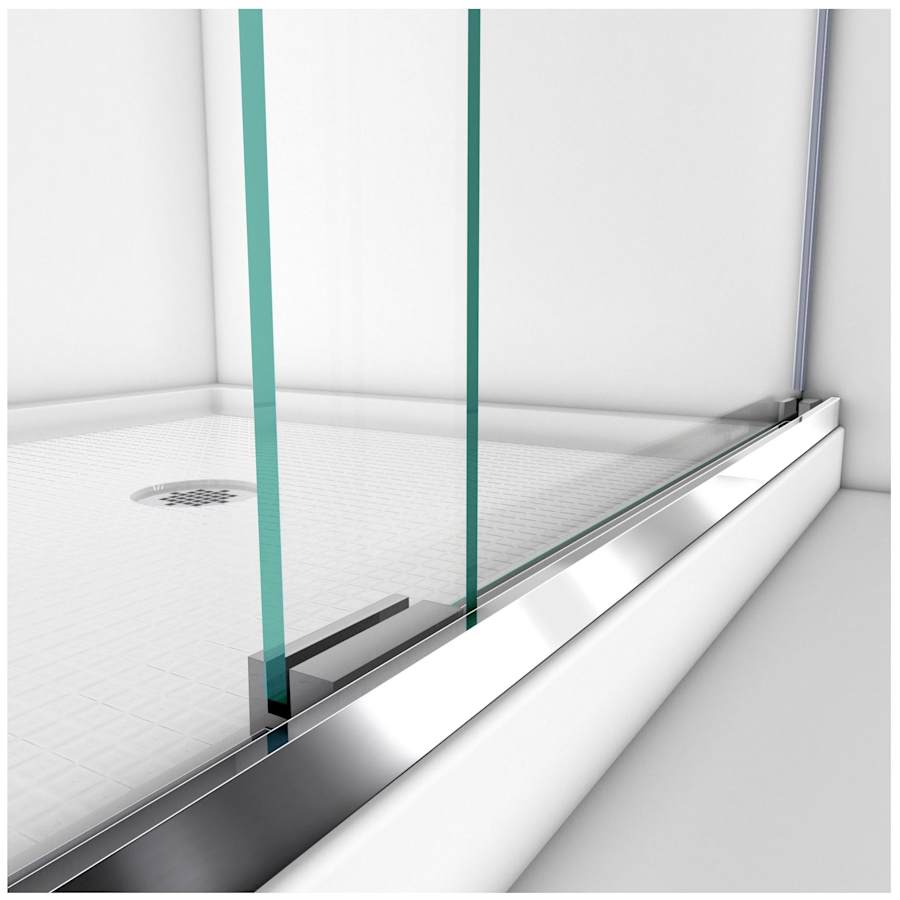

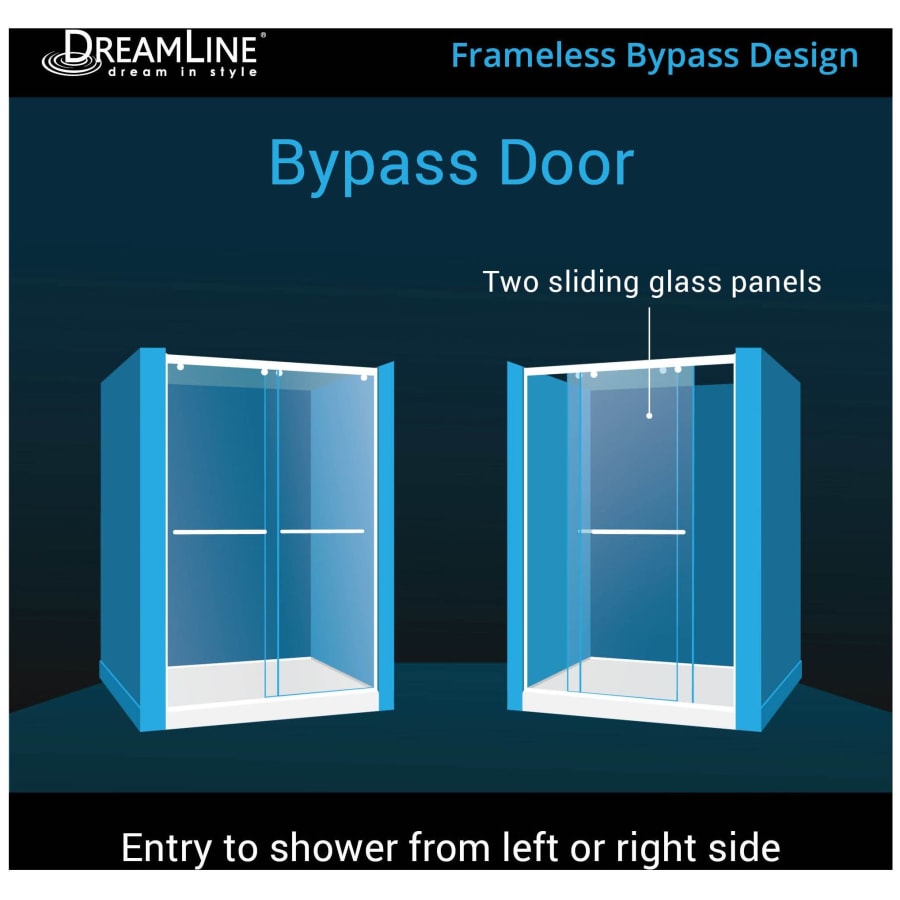

Double sliding panel (bypass) shower door

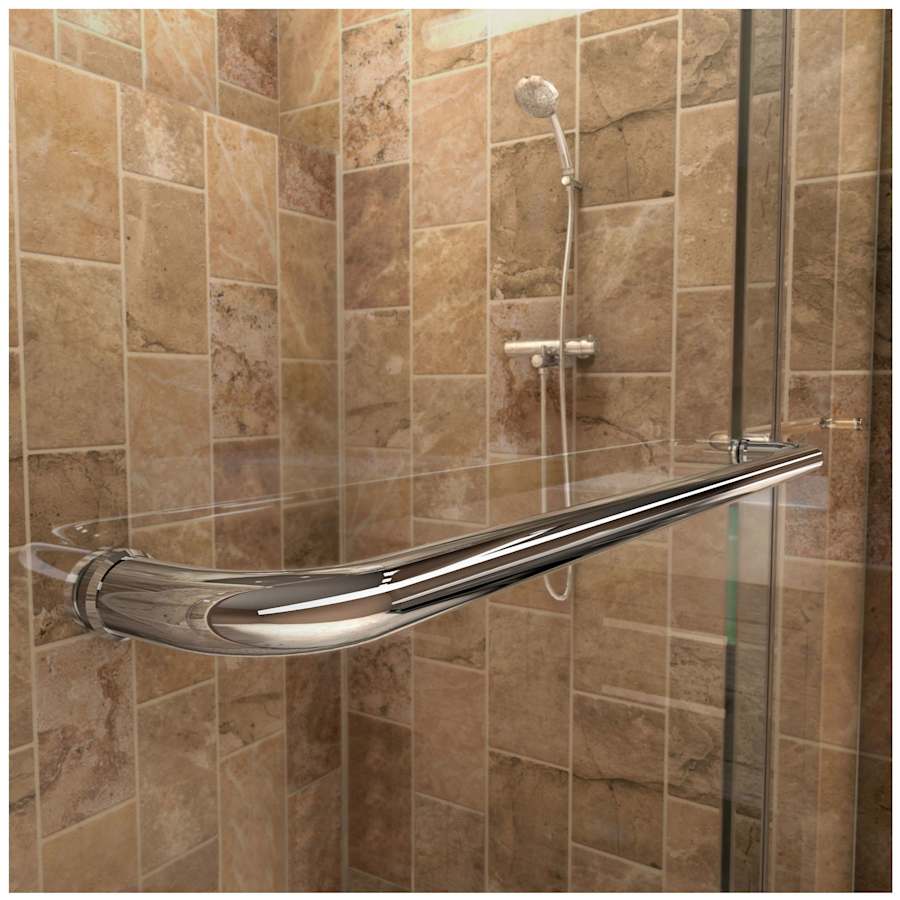

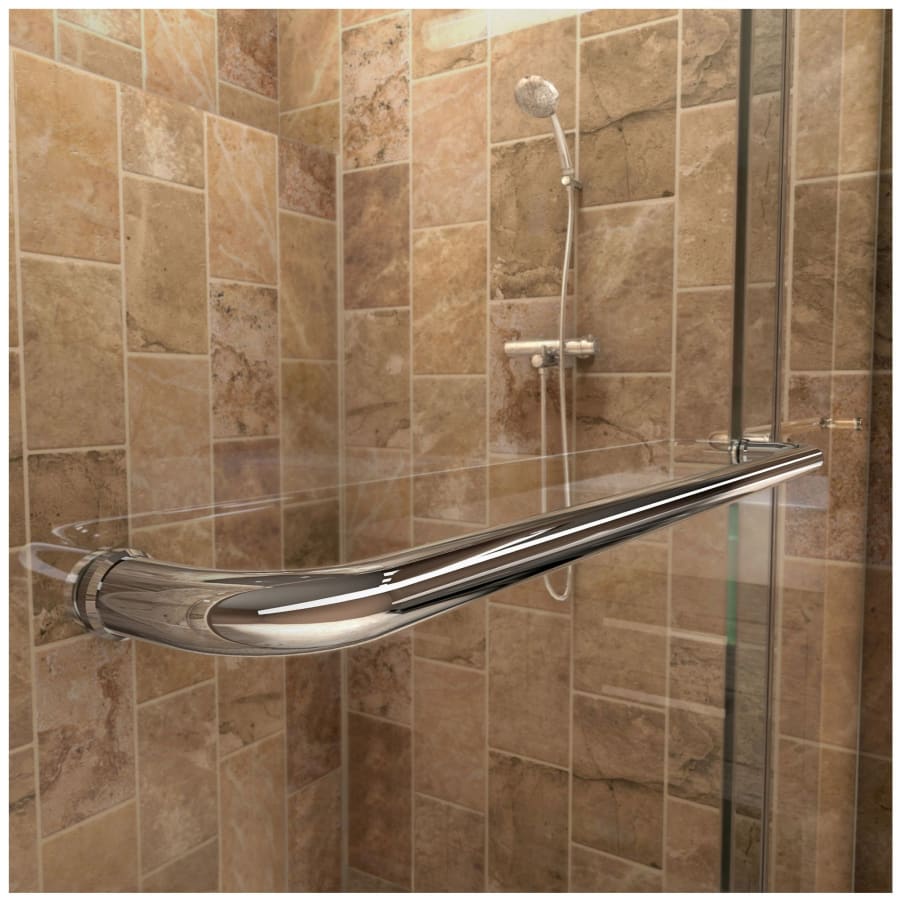

Two convenient towel bars double as handles
5/16″ (8mm) thick clear tempered glass
Professional installation recommended

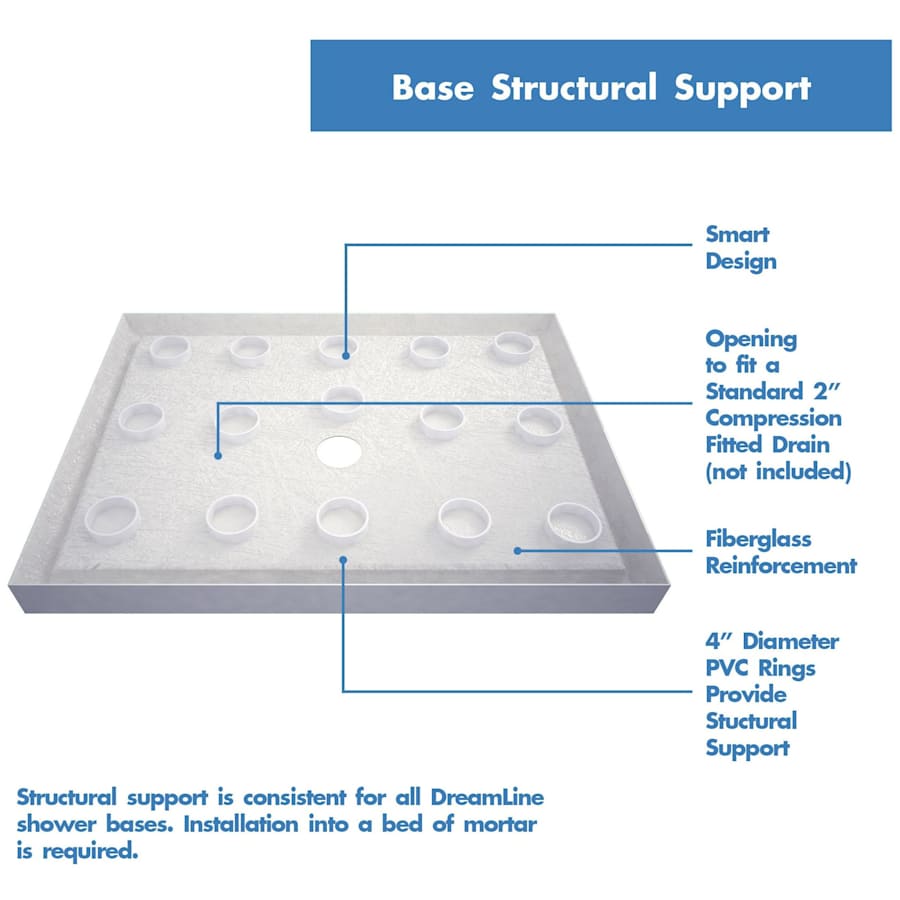

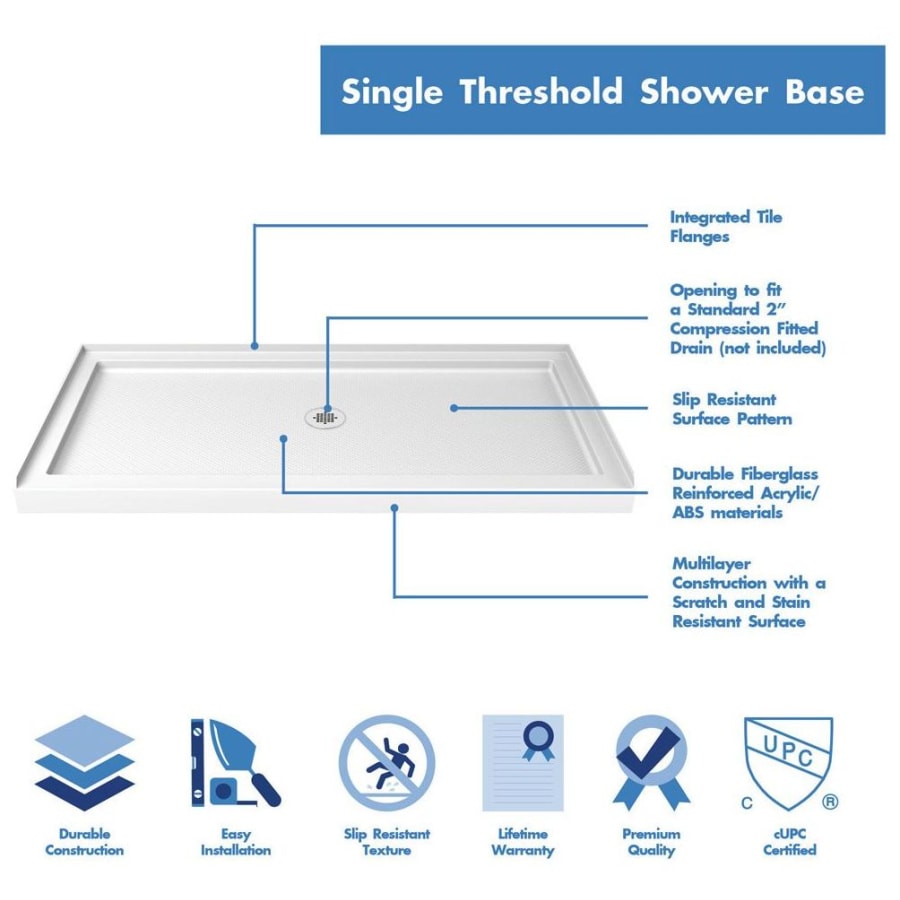

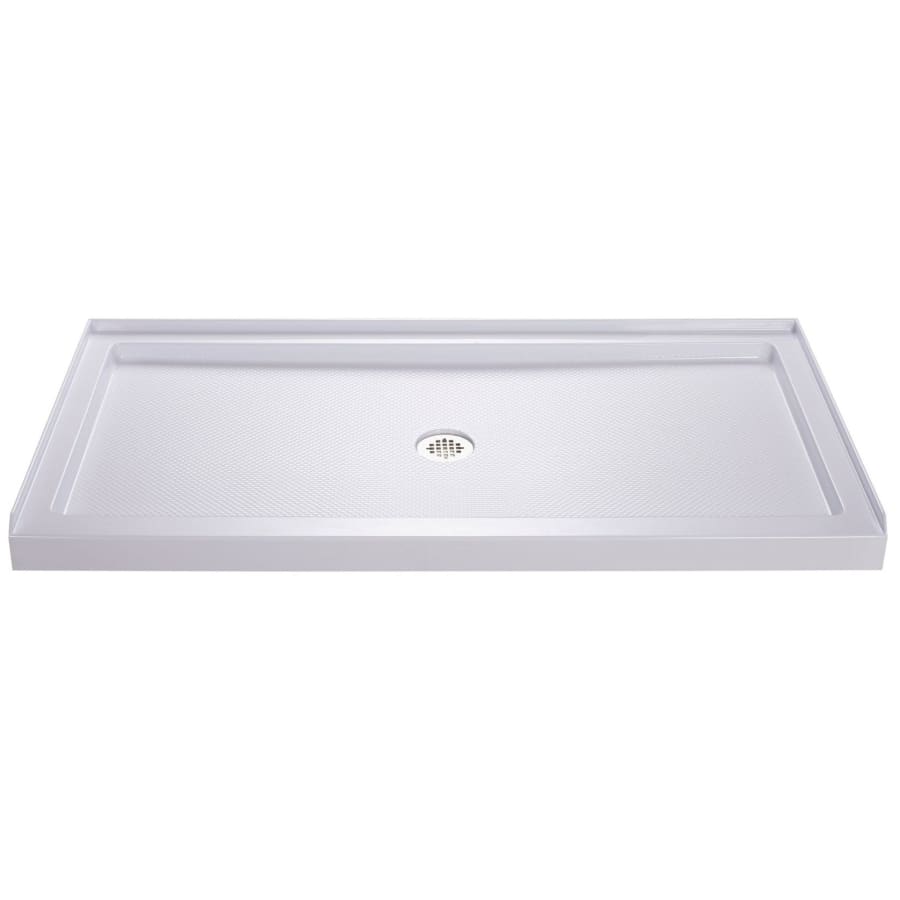

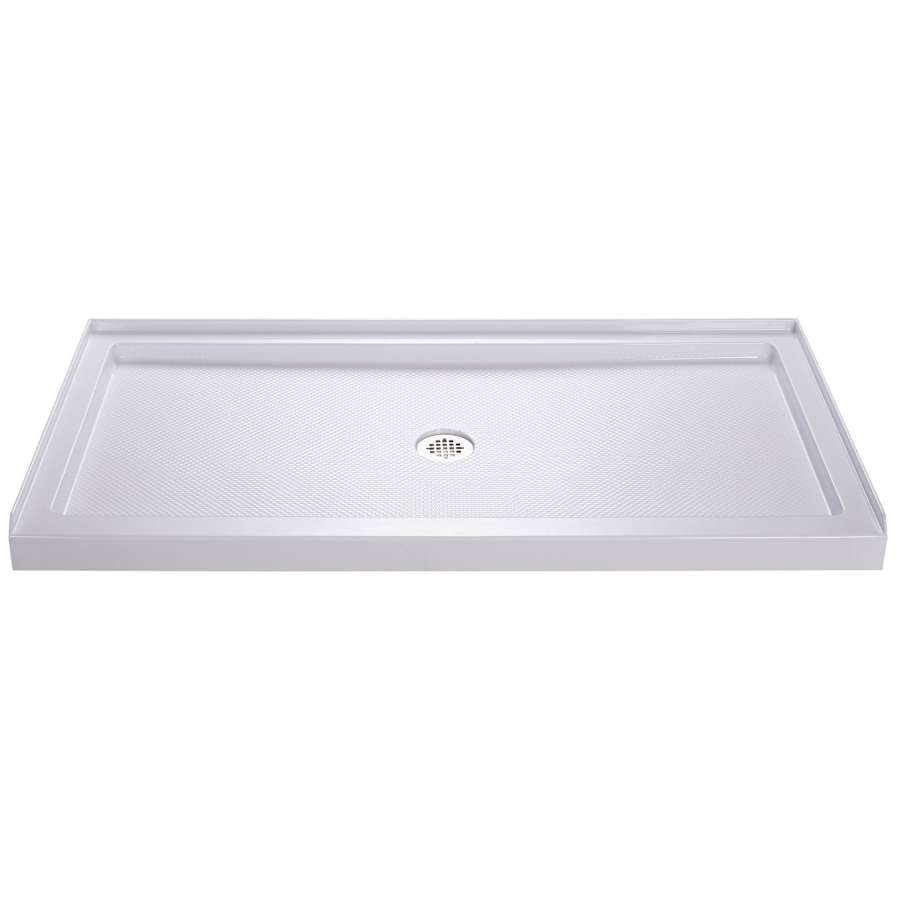

30″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

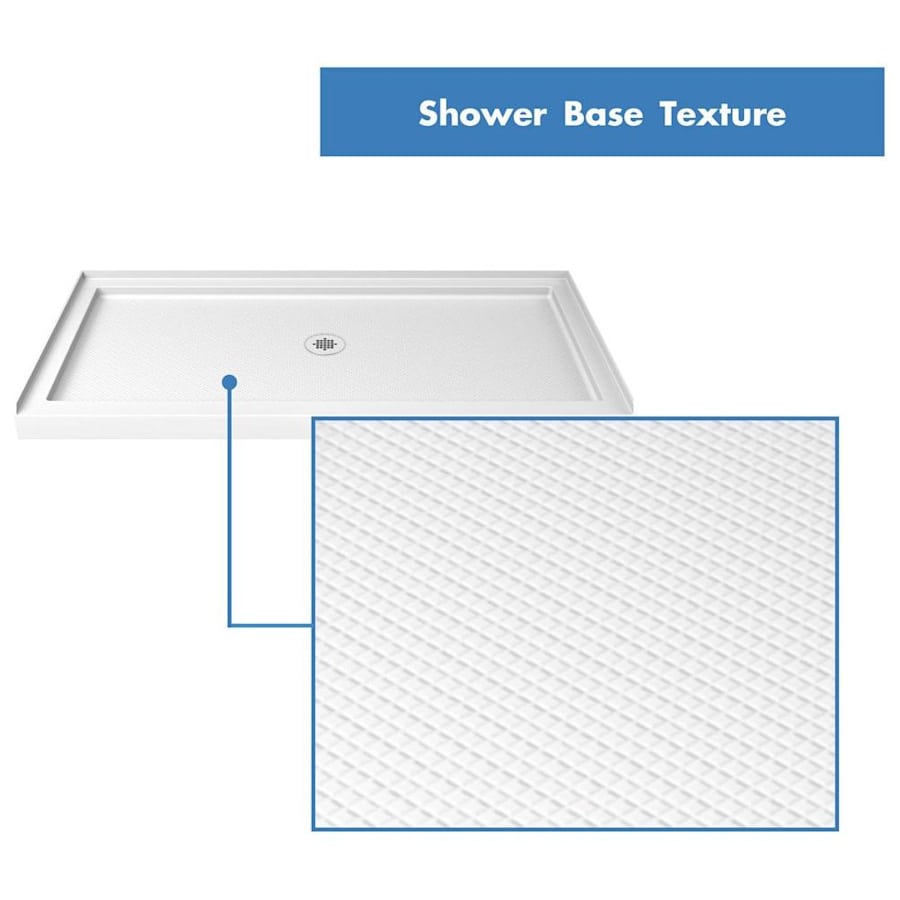

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing
Fiberglass reinforcement for durability
cUPC certified
Drain is not included

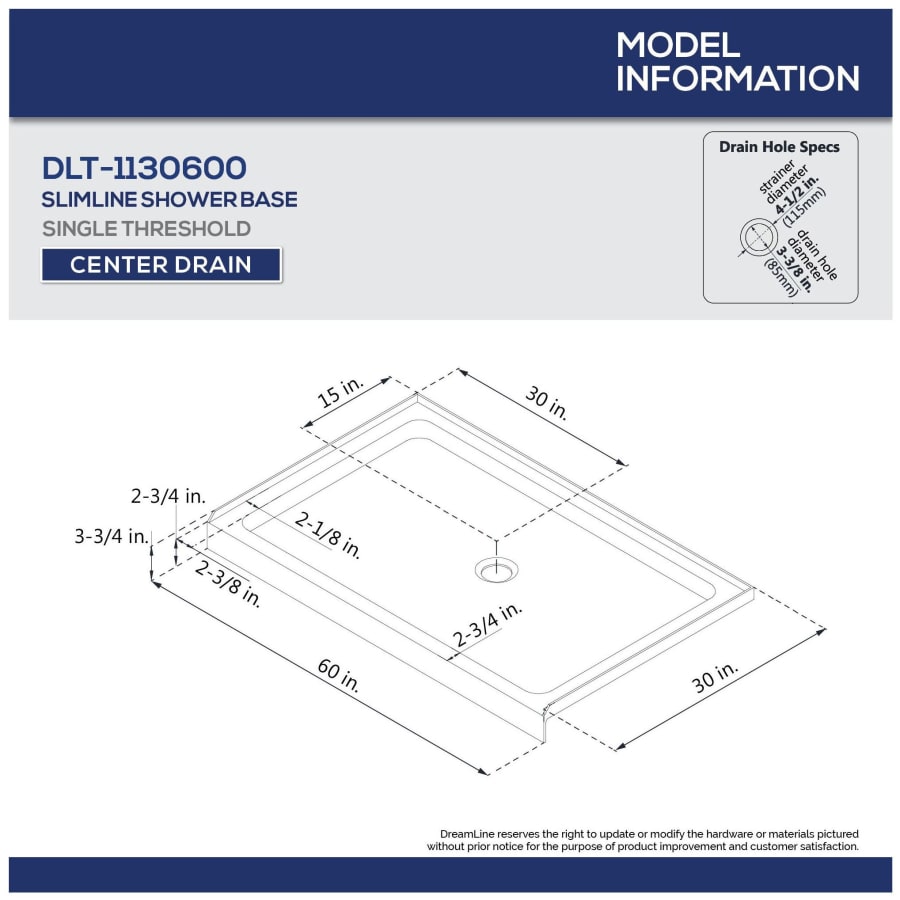

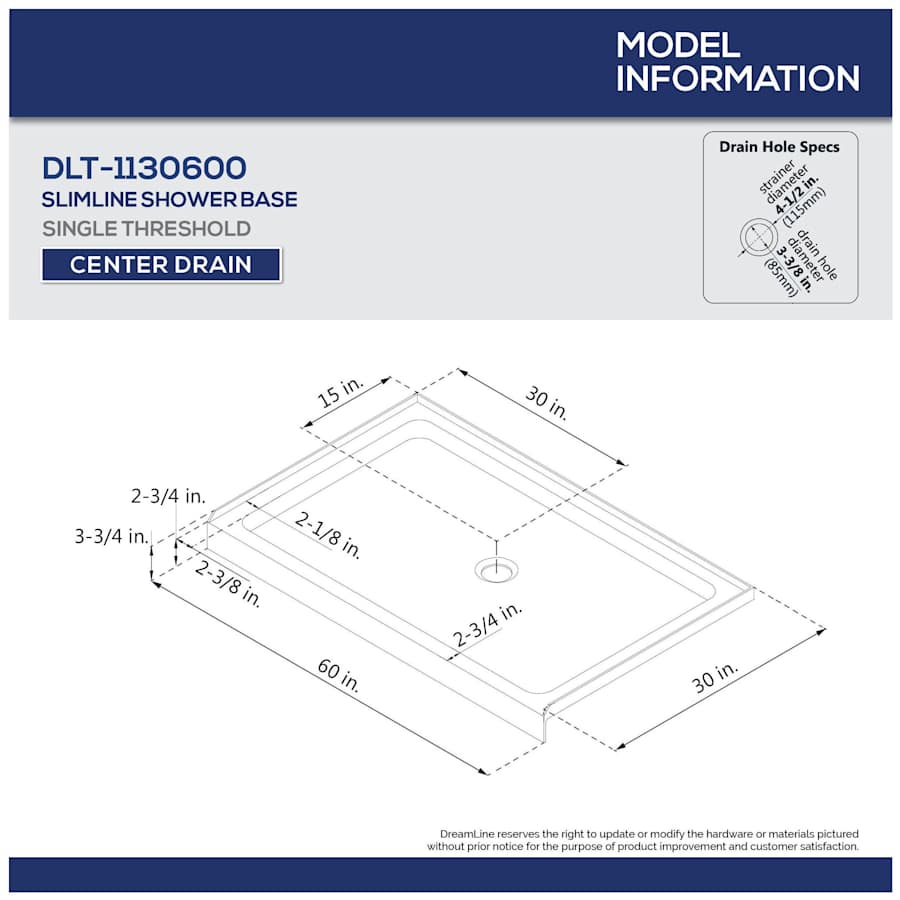

Center drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Charisma Collection
Specifications
| Height | 78.75 in. |
| Width | 60 in. |
| Depth | 30 in. |
| Nominal Width | 60 in. |
| Product Weight | 184 lbs. |
| Drain Connection | 3.25 in. |
| Door Width | 30 in. |
| Glass Thickness | 0.3125 in. |
| Maximum Width | 60 in. |
| Minimum Width | 60 in. |
| Panel Width | 30.75 in. |
| Shower Door Width | 29 in. |
| Base Width | 30 in. |
| Bar Length | 60 in. |
| Walk Through | 25, 29 in. |
| Glass Features | Clear Glass |
| Thermostat | Traditional |
| Drain Placement | Center |
| Insulation Type | Three Wall Alcove |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Shape | Rectangular |
| Slip Resistant | Yes |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Door Type | Bypass |
| Frame Type | Frameless |
| Number Of Doors | 2 |
| Collection | Charisma |
| Certifications | UPC, ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Country Of Origin | China |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Color | Brushed Nickel |
