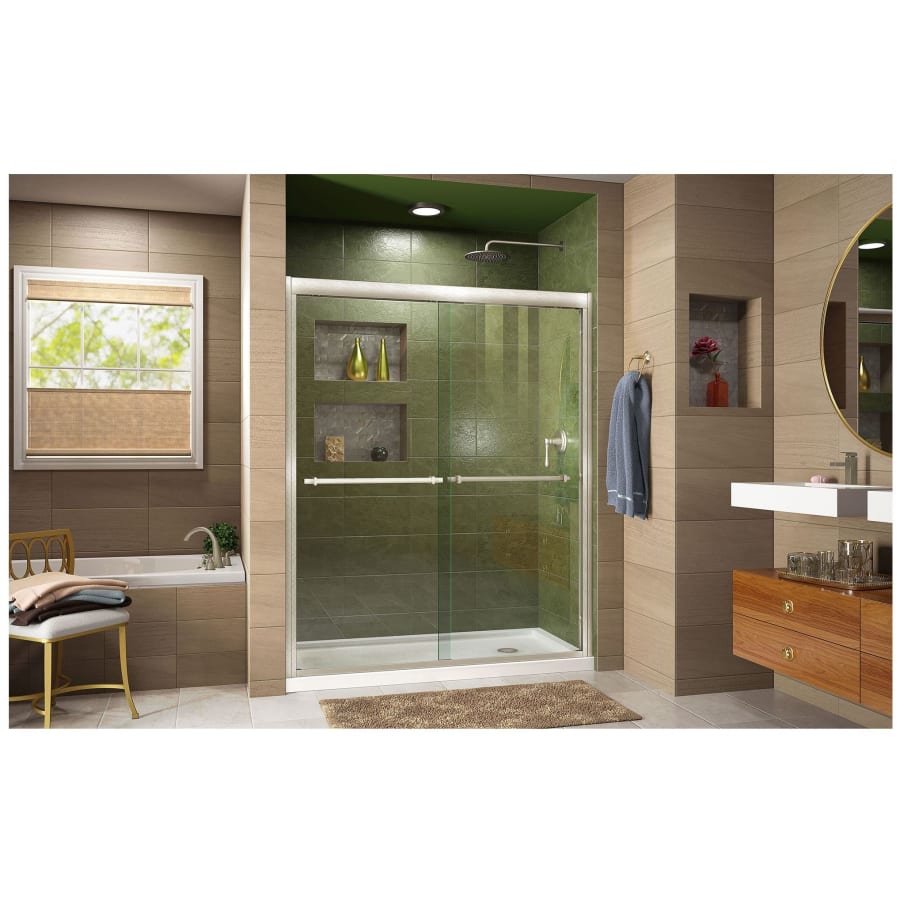

The DreamLine Duet sliding bypass shower or tub door has a sleek, elegant design that will complement both classic and modern bathroom decors. The Duet features semi-frameless glass and smooth gliding rollers for a touch of traditional style, and offers a clean, streamlined appearance. DreamLine has the ultimate solution for your shower project. Glass is treated with DreamLine exclusive ClearMax water repellant and stain resistant coating for superior protection and easy maintenance.
DreamLine DL-6953R-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Duet Shower Door and 36″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 36″ D x 60″ W x 74-3/4″ H

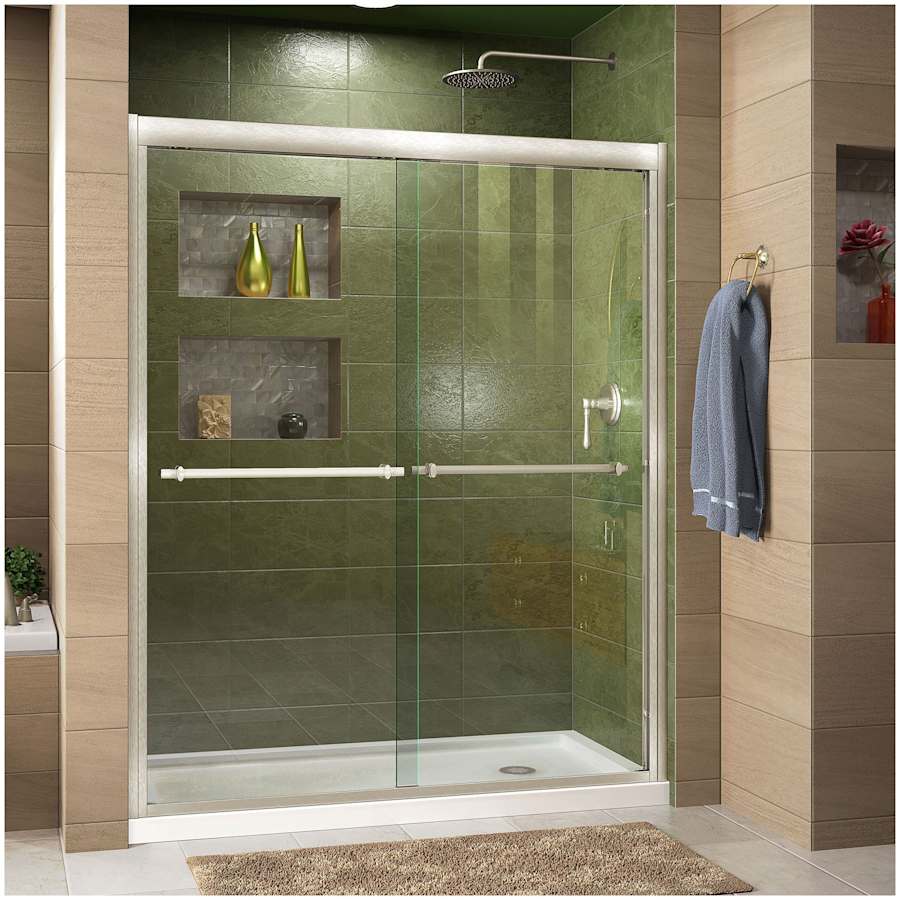

Duet Shower Door:
56 – 60″ W x 72″ H

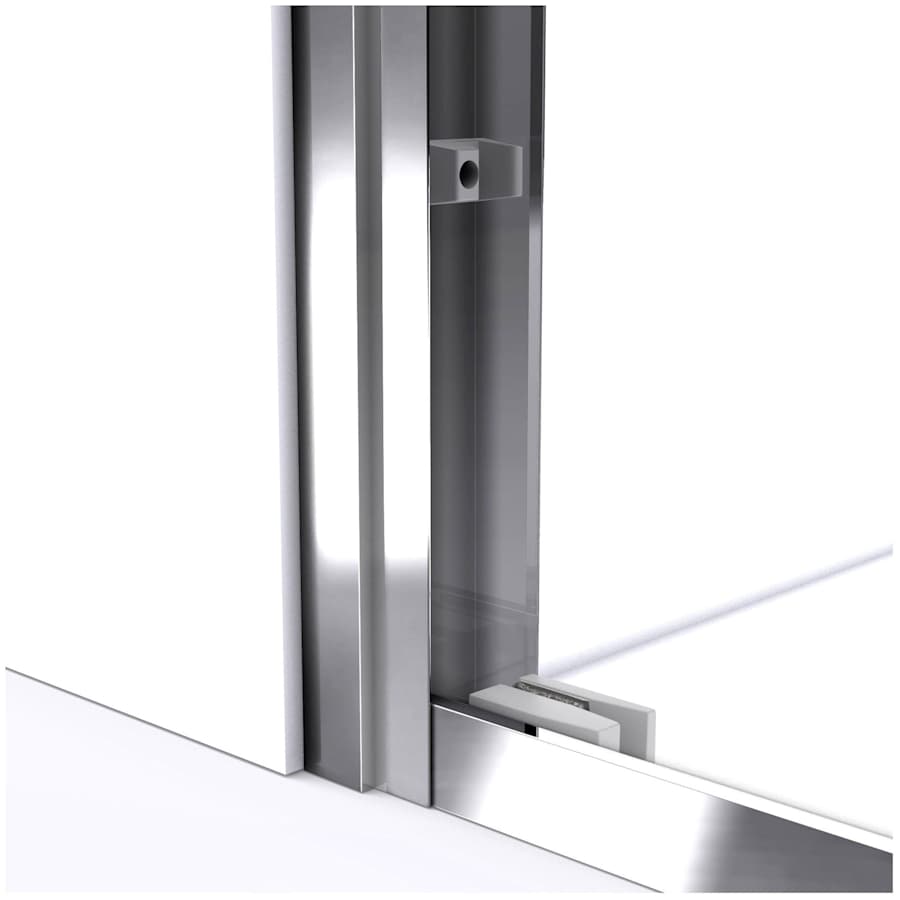

Anodized aluminum wall profiles allows a 1/2″ out-of-plumb (vertical) adjustment on each side

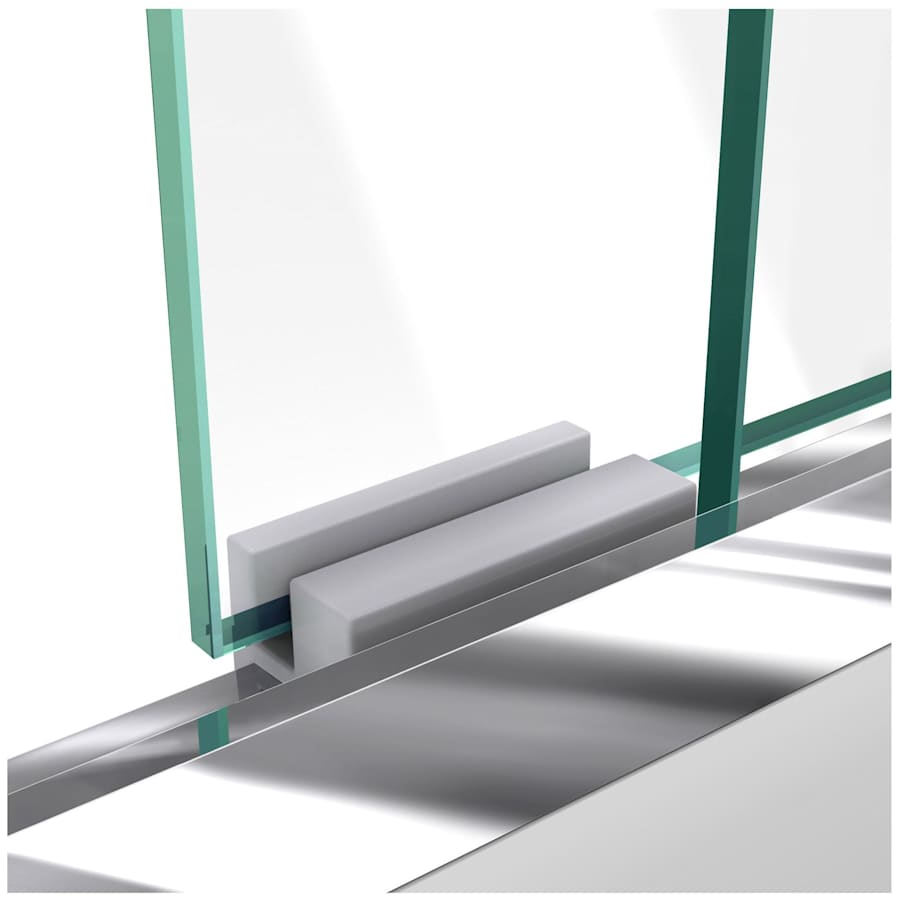

Top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment within the model size

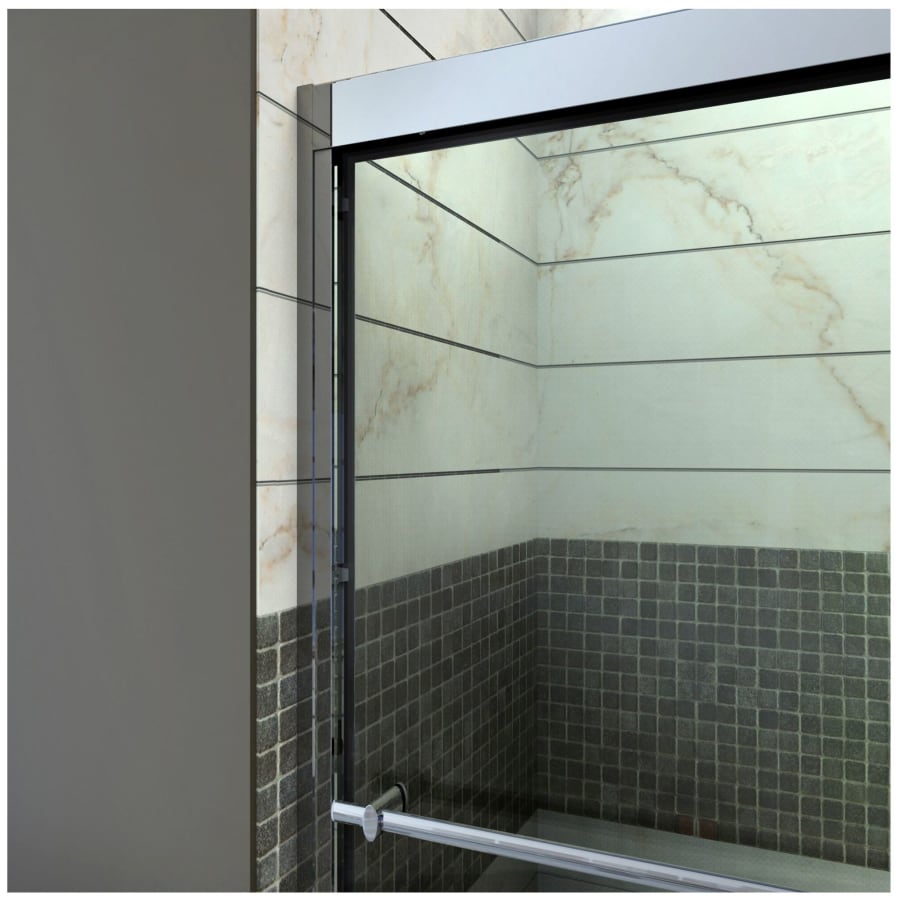

Frameless glass design
Double sliding panel (bypass) shower door
5/16″ (8mm) thick clear tempered glass

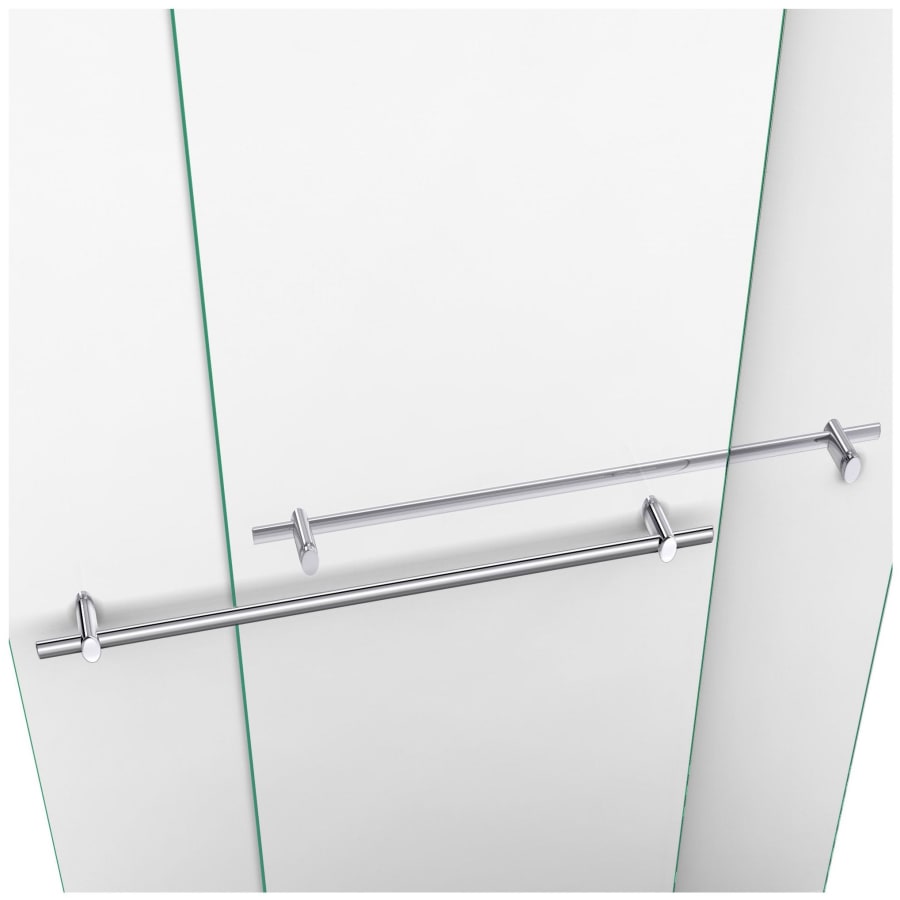

Two convenient towel bars double as handles on each panel
Door Walk-In: 22 – 26″
Panel: 29 5/8″
Professional installation recommended

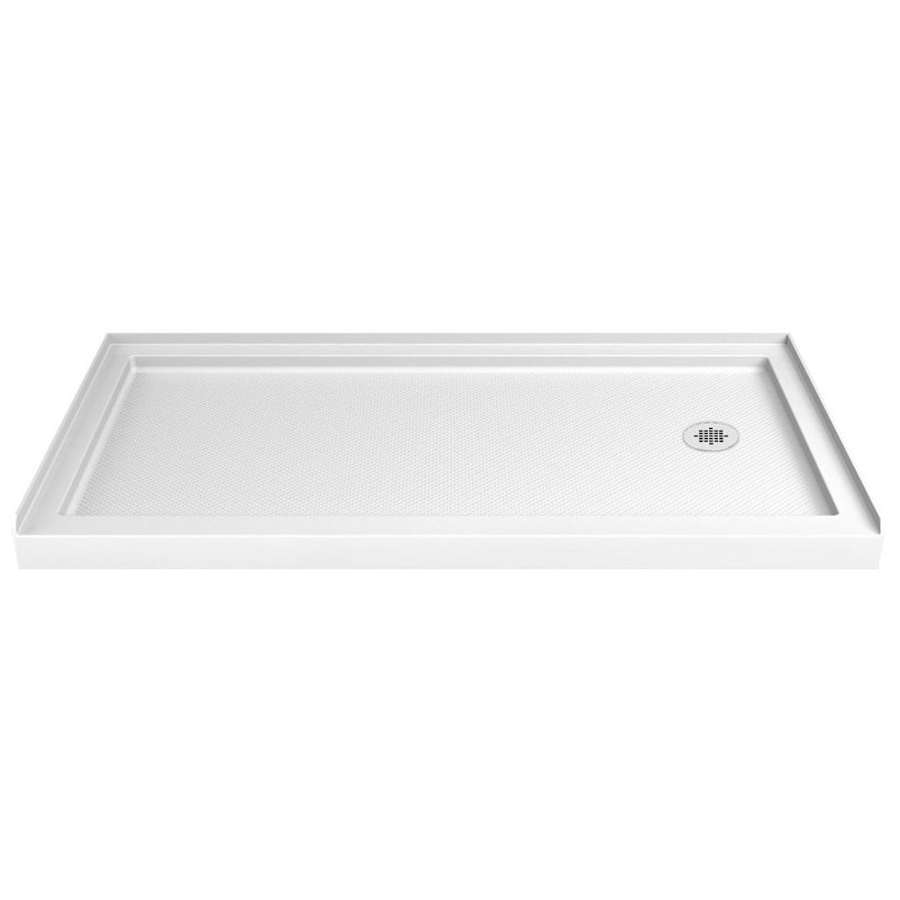

36″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

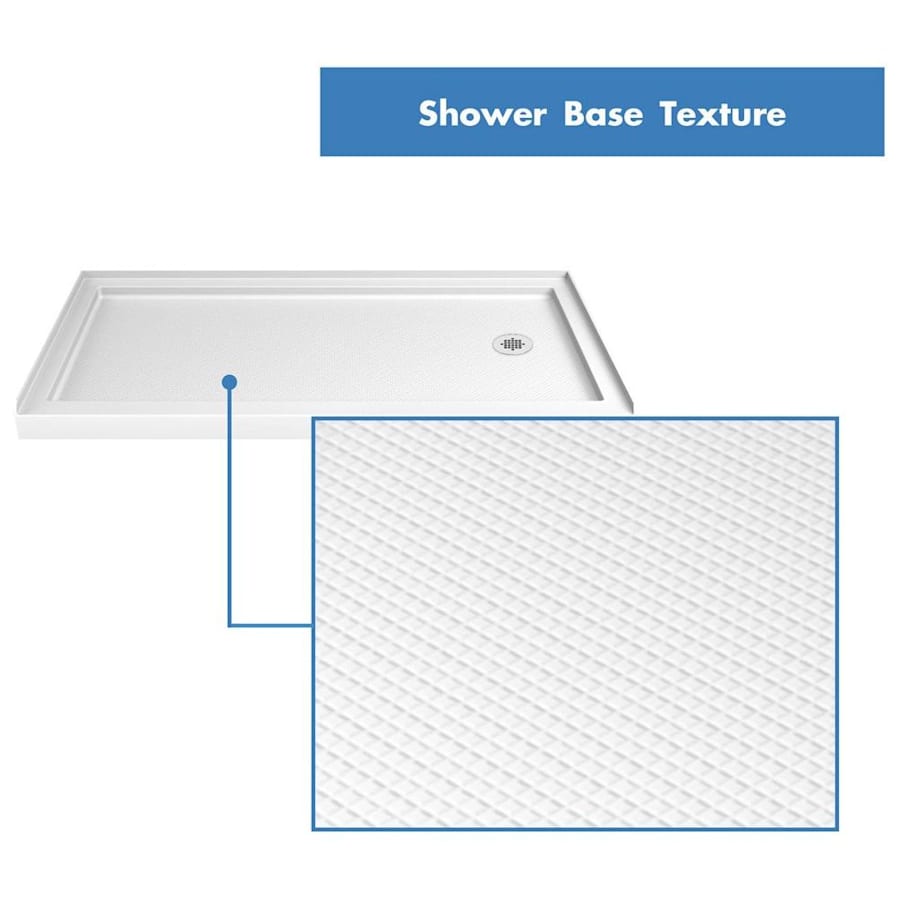

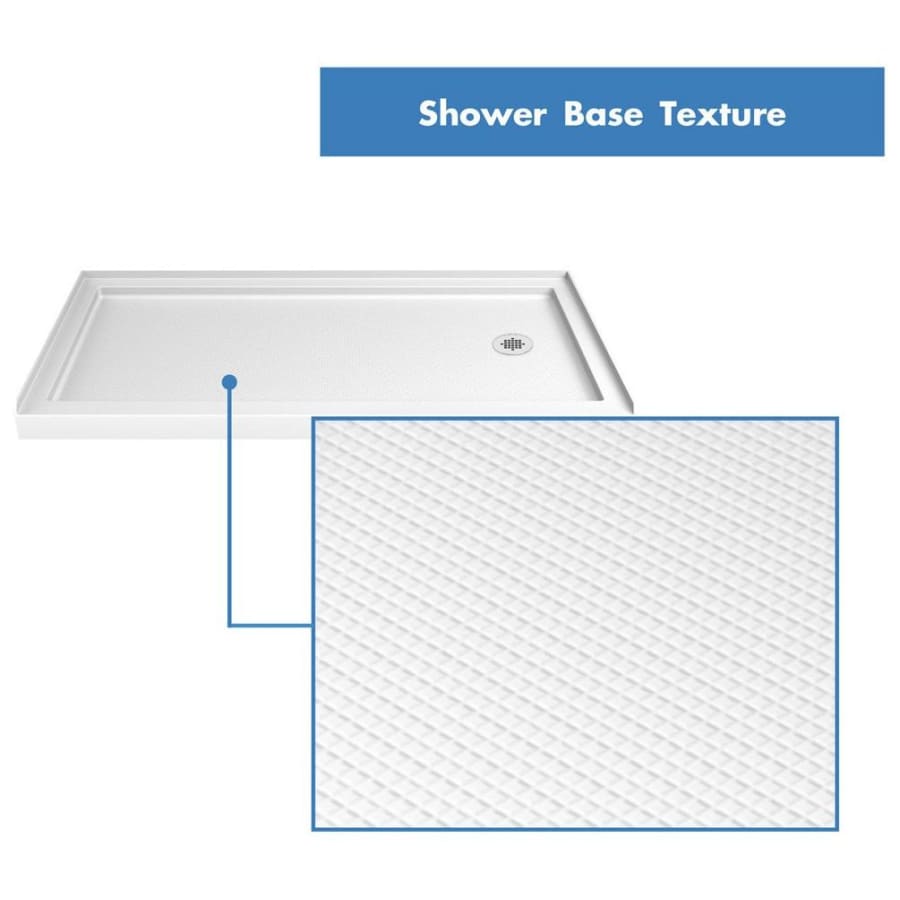

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

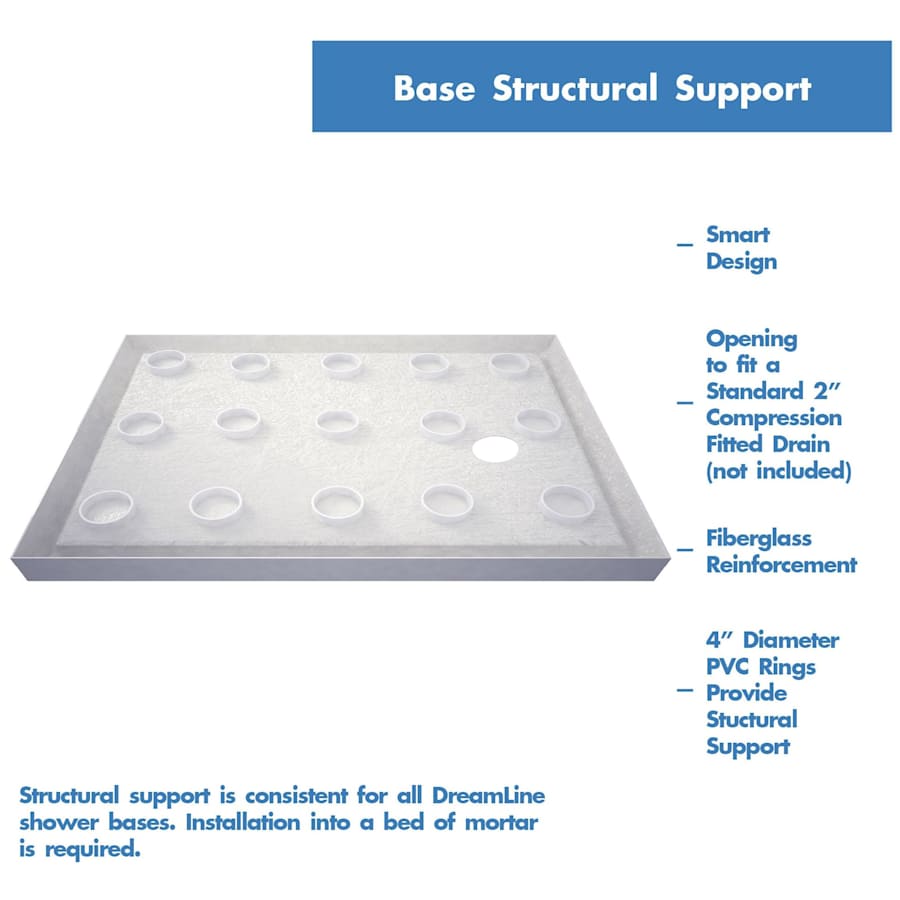

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

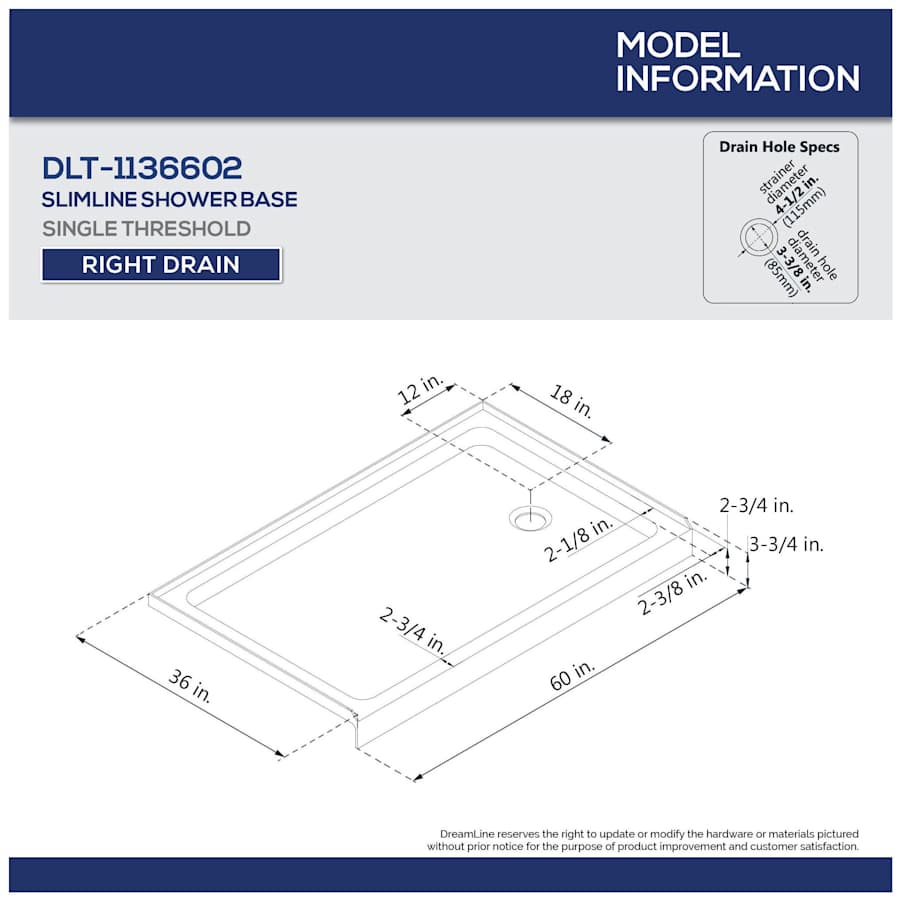

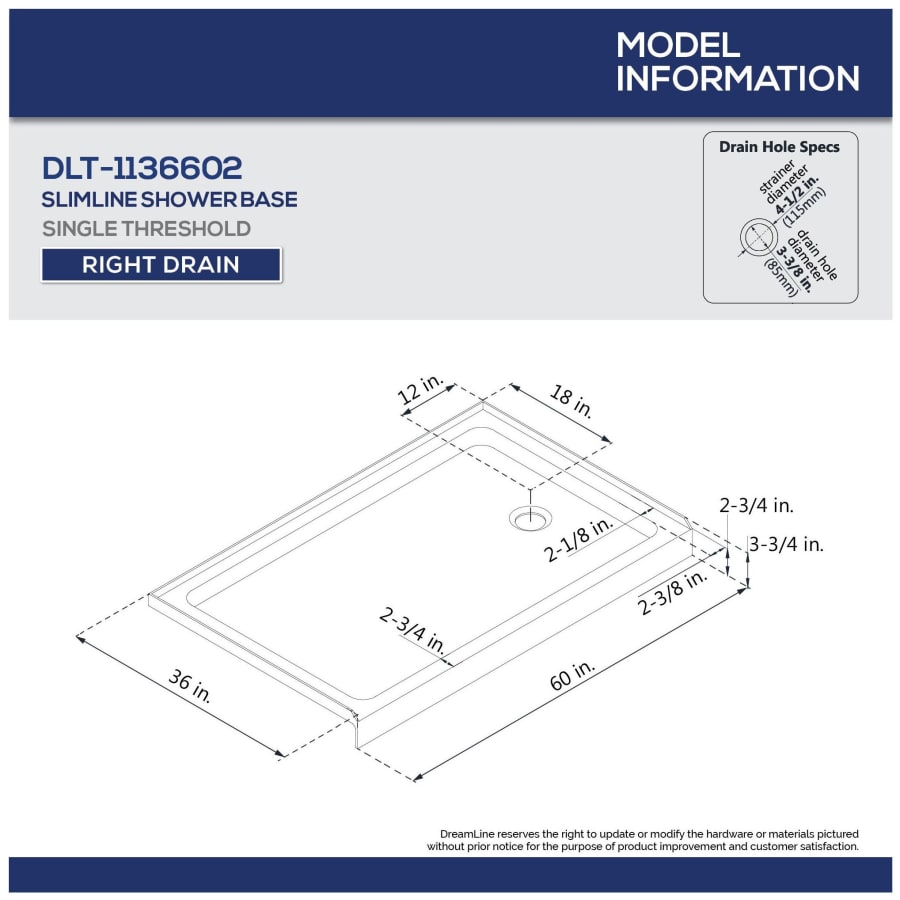

Right drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Duet Collection
Specifications
| Width | 60 in. |
| Height | 74.75 in. |
| Bar Length | 60 in. |
| Base Width | 36 in. |
| Product Weight | 191 lbs. |
| Depth | 36 in. |
| Drain Connection | 3.25 in. |
| Nominal Width | 60 in. |
| Glass Thickness | .3125 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Door Width | 26 in. |
| Shower Door Width | 26 in. |
| Thermostat | Modern |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Insulation Type | Three Wall Alcove |
| Drain Placement | Right |
| Shape | Rectangular |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Frame Type | Framed |
| Door Type | Bypass |
| Number Of Doors | 2 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Slip Resistant | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | China |
| Collection | Duet |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Color | Brushed Nickel, Chrome |
| Color Tone | Nickel Tones, Silver Tones |
