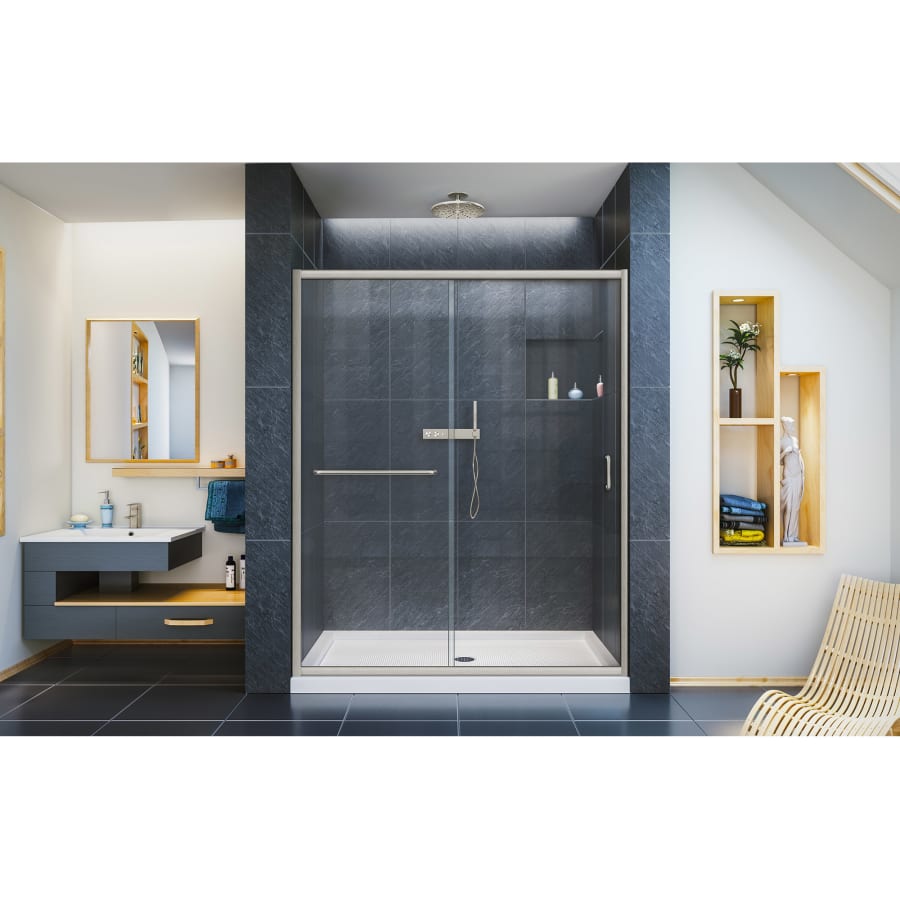

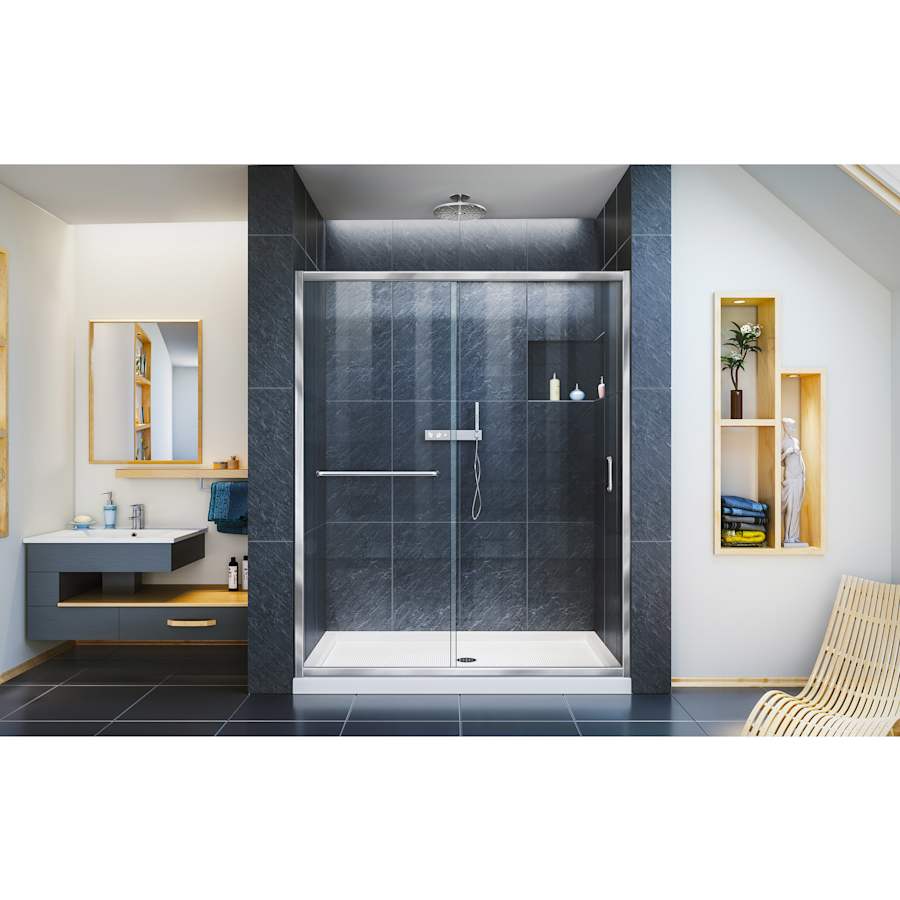

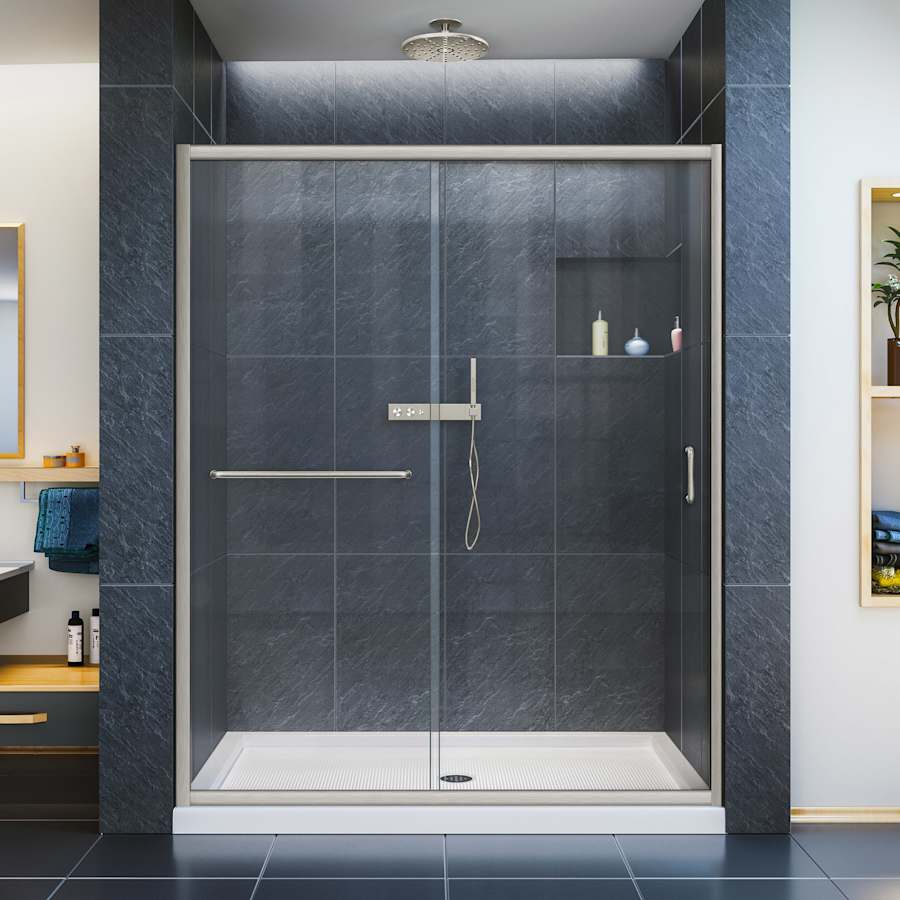

The DreamLine Infinity-Z sliding shower or tub door offers classic style with a modern touch. The Infinity-Z will transform your bathroom with a beautiful balance of functionality, elegance, and sophistication. A variety of finishes and glass options will match any bathroom decor. The SlimLine shower base completes the look with a low profile design for a sleek modern look. Choose the DreamLine Infinity-Z Kit for the ultimate solution to your shower project.
DreamLine DL-6970C-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Infinity-Z Shower Door and 30″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 30″ D x 60″ W x 74-3/4″ H
Infinity-Z Shower Door:
56 – 60″ W x 72″ H

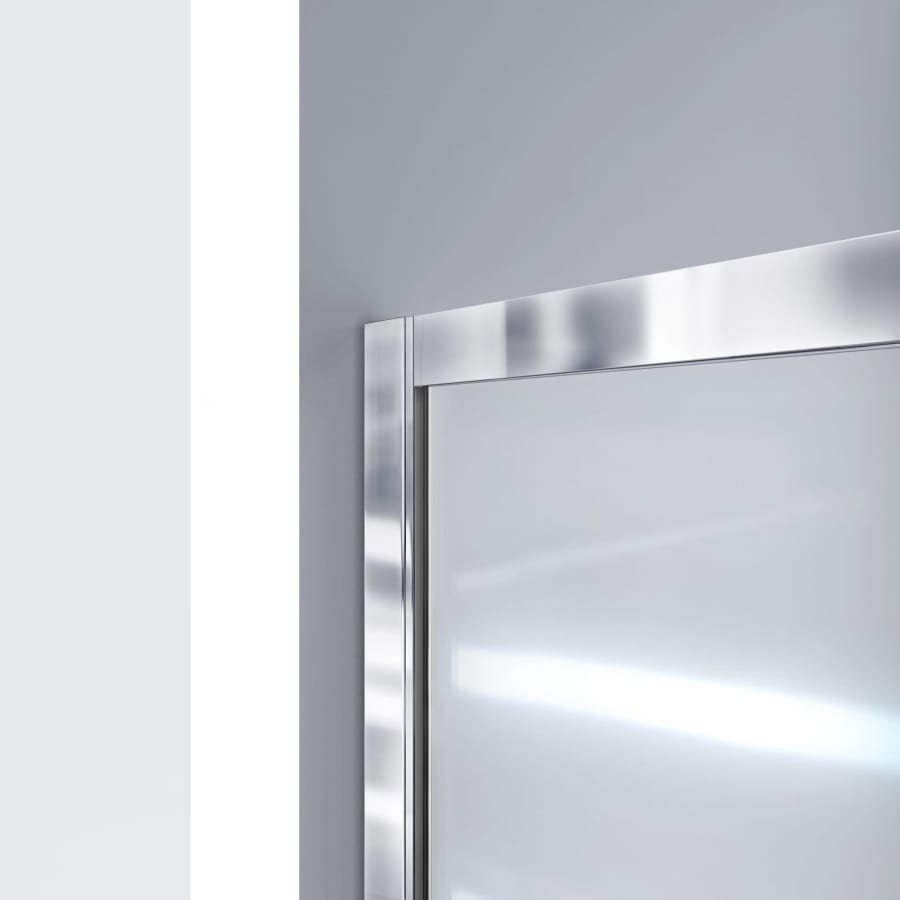

Anodized aluminum wall profiles provide up to 1″ width (horizontal) or out-of-plumb (vertical) adjustment
Frameless glass design
Model consists of single sliding panel and one stationary inline panel

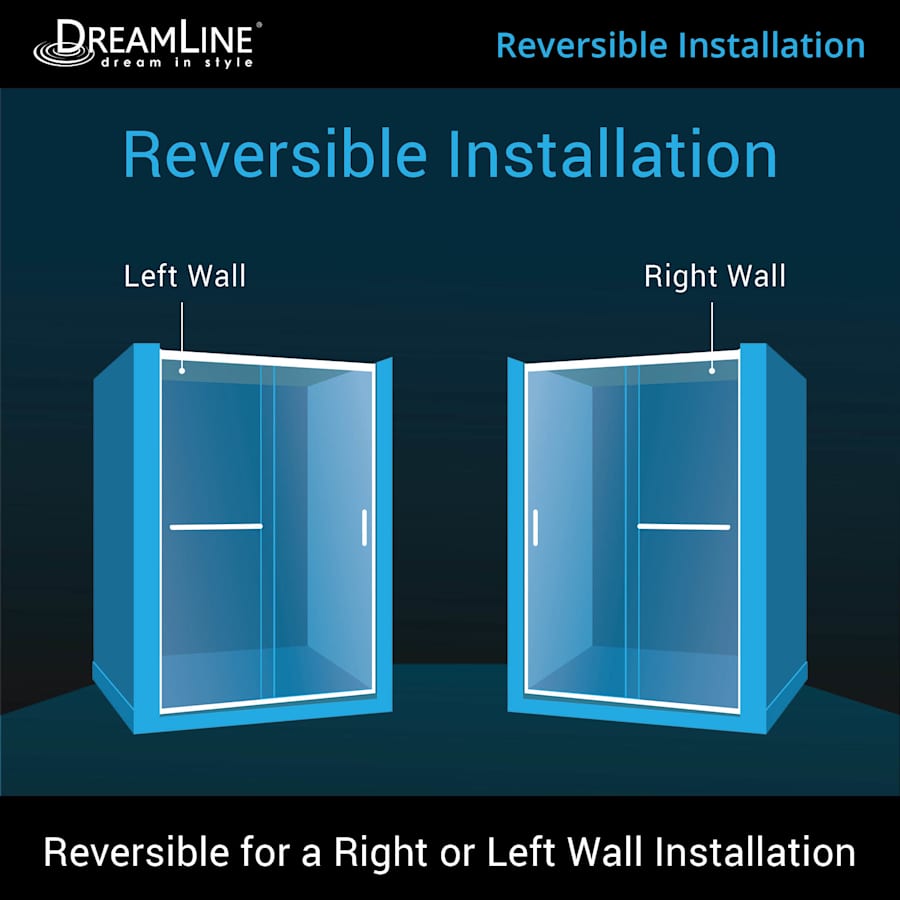

Reversible for right or left door opening installation
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 21-3/8 – 25-3/8″
Stationary Panel: 27″

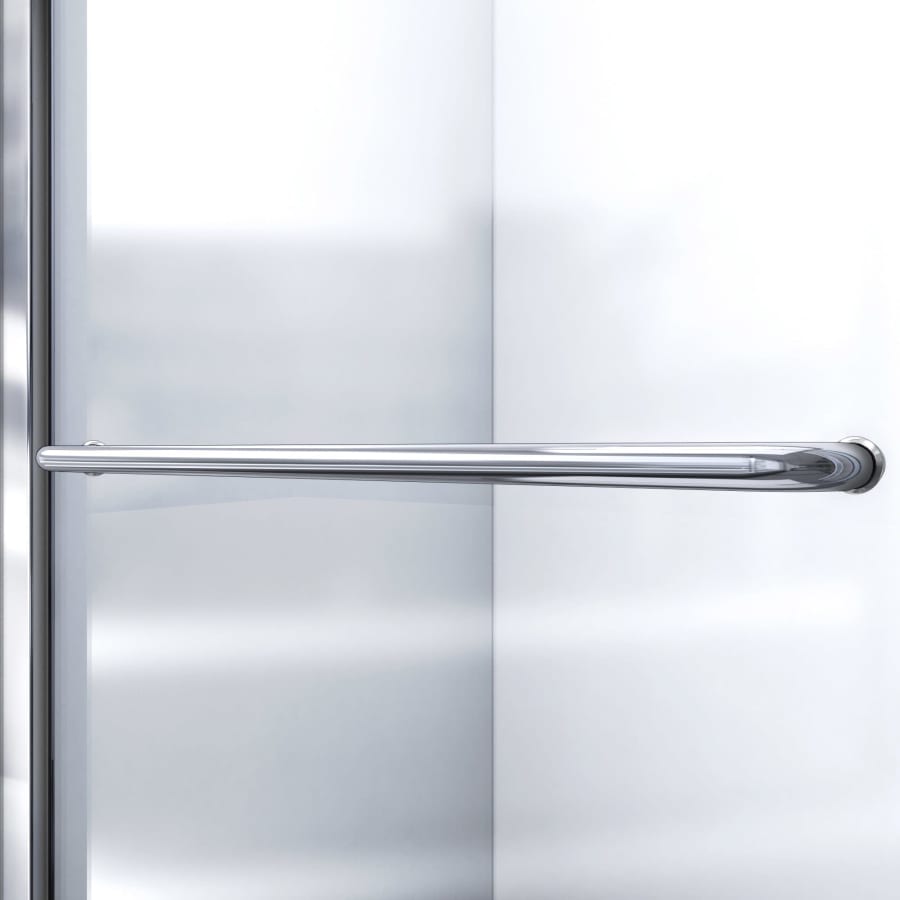

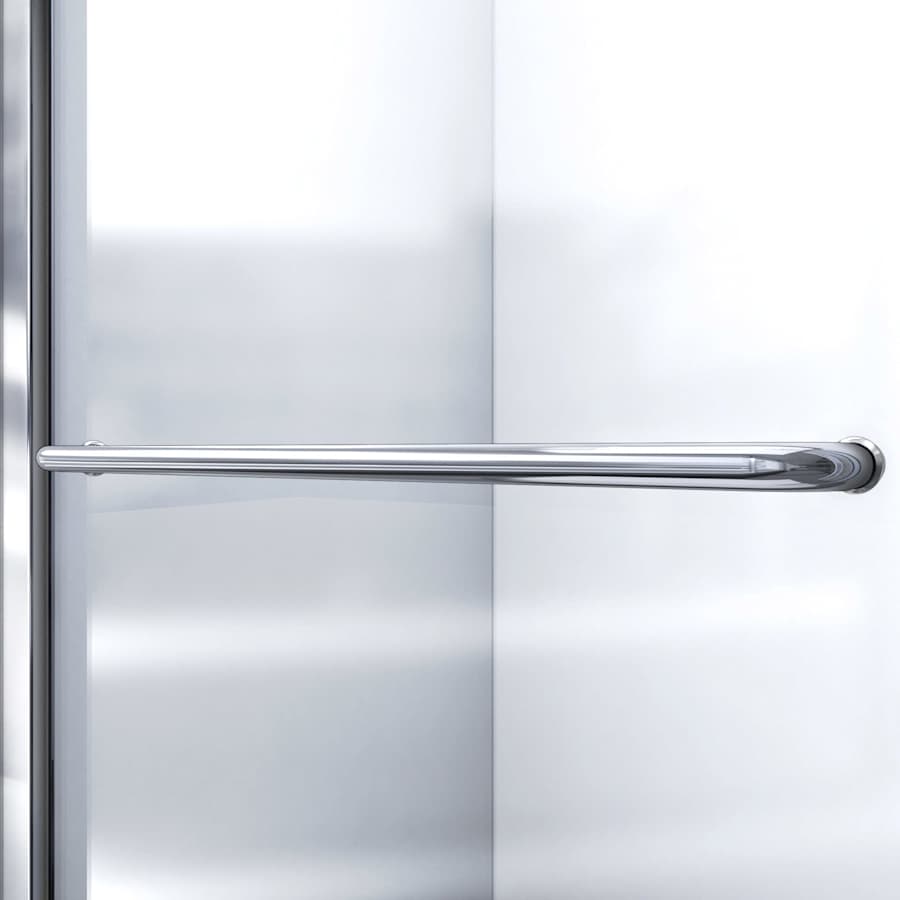

Convenient towel bar on stationary panel
Professional installation required

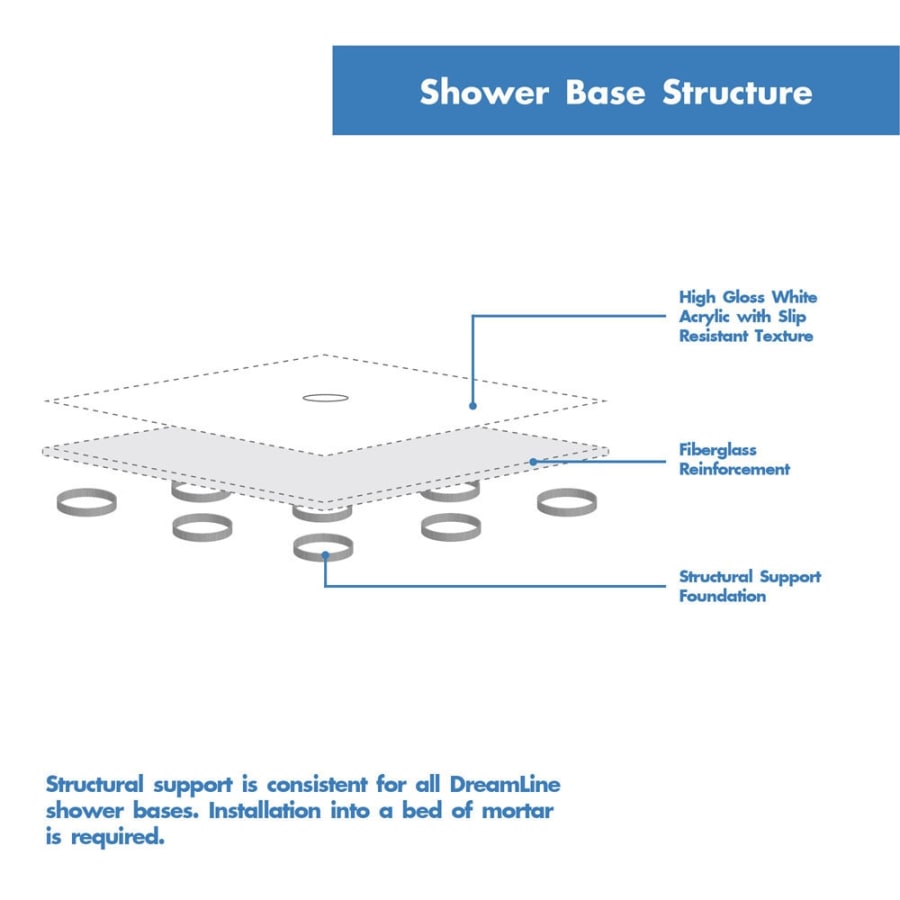

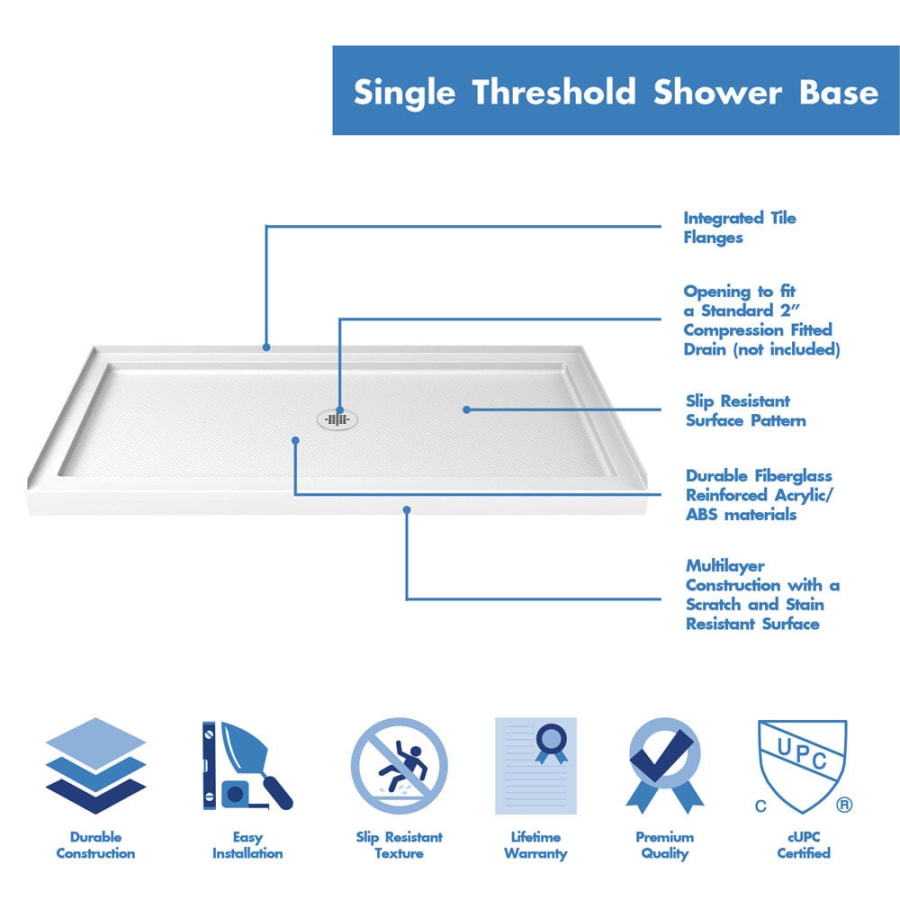

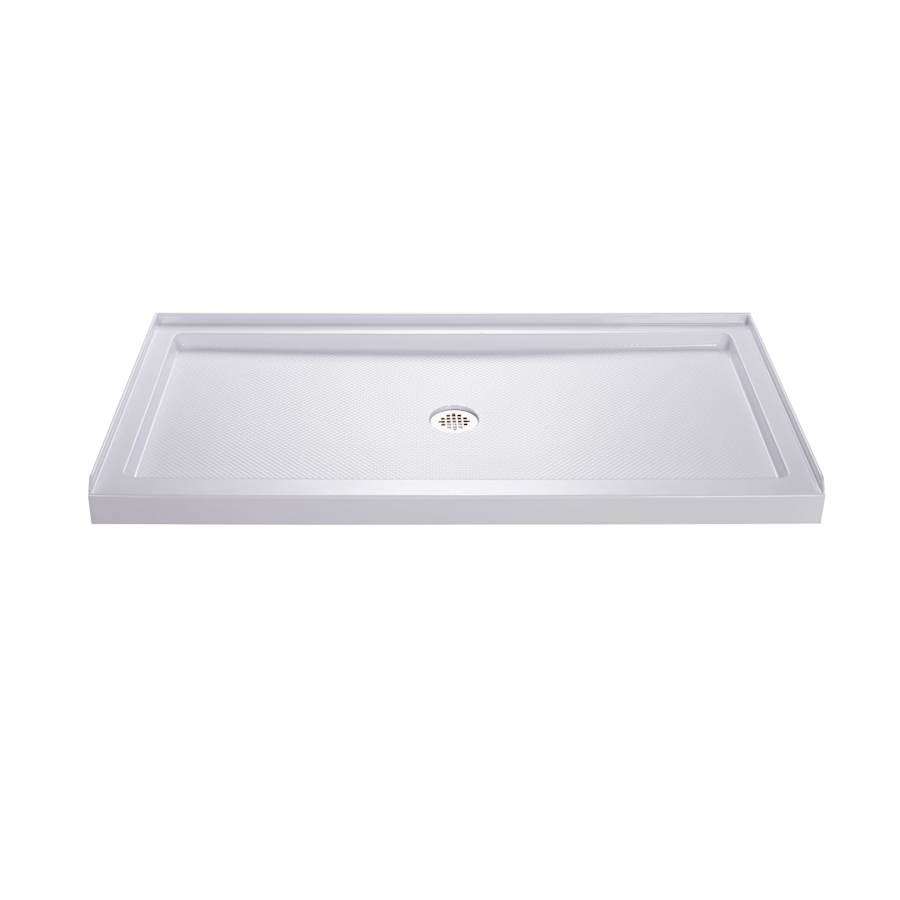

30″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic
Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

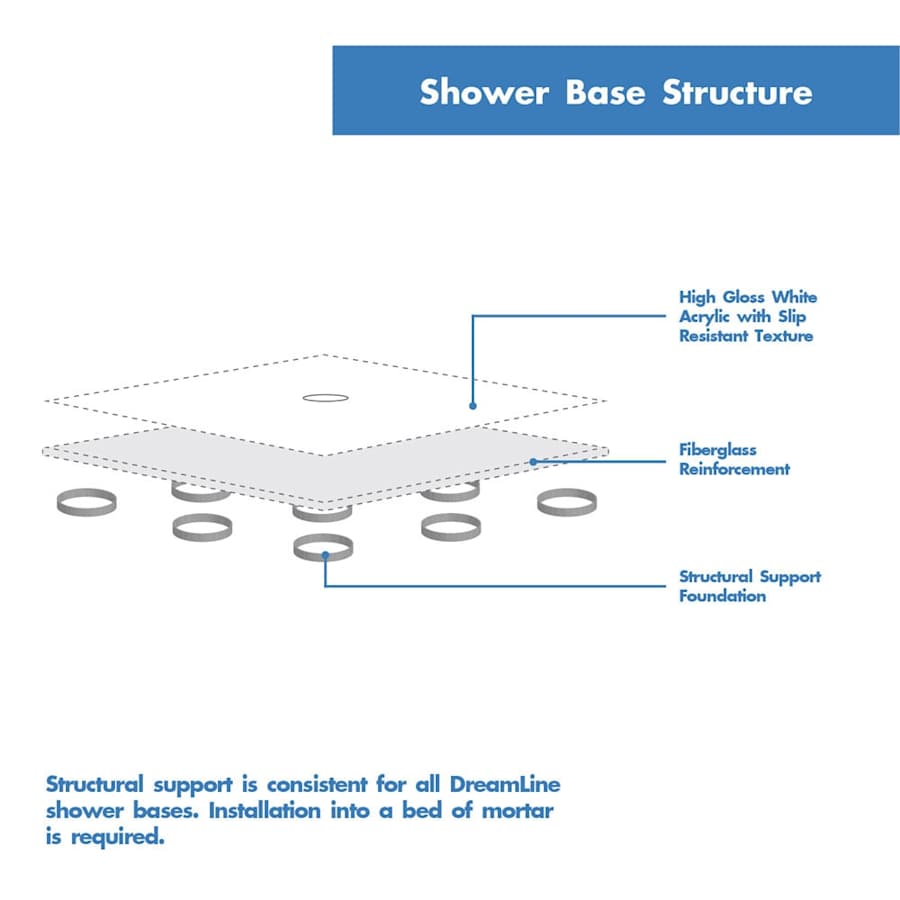

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

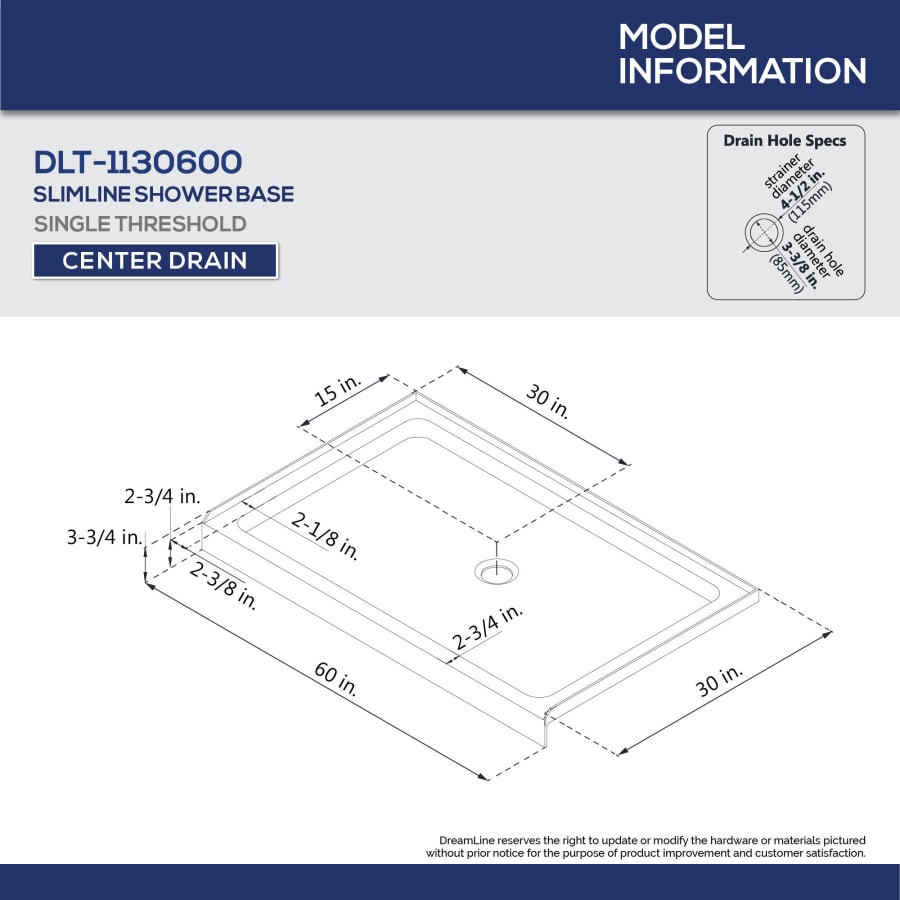

Center drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Infinity-Z Collection
Specifications
| Width | 60 in. |
| Height | 74.75 in. |
| Bar Length | 60 in. |
| Base Width | 30 in. |
| Product Weight | 146 lbs. |
| Depth | 30 in. |
| Drain Connection | 3.25 in. |
| Nominal Width | 60 in. |
| Glass Thickness | .25 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Door Width | 25.375 in. |
| Panel Width | 27 in. |
| Shower Door Width | 25.375 in. |
| Thermostat | Modern |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Insulation Type | Three Wall Alcove |
| Drain Placement | Center |
| Shape | Rectangular |
| Glass Features | Clear Glass |
| Configuration | Shower Door |
| Frame Type | Framed |
| Door Swing | Right, Left, Reversible |
| Door Type | Sliding |
| Number Of Doors | 1 |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Slip Resistant | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | China |
| Collection | Infinity-Z |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Base Included | Yes |
| Towel Bar Included | Yes |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
