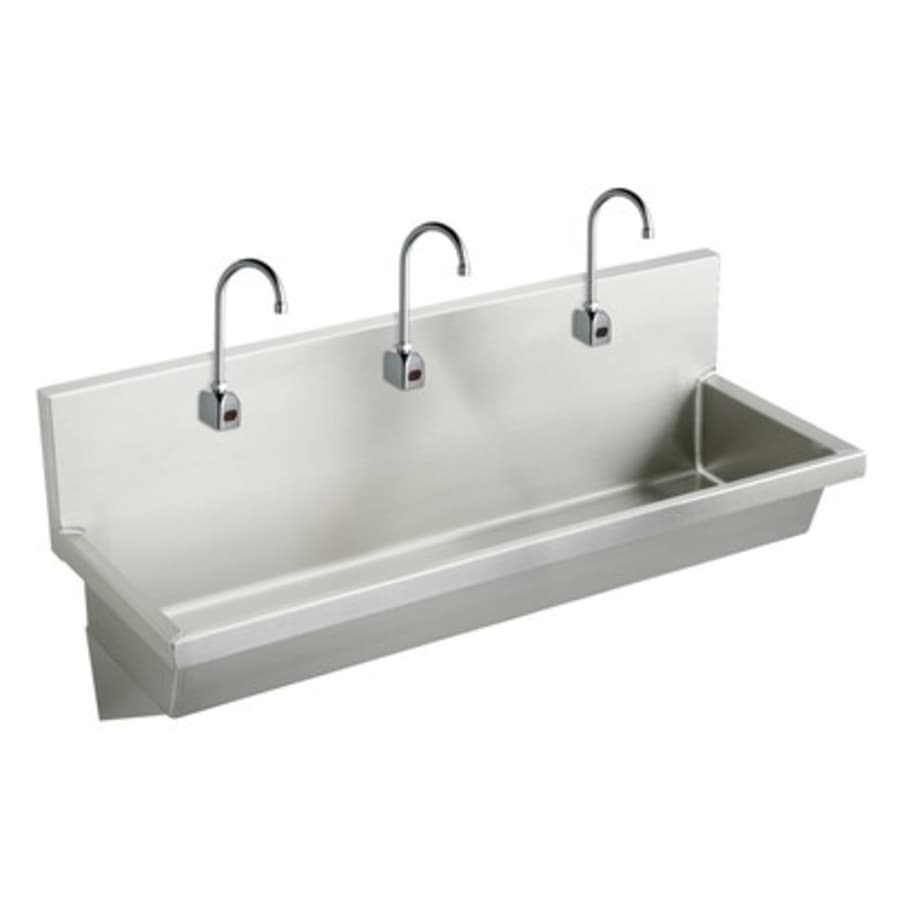

Elkay Wall Mount 14 Gauge Stainless Steel Three Station Handwash Sink with Sensor-Operated Faucets and Mixing Valve

Elkay Wall Mount 14 Gauge Stainless Steel Three Station Handwash Sink with Sensor-Operated Faucets and Mixing Valve

Product Features:

Wall mounted
Stainless steel
Multiple wash station wash sink
1-1/2″ wide inward sloping top channel rims with 2″ flat apron
Full length 10″ high backsplash
Exposed surfaces are hand blended
Furnished with wall hangers and Stainless steel support brackets
Faucet:
Sensor-operated
Non-mixing
Backsplash-mounted gooseneck faucet
Adjustable sensor eyes
Chrome-plated Solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Drain Fitting – P Trap:
Chrome plated cast brass
1-1/2″ O.D. “P” trap with cleanout plug
1-1/2″ O.D. tubing waste arm to wall and wall flange
12″ from center of drain inlet to wall
Manual Mixing Valve:
Mechanical mixing valve
Chrome plated brass body
3/8″ compression female inlets and outlet connections
check valves on inlets

Product Specifications:

Sink:
Installation Type: Wall
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 60″ L x 20″ W
Bowl Depth: 8″
Bowl Dimensions: 57″ L x 16-1/2″ W x 8″ D
Faucet Holes: 6
Drain Size: 3-1/2″
Ship Wt: 102.8 lbs
