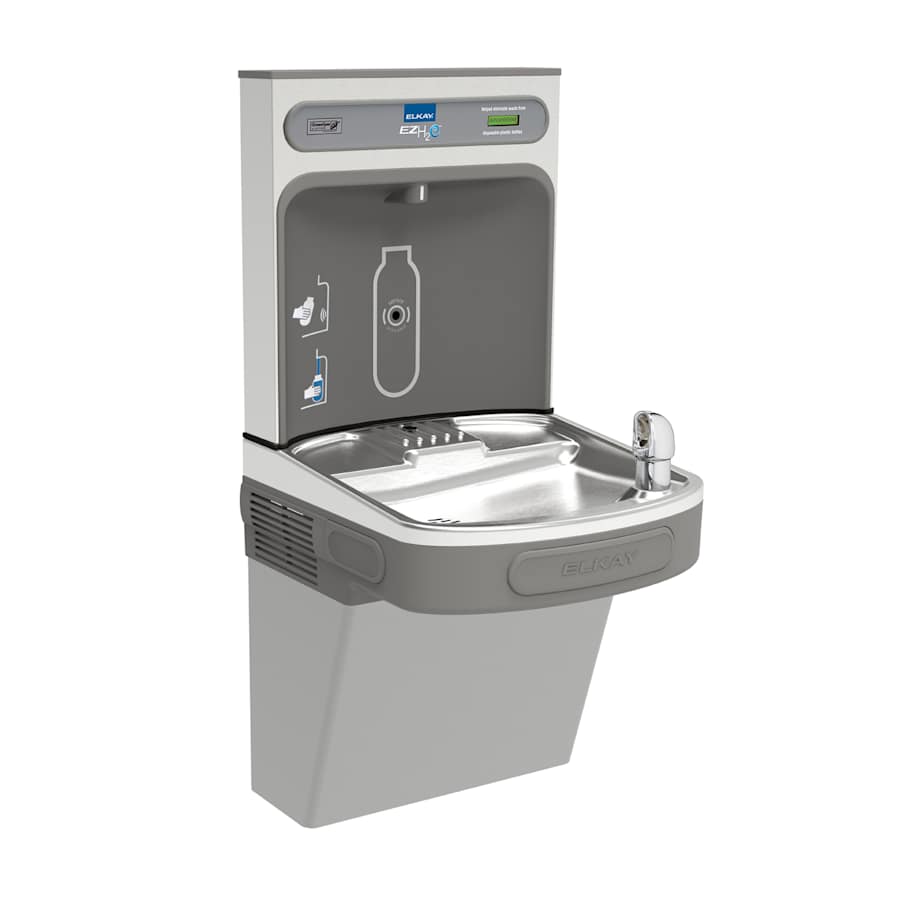

Elkay EZH2O Wall Mount Drinking Fountain and Bottle Filling Station with Vandal Resistant Bubbler

About ezH20:

ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

Elkay EZS8WSVRLK Features:

Single station bottle filling and drinking fountain combo with self contained ADA cooler
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Real drain system eliminates standing water
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Frame – Galvanized structural steel chassis supports refrigeration system and fastens to wall
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners

Elkay EZS8WSVRLK Technologies / Benefits:

Filters
With wirelessly accessible sensors, ezH20 filters are easier to install or replace. Upon replacement, the filter monitor is automatically reset.

Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.

Ease of Installation
TheezH20 are designed to be installed without any trouble.  One connection is all you need to getoperational and everything comes in one box.

Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.

Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.

Elkay EZS8WSVRLK Cooling System:

Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Controlled by accurately calibrated capillary tube
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements

Elkay EZS8WSVRLK Specifications:

Height: 39-1/8″ (measured from lowest rim to top rim of fixture)
Width: 19″ (measured from back to front of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Voltage: 115V / 60Hz
Fountain Type: Cooler
Installation Type: Wall
Hands Free Operation: No
Number of Stations: 1
Voltage: 115V/60Hz
Filter: No
Fountain Flow Rate(GPM): .13
Bottle Filler Flow Rate(GPM): 1.1
