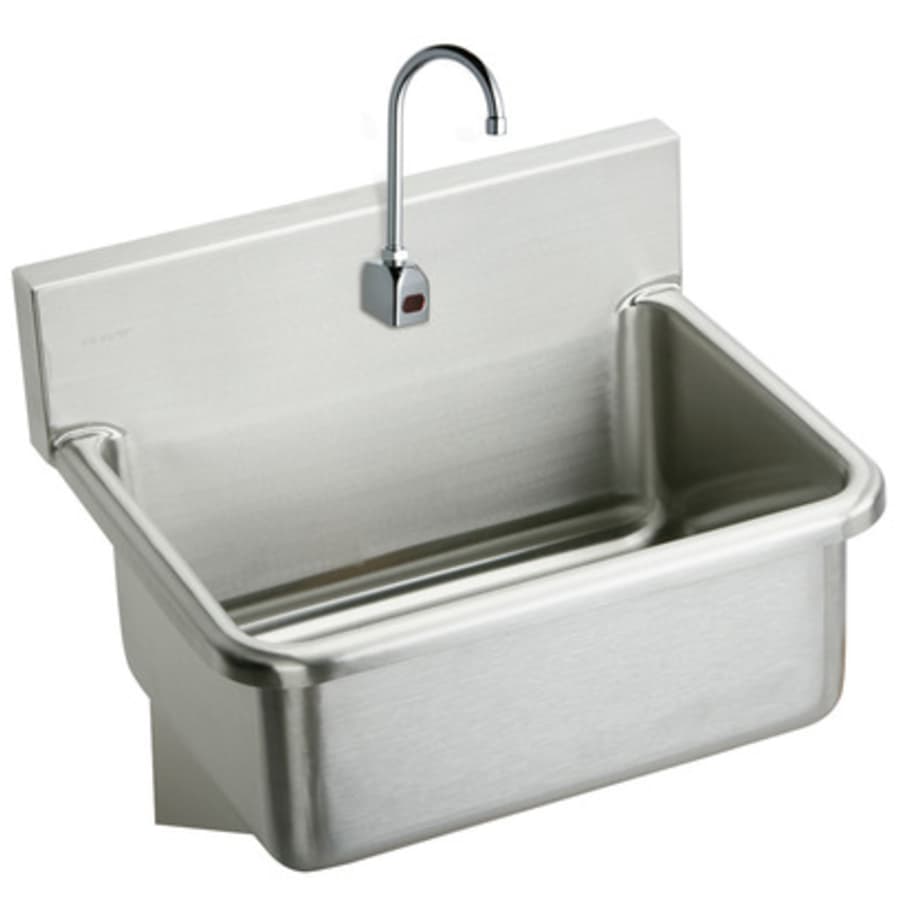

Elkay Wall Mount 14 Gauge Stainless Steel Scrub Sink with 6″ Backsplash, Sensor-Operated Faucet, Anti-Scald Mixing Valve and Drain Fitting
Product Features:
Wall mounted
Stainless steel
Scrub-up sink with 1-3/4″ radius vertical and horizontal Coved corners
1-1/2″ rolled rim
Full length 6″ high back-splash
Exposed surfaces are hand blended
Underside is sound deadened
Furnished with wall hanger and Stainless steel support brackets
Faucet:
Sensor-operated
Non-mixing
Backsplash-mounted gooseneck faucet
Adjustable sensor eyes
Chrome-plated solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Drain:
Stainless steel perforated grid strainer
1-1/2″ O.D. Stainless steel tailpiece
Anti-Scald Mixing Valve:
Anti-scald thermostatic universal mixing valve
Forged bronze body
3/8″ compression type inlet and outlet connections
Contains a four port adapter to allow use for both touchless and two handle sink operations
Comes with internal check valves on inlets and mixed temperature range of 80-120°F
Product Specifications:
Sink:
Installation Type: Wall
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 25″ L x 19-1/2″ W
Bowl Depth: 10-1/2″
Bowl Dimensions: 22″ L x 16″ W x 10-1/2″ D
Faucet Holes: 1
Drain Size: 3-1/2″
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Width | 19.5 in. |
| Length | 25 in. |
| Backplate Depth | 10.5 in. |
| Bar Length | 22 in. |
| Base Width | 16 in. |
| Flow Rate (GPM) | 2 |
| Faucet Hole Size | 1.25 in. |
| Spout Height | 5.38 in. |
| Spout Reach | 8.75 in. |
| Gauge | 14 |
| Faucet Height | 12.75 in. |
| Drain Hole | 3.5 in. |
| Approved for Commercial Use | Yes |
| ADA | No |
| CA Drought Compliant | No |
| Material | Brass, Stainless Steel |
| Insulation Type | Wall Mounted |
| Drain Placement | Center |
| Faucet Holes | 1 |
| Sink Shape | Rectangular |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel, Brass |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
