About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.
Â

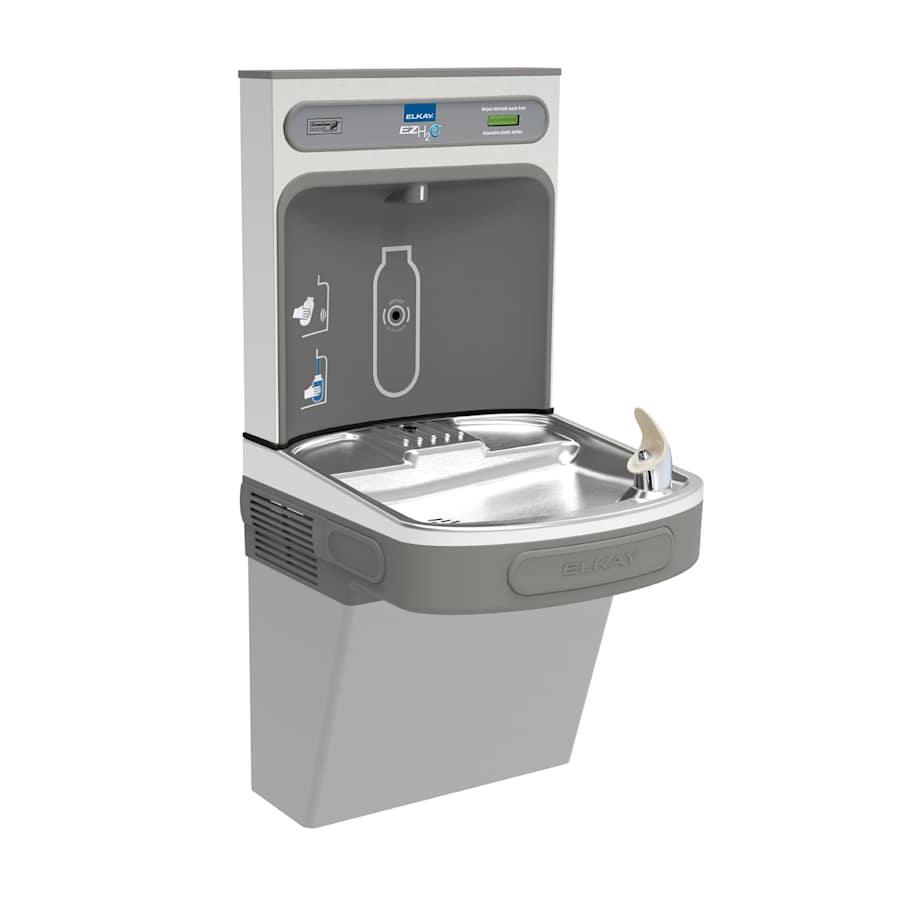

Elkay EZSDWSLK Features:
Complete drinking fountain bottle filling station in a consolidated space saving ADA compliant design
Silver Ion anti-microbial protection
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Quick fill 1.5 gpm non-refrigerated unit
Laminar flow provides minimal splash
Real drain system eliminates standing water
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Flex-Guard bubbler® utilizes pliable polyester elastomer to prevent accidental mouth injury. Flexes on impact and returns to original position
Frame – Galvanized structural steel chassis provides structural integrity and fastens to the wall
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Elkay EZSDWSLK Technologies / Benefits:
Ease of Installation
TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Â
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Â
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Â
Elkay EZSDWSLK Specifications:
Height: 39-1/8″
Width: 19″
Length: 18-3/8″
Shipping Weight: 87 lbs
Fountain Type: Non-refrigerated
Installation Type: Wall Mounted
Fountain Flow Rate(GPM): .13
Bottle Filler Flow Rate(GPM): 1.5
ADA Compliant: Yes
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Width | 19 in. |
| Height | 39.0625 in. |
| Length | 18.375 in. |
| Product Weight | 42 lbs. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Collection | EZH2O |
| Certifications | NSF, ANSI, ASME, UL |
| ADA | Yes |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| ASSE Code | A112.19.3 |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Bubbler Type | FlexiGuard Safety |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Control Type | Bar |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
| Voltage | 115 |
| Wattage | 15 |
| Frequency | 60 Hertz |
| Bottle Filler Included | Yes |
| Cooling Unit | No |
